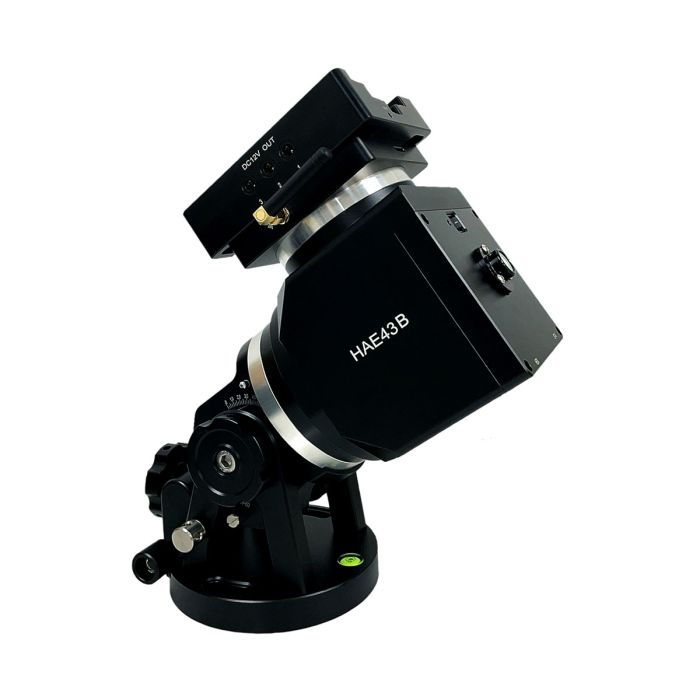

iOptron HAE43B Hybrid SWG Equatorial Mount Head with iMate
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available.
- This item is out of stock.
- We have no ETA from the manufacturer at this time.
- Sign up for back-in-stock alerts to be notified when this item becomes available.
Lower 48 States:
Orders over $50 ship free within the Lower 48 using a carrier and service we select based on your items and delivery location. Faster shipping options may be available at checkout.
U.S. Outside the Lower 48 (AK, HI, PR):
Free shipping on orders over $50 applies to many—but not all—items. Add items to your cart and enter your ZIP code to see available shipping options and any costs.
International Orders:
Free shipping does not apply to international orders. You’ll see available shipping options and costs during checkout. Some items can’t be shipped internationally due to size or manufacturer restrictions. Duties, taxes, brokerage fees, and tariffs are not included and are the customer’s responsibility.
- Advanced strain wave gear system technology
- Payload capacity of 20 kg (44 lbs) with the mount weight of 5.8 kg (12.8 lbs, include dovetail saddle)
- CNC machined
- Unique friction brake on both RA and DEC to safely stop movement during a planned or unplanned power interruption
- 270 second gear period
- Optional 8411 OLED Go2Nova® handset
- Optional iPolar for easy polar alignment
- Dual saddle (Vixen and Losmandy-D styles)
- Built in zero position search and locator
- Integrated ST-4 autoguiding port
- iMate 64-Bit ARM based computer
- USB port for firmware upgrade and computer control
- Aluminum carrying case
- Two year warranty
Please note: No tripod is included with this item. iOptron offers a carbon fiber tripod separately for this mount.
The newest member of iOptron strain wave gear mount family - AZ/EQ dual mount HAE43B! This light weight, compact, medium payload titan will deliver an astronomy experience like never before. Imagine a mount head weighing in at less than 13lbs with a payload capability 44lbs, without needing a cumbersome counterweight or shaft. Applying iOptron’s multi-decade experience creating precision mounts, the HAE43 brings this vision to reality.
Utilizing state-of-the-art strain wave gear technology for both RA and DEC movement, the HAE43s deliver unparalleled weight to payload efficiency. Its black anodized, all metal CNC machined body is appealing to the eye and is a rugged platform that will perform at the highest level for many years to come. Unique features include an electronic friction break to safely stop movement during a planned or unplanned power interruption.
The new “B” iMate HAE43 model mounts feature a powerful 64-bit ARM based on-board computer with Wi-Fi, preloaded KStars planetarium software, Ekos control and automation tool with INDI drivers. This hardware-software combination will support the use of most current and future devices allowing the user choice of brand and model (cameras, focusers, filter wheels, etc.).
With 32GB eMMC storage along with a slot for an up to 64 GB TF(microSD) memory, the iMate has the ability to control and capture an entire automated imaging session. The iMate is cross-platform; use it with Windows, IOS, Linux, Android etc .
All HAE iMate dual SWG Alt-az/Eq mounts now have an internal main board and no longer requires a handset for operation.All the accessories can be connected to the iMate and there is no cable drags when the mount is operating.
An HAE43B mount can also be controlled by a computer via the USB-C port on the mount base, either via ASCOM/Commander for a Windows PC or a third party INDI driver for a Mac OS software.
(Actual contents may differ from the image. 8411 handset and 3339 iPolar are optional.)
Specifications
- Mount: Strain Wave Altazimuth/Equatorial Mount
- RA gear system: Strain Wave Gear
- DEC gear system: Strain Wave Gear
- Reduction ratio: RA 640:1, DEC 480:1
- Payload w/o CW *: 44 lbs (20 kg)
- Mount weight: 12.8lbs (5.8kg) with dovetail saddle
- Payload/Mount weight: 3.45
- Payload with CW*: 55 lbs (25kg)
- Period: 270 second
- Drive motor: Stepper motor
- Structure Material: All metal, CNC machined
- Exterior finish: Anodized black
- Polar Scope: Optional iPolar electronic polar scope
- Level indicator: Level bubble
- Control system: GOTONOVA/Commander
- Handset: Optional 8411 OLED Go2Nova®
- Tracking: Automatic
- Maximum slew speed: 6º/sec
- Power consumption: 0.7A(Tracking), 1.2A(GOTO)
- Power: DC12V-5A (5.5/2.5mm DC plug)
- AC adapter: 100V ~ 240V (included, indoor use only)
- Power off brake: Electronic friction brake
- Built-in computer: Open Source Architecture iMateTM, preloaded KStars/Ekos and iPolarServer
- Ports on iMate: 1X USB3.0, 2X USB2.0, 3X DC 12V outputs
- Communication port: Yes (iMate and USB)
- Autoguide port: Yes (ST-4 compatible)
- Firmware upgrade: Yes
- Dovetail saddle: Vixen & Losmandy
- Tripod: Optional
- Counterweight Shaft: SS Φ20X200mm, 3/8"-16 thread (Optional)
- Counterweight: 10 lbs (4.5kg)(Optional)
- Operation temperature: -20ºC ~ 40ºC (hand controller -10ºC ~ 40ºC)
- Warranty: Two year limited
* 200mm, with payload center of gravity to the RA rotation axis. Or an OTA size of ~22
Other Information
- Country of Manufacture: China
