iOptron Tri-Pier for GoTo Mounts

Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available.
- This item is out of stock.
- We have no ETA from the manufacturer at this time.
- Sign up for back-in-stock alerts to be notified when this item becomes available.
Lower 48 States:
Orders over $50 ship free within the Lower 48 using a carrier and service we select based on your items and delivery location. Faster shipping options may be available at checkout.
U.S. Outside the Lower 48 (AK, HI, PR):
Free shipping on orders over $50 applies to many—but not all—items. Add items to your cart and enter your ZIP code to see available shipping options and any costs.
International Orders:
Free shipping does not apply to international orders. You’ll see available shipping options and costs during checkout. Some items can’t be shipped internationally due to size or manufacturer restrictions. Duties, taxes, brokerage fees, and tariffs are not included and are the customer’s responsibility.
Introducing a new concept in mount support...

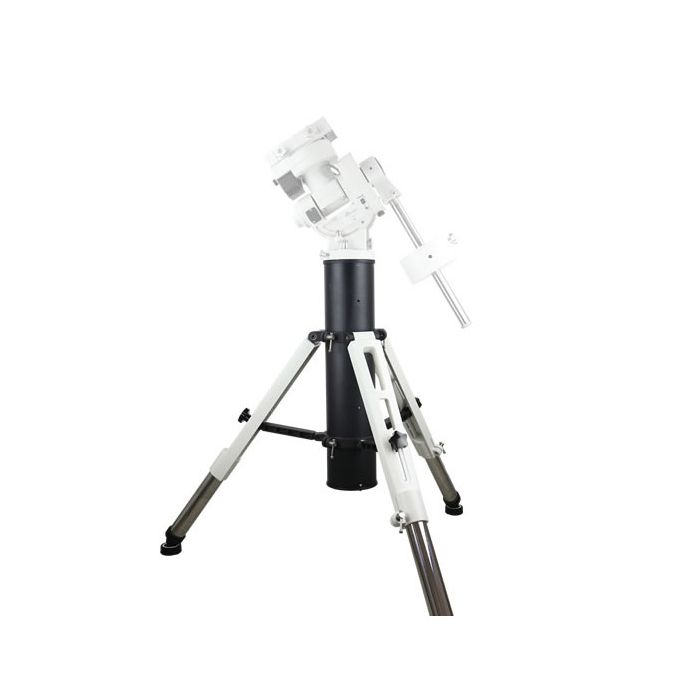

The iOptron Tri-Pier combines the strength and stableness of a pier with the levelling flexibility of a tripod. Aluminum pier and leg tops. Stainless steel leg extensions. The Tri-Pier feet has built-in vibration suspension pads.
The Tri-pier fits these iOptron mounts (may need extra mounting accessories):
- CEM70A/CEM70AG
- CEM60/CEM60EC
- CEM40/CEM40EC
- GEM45/GEM45EC (may limit low latitude application)
- iEQ45/iEQ45 Pro
- iEQ30/iEQ30 Pro (may limit low latitude application)
- AZ Mount Pro/MiniTower/MiniTower II/MiniTower Pro (needs a center post and three leveling screws #8340-PIER, not included)
- HAE43 SWG
- HAE69 SWG
The Tri-pier also fits other brand mounts with a suitable adapter.
Technical Specifications:
- Max Payload: 220 lbs (100 kg)
- Self Weight: ~25.8 lbs (11.7 kg)
- Pier Diameter: 5.7" (144 mm) with 150mm top plate
- Adjustable Height: 31.5"-42.5" (800-1080 mm)
- Uneven Ground Range: 3.35" (85 mm)
- Leg Maximum Spread: Ø48.8" (Ø1240 mm)
- Pier Dimension (folded): Ø12.8"x 26” (Ø325 x 660 mm)
- Threaded Rod attachment: M12
- Warranty: One year limited
Other Information
- Country of Manufacture: China
Introducing a new concept in mount support...
