Includes:
- 1xiOptron CEM70EC Mount Head with iPolar & Hard Case

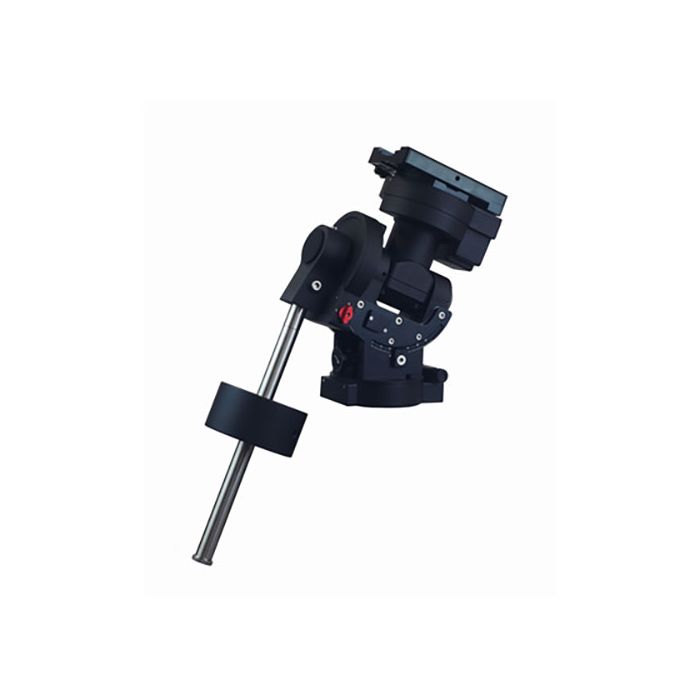

iOptron CEM70EC Equatorial Mount Head with iPolar & Hard Case
Sku:
PAMT-IO-C704A0
Mfg #:
C704A0
Item Can Ship:
To US Only
The price depends on the chosen options
Free Shipping | Ships Same or Next Business Day
Final product price
In Stock
(Only 1 left)
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available.
- This item is out of stock.
- We have no ETA from the manufacturer at this time.
- Sign up for back-in-stock alerts to be notified when this item becomes available.
Lower 48 States:
Orders over $50 ship free within the Lower 48 using a carrier and service we select based on your items and delivery location. Faster shipping options may be available at checkout.
U.S. Outside the Lower 48 (AK, HI, PR):
Free shipping on orders over $50 applies to many—but not all—items. Add items to your cart and enter your ZIP code to see available shipping options and any costs.
International Orders:
Free shipping does not apply to international orders. You’ll see available shipping options and costs during checkout. Some items can’t be shipped internationally due to size or manufacturer restrictions. Duties, taxes, brokerage fees, and tariffs are not included and are the customer’s responsibility.
SKU:
PAMT-IO-C704A0
Mfg #:
C704A0
Item Can Ship:
To US Only
Description
Description
Following up on the success of the iOptron CEM60 center balance equatorial mount, we at iOptron are excited to introduce two new medium payload center balance mounts. The CEM70 series mounts are new standard bearers for equatorial mounts in the 70lb payload segment. The mounts are packed with advanced features however the CEM70G is the first of its type with an onboard optical guiding system increasing tracking accuracy while streamlining the components resulting in a more portable imaging setup.
Retaining the inherent properties of the center balance design, these relatively compact medium payload mounts deliver what astronomers expect in an efficient accurate portable mount. With precise GOTO pointing and accurate tracking, the CEM70EC is a solid performer for observers and imagers alike.
Innovative operational features such as the internal iPolar electronic polar scope, easy lock drive gear engagement (levers large enough to use with gloves), an advanced cable management system for the mount, iPolar, guider, and camera, and cumulatively assure users the CEM70 designed with their needs in mind.
Features
- A new design, center-balanced equatorial mount (CEM) for maximum payload with natural stability
- Ideal for both visual observation and astrophotography
- Payload of 70 lbs (31.8 kg) with the mount weight of 30 lbs (13.6 kg)
- Easy to use and reliable gear clutches
- Precision altitude and azimuth adjustment.
- Precision stepper motor with 0.07 arcsec accuracy for precise GOTO and accurate tracking
- iPolarTM electronic polar scope
- Go2Nova® 8407+ V2 controller with Advanced GOTONOVA® GOTO Technology with built in heater
- High precision tracking with low periodic error (PE <0.3 arcsec rms)
- realtime periodic error correction (RPEC)
- 32-channel Global Positioning System (GPS)
- USB connection
- Integrated ST-4 autoguiding port
- Advanced cable management system with more choices
- Spring loaded 8" Vixen/Losmandy dual saddle
- NEW iOptron subsidized TheSky Imaging Edition
PACKAGE CONTENTS
Box 1 of 2: #C704A
- 1x CEM70EC mount head in hard case with accessories
Box 2 of 2: #7226
- 1x 9.5kg counterweight
Specifications:
- Mount: Center-balanced Equatorial Mount (CEM)
- Payload*: 31.8kg (70 lbs), exclude counterweight
- Mount weight: 13.6kg (30 lbs)
- Payload/Mount weight ratio: 2.33
- Material: All metal
- Latitude adjustment range: 0°~ 65°
- Azimuth adjustment range: ± 4°
- PE (by encoder)**: < 0.3 arcsec rms**
- Worm period: 348 sec
- PEC: Real-time PEC(RPEC)
- Right Ascension worm wheel: Φ151mm, 248 teeth
- Declination worm wheel: Φ151mm, 248 teeth
- Worm: Φ21.2mm
- Right Ascension axle: Φ55mm, steel
- Declination axle: Φ55mm, steel
- Right Ascension bearings: Φ80mm
- Declination bearings: Φ80mm
- Counterweight shaft: Φ28x 415 mm (SS, 1.9kg)
- Counterweight: 9.5 kg (20 lbs) x1
- Mount base size: Φ152mm
- Motor drive: Precision stepper motor w/128 micro-step
- Resolution: 0.07 arc seconds
- Slew speed: 3.75°/sec (900x) max.
- Hand Controller: Go2Nova® 8407+, 8 line 21 character LCD
- Power requirement: DC 12V, 5A (5.5mm/2.5mm plug)
- Power consumption: 0.6A(Tracking),0.8A(GOTO)
- Polar Scope: Internal electronic polar scope, iPolar
- Meridian treatment Stop (0-10° pass), auto flip
- Zero position: Automatic zero search
- Park position: Horizontal, vertical, current, alt/azi input
- Level indicator: YES
- Dovetail saddle: 8" Losmandy D & Vixen
- GPS: YES
- Guiding port: ST-4
- Communication port: USB2.0
- Cable management: 2xDC12V (3A), 3xUSB2.0, 1xDC in/1xDC out, iPort.
- 1X USB input for mount and USB hub
- Operation temperature range: -10°C ~ +40°C
- Hard case: Yes

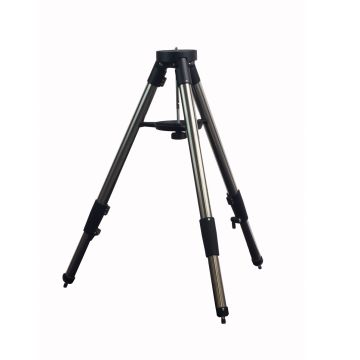

- Pier/Tripod: Optional LiteRoc tripod or pier
- Warranty: Two year limited
Other Information
- Country of Manufacture: China
Following up on the success of the iOptron CEM60 center balance equatorial mount, we at iOptron are excited to introduce two new medium payload center balance mounts. The CEM70 series mounts are new standard bearers for equatorial mounts in the 70lb payload segment. The mounts are packed with advanced features however the CEM70G is the first of its type with an onboard optical guiding system increasing tracking accuracy while streamlining the components resulting in a more portable imaging setup.
Retaining the inherent properties of the center balance design, these relatively compact medium payload mounts deliver what astronomers expect in an efficient accurate portable mount. With precise GOTO pointing and accurate tracking, the CEM70EC is a solid performer for observers and imagers alike.
Innovative operational features such as the internal iPolar electronic polar scope, easy lock drive gear engagement (levers large enough to use with gloves), an advanced cable management system for the mount, iPolar, guider, and camera, and cumulatively assure users the CEM70 designed with their needs in mind.
Features
- A new design, center-balanced equatorial mount (CEM) for maximum payload with natural stability
- Ideal for both visual observation and astrophotography
- Payload of 70 lbs (31.8 kg) with the mount weight of 30 lbs (13.6 kg)
- Easy to use and reliable gear clutches
- Precision altitude and azimuth adjustment.
- Precision stepper motor with 0.07 arcsec accuracy for precise GOTO and accurate tracking
- iPolarTM electronic polar scope
- Go2Nova® 8407+ V2 controller with Advanced GOTONOVA® GOTO Technology with built in heater
- High precision tracking with low periodic error (PE <0.3 arcsec rms)
- realtime periodic error correction (RPEC)
- 32-channel Global Positioning System (GPS)
- USB connection
- Integrated ST-4 autoguiding port
- Advanced cable management system with more choices
- Spring loaded 8" Vixen/Losmandy dual saddle
- NEW iOptron subsidized TheSky Imaging Edition
PACKAGE CONTENTS
Box 1 of 2: #C704A
- 1x CEM70EC mount head in hard case with accessories
Box 2 of 2: #7226
- 1x 9.5kg counterweight
Specifications:
- Mount: Center-balanced Equatorial Mount (CEM)
- Payload*: 31.8kg (70 lbs), exclude counterweight
- Mount weight: 13.6kg (30 lbs)
- Payload/Mount weight ratio: 2.33
- Material: All metal
- Latitude adjustment range: 0°~ 65°
- Azimuth adjustment range: ± 4°
- PE (by encoder)**: < 0.3 arcsec rms**
- Worm period: 348 sec
- PEC: Real-time PEC(RPEC)
- Right Ascension worm wheel: Φ151mm, 248 teeth
- Declination worm wheel: Φ151mm, 248 teeth
- Worm: Φ21.2mm
- Right Ascension axle: Φ55mm, steel
- Declination axle: Φ55mm, steel
- Right Ascension bearings: Φ80mm
- Declination bearings: Φ80mm
- Counterweight shaft: Φ28x 415 mm (SS, 1.9kg)
- Counterweight: 9.5 kg (20 lbs) x1
- Mount base size: Φ152mm
- Motor drive: Precision stepper motor w/128 micro-step
- Resolution: 0.07 arc seconds
- Slew speed: 3.75°/sec (900x) max.
- Hand Controller: Go2Nova® 8407+, 8 line 21 character LCD
- Power requirement: DC 12V, 5A (5.5mm/2.5mm plug)
- Power consumption: 0.6A(Tracking),0.8A(GOTO)
- Polar Scope: Internal electronic polar scope, iPolar
- Meridian treatment Stop (0-10° pass), auto flip
- Zero position: Automatic zero search
- Park position: Horizontal, vertical, current, alt/azi input
- Level indicator: YES
- Dovetail saddle: 8" Losmandy D & Vixen
- GPS: YES
- Guiding port: ST-4
- Communication port: USB2.0
- Cable management: 2xDC12V (3A), 3xUSB2.0, 1xDC in/1xDC out, iPort.
- 1X USB input for mount and USB hub
- Operation temperature range: -10°C ~ +40°C
- Hard case: Yes
- Pier/Tripod: Optional LiteRoc tripod or pier
- Warranty: Two year limited
Read Full Description
Specifications
Specifications
| Product Status | new |
|---|---|
| Free Shipping Graphic | Free Contiguous US Shipping |
| Hide Found a better Shipped Price on Frontend? | No |
Reviews / Q&A
Reviews / Q&A
In the Box
In the Box
- CEM70EC mount with internal iPolarTM electronic Polar Scope
- Hand Controller (HC) – Go2Nova® 8410
- Counterweight – 21 lbs (9.5 kg)
- Stainless steel counterweight shaft
- Built-in GPS module
- Hand controller coiled cables
- USB cable
- AC adapter – 100/240V (DC output 12V/5A, indoor use only)
- Hard case
- Quick Start Guide
Description
Specifications
Reviews / Q&A
In the Box
Description
Following up on the success of the iOptron CEM60 center balance equatorial mount, we at iOptron are excited to introduce two new medium payload center balance mounts. The CEM70 series mounts are new standard bearers for equatorial mounts in the 70lb payload segment. The mounts are packed with advanced features however the CEM70G is the first of its type with an onboard optical guiding system increasing tracking accuracy while streamlining the components resulting in a more portable imaging setup.
Retaining the inherent properties of the center balance design, these relatively compact medium payload mounts deliver what astronomers expect in an efficient accurate portable mount. With precise GOTO pointing and accurate tracking, the CEM70EC is a solid performer for observers and imagers alike.
Innovative operational features such as the internal iPolar electronic polar scope, easy lock drive gear engagement (levers large enough to use with gloves), an advanced cable management system for the mount, iPolar, guider, and camera, and cumulatively assure users the CEM70 designed with their needs in mind.
Features
- A new design, center-balanced equatorial mount (CEM) for maximum payload with natural stability
- Ideal for both visual observation and astrophotography
- Payload of 70 lbs (31.8 kg) with the mount weight of 30 lbs (13.6 kg)
- Easy to use and reliable gear clutches
- Precision altitude and azimuth adjustment.
- Precision stepper motor with 0.07 arcsec accuracy for precise GOTO and accurate tracking
- iPolarTM electronic polar scope
- Go2Nova® 8407+ V2 controller with Advanced GOTONOVA® GOTO Technology with built in heater
- High precision tracking with low periodic error (PE <0.3 arcsec rms)
- realtime periodic error correction (RPEC)
- 32-channel Global Positioning System (GPS)
- USB connection
- Integrated ST-4 autoguiding port
- Advanced cable management system with more choices
- Spring loaded 8" Vixen/Losmandy dual saddle
- NEW iOptron subsidized TheSky Imaging Edition
PACKAGE CONTENTS
Box 1 of 2: #C704A
- 1x CEM70EC mount head in hard case with accessories
Box 2 of 2: #7226
- 1x 9.5kg counterweight
Specifications:
- Mount: Center-balanced Equatorial Mount (CEM)
- Payload*: 31.8kg (70 lbs), exclude counterweight
- Mount weight: 13.6kg (30 lbs)
- Payload/Mount weight ratio: 2.33
- Material: All metal
- Latitude adjustment range: 0°~ 65°
- Azimuth adjustment range: ± 4°
- PE (by encoder)**: < 0.3 arcsec rms**
- Worm period: 348 sec
- PEC: Real-time PEC(RPEC)
- Right Ascension worm wheel: Φ151mm, 248 teeth
- Declination worm wheel: Φ151mm, 248 teeth
- Worm: Φ21.2mm
- Right Ascension axle: Φ55mm, steel
- Declination axle: Φ55mm, steel
- Right Ascension bearings: Φ80mm
- Declination bearings: Φ80mm
- Counterweight shaft: Φ28x 415 mm (SS, 1.9kg)
- Counterweight: 9.5 kg (20 lbs) x1
- Mount base size: Φ152mm
- Motor drive: Precision stepper motor w/128 micro-step
- Resolution: 0.07 arc seconds
- Slew speed: 3.75°/sec (900x) max.
- Hand Controller: Go2Nova® 8407+, 8 line 21 character LCD
- Power requirement: DC 12V, 5A (5.5mm/2.5mm plug)
- Power consumption: 0.6A(Tracking),0.8A(GOTO)
- Polar Scope: Internal electronic polar scope, iPolar
- Meridian treatment Stop (0-10° pass), auto flip
- Zero position: Automatic zero search
- Park position: Horizontal, vertical, current, alt/azi input
- Level indicator: YES
- Dovetail saddle: 8" Losmandy D & Vixen
- GPS: YES
- Guiding port: ST-4
- Communication port: USB2.0
- Cable management: 2xDC12V (3A), 3xUSB2.0, 1xDC in/1xDC out, iPort.
- 1X USB input for mount and USB hub
- Operation temperature range: -10°C ~ +40°C
- Hard case: Yes
- Pier/Tripod: Optional LiteRoc tripod or pier
- Warranty: Two year limited
Other Information
- Country of Manufacture: China
Specifications
| Product Status | new |
|---|---|
| Free Shipping Graphic | Free Contiguous US Shipping |
| Hide Found a better Shipped Price on Frontend? | No |
Reviews / Q&A
In the Box
- CEM70EC mount with internal iPolarTM electronic Polar Scope
- Hand Controller (HC) – Go2Nova® 8410
- Counterweight – 21 lbs (9.5 kg)
- Stainless steel counterweight shaft
- Built-in GPS module
- Hand controller coiled cables
- USB cable
- AC adapter – 100/240V (DC output 12V/5A, indoor use only)
- Hard case
- Quick Start Guide
