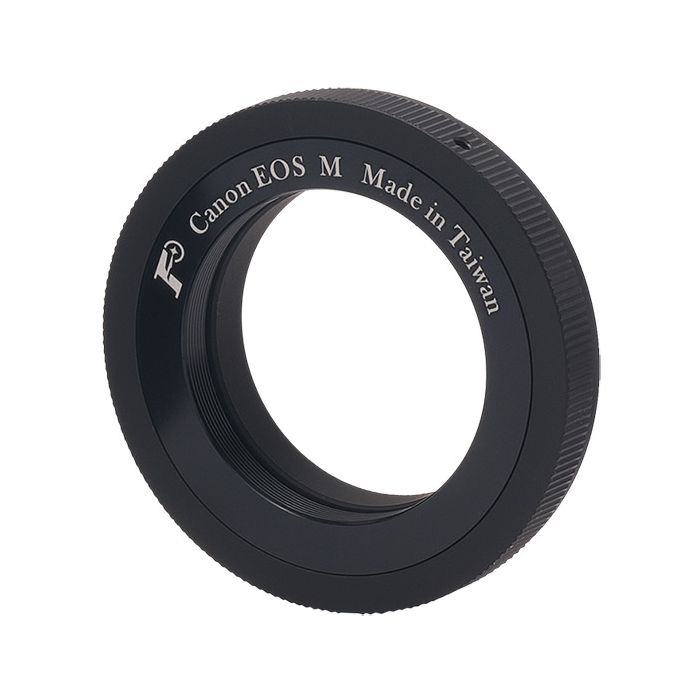

Founder Optics 42mm Low Profile T-Ring for Canon EOS M Mirrorless Cameras
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available.
- This item is out of stock.
- We have no ETA from the manufacturer at this time.
- Sign up for back-in-stock alerts to be notified when this item becomes available.
Lower 48 States:
Orders over $50 ship free within the Lower 48 using a carrier and service we select based on your items and delivery location. Faster shipping options may be available at checkout.
U.S. Outside the Lower 48 (AK, HI, PR):
Free shipping on orders over $50 applies to many—but not all—items. Add items to your cart and enter your ZIP code to see available shipping options and any costs.
International Orders:
Free shipping does not apply to international orders. You’ll see available shipping options and costs during checkout. Some items can’t be shipped internationally due to size or manufacturer restrictions. Duties, taxes, brokerage fees, and tariffs are not included and are the customer’s responsibility.
Important note:
- Canon "M" mirrorless cameras have an FFD (flange focal distance) of 18mm. To couple these with corrective telescope optics (such as flatteners or correctors) with a 55mm back focus requirement, your "M" T-ring should have an optical path length of 55 - 18 = 37mm.
- However, this adapter has a low profile design with an optical length of only 10mm (not 37mm). This allows you to insert additional M42-threaded accessories (such as OAGs or filter wheels/filter drawers) with a total optical path length of up to 27mm.
- You may need to insert additional M42x0.75 spacers (not included) in addition to other accessories between the corrective optics and this T-ring to get to 27mm so that your camera sensor can be placed at 55mm from the corrective optics' male thread to meet the 55mm back focus requirement.
- For example, to use this with ZWO's popular FD-M42-II filter drawer that has an optical length of 21mm, and ignoring the effect of filter thickness on lengthening the back focus requirement marginally, your imaging traing will be:
Corrective optic > T/T2 thread spacer (6mm optical length) > ZWO filter drawer (21mm optical length) > this T ring (10mm optical length) > Canon "M" camera (18mm FFD) so that 6+21+10+18 = 55mm.
Description:
- Founder Optics low profile T-Ring to convert your Canon mirrorless EOS-M camera's EF-M mount to a standard T/T2 42mm thread for attachment to various astronomy accessories such as prime focus adapters, corrective optics, guiders, etc.
- Fits Canon EOS SLR/DSLR mirrorless cameras with EF-M lens mounts
- M42 female thread on T-ring has a nominal diameter of 42mm and a thread pitch of 0.75mm
- Not for use with Canon EOS EF/EF-S or EOS-R mount cameras
- Not compatible with wide format 48mm or 54mm T-threaded accessories
- For use only with the smaller, more common standard 42mm T-threaded adapters and accessories which have a male M42x0.75 thread
- High-precision CNC-machined aluminum and black anodized
- Optical path length: 10mm
- Clear aperture: 40.60mm
- Weight: Xg / Xoz
Other Information
- Country of Manufacture: Taiwan
Important note:
- Canon "M" mirrorless cameras have an FFD (flange focal distance) of 18mm. To couple these with corrective telescope optics (such as flatteners or correctors) with a 55mm back focus requirement, your "M" T-ring should have an optical path length of 55 - 18 = 37mm.
- However, this adapter has a low profile design with an optical length of only 10mm (not 37mm). This allows you to insert additional M42-threaded accessories (such as OAGs or filter wheels/filter drawers) with a total optical path length of up to 27mm.
- You may need to insert additional M42x0.75 spacers (not included) in addition to other accessories between the corrective optics and this T-ring to get to 27mm so that your camera sensor can be placed at 55mm from the corrective optics' male thread to meet the 55mm back focus requirement.
- For example, to use this with ZWO's popular FD-M42-II filter drawer that has an optical length of 21mm, and ignoring the effect of filter thickness on lengthening the back focus requirement marginally, your imaging traing will be:
Corrective optic > T/T2 thread spacer (6mm optical length) > ZWO filter drawer (21mm optical length) > this T ring (10mm optical length) > Canon "M" camera (18mm FFD) so that 6+21+10+18 = 55mm.
Description:
- Founder Optics low profile T-Ring to convert your Canon mirrorless EOS-M camera's EF-M mount to a standard T/T2 42mm thread for attachment to various astronomy accessories such as prime focus adapters, corrective optics, guiders, etc.
- Fits Canon EOS SLR/DSLR mirrorless cameras with EF-M lens mounts
- M42 female thread on T-ring has a nominal diameter of 42mm and a thread pitch of 0.75mm
- Not for use with Canon EOS EF/EF-S or EOS-R mount cameras
- Not compatible with wide format 48mm or 54mm T-threaded accessories
- For use only with the smaller, more common standard 42mm T-threaded adapters and accessories which have a male M42x0.75 thread
- High-precision CNC-machined aluminum and black anodized
- Optical path length: 10mm
- Clear aperture: 40.60mm
- Weight: Xg / Xoz
Important note:
- Canon "M" mirrorless cameras have an FFD (flange focal distance) of 18mm. To couple these with corrective telescope optics (such as flatteners or correctors) with a 55mm back focus requirement, your "M" T-ring should have an optical path length of 55 - 18 = 37mm.
- However, this adapter has a low profile design with an optical length of only 10mm (not 37mm). This allows you to insert additional M42-threaded accessories (such as OAGs or filter wheels/filter drawers) with a total optical path length of up to 27mm.
- You may need to insert additional M42x0.75 spacers (not included) in addition to other accessories between the corrective optics and this T-ring to get to 27mm so that your camera sensor can be placed at 55mm from the corrective optics' male thread to meet the 55mm back focus requirement.
- For example, to use this with ZWO's popular FD-M42-II filter drawer that has an optical length of 21mm, and ignoring the effect of filter thickness on lengthening the back focus requirement marginally, your imaging traing will be:
Corrective optic > T/T2 thread spacer (6mm optical length) > ZWO filter drawer (21mm optical length) > this T ring (10mm optical length) > Canon "M" camera (18mm FFD) so that 6+21+10+18 = 55mm.
Description:
- Founder Optics low profile T-Ring to convert your Canon mirrorless EOS-M camera's EF-M mount to a standard T/T2 42mm thread for attachment to various astronomy accessories such as prime focus adapters, corrective optics, guiders, etc.
- Fits Canon EOS SLR/DSLR mirrorless cameras with EF-M lens mounts
- M42 female thread on T-ring has a nominal diameter of 42mm and a thread pitch of 0.75mm
- Not for use with Canon EOS EF/EF-S or EOS-R mount cameras
- Not compatible with wide format 48mm or 54mm T-threaded accessories
- For use only with the smaller, more common standard 42mm T-threaded adapters and accessories which have a male M42x0.75 thread
- High-precision CNC-machined aluminum and black anodized
- Optical path length: 10mm
- Clear aperture: 40.60mm
- Weight: Xg / Xoz
Other Information
- Country of Manufacture: Taiwan
