ZWO T / T2 Tilter Adapter for ASI and Other T-Threaded Cameras
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available.
- This item is out of stock.
- We have no ETA from the manufacturer at this time.
- Sign up for back-in-stock alerts to be notified when this item becomes available.
Lower 48 States:
Orders over $50 ship free within the Lower 48 using a carrier and service we select based on your items and delivery location. Faster shipping options may be available at checkout.
U.S. Outside the Lower 48 (AK, HI, PR):
Free shipping on orders over $50 applies to many—but not all—items. Add items to your cart and enter your ZIP code to see available shipping options and any costs.
International Orders:
Free shipping does not apply to international orders. You’ll see available shipping options and costs during checkout. Some items can’t be shipped internationally due to size or manufacturer restrictions. Duties, taxes, brokerage fees, and tariffs are not included and are the customer’s responsibility.

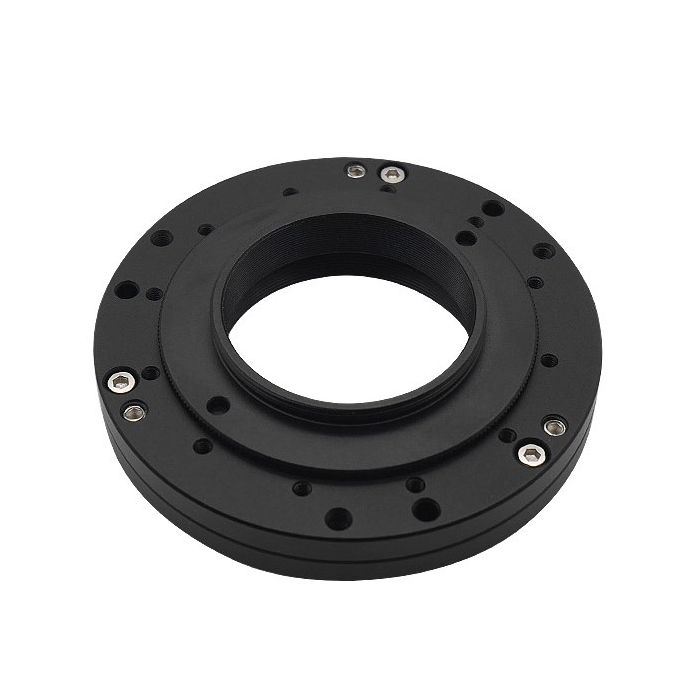

- ZWO T2 Tilt Adjuster enables perfect alignment between a camera and a slightly tilted focal plane using six knurled adjustment knobs; Also ideal for tilting a camera to reduce ‘Newton’s Rings’ when imaging with an H-alpha solar filter (camera and solar filter sold separately)
- Black anodized metal body with threaded female T2 (M42x0.75) interface on both sides; Male T2 adapter ring can be removed if needed
- Optical thickness is 11mm with T2-T2 adapter removed. The T2-T2 adapter adds 2mm. Diameter is 78mm.
The New T2 tilter adds multiple screw holes to help connect to ZWO 2" EFW (compatible EFW 5x2 and EFW 7X2).
Package and size
- Main body：Diameter 78mm，11mm without the T2-T2 adapter
- T2-T2 adapter：Thickness 2mm
- Interface: T2 (M42*0.75 thread) each side
Product usage
- Mainly used to reduce newton ring when imaging ha-solarï¼›
- Also used to adjust the camera imaging plane by rotating the six nuts in the main body when the sensor plane is uneven.
Applicable cameras
All ASI cameras except ASI071, ASI2600 and ASI6200.
Connection method
1. Cooled camera: ASI294/ASI1600/ASI183/ASI533
2. Non-cooled camera:
ASI294/ASI1600/ASI183/ASI174
These cameras do not need to connect to the T2-T2 adapter
ASI178/ASI290/ASI224/ASI120
These cameras need to connect to the T2-T2 adapter first.
Other Information
- Country of Manufacture: China
The New T2 tilter adds multiple screw holes to help connect to ZWO 2" EFW (compatible EFW 5x2 and EFW 7X2).
Package and size
- Main body：Diameter 78mm，11mm without the T2-T2 adapter
- T2-T2 adapter：Thickness 2mm
- Interface: T2 (M42*0.75 thread) each side
Product usage
- Mainly used to reduce newton ring when imaging ha-solarï¼›
- Also used to adjust the camera imaging plane by rotating the six nuts in the main body when the sensor plane is uneven.
Applicable cameras
All ASI cameras except ASI071, ASI2600 and ASI6200.
Connection method
1. Cooled camera: ASI294/ASI1600/ASI183/ASI533
2. Non-cooled camera:
ASI294/ASI1600/ASI183/ASI174
These cameras do not need to connect to the T2-T2 adapter
ASI178/ASI290/ASI224/ASI120
These cameras need to connect to the T2-T2 adapter first.
- ZWO T2 Tilt Adjuster enables perfect alignment between a camera and a slightly tilted focal plane using six knurled adjustment knobs; Also ideal for tilting a camera to reduce ‘Newton’s Rings’ when imaging with an H-alpha solar filter (camera and solar filter sold separately)
- Black anodized metal body with threaded female T2 (M42x0.75) interface on both sides; Male T2 adapter ring can be removed if needed
- Optical thickness is 11mm with T2-T2 adapter removed. The T2-T2 adapter adds 2mm. Diameter is 78mm.
The New T2 tilter adds multiple screw holes to help connect to ZWO 2" EFW (compatible EFW 5x2 and EFW 7X2).
Package and size
- Main body：Diameter 78mm，11mm without the T2-T2 adapter
- T2-T2 adapter：Thickness 2mm
- Interface: T2 (M42*0.75 thread) each side
Product usage
- Mainly used to reduce newton ring when imaging ha-solarï¼›
- Also used to adjust the camera imaging plane by rotating the six nuts in the main body when the sensor plane is uneven.
Applicable cameras
All ASI cameras except ASI071, ASI2600 and ASI6200.
Connection method
1. Cooled camera: ASI294/ASI1600/ASI183/ASI533
2. Non-cooled camera:
ASI294/ASI1600/ASI183/ASI174
These cameras do not need to connect to the T2-T2 adapter
ASI178/ASI290/ASI224/ASI120
These cameras need to connect to the T2-T2 adapter first.
Other Information
- Country of Manufacture: China
