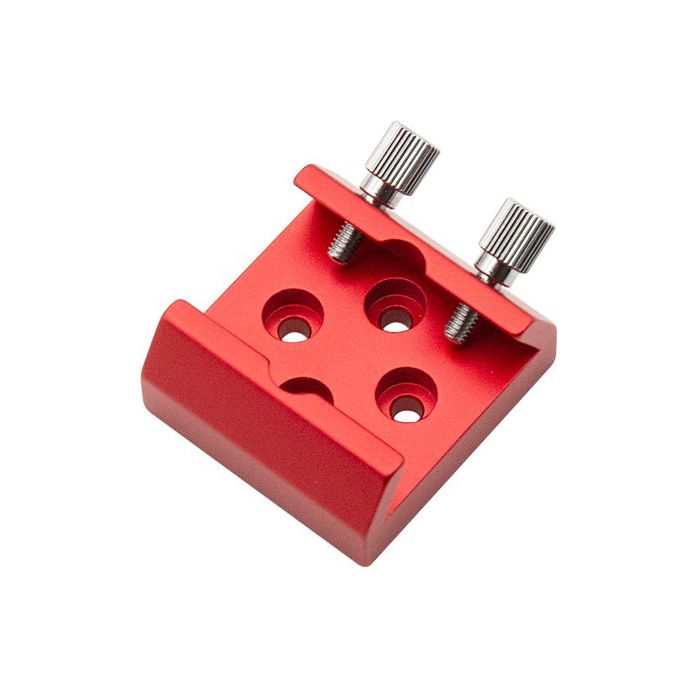

Finder shoe from ZWO for your finder scope and guide scope that can match your ASIAIR PRO and ZWO holder ring.
Please use the 5th product photo above to ensure that the screw hole spacing of this item is compatible with your telescope before you purchase this item. This base will not fit SCT scopes, for example.
1. Connecting to ASIAIR PRO
To connecting to ASIAIR PRO, you need to use the two M4x8mm screws in the package. The connecting method can be rather flexible, you can either attach the finder shoe to the back or the sides of ASIAIR PRO.
2. Connecting to Finder Scope
After done connecting the finder show to ASIAIR PRO, directly attach the finder shoe to your finder scope and adjust the tightness via the long screws on the side.
Then use the Dovetail Groove to fix ASIAIR PRO to your telescope.
3. Connecting to the ZWO Holder Ring
Use the two M4x8mm screws in the package to connect the finder shoe to the holder ring for ASI cameras.
Additional Info
When ordering any Vixen style dovetail base (shoe), bar or plate, please note that there are two different size standards and applications in the industry. A Vixen/Synta dovetail base for this ZWO mounting base is smaller and generally has a slot opening to accommodate 32-34mm finder bracket dovetails. A Vixen base/clamp/saddle for mounts and telescopes is wider at 42-44mm. The two are not the same and are not interchangeable.
Please check the specifications of this item provided above to ensure that it will be compatible with your accessory before purchasing
Other Information
- Country of Manufacture: China
Finder shoe from ZWO for your finder scope and guide scope that can match your ASIAIR PRO and ZWO holder ring.
Please use the 5th product photo above to ensure that the screw hole spacing of this item is compatible with your telescope before you purchase this item. This base will not fit SCT scopes, for example.
1. Connecting to ASIAIR PRO
To connecting to ASIAIR PRO, you need to use the two M4x8mm screws in the package. The connecting method can be rather flexible, you can either attach the finder shoe to the back or the sides of ASIAIR PRO.
2. Connecting to Finder Scope
After done connecting the finder show to ASIAIR PRO, directly attach the finder shoe to your finder scope and adjust the tightness via the long screws on the side.
Then use the Dovetail Groove to fix ASIAIR PRO to your telescope.
3. Connecting to the ZWO Holder Ring
Use the two M4x8mm screws in the package to connect the finder shoe to the holder ring for ASI cameras.
Finder shoe from ZWO for your finder scope and guide scope that can match your ASIAIR PRO and ZWO holder ring.
Please use the 5th product photo above to ensure that the screw hole spacing of this item is compatible with your telescope before you purchase this item. This base will not fit SCT scopes, for example.
1. Connecting to ASIAIR PRO
To connecting to ASIAIR PRO, you need to use the two M4x8mm screws in the package. The connecting method can be rather flexible, you can either attach the finder shoe to the back or the sides of ASIAIR PRO.
2. Connecting to Finder Scope
After done connecting the finder show to ASIAIR PRO, directly attach the finder shoe to your finder scope and adjust the tightness via the long screws on the side.
Then use the Dovetail Groove to fix ASIAIR PRO to your telescope.
3. Connecting to the ZWO Holder Ring
Use the two M4x8mm screws in the package to connect the finder shoe to the holder ring for ASI cameras.
Additional Info
When ordering any Vixen style dovetail base (shoe), bar or plate, please note that there are two different size standards and applications in the industry. A Vixen/Synta dovetail base for this ZWO mounting base is smaller and generally has a slot opening to accommodate 32-34mm finder bracket dovetails. A Vixen base/clamp/saddle for mounts and telescopes is wider at 42-44mm. The two are not the same and are not interchangeable.
Please check the specifications of this item provided above to ensure that it will be compatible with your accessory before purchasing
Other Information
- Country of Manufacture: China
