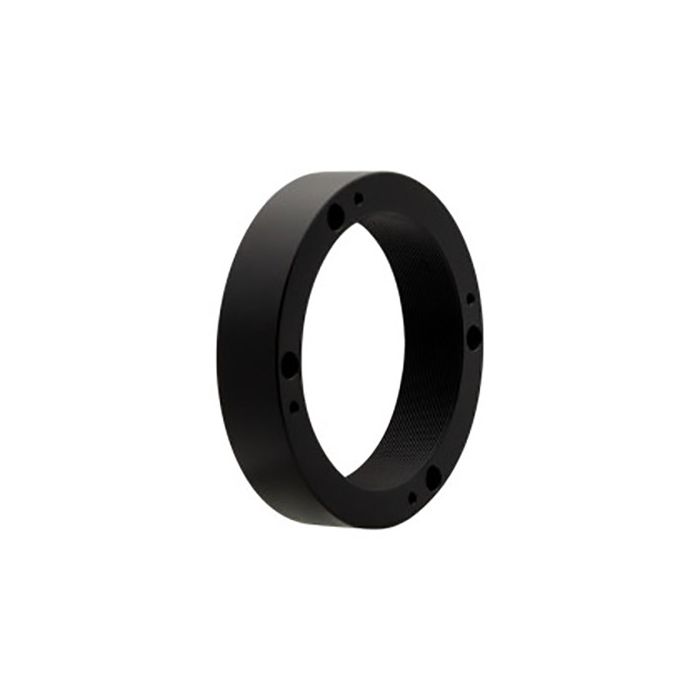

ZWO M54 Adapter for 20mm Backfocus with OAG-L

Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available.
- This item is out of stock.
- We have no ETA from the manufacturer at this time.
- Sign up for back-in-stock alerts to be notified when this item becomes available.
Lower 48 States:
Orders over $50 ship free within the Lower 48 using a carrier and service we select based on your items and delivery location. Faster shipping options may be available at checkout.
U.S. Outside the Lower 48 (AK, HI, PR):
Free shipping on orders over $50 applies to many—but not all—items. Add items to your cart and enter your ZIP code to see available shipping options and any costs.
International Orders:
Free shipping does not apply to international orders. You’ll see available shipping options and costs during checkout. Some items can’t be shipped internationally due to size or manufacturer restrictions. Duties, taxes, brokerage fees, and tariffs are not included and are the customer’s responsibility.
Please note: In its product name, ZWO confusingly implies this adapter provides 20mm of backfocus. Note that this adapter has an optical path length of 15mm. It provides 20mm when coupled with the tilt sensor that provides the remaining 5mm of back focus, and not by itself.
The ZWO M54 adapter is an adapter designed specifically for ASI cooled cameras. Instead of using the 20mm ZWO EFW, you can directly connect the adapter to OAG-L with the addition of 5mm sensor tilt adapter to reach 55mm back focus.
It has a thickness of 15mm. You can also insert an ZWO 2” filter into it.
The adapter supports 2” filters from third-party. Below are the requirements for the filters.

Detailed Connecting Guide
Connecting with ASI2600MM Pro as an example.
- Fix the filter to M54M-M48F adapter via threads.

- Fix the filter unit to the M54 adapter.

- Here we have an ASI2600MM Pro camera and an adapter unit. The four holes circled in red in the sensor tilt plate are the ones you are going to use to fix the adapter unit to the camera.

- Take 4 screws from the package, and use them to fix the M54 adapter to the camera.

- Remove the M48 plate from OAG-L.

- Align the hole positions in OAG-L to the smaller holes in the adapter, then use the rest 4 screws to fix OAG-L to the M54 adapter.

- Reinstall the M48 plate on OAG-L.

- Work done!

Other Information
- Country of Manufacture: China
Please note: In its product name, ZWO confusingly implies this adapter provides 20mm of backfocus. Note that this adapter has an optical path length of 15mm. It provides 20mm when coupled with the tilt sensor that provides the remaining 5mm of back focus, and not by itself.
The ZWO M54 adapter is an adapter designed specifically for ASI cooled cameras. Instead of using the 20mm ZWO EFW, you can directly connect the adapter to OAG-L with the addition of 5mm sensor tilt adapter to reach 55mm back focus.
It has a thickness of 15mm. You can also insert an ZWO 2” filter into it.
The adapter supports 2” filters from third-party. Below are the requirements for the filters.

Detailed Connecting Guide
Connecting with ASI2600MM Pro as an example.
- Fix the filter to M54M-M48F adapter via threads.

- Fix the filter unit to the M54 adapter.

- Here we have an ASI2600MM Pro camera and an adapter unit. The four holes circled in red in the sensor tilt plate are the ones you are going to use to fix the adapter unit to the camera.

- Take 4 screws from the package, and use them to fix the M54 adapter to the camera.

- Remove the M48 plate from OAG-L.

- Align the hole positions in OAG-L to the smaller holes in the adapter, then use the rest 4 screws to fix OAG-L to the M54 adapter.

- Reinstall the M48 plate on OAG-L.

- Work done!

- M54 adapter (15mm)
- M54M-M48F adapter
- 5-L8 screws * 8
Please note: In its product name, ZWO confusingly implies this adapter provides 20mm of backfocus. Note that this adapter has an optical path length of 15mm. It provides 20mm when coupled with the tilt sensor that provides the remaining 5mm of back focus, and not by itself.
The ZWO M54 adapter is an adapter designed specifically for ASI cooled cameras. Instead of using the 20mm ZWO EFW, you can directly connect the adapter to OAG-L with the addition of 5mm sensor tilt adapter to reach 55mm back focus.
It has a thickness of 15mm. You can also insert an ZWO 2” filter into it.
The adapter supports 2” filters from third-party. Below are the requirements for the filters.

Detailed Connecting Guide
Connecting with ASI2600MM Pro as an example.
- Fix the filter to M54M-M48F adapter via threads.

- Fix the filter unit to the M54 adapter.

- Here we have an ASI2600MM Pro camera and an adapter unit. The four holes circled in red in the sensor tilt plate are the ones you are going to use to fix the adapter unit to the camera.

- Take 4 screws from the package, and use them to fix the M54 adapter to the camera.

- Remove the M48 plate from OAG-L.

- Align the hole positions in OAG-L to the smaller holes in the adapter, then use the rest 4 screws to fix OAG-L to the M54 adapter.

- Reinstall the M48 plate on OAG-L.

- Work done!

Other Information
- Country of Manufacture: China
| Product Status | new |
|---|---|
| Free Shipping Graphic | Free US Shipping |
| Hide Found a better Shipped Price on Frontend? | No |
- M54 adapter (15mm)
- M54M-M48F adapter
- 5-L8 screws * 8

ZWO M54 Adapter for 20mm Backfocus with OAG-L
