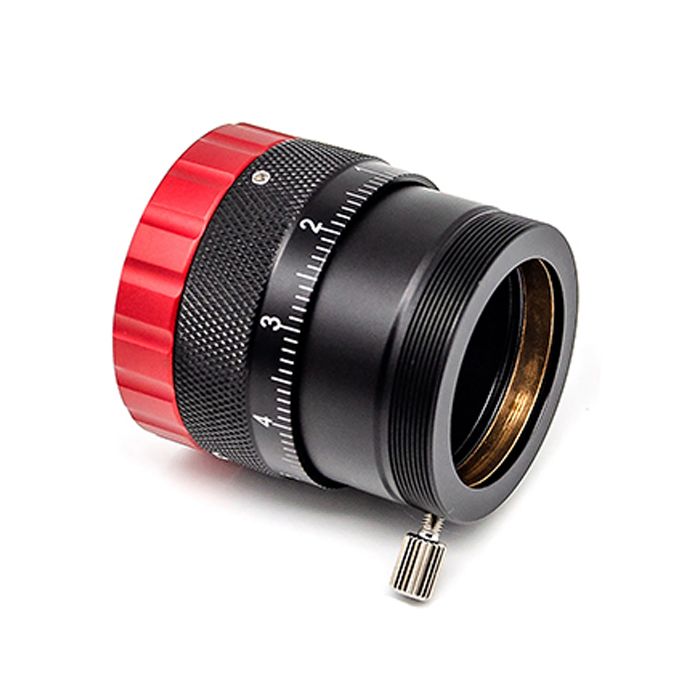

ZWO 1.25" Non-Rotating Helical Focuser with Female M42 T/T2 Threads
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available.
- This item is out of stock.
- We have no ETA from the manufacturer at this time.
- Sign up for back-in-stock alerts to be notified when this item becomes available.
Lower 48 States:
Orders over $50 ship free within the Lower 48 using a carrier and service we select based on your items and delivery location. Faster shipping options may be available at checkout.
U.S. Outside the Lower 48 (AK, HI, PR):
Free shipping on orders over $50 applies to many—but not all—items. Add items to your cart and enter your ZIP code to see available shipping options and any costs.
International Orders:
Free shipping does not apply to international orders. You’ll see available shipping options and costs during checkout. Some items can’t be shipped internationally due to size or manufacturer restrictions. Duties, taxes, brokerage fees, and tariffs are not included and are the customer’s responsibility.
- Precision helical microfocuser for use with an off-axis guider (sold separately) to focus image in a 1.25” guide camera (sold separately) during astrophotography
- Integrated 1.25” holder with compression ring for holding guide 1.25” camera; external male T2 (M42x0.75) thread on camera side and female T2 (M42x0.75) thread on opposite side
- Does not rotate during focusing; Includes adjustment range of 6mm and includes a scale for reproducible focus; Adjustment accuracy 0.1mm; Focus position can be locked with a knurled locking screw
- Minimum height 48.5mm
The ZWO precision helical microfocuser is an ideal solution for easily adjusting image focus in a guide camera when using an off-axis guider for astrophotography. On one side, the focuser accepts a 1.25” guide camera with a locking nut and compression ring. The other side of the focuser connects to an off-axis guider with female T2 (M42x0.75) threads and a locking collar. The focuser does not rotate during focus adjustment, and it has a linear adjustment range of 6mm with 0.1mm accuracy. Minimum focuser height is 48.5mm. Camera and off-axis guider sold separately.
For use with ZWO OAG (Off-Axis Guider) and ASI Mini Series cameras. Can also be used for other applications when focusing is required.
Features:
- Aerospace aluminum alloy material
- Precision CNC machined
- Frosted and anodized housing
- Anti-skid brass screw
Specifications:
- Inner diameter: 1.25" / 31.7mm
- Stroke: 6mm
- Adjustment accuracy: 0.1mm
- Top thread: M42x0.75 Male
- Bottom thread: M42x0.75 Female
- Minimum height: 48.5mm
- Weight: 3.1oz
Other Information
- Country of Manufacture: China
The ZWO precision helical microfocuser is an ideal solution for easily adjusting image focus in a guide camera when using an off-axis guider for astrophotography. On one side, the focuser accepts a 1.25” guide camera with a locking nut and compression ring. The other side of the focuser connects to an off-axis guider with female T2 (M42x0.75) threads and a locking collar. The focuser does not rotate during focus adjustment, and it has a linear adjustment range of 6mm with 0.1mm accuracy. Minimum focuser height is 48.5mm. Camera and off-axis guider sold separately.
For use with ZWO OAG (Off-Axis Guider) and ASI Mini Series cameras. Can also be used for other applications when focusing is required.
Features:
- Aerospace aluminum alloy material
- Precision CNC machined
- Frosted and anodized housing
- Anti-skid brass screw
Specifications:
- Inner diameter: 1.25" / 31.7mm
- Stroke: 6mm
- Adjustment accuracy: 0.1mm
- Top thread: M42x0.75 Male
- Bottom thread: M42x0.75 Female
- Minimum height: 48.5mm
- Weight: 3.1oz
- Precision helical microfocuser for use with an off-axis guider (sold separately) to focus image in a 1.25” guide camera (sold separately) during astrophotography
- Integrated 1.25” holder with compression ring for holding guide 1.25” camera; external male T2 (M42x0.75) thread on camera side and female T2 (M42x0.75) thread on opposite side
- Does not rotate during focusing; Includes adjustment range of 6mm and includes a scale for reproducible focus; Adjustment accuracy 0.1mm; Focus position can be locked with a knurled locking screw
- Minimum height 48.5mm
The ZWO precision helical microfocuser is an ideal solution for easily adjusting image focus in a guide camera when using an off-axis guider for astrophotography. On one side, the focuser accepts a 1.25” guide camera with a locking nut and compression ring. The other side of the focuser connects to an off-axis guider with female T2 (M42x0.75) threads and a locking collar. The focuser does not rotate during focus adjustment, and it has a linear adjustment range of 6mm with 0.1mm accuracy. Minimum focuser height is 48.5mm. Camera and off-axis guider sold separately.
For use with ZWO OAG (Off-Axis Guider) and ASI Mini Series cameras. Can also be used for other applications when focusing is required.
Features:
- Aerospace aluminum alloy material
- Precision CNC machined
- Frosted and anodized housing
- Anti-skid brass screw
Specifications:
- Inner diameter: 1.25" / 31.7mm
- Stroke: 6mm
- Adjustment accuracy: 0.1mm
- Top thread: M42x0.75 Male
- Bottom thread: M42x0.75 Female
- Minimum height: 48.5mm
- Weight: 3.1oz
Other Information
- Country of Manufacture: China
| Product Status | new |
|---|---|
| Free Shipping Graphic | Free US Shipping |
| Hide Found a better Shipped Price on Frontend? | No |
ZWO 1.25" Non-Rotating Helical Focuser with Female M42 T/T2 Threads
