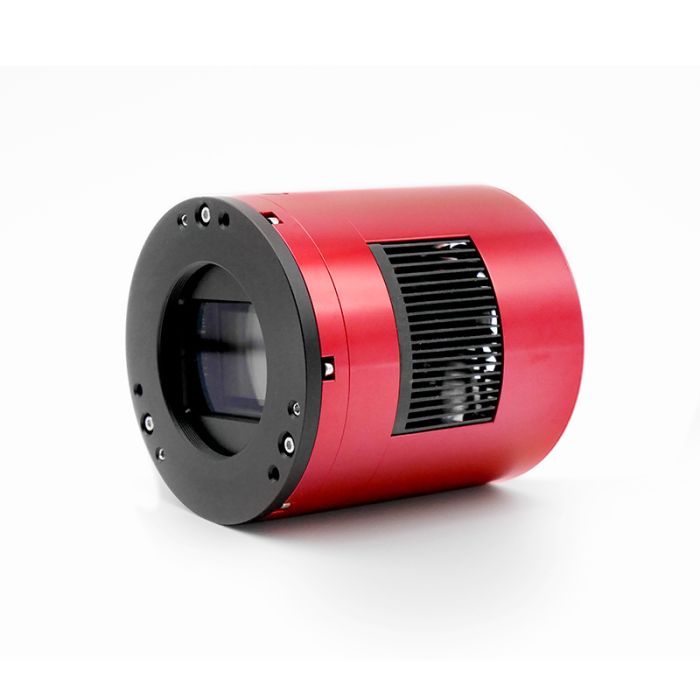

ZWO ASI6200MM Pro Full Frame Cooled Monochrome Astronomy Camera
This item has been discontinued by Agena and we no longer offer this.
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available.
- This item is out of stock.
- We have no ETA from the manufacturer at this time.
- Sign up for back-in-stock alerts to be notified when this item becomes available.
Note: To use the ZWO ASI6200MM Pro, you’ll need an external 12V DC power source (minimum 3 amps) to run the TEC cooler and ensure proper operation. Connecting the USB 3.0 cable may not work. You can use ZWO’s 12V DC power supply, the DC out port on an ASIAir, or an external battery (sold separately). ZWO does not include these with the camera.
ZWO ASI6200MM Pro: High-Resolution Monochrome Camera for Deep-Sky Astrophotography
Ready to capture the cosmos like never before? The ZWO ASI6200MM Pro is one of the best-cooled astronomy cameras on the market! Capture the universe in stunning detail thanks to the ASI6200MM’s impressive 62-megapixel resolution full-frame sensor, high quantum efficiency, and broad dynamic range that brings galaxies, nebulae, and more to life in vivid detail!
This camera is perfect for both seasoned astronomers and enthusiasts looking to take their monochrome imaging to the next level. It’s one of two ZWO cameras in the ASI6200 series, with the other being the color version - ASI6200MC Pro.
Key Features of the ASI6200 Monochrome Astronomy Camera
- 62MP High-Resolution Monochrome Full-Frame Sensor: Delivers exceptional detail for capturing deep-sky objects in high resolution.
- 91% Quantum Efficiency: Maximizes light capture, producing clearer and more detailed images.
- True 16-bit ADC: Provides up to 14 stops of high dynamic range, ensuring excellent contrast and detail in both bright and dark areas.
- 51.4ke- Full Well Capacity: Prevents saturation of bright stars, even in long exposures.
- Ultra-Low Readout Noise (1.2e-): Enhances image clarity and dynamic range.
- Zero Amp-Glow: Ensures clean, noise-free images, even during long exposures, reducing post-processing hassle.
- Seamless Compatibility with ZWO Accessories: Integrates effortlessly with accessories like the 7x2-inch Electronic Filter Wheel (EFW) and larger Off-Axis Guider (OAG-L).
Maximize Deep-Sky Detail with the ASI6200MM’s Premium Craftsmanship
Full Frame Format
Get ready for jaw-dropping detail! The ASI6200 is a full-frame astro camera, featuring a 62MP sensor with a 43.3mm diagonal and a small pixel size of 3.76µm. Its sensor provides excellent image quality and captures fine detail across a large field.
The sensor boasts an impressive 51.4ke full well capacity, ensuring bright stars and extended exposures won’t saturate your images. Ideal for deep-sky astrophotography, this camera combines high resolution with a large sensor and a robust dynamic range!
Zero Amp Glow
Say goodbye to annoying amp glow with the ASI6200 Pro! It's zero amp-glow circuitry means you can shoot long exposures at high gain without worrying about infrared light messing up your images. The result is cleaner, sharper shots with no post-processing headaches!
Solid Craftsmanship & Lightweight Body
ZWO engineers have worked their magic on the ASI6200! After years of innovative design and testing, they've reduced its weight to a mere 1.54 lbs (700 grams) without compromising any of its performance. The camera's sleek and solid design is built tough to handle long imaging sessions across a wide range of temperatures and conditions.
ZWO ASI6200MM Pro Resolution & Pixel Size
The ZWO ASI6200MM Pro camera features a 3.76µm pixel size, delivering an extraordinary 62-megapixel resolution that outputs a 9576 x 6388-pixel image.
This camera is ideal for capturing high-resolution images of deep-sky objects such as galaxies and nebulae, maintaining exceptionally low read noise for clean, detailed results.
While smaller pixels often reduce full well capacity, the ASI6200MM Pro stands out with a remarkable full well capacity of 51,400e. This ensures stars remain unsaturated even during long exposures.
Sony IMX455 Backside-Illuminated Sensor and Quantum Efficiency
The ASI6200MM Pro camera boasts an impressive peak quantum efficiency (QE) value of 91%. This high QE ensures that the sensor captures more light, providing excellent sensitivity to pick up fainter details in galaxies, nebulae, and other deep-space objects.
The 16-bit ADC offers a dynamic range of up to 14 stops, ensuring the capture of both the faintest nebulae and the brightest stars with remarkable clarity. Gradients between light and dark areas appear smoother and more natural, making your astrophotography look stunningly realistic.
ZWO ASI6200MM Pro Gain Settings
Setting the ASI6200MM Pro's gain to 0 will allow astrophotographers to retain the highest possible dynamic range of 14 stops, but this camera has a trick up its sleeve: HCH high gain mode.
When the gain value is set to 100, the magical HCG high gain mode is turned on. This allows you to photograph at a higher gain setting with a dramatically lower read noise, and the dynamic range is unchanged at ~13.5 stops.
We recommend setting your gain to 100 for nearly all deep-sky astrophotography applications.
ZWO ASI6200MM Pro TEC Cooling System and Power Supply
ZWO’s 6200MM is a cooled camera that utilizes an advanced two-stage TEC cooling system, capable of reducing the sensor temperature by over 95ºF (35ºC) below ambient temperature.
This greatly reduces sensor noise even during long exposures. To use the TEC cooling system, you need to power the 6200MM Pro via an external power supply.
You can do this either with the ZWO 12v AC/DC adapter, or connect one of the included DC cables from the ZWO ASIAIR. Both power supplies are sold separately.
True 16-Bit ADC: Unmatched Dynamic Range and Detail
The ASI6200 Pro camera is ZWO’s first astronomy CMOS model with a true 16-bit ADC, offering a massive dynamic range of 14 stops—way beyond what typical CCD-style ADCs can achieve.
This game-changing feature drastically boosts the sharpness and contrast of your images, with smoother, more natural-looking gradients in every shot.
Reliable Anti-dew Technology
Say goodbye to worrying about foggy sensors and dew buildup! Dew creates a layer of moisture that scatters light, making stars appear blurry or surrounded by halos. The ASI6200 Pro camera comes with an advanced anti-dew solution featuring a polyimide heater to prevent condensation during your astro-sessions.
This technology helps maintain a clear, dew-free protective window, ensuring crisp, sharp images. With about 5W of power, the anti-dew heater is controlled via software, so you can focus on capturing stunning deep-sky images without the risk of losing images to dew.
Say Goodbye to Amp Glow: Clean, Clear Imaging with Zero Amp Glow Technology
One of the standout features of the ASI6200 Pro camera is its zero amp glow technology, which eliminates the common issue of infrared light leakage often seen in other CMOS sensors. Traditional sensors can produce "amp glow" at the corners of images, especially during long exposures. Weak infrared light from the sensor’s circuitry causes this effect.
ZWO ASI6200MM Pro Camera Body & Threads
The ZWO ASI6200MM Pro boasts a compact and robust metal body, measuring just 90mm in diameter and 97mm in length. Its M54x0.75 mounting threads ensure a seamless connection with other ZWO and astronomy accessories, eliminating vignetting on the large full-frame sensor.
Despite its impressive performance, the ASI6200MM Pro weighs only 1.54 lbs (700 grams), helping to reduce the overall weight of your astro-kit.
ZWO ASI6200MM Pro USB Ports & DDR3 Memory
The ASI6200MM Pro has one USB 3.0 input port for quick image transfer speeds and comes with a USB 3.0 cable. Its built-in 256MB DDR3 cache prevents frame dropping and amp glow. It also has two USB 2.0 output ports for connecting and powering external accessories like the ZWO 7-position Electronic Filter Wheel, ZWO EAF, and ZWO Guide Camera.
ZWO ASI6200MM Pro Back-Focus Setup
The ZWO ASI6200MM Pro requires 55mm of back-focus for sharp starts. It contributes a back-focus of 17.5mm from the flat surface above the threads to the sensor and image plane. You can reduce this to 12.5mm by removing the included M54 tilt adapter for certain configurations.
Since the ZWO ASI6200MM Pro is a full-frame monochrome astronomy camera, it is best to use the ZWO 7-position 2" filter wheel and the ZWO Off-Axis Guider - Large (both sold separately) as they are a perfect match for this camera. You can find additional back-focus diagrams on ZWO's website.
To connect a camera lens to the ZWO ASI6200, you will need to use a T2 adapter compatible with your lens mount (e.g., Canon EF or Nikon F). Ensure the correct back-focus distance (e.g., 44mm for Canon EF or 46.5mm for Nikon F) by adding spacers as needed. ZWO also has a Nikon/Canon lens compatible 2-inch filter drawer.
View the ASI6200 Guide - 5 Connection Methods To Get 55mm Back Focus.
Specifications
- Sensor: SONY IMX455 CMOS
- Diagonal: 43.3mm
- Resolution: 62 megapixels (9576 x 6388 pixels)
- Pixel Size: 3.76μm
- Bayer Pattern: None
- Shutter: Rolling shutter
- Exposure Range: 32μs-2000s
- ROI: Supported
- Read Noise: 1.5-3.5e
- QE peak: 91%
- Full well: 51,400e
- ADC: 16-bit
- DDR3 Buffer: 256MB
- Non-volatile memory/on-camera storage: Built-in total 192K byte user-accessible space (image size up to 480 X 320 pixels)
- Interface: USB 3.0/USB 2.0
- Threads: M54 X 0.75
- Protect window: D60-AR Coating
- Dimensions: 90mm diameter
- Weight: 1.54 pounds (700g)
- Back Focus Distance: 17.5mm
- Cooling: Regulated Two-Stage TEC
- Delta T:-31°F (-35°C) below ambient
- Camera Power consumption: 650mA at 5V
- Cooler Power consumption: 12V at 3A Max
- Working Temperature: 23°F to 113°F (-5°C to 45°C)
- Storage Temperature: -4°F to 140°F (-20°C to 60°C)
- Working Relative Humidity: 20% to 80%
- Storage Relative Humidity: 20% to 95%
- Max FPS at full resolution: 16Bit ADC
- 9576×6388 3.19fps
- 7680×4800 5.29fps
- 6400×4096 7.44fps
- 4096×2160 14.35fps
- 3840×2160 14.35fps
- 1920×1080 28.04fps
- 1280×720 41.12fps
- 640×480 59.67fps
- 320×240 108.72fps
- more resolutions are available in software and support custom resolution.
Additional Info
What is the FPS of ASI6200MM?
The ASI6200MM Pro has a minimum frame rate of 3.51 frames per second (FPS) at full resolution (6248 x 4176 pixels) when using USB 3.0​. Its maximum frame rate is 108.72 FPS at 320 x 240 pixels.
What is the read noise of ASI6200MM?
The ASI6200MM Pro boasts an ultra-low read noise, ranging from 1.5e to 3.5e. This is one of the camera's standout features, helping to produce cleaner images with minimal noise​.​
How much does the ASI6200MC Pro weigh?
The ASI6200MC Pro weighs about 1.54 lbs (700 grams), making it a compact and lightweight option for deep-sky imaging​.
What is the pixel size of the ZWO 6200MM Pro?
The ASI6200MM Pro features a 3.76-micron pixel size, which strikes a great balance between resolution and sensitivity, making it ideal for capturing fine details in both wide-field and deep-sky astrophotography​.
What is the sensor type of the ASI6200MM Pro?
It uses a Sony IMX455 back-illuminated CMOS sensor, known for its high quantum efficiency and low noise performance​.
What is the cooling system like on the ASI6200MM Pro?
The ASI6200MM Pro features a two-stage TEC cooling system, which can lower the sensor temperature by up to 95°F (35°C) below ambient for optimal performance during long exposures​.
Other Information
- Country of Manufacture: China
