William Optics 2" 99% Dielectric Dura Bright Carbon Fiber Mirror Diagonal for Refractors
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available.
- This item is out of stock.
- We have no ETA from the manufacturer at this time.
- Sign up for back-in-stock alerts to be notified when this item becomes available.
Lower 48 States:
Orders over $50 ship free within the Lower 48 using a carrier and service we select based on your items and delivery location. Faster shipping options may be available at checkout.
U.S. Outside the Lower 48 (AK, HI, PR):
Free shipping on orders over $50 applies to many—but not all—items. Add items to your cart and enter your ZIP code to see available shipping options and any costs.
International Orders:
Free shipping does not apply to international orders. You’ll see available shipping options and costs during checkout. Some items can’t be shipped internationally due to size or manufacturer restrictions. Duties, taxes, brokerage fees, and tariffs are not included and are the customer’s responsibility.
Please note: The box that you receive this diagonal in will have scratches/scuff marks and even tears on the side. The plastic bag that the diagonal is wrapped in may have a small a tear or two. These are brand new as received from William Optics, and these are not used, returned or seconds as some may suspect. See the last two product photos above for representative box conditions.
Introducing the New William Optics 2015 Dura-Bright diagonal - a dramatic step forward in the evolution of mirror diagonals!

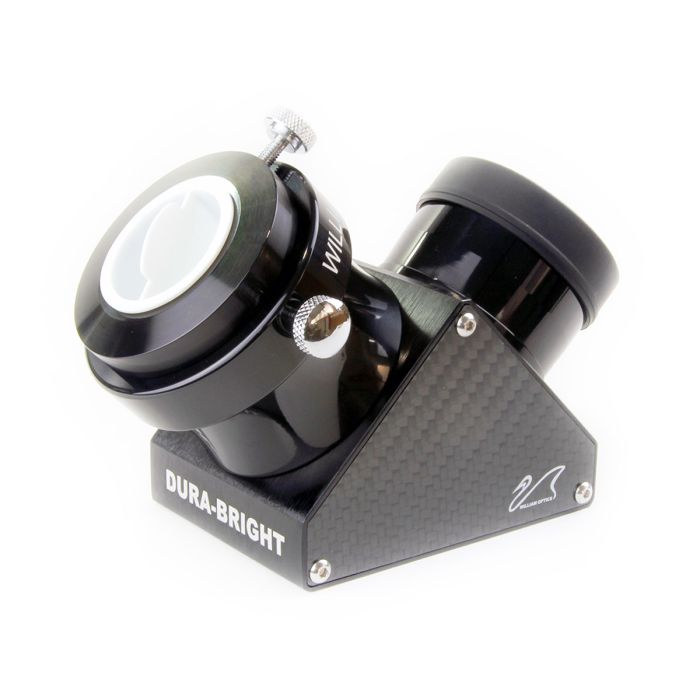

This 90° 2" mirror-type star diagonal has a Dura-Bright 12mm thick mirror, 1/12 or better wave surface accuracy, and dielectric mirror coatings for 99% reflectivity which provides higher contrast and resolution during critical planetary, lunar and binary star observations. Features a 2" nosepiece for insertion into refractor telescopes and other 2" focuser barrels.
Dura-Bright features 100% real carbon fiber side plates that add that touch of class your scope deserves.
The WO 2" Dura-Bright Diagonal was designed with several unique features to provide optimum performance and years of use.
Top-Notch Performance and brightness
- Dielectric coating allows 99% reflectivity.
- High precision 12mm thick mirror substrate flat for optimal image stability.
- Polished to 1/12th wave accuracy.
- Accurate design guarantees constant alignment. No further alignment needed.
Meticulous Craftsmanship
- 2" to 1.25" eyepiece adapter included.
- Lock screw for eyepiece/adapter.
- Big, knurled thumbscrews are easy to turn even with gloves on.
- Threaded for 48mm filters.
Strikingly Beautiful
- Patented, elegant design.
- High-quality machining out of the best aluminum.
- Internal anti-reflection baffling for highest contrast.
- Real Carbon Fiber side plates
Superbly Constructed
- Compression rings (both on diagonal and adapter) to prevent barrels from marring.
- Internal safety stop prevents 2" barrels from hitting the mirror.
- Designed for high-end scope such as FLT-98, FLT-110 and FLT-132.
Additional specifications
- Weight (without 1.25" adapter) = 15.2oz.
- Weight (with 1.25" adapter) = 1lb-2.1oz.
- Optical path length (as measured by Agena) = 105mm in 2" mode, 113mm with included 1.25" eyepiece adapter
Note: This item no longer comes with the thermometer on the side of the diagonal body.
Other Information
- Country of Manufacture: Taiwan
Introducing the New William Optics 2015 Dura-Bright diagonal - a dramatic step forward in the evolution of mirror diagonals!
This 90° 2" mirror-type star diagonal has a Dura-Bright 12mm thick mirror, 1/12 or better wave surface accuracy, and dielectric mirror coatings for 99% reflectivity which provides higher contrast and resolution during critical planetary, lunar and binary star observations. Features a 2" nosepiece for insertion into refractor telescopes and other 2" focuser barrels.
Dura-Bright features 100% real carbon fiber side plates that add that touch of class your scope deserves.
The WO 2" Dura-Bright Diagonal was designed with several unique features to provide optimum performance and years of use.
Top-Notch Performance and brightness
- Dielectric coating allows 99% reflectivity.
- High precision 12mm thick mirror substrate flat for optimal image stability.
- Polished to 1/12th wave accuracy.
- Accurate design guarantees constant alignment. No further alignment needed.
Meticulous Craftsmanship
- 2" to 1.25" eyepiece adapter included.
- Lock screw for eyepiece/adapter.
- Big, knurled thumbscrews are easy to turn even with gloves on.
- Threaded for 48mm filters.
Strikingly Beautiful
- Patented, elegant design.
- High-quality machining out of the best aluminum.
- Internal anti-reflection baffling for highest contrast.
- Real Carbon Fiber side plates
Superbly Constructed
- Compression rings (both on diagonal and adapter) to prevent barrels from marring.
- Internal safety stop prevents 2" barrels from hitting the mirror.
- Designed for high-end scope such as FLT-98, FLT-110 and FLT-132.
Additional specifications
- Weight (without 1.25" adapter) = 15.2oz.
- Weight (with 1.25" adapter) = 1lb-2.1oz.
- Optical path length (as measured by Agena) = 105mm in 2" mode, 113mm with included 1.25" eyepiece adapter
Note: This item no longer comes with the thermometer on the side of the diagonal body.
Please note: The box that you receive this diagonal in will have scratches/scuff marks and even tears on the side. The plastic bag that the diagonal is wrapped in may have a small a tear or two. These are brand new as received from William Optics, and these are not used, returned or seconds as some may suspect. See the last two product photos above for representative box conditions.
Introducing the New William Optics 2015 Dura-Bright diagonal - a dramatic step forward in the evolution of mirror diagonals!
This 90° 2" mirror-type star diagonal has a Dura-Bright 12mm thick mirror, 1/12 or better wave surface accuracy, and dielectric mirror coatings for 99% reflectivity which provides higher contrast and resolution during critical planetary, lunar and binary star observations. Features a 2" nosepiece for insertion into refractor telescopes and other 2" focuser barrels.
Dura-Bright features 100% real carbon fiber side plates that add that touch of class your scope deserves.
The WO 2" Dura-Bright Diagonal was designed with several unique features to provide optimum performance and years of use.
Top-Notch Performance and brightness
- Dielectric coating allows 99% reflectivity.
- High precision 12mm thick mirror substrate flat for optimal image stability.
- Polished to 1/12th wave accuracy.
- Accurate design guarantees constant alignment. No further alignment needed.
Meticulous Craftsmanship
- 2" to 1.25" eyepiece adapter included.
- Lock screw for eyepiece/adapter.
- Big, knurled thumbscrews are easy to turn even with gloves on.
- Threaded for 48mm filters.
Strikingly Beautiful
- Patented, elegant design.
- High-quality machining out of the best aluminum.
- Internal anti-reflection baffling for highest contrast.
- Real Carbon Fiber side plates
Superbly Constructed
- Compression rings (both on diagonal and adapter) to prevent barrels from marring.
- Internal safety stop prevents 2" barrels from hitting the mirror.
- Designed for high-end scope such as FLT-98, FLT-110 and FLT-132.
Additional specifications
- Weight (without 1.25" adapter) = 15.2oz.
- Weight (with 1.25" adapter) = 1lb-2.1oz.
- Optical path length (as measured by Agena) = 105mm in 2" mode, 113mm with included 1.25" eyepiece adapter
Note: This item no longer comes with the thermometer on the side of the diagonal body.
Other Information
- Country of Manufacture: Taiwan
