Tele Vue M54 Camera Adapter for Tele Vue 2.4" Imaging System
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available.
- This item is out of stock.
- We have no ETA from the manufacturer at this time.
- Sign up for back-in-stock alerts to be notified when this item becomes available.
Lower 48 States:
Orders over $50 ship free within the Lower 48 using a carrier and service we select based on your items and delivery location. Faster shipping options may be available at checkout.
U.S. Outside the Lower 48 (AK, HI, PR):
Free shipping on orders over $50 applies to many—but not all—items. Add items to your cart and enter your ZIP code to see available shipping options and any costs.
International Orders:
Free shipping does not apply to international orders. You’ll see available shipping options and costs during checkout. Some items can’t be shipped internationally due to size or manufacturer restrictions. Duties, taxes, brokerage fees, and tariffs are not included and are the customer’s responsibility.

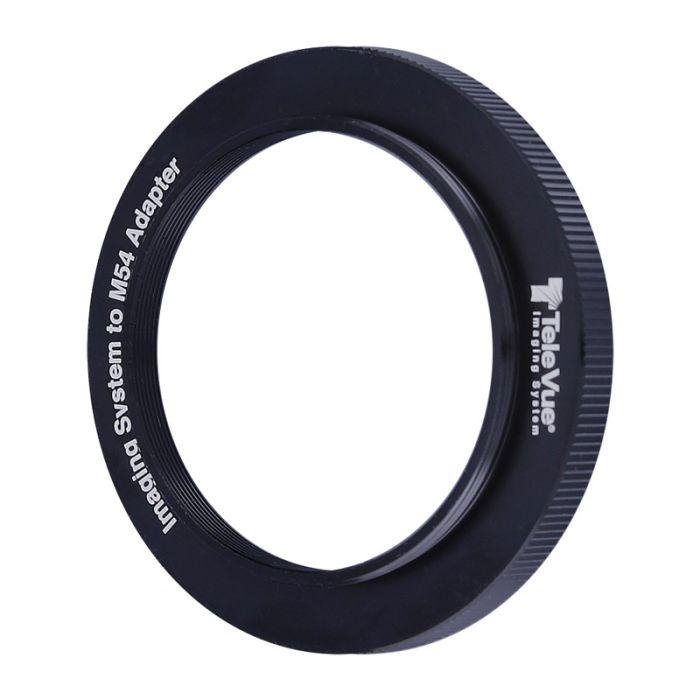

M54 Camera Adapter for Tele Vue 2.4" Imaging System (# M54-1073)
Introducing the M54 Camera Adapter for Tele Vue Imaging System. The M54 thread is becoming popular on full-frame, dedicated astro-imaging cameras and filter wheels/holders. Tele Vue's new M54 camera adapter has male M54 x 0.75mm threads on one side and their Imaging System female threads on the other. This allows for easy integration of your M54 compatible hardware with Tele Vue's Imaging System accessories and Nagler-Petzval “is” telescopes.
The M54-1073 can also be combined with non-Imaging System scopes of any brand by using a Tele Vue Imaging System Nosepiece for 2" Focuser # RAD-1074 (sold separately). The RAD-1074 slides into a 2" telescope drawtube and has a 2.4" Imaging System thread on the other side to accept any Imaging System accessory.
Agena note: Note that Tele Vue's reference to 2.4" refers to the minimum inside diameter of their focuser. The actual thread has a nominal diameter of 2.56" and features 24 threads per inch (2.56"-24tpi).
Specifications:
- Total length = 10.5mm (0.41in)
- Optical length = 6.6mm (0.26in)
- Length of male thread = 3.9mm (0.15in)
- Male thread specification = M54x0.75
- Length of female thread = Xmm (Xin)
- Female thread specification = 2.56"-24
- Clear aperture = 49.9mm (1.96in)
- Maximum outside diameter = 69.8mm (2.75")
- Weight = 0.5oz (14g)
Other Information
- Country of Manufacture: United States
