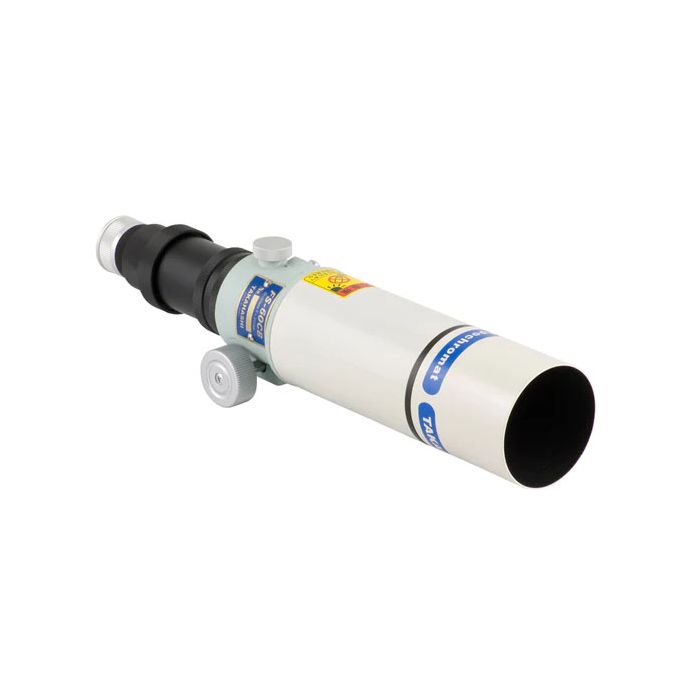

Takahashi FS-60CB Fluorite Refractor Telescope OTA
- This item is currently on backorder from the manufacturer.
- Orders are fulfilled in the order they are received once inventory arrives.
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available.
- This item is out of stock.
- We have no ETA from the manufacturer at this time.
- Sign up for back-in-stock alerts to be notified when this item becomes available.
Lower 48 States:
Orders over $50 ship free within the Lower 48 using a carrier and service we select based on your items and delivery location. Faster shipping options may be available at checkout.
U.S. Outside the Lower 48 (AK, HI, PR):
Free shipping on orders over $50 applies to many—but not all—items. Add items to your cart and enter your ZIP code to see available shipping options and any costs.
International Orders:
Free shipping does not apply to international orders. You’ll see available shipping options and costs during checkout. Some items can’t be shipped internationally due to size or manufacturer restrictions. Duties, taxes, brokerage fees, and tariffs are not included and are the customer’s responsibility.
The FS series of apochromatic refracting telescopes from Takahashi provides a balance of high performance, compact size, and low cost. At its heart is a two-element fluorite lens set that provides outstanding performance for both visual and imaging applications. The FS series makes use of several reducers, extenders and flatteners to further enhance its capabilities and performance.
The FS-60CB is a 60 mm refractor that employs a multi-coated, two element fluorite objective lens with a prime focal length of 355 mm. By attaching the optional Extender-CQ1.7X, the FS-60CB is converted into an FS-60Q, a 600 mm f/10 telescope consisting of one fluorite element, with a flat field across the image circle.
With the dedicated optional C0.72X reducer, the FS-60CB is converted to an f/4.2 instrument. The combination results in a 40 mm diameter image circle with 60% illumination across the entire field. Illumination is maintained at 95% or more out to a 25 mm diameter, and is 72% illuminated out to a diameter of 35 mm.
With the dedicated optional FS-60 flattener, the resulting field flatness is greatly improved out to the four corners of a full frame DSLR sensor. The resulting combination is an f/6.2, 374 mm instrument with an image circle diameter of 44 mm.
- Fluorite doublet apochromat
- Air-spaced doublet. Fluorite on the front
- Hard multicoatings
- Objective lens diameter: 60mm
- Focal length: 355mm
- Focal ratio: f/5.9
- Metal back distance: 162mm
- Optical tube length: 440mm
- Optical tube diameter: 80mm
- Dew shield OD: 80mm
- Weight: 1.4kg (3.08 lbs)
- Output thread: M56
Optical Tube Assembly only (mount, tripod, tube holder and finder sold separately).
Other Information
- Country of Manufacture: Japan
The FS series of apochromatic refracting telescopes from Takahashi provides a balance of high performance, compact size, and low cost. At its heart is a two-element fluorite lens set that provides outstanding performance for both visual and imaging applications. The FS series makes use of several reducers, extenders and flatteners to further enhance its capabilities and performance.
The FS-60CB is a 60 mm refractor that employs a multi-coated, two element fluorite objective lens with a prime focal length of 355 mm. By attaching the optional Extender-CQ1.7X, the FS-60CB is converted into an FS-60Q, a 600 mm f/10 telescope consisting of one fluorite element, with a flat field across the image circle.
With the dedicated optional C0.72X reducer, the FS-60CB is converted to an f/4.2 instrument. The combination results in a 40 mm diameter image circle with 60% illumination across the entire field. Illumination is maintained at 95% or more out to a 25 mm diameter, and is 72% illuminated out to a diameter of 35 mm.
With the dedicated optional FS-60 flattener, the resulting field flatness is greatly improved out to the four corners of a full frame DSLR sensor. The resulting combination is an f/6.2, 374 mm instrument with an image circle diameter of 44 mm.
- Fluorite doublet apochromat
- Air-spaced doublet. Fluorite on the front
- Hard multicoatings
- Objective lens diameter: 60mm
- Focal length: 355mm
- Focal ratio: f/5.9
- Metal back distance: 162mm
- Optical tube length: 440mm
- Optical tube diameter: 80mm
- Dew shield OD: 80mm
- Weight: 1.4kg (3.08 lbs)
- Output thread: M56
Optical Tube Assembly only (mount, tripod, tube holder and finder sold separately).
The FS series of apochromatic refracting telescopes from Takahashi provides a balance of high performance, compact size, and low cost. At its heart is a two-element fluorite lens set that provides outstanding performance for both visual and imaging applications. The FS series makes use of several reducers, extenders and flatteners to further enhance its capabilities and performance.
The FS-60CB is a 60 mm refractor that employs a multi-coated, two element fluorite objective lens with a prime focal length of 355 mm. By attaching the optional Extender-CQ1.7X, the FS-60CB is converted into an FS-60Q, a 600 mm f/10 telescope consisting of one fluorite element, with a flat field across the image circle.
With the dedicated optional C0.72X reducer, the FS-60CB is converted to an f/4.2 instrument. The combination results in a 40 mm diameter image circle with 60% illumination across the entire field. Illumination is maintained at 95% or more out to a 25 mm diameter, and is 72% illuminated out to a diameter of 35 mm.
With the dedicated optional FS-60 flattener, the resulting field flatness is greatly improved out to the four corners of a full frame DSLR sensor. The resulting combination is an f/6.2, 374 mm instrument with an image circle diameter of 44 mm.
- Fluorite doublet apochromat
- Air-spaced doublet. Fluorite on the front
- Hard multicoatings
- Objective lens diameter: 60mm
- Focal length: 355mm
- Focal ratio: f/5.9
- Metal back distance: 162mm
- Optical tube length: 440mm
- Optical tube diameter: 80mm
- Dew shield OD: 80mm
- Weight: 1.4kg (3.08 lbs)
- Output thread: M56
Optical Tube Assembly only (mount, tripod, tube holder and finder sold separately).
Other Information
- Country of Manufacture: Japan
| Product Status | new |
|---|---|
| Free Shipping Graphic | Free Contiguous US Shipping |
| Telescope Focal Length | 301 - 400mm |
| Hide Found a better Shipped Price on Frontend? | No |
Takahashi FS-60CB Fluorite Refractor Telescope OTA
