Feather Touch Focuser Rotatable 2" Diameter Dual Speed 0.8" Draw Tube Travel, Brake, and Compression Ring
- This item is out of stock.
- We have no ETA from the manufacturer at this time.
- Sign up for back-in-stock alerts to be notified when this item becomes available.
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available.
- This item is out of stock.
- We have no ETA from the manufacturer at this time.
- Sign up for back-in-stock alerts to be notified when this item becomes available.
Lower 48 States:
Orders over $50 ship free within the Lower 48 using a carrier and service we select based on your items and delivery location. Faster shipping options may be available at checkout.
U.S. Outside the Lower 48 (AK, HI, PR):
Free shipping on orders over $50 applies to many—but not all—items. Add items to your cart and enter your ZIP code to see available shipping options and any costs.
International Orders:
Free shipping does not apply to international orders. You’ll see available shipping options and costs during checkout. Some items can’t be shipped internationally due to size or manufacturer restrictions. Duties, taxes, brokerage fees, and tariffs are not included and are the customer’s responsibility.

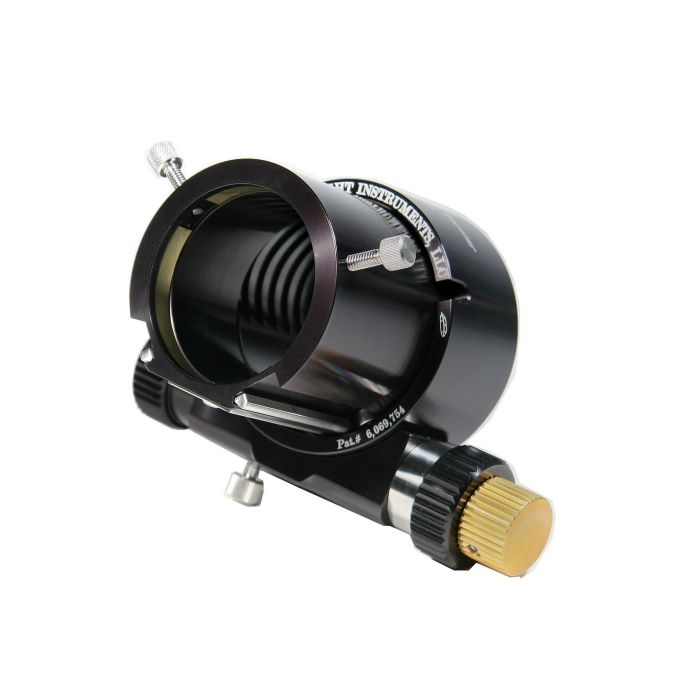

The low-profile Feather Touch “Shorty" focuser from Starlight Instruments is a premium low profile 2" focuser designed primarily for catadioptric telescopes. This fully rotatable and ultra-precise Crayford-type focuser makes visual observing a pleasure, and its backlash-free operation and high load capacity makes it a must-have for critical imaging and astrophotography applications. The focuser also completely eliminates image shift inherent in focusing Schmidt-Cassegrain telescopes using stock focusers.
Depending on the accessories used in the focuser, the short drawtube travel of 0.8" and the low profile of the focuser can allow it to swing through the fork arms of a 10" or larger catadioptric telescope when used with one of the short adapters manufactured by Starlight Instruments. When fully extended, the focuser measures just 2.205" from the mounting plate. Note, however, that smaller catadioptric telescopes from Celestron and Meade may not be able to swing through the arms of a fork mount even with this “Shorty" focuser.
The focuser attaches to a rear cell of a catadioptric telescope using a Starlight Instruments base adapter available for most catadioptric telescopes (adapter sold separately). Available adapters for this focuser include:
- Model PAF-SI-A20-223 adapter for Celestron 11" and 14" SCT telescopes
- Model PAF-SI-A20-214 adapter for Meade 10", 12", and 14" SCT telescopes
- Model PAF-SI-A20-295 adapter for Celestron 8" and 9.25" and Meade 8" SCT telescopes
This Feather Touch focuser includes coarse and fine focus knobs with a 10:1 reduction ratio for superb accuracy and repeatability. A full turn of the fine focus knob results in a 0.070" of drawtube travel with a repeatability of <0.0005". Despite this fine-focus precision, the focuser has a lifting capacity of up to 8-10 pounds through manual adjustment of the drawtube friction using a built-in brake. The capacity is sufficient for even the largest 2" eyepieces as well as many CCD cameras and filter wheels. The adjustable friction brake also allows the user to accommodate eyepieces with a wide range of weights. The focuser can be locked in place for long-exposure imaging. This Feather Touch Focuser includes a 2" drawtube with a soft brass compression ring that will not mar eyepiece barrels. Dual thumbscrews provide a more secure hold on heavy eyepieces and cameras.
All Starlight Instruments focusers are made from the best available materials, and no shortcuts are taken in design or fabrication. The focuser body and knobs are made from anodized aluminum to prevent corrosion. The moving parts of every precision-machined Starlight Instruments focuser are made from polished stainless steel to enhance durability. Hardened stainless steel raceways are matched to stainless steel ball bearings that give a buttery smoothness to the drawtube motion with zero backlash. All-steel construction of the running gear and friction plate make this focuser much more durable than less expensive focusers that use aluminum plates.
| Draw Tube Travel | 0.8"/20.32MM |
| Lifting Capacity | 8-10 pounds |
| Reduction Ratio | 10:1 |
| Draw Tube Drive Mechanism | Crayford |
| Racked In from Mounting Face | 1.405"/35.687MM |
| Racked Out from Mounting Face | 2.205"/56.01MM |
Other Information
- Country of Manufacture: United States
The low-profile Feather Touch “Shorty" focuser from Starlight Instruments is a premium low profile 2" focuser designed primarily for catadioptric telescopes. This fully rotatable and ultra-precise Crayford-type focuser makes visual observing a pleasure, and its backlash-free operation and high load capacity makes it a must-have for critical imaging and astrophotography applications. The focuser also completely eliminates image shift inherent in focusing Schmidt-Cassegrain telescopes using stock focusers.
Depending on the accessories used in the focuser, the short drawtube travel of 0.8" and the low profile of the focuser can allow it to swing through the fork arms of a 10" or larger catadioptric telescope when used with one of the short adapters manufactured by Starlight Instruments. When fully extended, the focuser measures just 2.205" from the mounting plate. Note, however, that smaller catadioptric telescopes from Celestron and Meade may not be able to swing through the arms of a fork mount even with this “Shorty" focuser.
The focuser attaches to a rear cell of a catadioptric telescope using a Starlight Instruments base adapter available for most catadioptric telescopes (adapter sold separately). Available adapters for this focuser include:
- Model PAF-SI-A20-223 adapter for Celestron 11" and 14" SCT telescopes
- Model PAF-SI-A20-214 adapter for Meade 10", 12", and 14" SCT telescopes
- Model PAF-SI-A20-295 adapter for Celestron 8" and 9.25" and Meade 8" SCT telescopes
This Feather Touch focuser includes coarse and fine focus knobs with a 10:1 reduction ratio for superb accuracy and repeatability. A full turn of the fine focus knob results in a 0.070" of drawtube travel with a repeatability of <0.0005". Despite this fine-focus precision, the focuser has a lifting capacity of up to 8-10 pounds through manual adjustment of the drawtube friction using a built-in brake. The capacity is sufficient for even the largest 2" eyepieces as well as many CCD cameras and filter wheels. The adjustable friction brake also allows the user to accommodate eyepieces with a wide range of weights. The focuser can be locked in place for long-exposure imaging. This Feather Touch Focuser includes a 2" drawtube with a soft brass compression ring that will not mar eyepiece barrels. Dual thumbscrews provide a more secure hold on heavy eyepieces and cameras.
All Starlight Instruments focusers are made from the best available materials, and no shortcuts are taken in design or fabrication. The focuser body and knobs are made from anodized aluminum to prevent corrosion. The moving parts of every precision-machined Starlight Instruments focuser are made from polished stainless steel to enhance durability. Hardened stainless steel raceways are matched to stainless steel ball bearings that give a buttery smoothness to the drawtube motion with zero backlash. All-steel construction of the running gear and friction plate make this focuser much more durable than less expensive focusers that use aluminum plates.
| Draw Tube Travel | 0.8"/20.32MM |
| Lifting Capacity | 8-10 pounds |
| Reduction Ratio | 10:1 |
| Draw Tube Drive Mechanism | Crayford |
| Racked In from Mounting Face | 1.405"/35.687MM |
| Racked Out from Mounting Face | 2.205"/56.01MM |
The low-profile Feather Touch “Shorty" focuser from Starlight Instruments is a premium low profile 2" focuser designed primarily for catadioptric telescopes. This fully rotatable and ultra-precise Crayford-type focuser makes visual observing a pleasure, and its backlash-free operation and high load capacity makes it a must-have for critical imaging and astrophotography applications. The focuser also completely eliminates image shift inherent in focusing Schmidt-Cassegrain telescopes using stock focusers.
Depending on the accessories used in the focuser, the short drawtube travel of 0.8" and the low profile of the focuser can allow it to swing through the fork arms of a 10" or larger catadioptric telescope when used with one of the short adapters manufactured by Starlight Instruments. When fully extended, the focuser measures just 2.205" from the mounting plate. Note, however, that smaller catadioptric telescopes from Celestron and Meade may not be able to swing through the arms of a fork mount even with this “Shorty" focuser.
The focuser attaches to a rear cell of a catadioptric telescope using a Starlight Instruments base adapter available for most catadioptric telescopes (adapter sold separately). Available adapters for this focuser include:
- Model PAF-SI-A20-223 adapter for Celestron 11" and 14" SCT telescopes
- Model PAF-SI-A20-214 adapter for Meade 10", 12", and 14" SCT telescopes
- Model PAF-SI-A20-295 adapter for Celestron 8" and 9.25" and Meade 8" SCT telescopes
This Feather Touch focuser includes coarse and fine focus knobs with a 10:1 reduction ratio for superb accuracy and repeatability. A full turn of the fine focus knob results in a 0.070" of drawtube travel with a repeatability of <0.0005". Despite this fine-focus precision, the focuser has a lifting capacity of up to 8-10 pounds through manual adjustment of the drawtube friction using a built-in brake. The capacity is sufficient for even the largest 2" eyepieces as well as many CCD cameras and filter wheels. The adjustable friction brake also allows the user to accommodate eyepieces with a wide range of weights. The focuser can be locked in place for long-exposure imaging. This Feather Touch Focuser includes a 2" drawtube with a soft brass compression ring that will not mar eyepiece barrels. Dual thumbscrews provide a more secure hold on heavy eyepieces and cameras.
All Starlight Instruments focusers are made from the best available materials, and no shortcuts are taken in design or fabrication. The focuser body and knobs are made from anodized aluminum to prevent corrosion. The moving parts of every precision-machined Starlight Instruments focuser are made from polished stainless steel to enhance durability. Hardened stainless steel raceways are matched to stainless steel ball bearings that give a buttery smoothness to the drawtube motion with zero backlash. All-steel construction of the running gear and friction plate make this focuser much more durable than less expensive focusers that use aluminum plates.
| Draw Tube Travel | 0.8"/20.32MM |
| Lifting Capacity | 8-10 pounds |
| Reduction Ratio | 10:1 |
| Draw Tube Drive Mechanism | Crayford |
| Racked In from Mounting Face | 1.405"/35.687MM |
| Racked Out from Mounting Face | 2.205"/56.01MM |
Other Information
- Country of Manufacture: United States
