Sky-Watcher EvoStar 120ED APO Refractor
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available.
- This item is out of stock.
- We have no ETA from the manufacturer at this time.
- Sign up for back-in-stock alerts to be notified when this item becomes available.
Lower 48 States:
Orders over $50 ship free within the Lower 48 using a carrier and service we select based on your items and delivery location. Faster shipping options may be available at checkout.
U.S. Outside the Lower 48 (AK, HI, PR):
Free shipping on orders over $50 applies to many—but not all—items. Add items to your cart and enter your ZIP code to see available shipping options and any costs.
International Orders:
Free shipping does not apply to international orders. You’ll see available shipping options and costs during checkout. Some items can’t be shipped internationally due to size or manufacturer restrictions. Duties, taxes, brokerage fees, and tariffs are not included and are the customer’s responsibility.
- Doublet apochromatic optical design
- Two-element, air-spaced optical assembly minimizes false color
- 120mm aperture, 900mm focal length, f/7.5 focal ratio
- 2-inch dual-speed Crayford-style focuser
- Aluminum tube coated with glossy, black diamond metal-flake finish
- Included accessories: two 1.25-inch eyepieces (5mm and 25mm), 2-inch Crayford-style focuser, tube rings, V-style dovetail, 8x50 right-angle finderscope, 2-inch dielectric diagonal, and foam-lined aluminum case
Sky-Watcher’s Evostar apochromatic doublet refractors are the perfect blend of superior extra-low dispersion glass and affordability. The Evostar refractor lens assembly utilizes a proprietary combination of matched lenses, delivering tack-sharp stars with charcoal-black, contrast-rich skies. All ED glass elements are fluorite-based and feature our proprietary Metallic High-Transmission Coatings™ (MHTC™), virtually eliminating all false color while internal baffle prevent stray light from affecting your photography. Like the optics, the tube is beautifully crafted using aluminum and finished with a black diamond metal-flake finish.
Using a doublet refractor instead of a triplet has some advantages: less glass means less weight, less weight means a less expensive telescope, so you can dedicate more money for your camera or laptop while benefiting from a lightweight astrophotography rig.

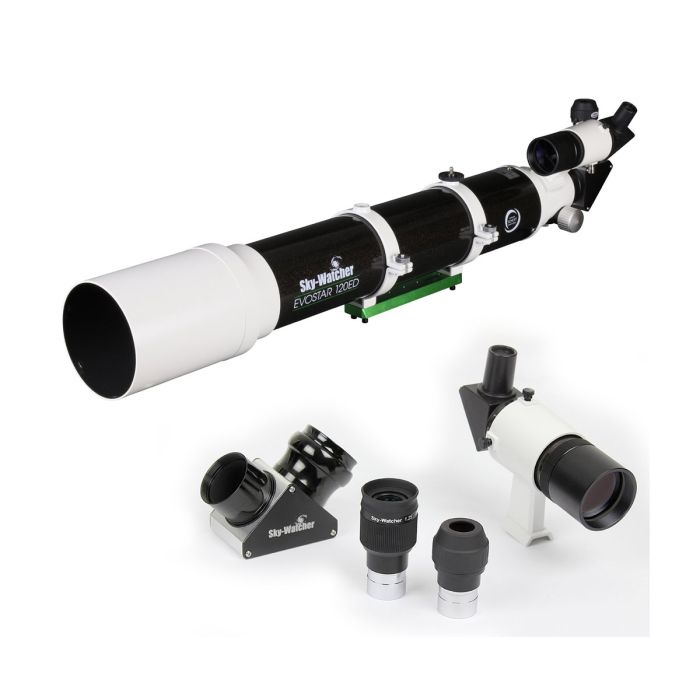

The Evostar 120ED # S11130 comes in a foam-lined aluminum case fully loaded with accessories, including: 2-inch Crayford-style focuser, 2-inch dielectric diagonal, two 1.25-inch eyepieces (5mm and 25mm), an 8x50 right-angle finderscope, tube rings, and a V-style dovetail.
Specifications:
Optical Info:
- Optical Design: ED Doublet
- Lens Coatings: Fully Multi-Coated
- Glass Type: BK7/FPL-53(ED)
- True Aperture (mm): 120.5
- Primary Aperture (mm): 120
- F/Ratio: 7.5
- Focal Length (mm): 900
- Dew shield OD: 143mm
Observational Info:
- Dawes Limit: 0.97
- Rayleigh Limit: 1.16
- Limiting Mag.: 12.9
- Minimum Magnification: 17
- Maximum Magnification: 236
- Light Gathering (compared to next size down): 44%
General Info:
- Focuser: 2" Dual Speed Crayford
- OTA Length (Retract/Ext.): 36"
- OTA Outer Diameter: 5.625"
- OTA Weight (with accessories): 13.9
Accessories:
- Included Finder: 8x50 RACI
- Included Diagonal: 2" Dielectric
- Mounting Accessories: Rings/V-Rail
- Included Eyepieces: 25mm LET/5 Planetary
- Magnification w/ Included Eyepieces: 45x/180x
- Included Case: Yes
- Corrector: No (optional)
Other Information
- Country of Manufacture: China
Sky-Watcher’s Evostar apochromatic doublet refractors are the perfect blend of superior extra-low dispersion glass and affordability. The Evostar refractor lens assembly utilizes a proprietary combination of matched lenses, delivering tack-sharp stars with charcoal-black, contrast-rich skies. All ED glass elements are fluorite-based and feature our proprietary Metallic High-Transmission Coatings™ (MHTC™), virtually eliminating all false color while internal baffle prevent stray light from affecting your photography. Like the optics, the tube is beautifully crafted using aluminum and finished with a black diamond metal-flake finish.
Using a doublet refractor instead of a triplet has some advantages: less glass means less weight, less weight means a less expensive telescope, so you can dedicate more money for your camera or laptop while benefiting from a lightweight astrophotography rig.
The Evostar 120ED # S11130 comes in a foam-lined aluminum case fully loaded with accessories, including: 2-inch Crayford-style focuser, 2-inch dielectric diagonal, two 1.25-inch eyepieces (5mm and 25mm), an 8x50 right-angle finderscope, tube rings, and a V-style dovetail.
Specifications:
Optical Info:
- Optical Design: ED Doublet
- Lens Coatings: Fully Multi-Coated
- Glass Type: BK7/FPL-53(ED)
- True Aperture (mm): 120.5
- Primary Aperture (mm): 120
- F/Ratio: 7.5
- Focal Length (mm): 900
- Dew shield OD: 143mm
Observational Info:
- Dawes Limit: 0.97
- Rayleigh Limit: 1.16
- Limiting Mag.: 12.9
- Minimum Magnification: 17
- Maximum Magnification: 236
- Light Gathering (compared to next size down): 44%
General Info:
- Focuser: 2" Dual Speed Crayford
- OTA Length (Retract/Ext.): 36"
- OTA Outer Diameter: 5.625"
- OTA Weight (with accessories): 13.9
Accessories:
- Included Finder: 8x50 RACI
- Included Diagonal: 2" Dielectric
- Mounting Accessories: Rings/V-Rail
- Included Eyepieces: 25mm LET/5 Planetary
- Magnification w/ Included Eyepieces: 45x/180x
- Included Case: Yes
- Corrector: No (optional)
| Product Status | sale | ||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Free Shipping Graphic | Free Contiguous US Shipping | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| Special Text Below Specs |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||
| Telescope Focal Length | 801 - 900mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| Hide Found a better Shipped Price on Frontend? | No | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| Optical Specs | |
|---|---|
| Mirror Coatings | N/A |
| Lens Coatings | Fully Multi-Coated |
| Glass Type | BK7/FPL-53(ED) |
| True Aperture (mm) | 120.5 |
| Primary Aperture (mm) | 120 |
| Primary Edge Thickness | N/A |
| F/Ratio | 7.5 |
| Focal Length (mm) | 900 |
| Secondary Obstruction (by diameter) | N/A |
| Secondary Obstruction by Area | N/A |
| Included Accessories | |
|---|---|
| Included Finder | 8x50 RACI |
| Included Diagonal | 2" Dielectric |
| Mounting Accessories | Rings/V-Rail |
| Included Eyepieces | 20 LET/5 Planetary |
| Magnification w/ Included Eyepieces | 45x/180x |
| Included Case | Yes |
| Corrector | No (Optional) |
| Observational Specs. | |
|---|---|
| Dawes Limit | 0.97 |
| Rayleigh Limit | 1.16 |
| Limiting Mag. | 12.9 |
| Minimum Magnification | 17 |
| Maximum Magnification | 236 |
| Light Gathering (compared to next size down) | 44% |
- Doublet apochromatic optical design
- Two-element, air-spaced optical assembly minimizes false color
- 120mm aperture, 900mm focal length, f/7.5 focal ratio
- 2-inch dual-speed Crayford-style focuser
- Aluminum tube coated with glossy, black diamond metal-flake finish
- Included accessories: two 1.25-inch eyepieces (5mm and 25mm), 2-inch Crayford-style focuser, tube rings, V-style dovetail, 8x50 right-angle finderscope, 2-inch dielectric diagonal, and foam-lined aluminum case
Sky-Watcher’s Evostar apochromatic doublet refractors are the perfect blend of superior extra-low dispersion glass and affordability. The Evostar refractor lens assembly utilizes a proprietary combination of matched lenses, delivering tack-sharp stars with charcoal-black, contrast-rich skies. All ED glass elements are fluorite-based and feature our proprietary Metallic High-Transmission Coatings™ (MHTC™), virtually eliminating all false color while internal baffle prevent stray light from affecting your photography. Like the optics, the tube is beautifully crafted using aluminum and finished with a black diamond metal-flake finish.
Using a doublet refractor instead of a triplet has some advantages: less glass means less weight, less weight means a less expensive telescope, so you can dedicate more money for your camera or laptop while benefiting from a lightweight astrophotography rig.
The Evostar 120ED # S11130 comes in a foam-lined aluminum case fully loaded with accessories, including: 2-inch Crayford-style focuser, 2-inch dielectric diagonal, two 1.25-inch eyepieces (5mm and 25mm), an 8x50 right-angle finderscope, tube rings, and a V-style dovetail.
Specifications:
Optical Info:
- Optical Design: ED Doublet
- Lens Coatings: Fully Multi-Coated
- Glass Type: BK7/FPL-53(ED)
- True Aperture (mm): 120.5
- Primary Aperture (mm): 120
- F/Ratio: 7.5
- Focal Length (mm): 900
- Dew shield OD: 143mm
Observational Info:
- Dawes Limit: 0.97
- Rayleigh Limit: 1.16
- Limiting Mag.: 12.9
- Minimum Magnification: 17
- Maximum Magnification: 236
- Light Gathering (compared to next size down): 44%
General Info:
- Focuser: 2" Dual Speed Crayford
- OTA Length (Retract/Ext.): 36"
- OTA Outer Diameter: 5.625"
- OTA Weight (with accessories): 13.9
Accessories:
- Included Finder: 8x50 RACI
- Included Diagonal: 2" Dielectric
- Mounting Accessories: Rings/V-Rail
- Included Eyepieces: 25mm LET/5 Planetary
- Magnification w/ Included Eyepieces: 45x/180x
- Included Case: Yes
- Corrector: No (optional)
Other Information
- Country of Manufacture: China
| Product Status | sale | ||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Free Shipping Graphic | Free Contiguous US Shipping | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| Special Text Below Specs |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||
| Telescope Focal Length | 801 - 900mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| Hide Found a better Shipped Price on Frontend? | No | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| Optical Specs | |
|---|---|
| Mirror Coatings | N/A |
| Lens Coatings | Fully Multi-Coated |
| Glass Type | BK7/FPL-53(ED) |
| True Aperture (mm) | 120.5 |
| Primary Aperture (mm) | 120 |
| Primary Edge Thickness | N/A |
| F/Ratio | 7.5 |
| Focal Length (mm) | 900 |
| Secondary Obstruction (by diameter) | N/A |
| Secondary Obstruction by Area | N/A |
| Included Accessories | |
|---|---|
| Included Finder | 8x50 RACI |
| Included Diagonal | 2" Dielectric |
| Mounting Accessories | Rings/V-Rail |
| Included Eyepieces | 20 LET/5 Planetary |
| Magnification w/ Included Eyepieces | 45x/180x |
| Included Case | Yes |
| Corrector | No (Optional) |
| Observational Specs. | |
|---|---|
| Dawes Limit | 0.97 |
| Rayleigh Limit | 1.16 |
| Limiting Mag. | 12.9 |
| Minimum Magnification | 17 |
| Maximum Magnification | 236 |
| Light Gathering (compared to next size down) | 44% |
Sky-Watcher EvoStar 120ED APO Refractor
