Includes:
- 1xSky-Watcher AZ-EQ6 Mount Head
- 1xSky-Watcher AZEQ-6 Tripod

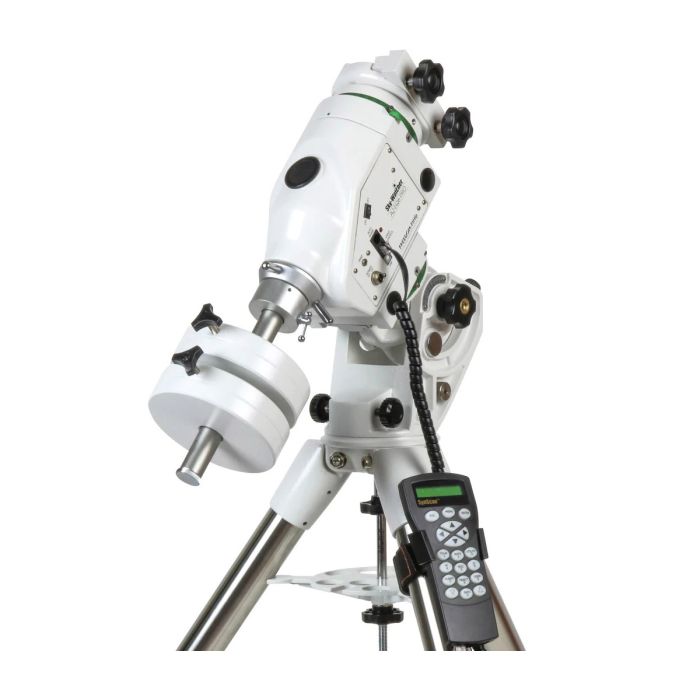

Sky-Watcher AZ-EQ6 Mount
Sku:
PAMT-SW-S30330
Mfg #:
S30330
Item Can Ship:
To US Only
The price depends on the chosen options
Free Shipping | Ships Same or Next Business Day
Final product price
In Stock
(Only 2 left)
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available.
- This item is out of stock.
- We have no ETA from the manufacturer at this time.
- Sign up for back-in-stock alerts to be notified when this item becomes available.
Lower 48 States:
Orders over $50 ship free within the Lower 48 using a carrier and service we select based on your items and delivery location. Faster shipping options may be available at checkout.
U.S. Outside the Lower 48 (AK, HI, PR):
Free shipping on orders over $50 applies to many—but not all—items. Add items to your cart and enter your ZIP code to see available shipping options and any costs.
International Orders:
Free shipping does not apply to international orders. You’ll see available shipping options and costs during checkout. Some items can’t be shipped internationally due to size or manufacturer restrictions. Duties, taxes, brokerage fees, and tariffs are not included and are the customer’s responsibility.
SKU:
PAMT-SW-S30330
Mfg #:
S30330
Item Can Ship:
To US Only
Important Note
Please note: Due to high shipping costs and low profit margins on this item, we might ship this from our stock or have the manufacturer drop ship this item to you.
- If this page lists the item as "In Stock", your order will ship within 3 days either from us or from the manufacturer.
- If this page lists the item as "Back Order" or "Drop Ship", it will be drop shipped from the manufacturer subject to their availability. In case of any delays for back-ordered or drop-shipped items, we will contact you promptly and update you on its status. Or you can contact us first and we can get you a shipping estimate before you order.
Key Features
- 44-pound payload capacity handles a large variety of OTAs
- German equatorial/Alt-Az/dual-OTA mode
- Permanent periodic error correction (PPEC)
- +/- 5 arcseconds native periodic error
- Belt drive delivers super smooth PE curve with low backlash and silent slewing
- Dual encoders with Freedom Find™ technology allow manual use of the mount without losing alignment
- SNAP shutter release control for batch exposures of astrophotos
- Motor controller with high torque and accuracy
- Includes two D/V-style saddles for mounting dual OTAs
- Two 11-pound counterweights
- Secure-fit power supply connections
- Polar alignment with built-in illuminated polarscope
- Retractable counterweight bar and counterweight extension bar included
Description
Description
The AZ-EQ6 # S30330 is the ultimate multi-role mount, blending the popularity of an EQ mount with the convenience of an Alt-Az mount. With its heavy duty 44-pound payload capacity, the AZ-EQ6 can handle a large variety of optical systems for both imaging and visual applications. In EQ mode the mount can be used for long exposure, deep sky imaging, while in Alt-Az mode it can be used for visual with one or even two telescopes with the addition of the secondary mounting saddle (included with the mount).
Belt Drives
To provide the best performance the AZ-EQ6 features ultra-quiet stepper motors and belt drives on both the RA and Dec axes. Belt drive reduces the number of gears used in the drive system which in turn reduces backlash. This allows the mount to track and guide with amazing precision.
Freedom Find™
For those looking for the ultimate visual tracking mount the AZ-EQ6 features Sky-Watcher's Freedom Find™ encoder system. These encoders are separate from the mount's GoTo system and allow you to disengage the clutches and manually move the mount around the sky without losing your initial alignment.
Dual OTAs
The AZ-EQ6 can mount two separate optical systems. By mounting the included secondary mounting saddle to the end of the counterweight bar the AZ-EQ6 can be used in “dual-OTA mode”. The benefits of using two telescopes on the same target at the same time is useful when comparing or imaging with two different fields of view (narrow vs. wide). It’s also perfect for solar observation when using two different types of filters for safe observation of the Sun. Most importantly, dual-OTA mode is ideal for astronomy outreach and education to double the number of eyes at the scope and halve the wait time keeping rambunctious kids and frazzled parents engaged and excited about the cosmos.
PC Direct Connect
For an improved and simplified connection, the AZ-EQ6 features a built-in USB-B port on its side panel. This allows for easy connection to a PC computer and control through our Sky-Watcher SynScan Pro application available for PC.
42,000+ Object Database
Using our proprietary SynScan hand controller, the AZ-EQ6 Pro provides a user-friendly interface with automatic slewing to over 42,000+ objects in the night sky. For the astrophotographers looking to reduce periodic error, the SynScan hand controller has built-in PEC training that can be configured while in the field!
Flexible Polar Alignment
Sky-Watcher includes an illuminated polar finderscope to aid the polar alignment process. The finderscope features a circular grid reticle for the Northern Hemisphere, consistent with today’s popular polar alignment apps. For astronomers in the Southern Hemisphere, the constellation Octans is built into the reticle as well. Even without a clear view of Polaris, the AZ-EQ6 Pro can be polar aligned using our SynScan hand controller. Simply choose one of the visible stars listed and use the latitude adjustment screws to center it in the eyepiece.
Specifications:
General Mount Info:
- Mount Type AZ/EQ
- GoTo Yes
- Payload Capacity (lbs): 44
- Mount Head Weight (lbs): 34
- Tripod Weight (lbs): 16.5
- Fully Assembled Weight (w/ weights): 72.5 lbs.
- Tripod Leg Diameter 2"
- Mounting Saddle Type: D/V
- Power Type: 12V (4 amp minimum)
- Clutch: Slip Clutch
- Polar Scope: Built In
- Latitude Range (degrees): 10-70 (EQ mode) 90 (AZ mode)
Computer/Drive System Info:
- Object Database: 42900+
- Controller: Hand Controller
- WiFi: Optional WiFi dongle
- Polar Align: Assist Yes
- PC Direct Connect Port: Yes
- Auto Guide: Yes
- Permanent Periodic Correction: Yes
- Dual Encoders: Yes
- DSLR Enterface: Yes
- Included Weights: 11lbs (two)
- Motor Type: Stepper
- Drive System: Belt
Other Information
- Country of Manufacture: China
The AZ-EQ6 # S30330 is the ultimate multi-role mount, blending the popularity of an EQ mount with the convenience of an Alt-Az mount. With its heavy duty 44-pound payload capacity, the AZ-EQ6 can handle a large variety of optical systems for both imaging and visual applications. In EQ mode the mount can be used for long exposure, deep sky imaging, while in Alt-Az mode it can be used for visual with one or even two telescopes with the addition of the secondary mounting saddle (included with the mount).
Belt Drives
To provide the best performance the AZ-EQ6 features ultra-quiet stepper motors and belt drives on both the RA and Dec axes. Belt drive reduces the number of gears used in the drive system which in turn reduces backlash. This allows the mount to track and guide with amazing precision.
Freedom Find™
For those looking for the ultimate visual tracking mount the AZ-EQ6 features Sky-Watcher's Freedom Find™ encoder system. These encoders are separate from the mount's GoTo system and allow you to disengage the clutches and manually move the mount around the sky without losing your initial alignment.
Dual OTAs
The AZ-EQ6 can mount two separate optical systems. By mounting the included secondary mounting saddle to the end of the counterweight bar the AZ-EQ6 can be used in “dual-OTA mode”. The benefits of using two telescopes on the same target at the same time is useful when comparing or imaging with two different fields of view (narrow vs. wide). It’s also perfect for solar observation when using two different types of filters for safe observation of the Sun. Most importantly, dual-OTA mode is ideal for astronomy outreach and education to double the number of eyes at the scope and halve the wait time keeping rambunctious kids and frazzled parents engaged and excited about the cosmos.
PC Direct Connect
For an improved and simplified connection, the AZ-EQ6 features a built-in USB-B port on its side panel. This allows for easy connection to a PC computer and control through our Sky-Watcher SynScan Pro application available for PC.
42,000+ Object Database
Using our proprietary SynScan hand controller, the AZ-EQ6 Pro provides a user-friendly interface with automatic slewing to over 42,000+ objects in the night sky. For the astrophotographers looking to reduce periodic error, the SynScan hand controller has built-in PEC training that can be configured while in the field!
Flexible Polar Alignment
Sky-Watcher includes an illuminated polar finderscope to aid the polar alignment process. The finderscope features a circular grid reticle for the Northern Hemisphere, consistent with today’s popular polar alignment apps. For astronomers in the Southern Hemisphere, the constellation Octans is built into the reticle as well. Even without a clear view of Polaris, the AZ-EQ6 Pro can be polar aligned using our SynScan hand controller. Simply choose one of the visible stars listed and use the latitude adjustment screws to center it in the eyepiece.
Specifications:
General Mount Info:
- Mount Type AZ/EQ
- GoTo Yes
- Payload Capacity (lbs): 44
- Mount Head Weight (lbs): 34
- Tripod Weight (lbs): 16.5
- Fully Assembled Weight (w/ weights): 72.5 lbs.
- Tripod Leg Diameter 2"
- Mounting Saddle Type: D/V
- Power Type: 12V (4 amp minimum)
- Clutch: Slip Clutch
- Polar Scope: Built In
- Latitude Range (degrees): 10-70 (EQ mode) 90 (AZ mode)
Computer/Drive System Info:
- Object Database: 42900+
- Controller: Hand Controller
- WiFi: Optional WiFi dongle
- Polar Align: Assist Yes
- PC Direct Connect Port: Yes
- Auto Guide: Yes
- Permanent Periodic Correction: Yes
- Dual Encoders: Yes
- DSLR Enterface: Yes
- Included Weights: 11lbs (two)
- Motor Type: Stepper
- Drive System: Belt
Read Full Description
Reviews / Q&A
Reviews / Q&A
In the Box
In the Box
- AZEQ-6 mount head
- SynScan hand controller
- Hand controller cable
- SNAP cable
- 12v DC power cable
- Counterweight bar extension
- Secondary mounting saddle with mounting hardware
- Hand controller holster
- AZEQ-6 tripod
- 11-pound counterweight (2x)
Resources
Resources
Product Guides / Manuals
Important Note
Please note: Due to high shipping costs and low profit margins on this item, we might ship this from our stock or have the manufacturer drop ship this item to you.
- If this page lists the item as "In Stock", your order will ship within 3 days either from us or from the manufacturer.
- If this page lists the item as "Back Order" or "Drop Ship", it will be drop shipped from the manufacturer subject to their availability. In case of any delays for back-ordered or drop-shipped items, we will contact you promptly and update you on its status. Or you can contact us first and we can get you a shipping estimate before you order.
Key Features
- 44-pound payload capacity handles a large variety of OTAs
- German equatorial/Alt-Az/dual-OTA mode
- Permanent periodic error correction (PPEC)
- +/- 5 arcseconds native periodic error
- Belt drive delivers super smooth PE curve with low backlash and silent slewing
- Dual encoders with Freedom Find™ technology allow manual use of the mount without losing alignment
- SNAP shutter release control for batch exposures of astrophotos
- Motor controller with high torque and accuracy
- Includes two D/V-style saddles for mounting dual OTAs
- Two 11-pound counterweights
- Secure-fit power supply connections
- Polar alignment with built-in illuminated polarscope
- Retractable counterweight bar and counterweight extension bar included
Description
Reviews / Q&A
In the Box
Resources
Description
The AZ-EQ6 # S30330 is the ultimate multi-role mount, blending the popularity of an EQ mount with the convenience of an Alt-Az mount. With its heavy duty 44-pound payload capacity, the AZ-EQ6 can handle a large variety of optical systems for both imaging and visual applications. In EQ mode the mount can be used for long exposure, deep sky imaging, while in Alt-Az mode it can be used for visual with one or even two telescopes with the addition of the secondary mounting saddle (included with the mount).
Belt Drives
To provide the best performance the AZ-EQ6 features ultra-quiet stepper motors and belt drives on both the RA and Dec axes. Belt drive reduces the number of gears used in the drive system which in turn reduces backlash. This allows the mount to track and guide with amazing precision.
Freedom Find™
For those looking for the ultimate visual tracking mount the AZ-EQ6 features Sky-Watcher's Freedom Find™ encoder system. These encoders are separate from the mount's GoTo system and allow you to disengage the clutches and manually move the mount around the sky without losing your initial alignment.
Dual OTAs
The AZ-EQ6 can mount two separate optical systems. By mounting the included secondary mounting saddle to the end of the counterweight bar the AZ-EQ6 can be used in “dual-OTA mode”. The benefits of using two telescopes on the same target at the same time is useful when comparing or imaging with two different fields of view (narrow vs. wide). It’s also perfect for solar observation when using two different types of filters for safe observation of the Sun. Most importantly, dual-OTA mode is ideal for astronomy outreach and education to double the number of eyes at the scope and halve the wait time keeping rambunctious kids and frazzled parents engaged and excited about the cosmos.
PC Direct Connect
For an improved and simplified connection, the AZ-EQ6 features a built-in USB-B port on its side panel. This allows for easy connection to a PC computer and control through our Sky-Watcher SynScan Pro application available for PC.
42,000+ Object Database
Using our proprietary SynScan hand controller, the AZ-EQ6 Pro provides a user-friendly interface with automatic slewing to over 42,000+ objects in the night sky. For the astrophotographers looking to reduce periodic error, the SynScan hand controller has built-in PEC training that can be configured while in the field!
Flexible Polar Alignment
Sky-Watcher includes an illuminated polar finderscope to aid the polar alignment process. The finderscope features a circular grid reticle for the Northern Hemisphere, consistent with today’s popular polar alignment apps. For astronomers in the Southern Hemisphere, the constellation Octans is built into the reticle as well. Even without a clear view of Polaris, the AZ-EQ6 Pro can be polar aligned using our SynScan hand controller. Simply choose one of the visible stars listed and use the latitude adjustment screws to center it in the eyepiece.
Specifications:
General Mount Info:
- Mount Type AZ/EQ
- GoTo Yes
- Payload Capacity (lbs): 44
- Mount Head Weight (lbs): 34
- Tripod Weight (lbs): 16.5
- Fully Assembled Weight (w/ weights): 72.5 lbs.
- Tripod Leg Diameter 2"
- Mounting Saddle Type: D/V
- Power Type: 12V (4 amp minimum)
- Clutch: Slip Clutch
- Polar Scope: Built In
- Latitude Range (degrees): 10-70 (EQ mode) 90 (AZ mode)
Computer/Drive System Info:
- Object Database: 42900+
- Controller: Hand Controller
- WiFi: Optional WiFi dongle
- Polar Align: Assist Yes
- PC Direct Connect Port: Yes
- Auto Guide: Yes
- Permanent Periodic Correction: Yes
- Dual Encoders: Yes
- DSLR Enterface: Yes
- Included Weights: 11lbs (two)
- Motor Type: Stepper
- Drive System: Belt
Other Information
- Country of Manufacture: China
Specifications
| Product Status | sale |
|---|---|
| Free Shipping Graphic | Free Contiguous US Shipping |
| Hide Found a better Shipped Price on Frontend? | No |
Reviews / Q&A
In the Box
- AZEQ-6 mount head
- SynScan hand controller
- Hand controller cable
- SNAP cable
- 12v DC power cable
- Counterweight bar extension
- Secondary mounting saddle with mounting hardware
- Hand controller holster
- AZEQ-6 tripod
- 11-pound counterweight (2x)
Resources
Product Guides / Manuals
Sky-Watcher AZ-EQ6 Mount
