Sharpstar 0.8x Reducer and Flattener for Full Frame Cameras for Sharpstar 76EDPH Telescope

- This item is out of stock.
- We have no ETA from the manufacturer at this time.
- Sign up for back-in-stock alerts to be notified when this item becomes available.
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available.
- This item is out of stock.
- We have no ETA from the manufacturer at this time.
- Sign up for back-in-stock alerts to be notified when this item becomes available.
Lower 48 States:
Orders over $50 ship free within the Lower 48 using a carrier and service we select based on your items and delivery location. Faster shipping options may be available at checkout.
U.S. Outside the Lower 48 (AK, HI, PR):
Free shipping on orders over $50 applies to many—but not all—items. Add items to your cart and enter your ZIP code to see available shipping options and any costs.
International Orders:
Free shipping does not apply to international orders. You’ll see available shipping options and costs during checkout. Some items can’t be shipped internationally due to size or manufacturer restrictions. Duties, taxes, brokerage fees, and tariffs are not included and are the customer’s responsibility.
The clearance price listed above is an extra 10% off the regular clearance price. Valid only until August 22nd at 11:59pm PT - get it while supplies last!

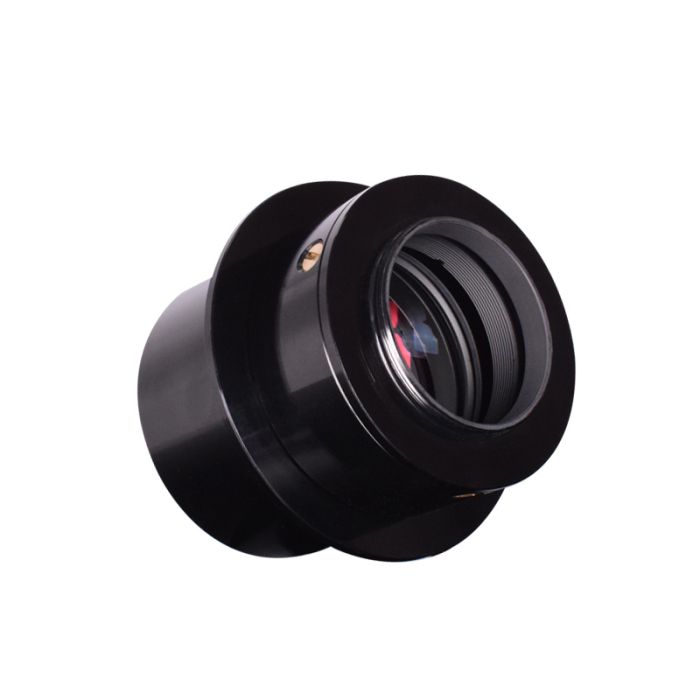

The Sharpstar 76EDPH F/4.5 is the latest development in dedicated full-frame focal reducers. Designed to work with the Sharpstar 76EDPH apochromatic refractor, this 0.8x reducer and flattener meets the needs of demanding astrophotographers who use cameras with up to full-frame sensors for wide-field deep-sky imaging.
This focal reducer features a triplet air-spaced structure and large optics that achieve excellent field flatness and illumination over a 44mm image circle.
One end of the reducer features a M74×1 thread that connects to the pinion focuser. The other end uses a M48×0.75 thread to attach to the camera or a 48mm T-ring for a DSLR. The focal plane is 55mm from the end interface.
The reducer also features a built-in 360-degree rotator that allows you to easily rotate the camera to achieve the best image framing. A internal M48x0.75 female thread allows the use of standard 2" filters.
- Use for telescope models: Sharpstar 76EDPH
- Reducing focal ratio: f/4.5 (0.8x)
- Image circle: 44mm
- Lens type: Triplet
- Largest diameter: 88mm
- Back focus: 55mm
- Total length: 77mm (including M48 thread)
- Surface coating: Fully Multi-Coated
- Weight: 0.5kg
This reducer can also be used with the 94EDPH telescope with good results, although its performance will not be as good as with the 76EDPH telescope.
Other Information
- Country of Manufacture: China
The Sharpstar 76EDPH F/4.5 is the latest development in dedicated full-frame focal reducers. Designed to work with the Sharpstar 76EDPH apochromatic refractor, this 0.8x reducer and flattener meets the needs of demanding astrophotographers who use cameras with up to full-frame sensors for wide-field deep-sky imaging.
This focal reducer features a triplet air-spaced structure and large optics that achieve excellent field flatness and illumination over a 44mm image circle.
One end of the reducer features a M74×1 thread that connects to the pinion focuser. The other end uses a M48×0.75 thread to attach to the camera or a 48mm T-ring for a DSLR. The focal plane is 55mm from the end interface.
The reducer also features a built-in 360-degree rotator that allows you to easily rotate the camera to achieve the best image framing. A internal M48x0.75 female thread allows the use of standard 2" filters.
- Use for telescope models: Sharpstar 76EDPH
- Reducing focal ratio: f/4.5 (0.8x)
- Image circle: 44mm
- Lens type: Triplet
- Largest diameter: 88mm
- Back focus: 55mm
- Total length: 77mm (including M48 thread)
- Surface coating: Fully Multi-Coated
- Weight: 0.5kg
This reducer can also be used with the 94EDPH telescope with good results, although its performance will not be as good as with the 76EDPH telescope.
The clearance price listed above is an extra 10% off the regular clearance price. Valid only until August 22nd at 11:59pm PT - get it while supplies last!
The Sharpstar 76EDPH F/4.5 is the latest development in dedicated full-frame focal reducers. Designed to work with the Sharpstar 76EDPH apochromatic refractor, this 0.8x reducer and flattener meets the needs of demanding astrophotographers who use cameras with up to full-frame sensors for wide-field deep-sky imaging.
This focal reducer features a triplet air-spaced structure and large optics that achieve excellent field flatness and illumination over a 44mm image circle.
One end of the reducer features a M74×1 thread that connects to the pinion focuser. The other end uses a M48×0.75 thread to attach to the camera or a 48mm T-ring for a DSLR. The focal plane is 55mm from the end interface.
The reducer also features a built-in 360-degree rotator that allows you to easily rotate the camera to achieve the best image framing. A internal M48x0.75 female thread allows the use of standard 2" filters.
- Use for telescope models: Sharpstar 76EDPH
- Reducing focal ratio: f/4.5 (0.8x)
- Image circle: 44mm
- Lens type: Triplet
- Largest diameter: 88mm
- Back focus: 55mm
- Total length: 77mm (including M48 thread)
- Surface coating: Fully Multi-Coated
- Weight: 0.5kg
This reducer can also be used with the 94EDPH telescope with good results, although its performance will not be as good as with the 76EDPH telescope.
Other Information
- Country of Manufacture: China
