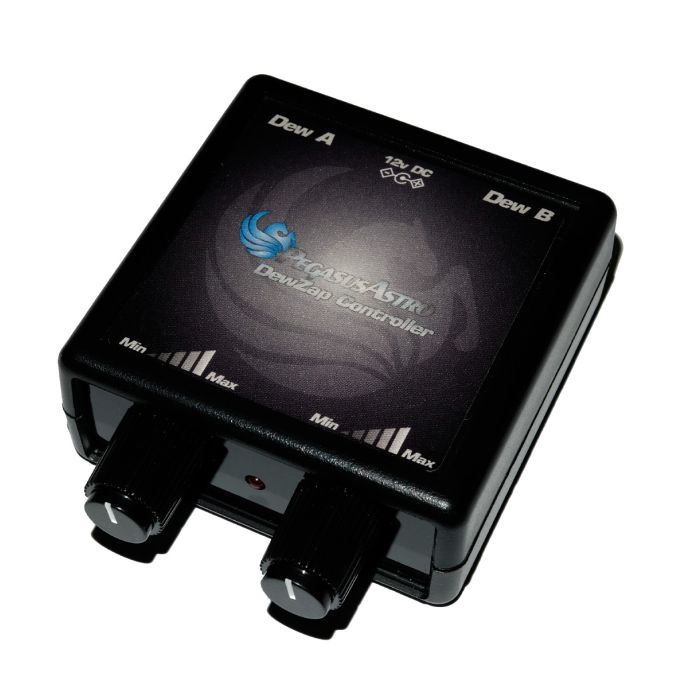

- DewZap is Pegasus Astro's Dual Channel Dew Heater Controller. Simple to use, powerful and very compact - this is your best companion against the dew during long astro–nights.
Please note: The "DC Cable to Cigarette Lighter Adapter # PAOA-PA-CIGLIGHT-ADAPTER25" which was previously included with this item is no longer included by Pegasus. This is available for separate purchase if required.
Two individual digital outputs for dew heating systems.
DewZap has two individual digital RCA outputs. You can control its output by turning each knob on the top of the controller.
Pulse Width Modulation Duty Cycle Control
Controller was built with modern digital electronics and fully supports duty cycle (PWM) control.
Zero to 100% heater control
Knobs can drive Pulse Width Modulation duty cycle from zero to 100%
Ten (10) amps current capacity (5 amps per channel)
Powerful mosfets on each output can provide easily 5Amps per channel. There are no voltage drops there.
Reverse polarity protected.
Device is protected from reverse polarity.
LED Operation indicator
A led indicator in front of the faceplate ensures controller is operational.
Product carries a two-year manufacturer warranty.
Specifications
- Supply Voltage: 12V DC Operation
- Output: Same input voltage in Pulse Width Modulation Duty Cycle
- Channels: Dual (2)
- Power Outlets: 2 x RCA
- Power Input Connector: 2.1mm Centre Positive Socket
- Dimensions: 66 mm x 66 mm x 28 mm
- Weight: 2.9oz / 82g
Other Information
- Country of Manufacture: Greece
Please note: The "DC Cable to Cigarette Lighter Adapter # PAOA-PA-CIGLIGHT-ADAPTER25" which was previously included with this item is no longer included by Pegasus. This is available for separate purchase if required.
Two individual digital outputs for dew heating systems.
DewZap has two individual digital RCA outputs. You can control its output by turning each knob on the top of the controller.
Pulse Width Modulation Duty Cycle Control
Controller was built with modern digital electronics and fully supports duty cycle (PWM) control.
Zero to 100% heater control
Knobs can drive Pulse Width Modulation duty cycle from zero to 100%
Ten (10) amps current capacity (5 amps per channel)
Powerful mosfets on each output can provide easily 5Amps per channel. There are no voltage drops there.
Reverse polarity protected.
Device is protected from reverse polarity.
LED Operation indicator
A led indicator in front of the faceplate ensures controller is operational.
Product carries a two-year manufacturer warranty.
Specifications
- Supply Voltage: 12V DC Operation
- Output: Same input voltage in Pulse Width Modulation Duty Cycle
- Channels: Dual (2)
- Power Outlets: 2 x RCA
- Power Input Connector: 2.1mm Centre Positive Socket
- Dimensions: 66 mm x 66 mm x 28 mm
- Weight: 2.9oz / 82g
- DewZap Heater Controller
- DewZap is Pegasus Astro's Dual Channel Dew Heater Controller. Simple to use, powerful and very compact - this is your best companion against the dew during long astro–nights.
Please note: The "DC Cable to Cigarette Lighter Adapter # PAOA-PA-CIGLIGHT-ADAPTER25" which was previously included with this item is no longer included by Pegasus. This is available for separate purchase if required.
Two individual digital outputs for dew heating systems.
DewZap has two individual digital RCA outputs. You can control its output by turning each knob on the top of the controller.
Pulse Width Modulation Duty Cycle Control
Controller was built with modern digital electronics and fully supports duty cycle (PWM) control.
Zero to 100% heater control
Knobs can drive Pulse Width Modulation duty cycle from zero to 100%
Ten (10) amps current capacity (5 amps per channel)
Powerful mosfets on each output can provide easily 5Amps per channel. There are no voltage drops there.
Reverse polarity protected.
Device is protected from reverse polarity.
LED Operation indicator
A led indicator in front of the faceplate ensures controller is operational.
Product carries a two-year manufacturer warranty.
Specifications
- Supply Voltage: 12V DC Operation
- Output: Same input voltage in Pulse Width Modulation Duty Cycle
- Channels: Dual (2)
- Power Outlets: 2 x RCA
- Power Input Connector: 2.1mm Centre Positive Socket
- Dimensions: 66 mm x 66 mm x 28 mm
- Weight: 2.9oz / 82g
Other Information
- Country of Manufacture: Greece
