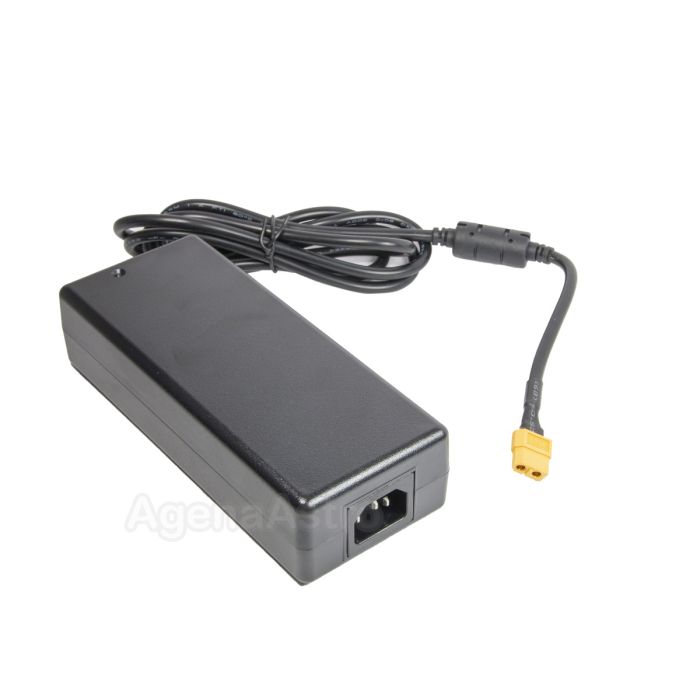

Pegasus Astro 12V/10A DC Power Supply Unit: XT60 Connector Plug for UPB2 & UPB3 only

Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available.
- This item is out of stock.
- We have no ETA from the manufacturer at this time.
- Sign up for back-in-stock alerts to be notified when this item becomes available.
Lower 48 States:
Orders over $50 ship free within the Lower 48 using a carrier and service we select based on your items and delivery location. Faster shipping options may be available at checkout.
U.S. Outside the Lower 48 (AK, HI, PR):
Free shipping on orders over $50 applies to many—but not all—items. Add items to your cart and enter your ZIP code to see available shipping options and any costs.
International Orders:
Free shipping does not apply to international orders. You’ll see available shipping options and costs during checkout. Some items can’t be shipped internationally due to size or manufacturer restrictions. Duties, taxes, brokerage fees, and tariffs are not included and are the customer’s responsibility.
Please Note: This power supply # PA-PSU-XT60 features an XT connector for use with the Pegasus Ultimate Powerbox v2 (UPB2) and Ultimate Powerbox v3 (UPB3) only. It is NOT for use with the UPB version 1, Pocket Power Box (PPB) and other products that require a 2.1mm or 2.5mm connector.
Pegasus Astro's sealed and certified switching power supply unit is the perfect match for their astronomical products. It can provide 12V and up to 10Amps. (120W of total power). Low ripple and noise ensures that you will provide the required and correct “electric juice” to your precious equipment. Comes together with a 1.8m long US power cord.
Specification
- Output Voltage: 12V
- Loading: 0-10 Amps
- Max. Power : 120 Watt
- Input Voltage Range: 90-264V
- Connector Size: XT60 (2.1mm and 2.5mm versions sold separately)
- Frequency: (47-63) Hz
- Cord Length: 150cm / 5 feet
- Regulated Output With Low Ripple Noise
- Sealed / Protected Enclosure (humidity / dust cannot enter)
- Safety Agency Requirements and EMI/EMS Certified
- Efficiency level (ErP) : VI
- CE and FCC certificate acquired
- Dimensions: 169 x 61 x 39 [mm]
Protections
- Over current/ Short protection: The power supply will self-protect any output to ground & auto recovery when abnormal circuit faults remove. An output short circuit is defined as any output impedance less than 0.1 ohms.
- Over Voltage: The power supply will be auto recovered when faults remove
- Input protection: F1:6.3A 250V Fuse The power supply shall be protected against power line surges and any abnormal condition
- No Load protection The power supply is provided with no load operation to prevent the power supply and system from damage.
- Protection class I, (ITU-T K.21 Surge 6KV on request)
Certifications

Other Information
- Country of Manufacture: Greece
Please Note: This power supply # PA-PSU-XT60 features an XT connector for use with the Pegasus Ultimate Powerbox v2 (UPB2) and Ultimate Powerbox v3 (UPB3) only. It is NOT for use with the UPB version 1, Pocket Power Box (PPB) and other products that require a 2.1mm or 2.5mm connector.
Pegasus Astro's sealed and certified switching power supply unit is the perfect match for their astronomical products. It can provide 12V and up to 10Amps. (120W of total power). Low ripple and noise ensures that you will provide the required and correct “electric juice” to your precious equipment. Comes together with a 1.8m long US power cord.
Specification
- Output Voltage: 12V
- Loading: 0-10 Amps
- Max. Power : 120 Watt
- Input Voltage Range: 90-264V
- Connector Size: XT60 (2.1mm and 2.5mm versions sold separately)
- Frequency: (47-63) Hz
- Cord Length: 150cm / 5 feet
- Regulated Output With Low Ripple Noise
- Sealed / Protected Enclosure (humidity / dust cannot enter)
- Safety Agency Requirements and EMI/EMS Certified
- Efficiency level (ErP) : VI
- CE and FCC certificate acquired
- Dimensions: 169 x 61 x 39 [mm]
Protections
- Over current/ Short protection: The power supply will self-protect any output to ground & auto recovery when abnormal circuit faults remove. An output short circuit is defined as any output impedance less than 0.1 ohms.
- Over Voltage: The power supply will be auto recovered when faults remove
- Input protection: F1:6.3A 250V Fuse The power supply shall be protected against power line surges and any abnormal condition
- No Load protection The power supply is provided with no load operation to prevent the power supply and system from damage.
- Protection class I, (ITU-T K.21 Surge 6KV on request)
Certifications

Please Note: This power supply # PA-PSU-XT60 features an XT connector for use with the Pegasus Ultimate Powerbox v2 (UPB2) and Ultimate Powerbox v3 (UPB3) only. It is NOT for use with the UPB version 1, Pocket Power Box (PPB) and other products that require a 2.1mm or 2.5mm connector.
Pegasus Astro's sealed and certified switching power supply unit is the perfect match for their astronomical products. It can provide 12V and up to 10Amps. (120W of total power). Low ripple and noise ensures that you will provide the required and correct “electric juice” to your precious equipment. Comes together with a 1.8m long US power cord.
Specification
- Output Voltage: 12V
- Loading: 0-10 Amps
- Max. Power : 120 Watt
- Input Voltage Range: 90-264V
- Connector Size: XT60 (2.1mm and 2.5mm versions sold separately)
- Frequency: (47-63) Hz
- Cord Length: 150cm / 5 feet
- Regulated Output With Low Ripple Noise
- Sealed / Protected Enclosure (humidity / dust cannot enter)
- Safety Agency Requirements and EMI/EMS Certified
- Efficiency level (ErP) : VI
- CE and FCC certificate acquired
- Dimensions: 169 x 61 x 39 [mm]
Protections
- Over current/ Short protection: The power supply will self-protect any output to ground & auto recovery when abnormal circuit faults remove. An output short circuit is defined as any output impedance less than 0.1 ohms.
- Over Voltage: The power supply will be auto recovered when faults remove
- Input protection: F1:6.3A 250V Fuse The power supply shall be protected against power line surges and any abnormal condition
- No Load protection The power supply is provided with no load operation to prevent the power supply and system from damage.
- Protection class I, (ITU-T K.21 Surge 6KV on request)
Certifications

Other Information
- Country of Manufacture: Greece
