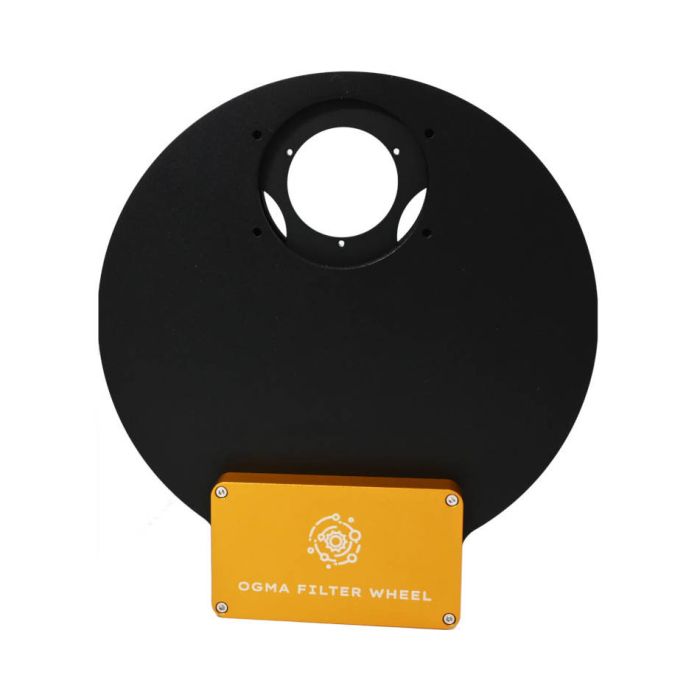

OGMA 7-Position Filter Wheel for 36mm Unmounted Filters
- This item is out of stock.
- We have no ETA from the manufacturer at this time.
- Sign up for back-in-stock alerts to be notified when this item becomes available.
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available.
- This item is out of stock.
- We have no ETA from the manufacturer at this time.
- Sign up for back-in-stock alerts to be notified when this item becomes available.
Lower 48 States:
Orders over $50 ship free within the Lower 48 using a carrier and service we select based on your items and delivery location. Faster shipping options may be available at checkout.
U.S. Outside the Lower 48 (AK, HI, PR):
Free shipping on orders over $50 applies to many—but not all—items. Add items to your cart and enter your ZIP code to see available shipping options and any costs.
International Orders:
Free shipping does not apply to international orders. You’ll see available shipping options and costs during checkout. Some items can’t be shipped internationally due to size or manufacturer restrictions. Duties, taxes, brokerage fees, and tariffs are not included and are the customer’s responsibility.
Overview
- No need to swap filters in the dark; let the OFW do it for you.
- Automated Convenience: With this USB-powered OFW, you can effortlessly switch filters from the comfort of your home—no extra power source is needed.
- This model is for 36mm unmounted filters and weighs around 18.5 ounces (525 grams).
- Software Compatibility: Enjoy seamless operation on Windows with our ASCOM driver and Linux with INDI support.
- Quality Assured: Every OFW undergoes rigorous testing and is shipped from the USA, ensuring top-quality performance.
- Elevate your astrophotography today and enjoy the simplicity of automated filter switching with OGMA.
Filter Compatibility
The 7-position carousel supports 36mm unmounted filters with a standard thickness range of 1.1 mm to 2.0 mm. The design offers some tolerance for slightly thicker filters, though filters unusually thick above 2.0 mm have not been formally tested.
Filters are held securely in place using retaining rings with set screws, allowing for reliable positioning and easy installation.
Camera and Telescope Compatibility
The Ogma Filter Wheels can be easily connected to:
- All Ogma cooled cameras.
- The Newest Touptek cooled cameras that share the same front plate as OGMA.
- The older Touptek cooled cameras, through the large M42 thread around the sensor.
- Most ZWO cooled cameras that have six tapped holes distributed on a circumference of 62 mm in diameter for M2.5 screws.
- (Untested) - Most QHY cameras that have six tapped holes distributed on a circumference of 62 mm in diameter for M2.5. This will require six screws M3.
- In addition, the package includes three adapters with the most commonly used thread for astrophotography. These adapters can be used to connect the filter wheel to a variety of cameras and telescopes:
- M42(M) to M54 (M) x 1mm extension
- M54(M) to M54 (M) x 1mm extension
- M54(M) to M48 (F) x 16.5mm extension
Using with INDI?
To use the filter wheel with the INDI platform on Linux, open KStars, navigate to the profile editor, and select 'Ogmacam EFW' as your equipment. This will ensure seamless integration and control of the filter wheel within the INDI environment.
Back Focus Information
Please note that this filter wheel has a back focus of 20 mm (width). Two of the three included thread adapters will further increase the back focus of the filter wheel by 1 mm and 16.5 mm, respectively, when attached.
Other Information
- Country of Manufacture: China
Overview
- No need to swap filters in the dark; let the OFW do it for you.
- Automated Convenience: With this USB-powered OFW, you can effortlessly switch filters from the comfort of your home—no extra power source is needed.
- This model is for 36mm unmounted filters and weighs around 18.5 ounces (525 grams).
- Software Compatibility: Enjoy seamless operation on Windows with our ASCOM driver and Linux with INDI support.
- Quality Assured: Every OFW undergoes rigorous testing and is shipped from the USA, ensuring top-quality performance.
- Elevate your astrophotography today and enjoy the simplicity of automated filter switching with OGMA.
Filter Compatibility
The 7-position carousel supports 36mm unmounted filters with a standard thickness range of 1.1 mm to 2.0 mm. The design offers some tolerance for slightly thicker filters, though filters unusually thick above 2.0 mm have not been formally tested.
Filters are held securely in place using retaining rings with set screws, allowing for reliable positioning and easy installation.
Camera and Telescope Compatibility
The Ogma Filter Wheels can be easily connected to:
- All Ogma cooled cameras.
- The Newest Touptek cooled cameras that share the same front plate as OGMA.
- The older Touptek cooled cameras, through the large M42 thread around the sensor.
- Most ZWO cooled cameras that have six tapped holes distributed on a circumference of 62 mm in diameter for M2.5 screws.
- (Untested) - Most QHY cameras that have six tapped holes distributed on a circumference of 62 mm in diameter for M2.5. This will require six screws M3.
- In addition, the package includes three adapters with the most commonly used thread for astrophotography. These adapters can be used to connect the filter wheel to a variety of cameras and telescopes:
- M42(M) to M54 (M) x 1mm extension
- M54(M) to M54 (M) x 1mm extension
- M54(M) to M48 (F) x 16.5mm extension
Using with INDI?
To use the filter wheel with the INDI platform on Linux, open KStars, navigate to the profile editor, and select 'Ogmacam EFW' as your equipment. This will ensure seamless integration and control of the filter wheel within the INDI environment.
Back Focus Information
Please note that this filter wheel has a back focus of 20 mm (width). Two of the three included thread adapters will further increase the back focus of the filter wheel by 1 mm and 16.5 mm, respectively, when attached.
Overview
- No need to swap filters in the dark; let the OFW do it for you.
- Automated Convenience: With this USB-powered OFW, you can effortlessly switch filters from the comfort of your home—no extra power source is needed.
- This model is for 36mm unmounted filters and weighs around 18.5 ounces (525 grams).
- Software Compatibility: Enjoy seamless operation on Windows with our ASCOM driver and Linux with INDI support.
- Quality Assured: Every OFW undergoes rigorous testing and is shipped from the USA, ensuring top-quality performance.
- Elevate your astrophotography today and enjoy the simplicity of automated filter switching with OGMA.
Filter Compatibility
The 7-position carousel supports 36mm unmounted filters with a standard thickness range of 1.1 mm to 2.0 mm. The design offers some tolerance for slightly thicker filters, though filters unusually thick above 2.0 mm have not been formally tested.
Filters are held securely in place using retaining rings with set screws, allowing for reliable positioning and easy installation.
Camera and Telescope Compatibility
The Ogma Filter Wheels can be easily connected to:
- All Ogma cooled cameras.
- The Newest Touptek cooled cameras that share the same front plate as OGMA.
- The older Touptek cooled cameras, through the large M42 thread around the sensor.
- Most ZWO cooled cameras that have six tapped holes distributed on a circumference of 62 mm in diameter for M2.5 screws.
- (Untested) - Most QHY cameras that have six tapped holes distributed on a circumference of 62 mm in diameter for M2.5. This will require six screws M3.
- In addition, the package includes three adapters with the most commonly used thread for astrophotography. These adapters can be used to connect the filter wheel to a variety of cameras and telescopes:
- M42(M) to M54 (M) x 1mm extension
- M54(M) to M54 (M) x 1mm extension
- M54(M) to M48 (F) x 16.5mm extension
Using with INDI?
To use the filter wheel with the INDI platform on Linux, open KStars, navigate to the profile editor, and select 'Ogmacam EFW' as your equipment. This will ensure seamless integration and control of the filter wheel within the INDI environment.
Back Focus Information
Please note that this filter wheel has a back focus of 20 mm (width). Two of the three included thread adapters will further increase the back focus of the filter wheel by 1 mm and 16.5 mm, respectively, when attached.
Other Information
- Country of Manufacture: China
