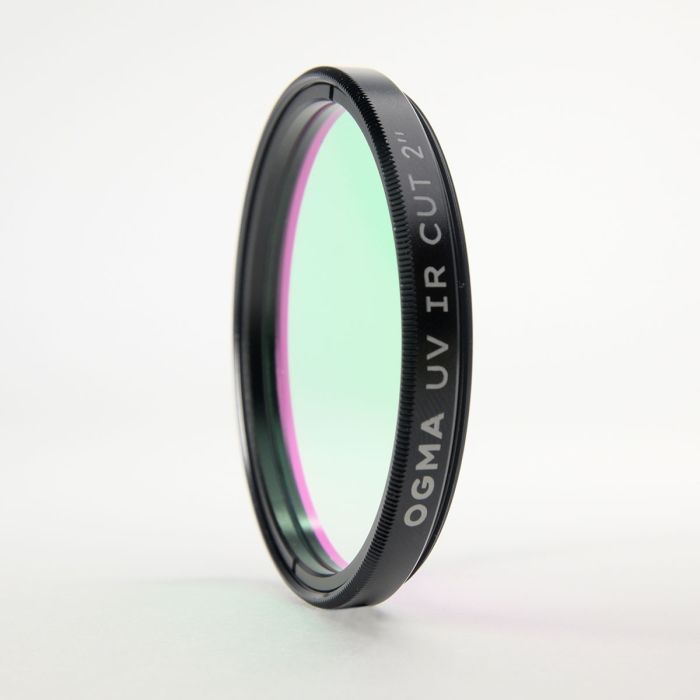

OGMA 2" Mounted UV/IR Cut Filter
- This item is out of stock.
- We have no ETA from the manufacturer at this time.
- Sign up for back-in-stock alerts to be notified when this item becomes available.
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available.
- This item is out of stock.
- We have no ETA from the manufacturer at this time.
- Sign up for back-in-stock alerts to be notified when this item becomes available.
Lower 48 States:
Orders over $50 ship free within the Lower 48 using a carrier and service we select based on your items and delivery location. Faster shipping options may be available at checkout.
U.S. Outside the Lower 48 (AK, HI, PR):
Free shipping on orders over $50 applies to many—but not all—items. Add items to your cart and enter your ZIP code to see available shipping options and any costs.
International Orders:
Free shipping does not apply to international orders. You’ll see available shipping options and costs during checkout. Some items can’t be shipped internationally due to size or manufacturer restrictions. Duties, taxes, brokerage fees, and tariffs are not included and are the customer’s responsibility.
Get sharper images from full spectrum cameras.
This filter is a must-have for CMOS and CCD cameras that don't have an infrared (IR) protective window above the image sensor or cameras that have been modified to become full spectrum sensitive. It is also useful as a luminance filter for monochrome cameras.
The state-of-the-art manufacturing process and the final physical characteristics, make the OGMA UV/IR Cut Filter compatible with astronomy applications. Obviously, this is also an excellent filter for general video and photography applications.
Since different wavelengths of light focus at different distances, in order to prevent blurred images while using a full spectrum sensitive camera, you will need to use either a narrow band pass filter or a UV-IR cut filter like this one.
Transmission
The following emission lines that are important for astrophotography are passing at > 95%.
- Hydrogen Alpha (H-Alpha): 656nm
- Sulphur II (SII): 672nm
- Nitrogen II (NII): 654nm and 658nm
Specifications
- Diameter: 2inch
- Thread: M48x0.75
- Physical thickness: 1.85mm
- UV cut off: < 400nm
- IR cut off: > 700nm
- Transmission of visible light: > 95%
- Transmission off band: < 0.1%
- Surface quality: 60/40 (MIL-O-13830)
- Surface polished: 1/4 wavefront
- Surface parallelism: < 30 seconds
Other Information
- Country of Manufacture: China
Get sharper images from full spectrum cameras.
This filter is a must-have for CMOS and CCD cameras that don't have an infrared (IR) protective window above the image sensor or cameras that have been modified to become full spectrum sensitive. It is also useful as a luminance filter for monochrome cameras.
The state-of-the-art manufacturing process and the final physical characteristics, make the OGMA UV/IR Cut Filter compatible with astronomy applications. Obviously, this is also an excellent filter for general video and photography applications.
Since different wavelengths of light focus at different distances, in order to prevent blurred images while using a full spectrum sensitive camera, you will need to use either a narrow band pass filter or a UV-IR cut filter like this one.
Transmission
The following emission lines that are important for astrophotography are passing at > 95%.
- Hydrogen Alpha (H-Alpha): 656nm
- Sulphur II (SII): 672nm
- Nitrogen II (NII): 654nm and 658nm
Specifications
- Diameter: 2inch
- Thread: M48x0.75
- Physical thickness: 1.85mm
- UV cut off: < 400nm
- IR cut off: > 700nm
- Transmission of visible light: > 95%
- Transmission off band: < 0.1%
- Surface quality: 60/40 (MIL-O-13830)
- Surface polished: 1/4 wavefront
- Surface parallelism: < 30 seconds
Get sharper images from full spectrum cameras.
This filter is a must-have for CMOS and CCD cameras that don't have an infrared (IR) protective window above the image sensor or cameras that have been modified to become full spectrum sensitive. It is also useful as a luminance filter for monochrome cameras.
The state-of-the-art manufacturing process and the final physical characteristics, make the OGMA UV/IR Cut Filter compatible with astronomy applications. Obviously, this is also an excellent filter for general video and photography applications.
Since different wavelengths of light focus at different distances, in order to prevent blurred images while using a full spectrum sensitive camera, you will need to use either a narrow band pass filter or a UV-IR cut filter like this one.
Transmission
The following emission lines that are important for astrophotography are passing at > 95%.
- Hydrogen Alpha (H-Alpha): 656nm
- Sulphur II (SII): 672nm
- Nitrogen II (NII): 654nm and 658nm
Specifications
- Diameter: 2inch
- Thread: M48x0.75
- Physical thickness: 1.85mm
- UV cut off: < 400nm
- IR cut off: > 700nm
- Transmission of visible light: > 95%
- Transmission off band: < 0.1%
- Surface quality: 60/40 (MIL-O-13830)
- Surface polished: 1/4 wavefront
- Surface parallelism: < 30 seconds
Other Information
- Country of Manufacture: China
