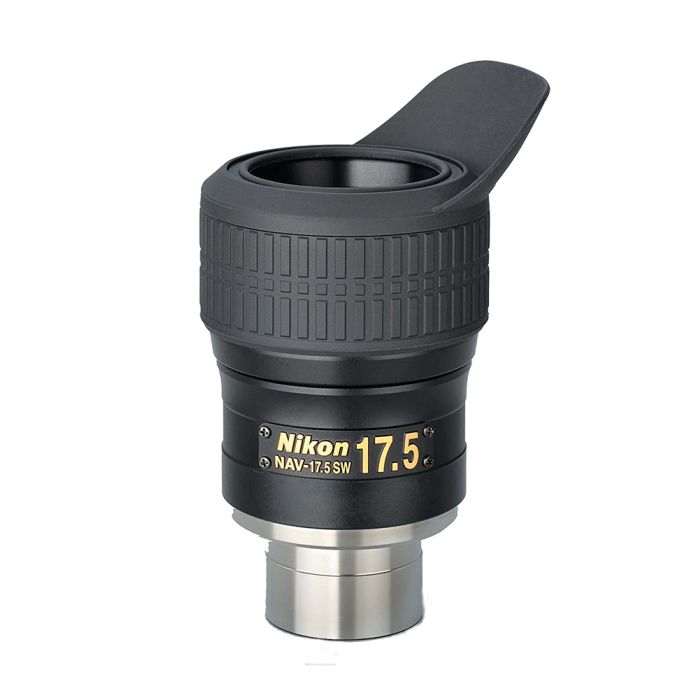

Nikon 1.25" NAV-SW Eyepiece with 72° AFOV - 17.5mm
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available.
- This item is out of stock.
- We have no ETA from the manufacturer at this time.
- Sign up for back-in-stock alerts to be notified when this item becomes available.
Lower 48 States:
Orders over $50 ship free within the Lower 48 using a carrier and service we select based on your items and delivery location. Faster shipping options may be available at checkout.
U.S. Outside the Lower 48 (AK, HI, PR):
Free shipping on orders over $50 applies to many—but not all—items. Add items to your cart and enter your ZIP code to see available shipping options and any costs.
International Orders:
Free shipping does not apply to international orders. You’ll see available shipping options and costs during checkout. Some items can’t be shipped internationally due to size or manufacturer restrictions. Duties, taxes, brokerage fees, and tariffs are not included and are the customer’s responsibility.
Nikon commemorated the International Year of Astronomy 2009 with the birth of their NAV-SW series eyepieces in five different focal lengths. Nikon NAV SWs eyepieces, based on their excellent eyepieces for Nikon spotting scopes, have evolved to meet the requirements of high level astronomical observation, with the deepest attention devoted to exquisite rendition of astronomical point sources of light, while also taking a chapter from the digiscope design world, which demands flat fields and sharp images right to the very edge of the field of view. The NAV SW design emphasizes suppression of field curvature and all astigmatism to bring about the maximum improvement in edge of field fidelity without sacrificing the quality of the image at the center of the field.
The compact Nikon NAV SWs are 72 degree FOV eyepieces that come with 1.25" barrels that are threaded for standard 1.25" astronomy filters. The comfortable eye relief specs for each eyepiece are designed to also harmonize with the optical performance of that eyepiece. Also, removal of exit pupil aberrations virtually eliminates any instance of kidney bean blackout effect, regardless of where the eye is placed during observation. The excellent color balance of the NAV SWs was derived through rigorous testing of this optical parameter on terrestrial objects, insuring the highest degree of planetary and lunar color rendition. Multicoatings on every optical surface make sure that these images are also as bright and otherwise distortion free as possible.
The Nikon NAV SW exterior design is somewhat reminiscent of the tried and true Nikkor lens design, with an attractive, high quality appearance, and rollets located around the entire circumference making the eyepieces easy and sure to grip, even in darkness or with gloved hands. A flexible silicone rubber eye shield (winged eyeguard) on the top of the eyepiece helps block streets lights and other annoying sources of light pollution, especially a help when viewing sensitive planetary and lunar surface details at high magnifications.
Nikon NAV SWs moisture resistant design will provide long years of constant and worry free service and viewing pleasure to discriminating astronomers in any observing environment worldwide.
The combination of the ideal optical qualities of a flat and wide 72 degree FOV that is sharp from edge to edge, excellent color rendition, comfortable eye relief intelligently designed to harmonize specifically with each eyepiece, a beautiful and compact body design, highest quality Japanese glass, multi-coatings and exterior materials, and a good selection of focal lengths makes the Nikon NAV SWs a true and new winner in the ever expanding world of 21st century astronomy.
Please Note: Nikon does not sell astronomical eyepieces directly in the US. We have teamed up with a leading tier 1 Nikon dealer from Japan to import these into the US. Together, we offer our US customers a limited one-year warranty on this product.
Other Information
- Country of Manufacture: Japan
Nikon commemorated the International Year of Astronomy 2009 with the birth of their NAV-SW series eyepieces in five different focal lengths. Nikon NAV SWs eyepieces, based on their excellent eyepieces for Nikon spotting scopes, have evolved to meet the requirements of high level astronomical observation, with the deepest attention devoted to exquisite rendition of astronomical point sources of light, while also taking a chapter from the digiscope design world, which demands flat fields and sharp images right to the very edge of the field of view. The NAV SW design emphasizes suppression of field curvature and all astigmatism to bring about the maximum improvement in edge of field fidelity without sacrificing the quality of the image at the center of the field.
The compact Nikon NAV SWs are 72 degree FOV eyepieces that come with 1.25" barrels that are threaded for standard 1.25" astronomy filters. The comfortable eye relief specs for each eyepiece are designed to also harmonize with the optical performance of that eyepiece. Also, removal of exit pupil aberrations virtually eliminates any instance of kidney bean blackout effect, regardless of where the eye is placed during observation. The excellent color balance of the NAV SWs was derived through rigorous testing of this optical parameter on terrestrial objects, insuring the highest degree of planetary and lunar color rendition. Multicoatings on every optical surface make sure that these images are also as bright and otherwise distortion free as possible.
The Nikon NAV SW exterior design is somewhat reminiscent of the tried and true Nikkor lens design, with an attractive, high quality appearance, and rollets located around the entire circumference making the eyepieces easy and sure to grip, even in darkness or with gloved hands. A flexible silicone rubber eye shield (winged eyeguard) on the top of the eyepiece helps block streets lights and other annoying sources of light pollution, especially a help when viewing sensitive planetary and lunar surface details at high magnifications.
Nikon NAV SWs moisture resistant design will provide long years of constant and worry free service and viewing pleasure to discriminating astronomers in any observing environment worldwide.
The combination of the ideal optical qualities of a flat and wide 72 degree FOV that is sharp from edge to edge, excellent color rendition, comfortable eye relief intelligently designed to harmonize specifically with each eyepiece, a beautiful and compact body design, highest quality Japanese glass, multi-coatings and exterior materials, and a good selection of focal lengths makes the Nikon NAV SWs a true and new winner in the ever expanding world of 21st century astronomy.
Please Note: Nikon does not sell astronomical eyepieces directly in the US. We have teamed up with a leading tier 1 Nikon dealer from Japan to import these into the US. Together, we offer our US customers a limited one-year warranty on this product.
Nikon commemorated the International Year of Astronomy 2009 with the birth of their NAV-SW series eyepieces in five different focal lengths. Nikon NAV SWs eyepieces, based on their excellent eyepieces for Nikon spotting scopes, have evolved to meet the requirements of high level astronomical observation, with the deepest attention devoted to exquisite rendition of astronomical point sources of light, while also taking a chapter from the digiscope design world, which demands flat fields and sharp images right to the very edge of the field of view. The NAV SW design emphasizes suppression of field curvature and all astigmatism to bring about the maximum improvement in edge of field fidelity without sacrificing the quality of the image at the center of the field.
The compact Nikon NAV SWs are 72 degree FOV eyepieces that come with 1.25" barrels that are threaded for standard 1.25" astronomy filters. The comfortable eye relief specs for each eyepiece are designed to also harmonize with the optical performance of that eyepiece. Also, removal of exit pupil aberrations virtually eliminates any instance of kidney bean blackout effect, regardless of where the eye is placed during observation. The excellent color balance of the NAV SWs was derived through rigorous testing of this optical parameter on terrestrial objects, insuring the highest degree of planetary and lunar color rendition. Multicoatings on every optical surface make sure that these images are also as bright and otherwise distortion free as possible.
The Nikon NAV SW exterior design is somewhat reminiscent of the tried and true Nikkor lens design, with an attractive, high quality appearance, and rollets located around the entire circumference making the eyepieces easy and sure to grip, even in darkness or with gloved hands. A flexible silicone rubber eye shield (winged eyeguard) on the top of the eyepiece helps block streets lights and other annoying sources of light pollution, especially a help when viewing sensitive planetary and lunar surface details at high magnifications.
Nikon NAV SWs moisture resistant design will provide long years of constant and worry free service and viewing pleasure to discriminating astronomers in any observing environment worldwide.
The combination of the ideal optical qualities of a flat and wide 72 degree FOV that is sharp from edge to edge, excellent color rendition, comfortable eye relief intelligently designed to harmonize specifically with each eyepiece, a beautiful and compact body design, highest quality Japanese glass, multi-coatings and exterior materials, and a good selection of focal lengths makes the Nikon NAV SWs a true and new winner in the ever expanding world of 21st century astronomy.
Please Note: Nikon does not sell astronomical eyepieces directly in the US. We have teamed up with a leading tier 1 Nikon dealer from Japan to import these into the US. Together, we offer our US customers a limited one-year warranty on this product.
Other Information
- Country of Manufacture: Japan
| Free Shipping Graphic | Free US Shipping |
|---|---|
| Eyepiece Series | NAV-SW |
| Focal Length | 17.5mm |
| Barrel Size | 1.25" (31.7mm) |
| Apparent Field of View (Mfg Specified) | 72° |
| Eye Relief (Designed) | 26mm |
| Filter Threads | Standard 1.25" Filter Thread (M28.5 x 0.6) |
| Coatings | Fully Multicoated |
| Lens Elements | 8 |
| Lens Groups | 5 |
| Blackened Lens Edges | Yes |
| Barrel Type | With safety undercut |
| Protective Plastic Storage Container | Yes - Free Agena Eyepiece Container |
| Protective Plastic Storage Container Size | Agena 65x80mm |
| Height (With Eyeguard Extended) | 94.5mm / 3.72" |
| Maximum Width | 56.5mm / 2.22" |
| End Caps | 2 |
| Rubber Eye Guard | Yes |
| Weight | 12.9 oz / 365 g |
| Country of Manufacture | Japan |
| Hide Found a better Shipped Price on Frontend? | No |
Nikon 1.25" NAV-SW Eyepiece with 72° AFOV - 17.5mm
