Long Perng 1.25" Pentaprism 90-deg Diagonal
- This item is out of stock.
- We have no ETA from the manufacturer at this time.
- Sign up for back-in-stock alerts to be notified when this item becomes available.
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available.
- This item is out of stock.
- We have no ETA from the manufacturer at this time.
- Sign up for back-in-stock alerts to be notified when this item becomes available.
Lower 48 States:
Orders over $50 ship free within the Lower 48 using a carrier and service we select based on your items and delivery location. Faster shipping options may be available at checkout.
U.S. Outside the Lower 48 (AK, HI, PR):
Free shipping on orders over $50 applies to many—but not all—items. Add items to your cart and enter your ZIP code to see available shipping options and any costs.
International Orders:
Free shipping does not apply to international orders. You’ll see available shipping options and costs during checkout. Some items can’t be shipped internationally due to size or manufacturer restrictions. Duties, taxes, brokerage fees, and tariffs are not included and are the customer’s responsibility.

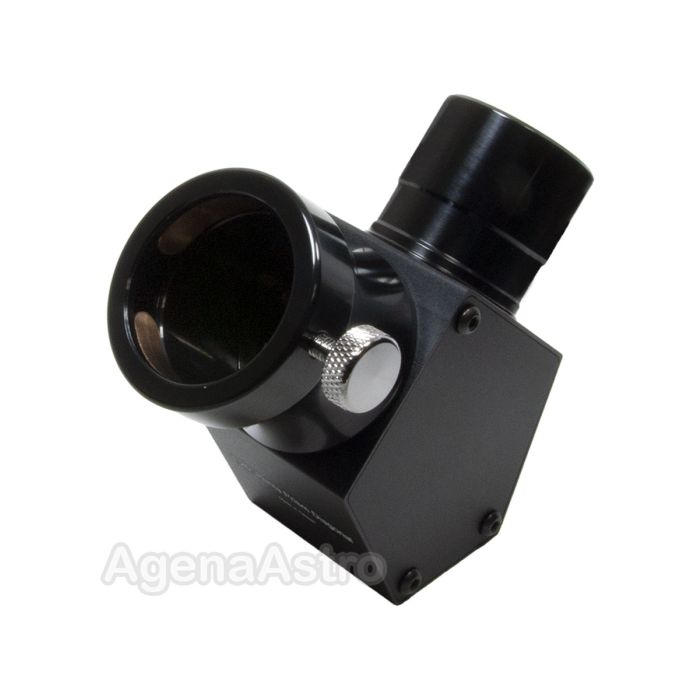

Long Perng 1.25" 90-deg pentaprism diagonal for use with Long Perng 1.25" Erect Image Divergent Binoviewer # K1.25N-T.
Features:
- Ideal for use with Long Perng 1.25" Erect Image Divergent Binoviewer* to provide a "correct" image (upright and correct from left to right, i.e., a correct, non-inverted, non-reversed image); especially useful for terrestrial viewing.
- Uses a high quality, dielectric multicoated, BK-7 glass pentaprism to change the viewing angle by 90-deg.
- 1.25" eyepiece holder features a non-marring brass-compression ring.
- 1.25" nosepiece is threaded to accept standard 1.25" astronomy filters and features a safety groove.
Additional Information:
- When used by itself with a refractor or catadioptric telescope and eyepiece, this diagonal provides an image that is inverted (upside down) from top to bottom but correct (not reveresed) from left to right.
- Not for use with Newtonian/Dobsonian reflectors.
- If used with other binoviewers, it will present an image that is oriented differently (i.e., not a correct image) than when used with the Long Perng divergent binoviewer. That is becuase the Long Perng binoviewer incorporates an image-erecting lens assemly that other binoviewers do not have.
- 1.25" eyepiece holder and nosepiece cannot be unscrewed from the diagonal body.
Specifications
- Barrel Size: 1.25"
- Viewing Angle: 90°
- Optical path length: 120mm
- Clear aperture: Xmm
- Materials: BK7
- Coating: Multi-Coated
- Housing material & finish: Aluminum & Anodizing
- Weight: 8.6oz (244g)
- Includes 1 end cap and 1 dust plug
Other Information
- Country of Manufacture: Taiwan
