Kasai Trading 1.25" Erecting Zenith Prism (EZP) Diagonal
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available.
- This item is out of stock.
- We have no ETA from the manufacturer at this time.
- Sign up for back-in-stock alerts to be notified when this item becomes available.
Lower 48 States:
Orders over $50 ship free within the Lower 48 using a carrier and service we select based on your items and delivery location. Faster shipping options may be available at checkout.
U.S. Outside the Lower 48 (AK, HI, PR):
Free shipping on orders over $50 applies to many—but not all—items. Add items to your cart and enter your ZIP code to see available shipping options and any costs.
International Orders:
Free shipping does not apply to international orders. You’ll see available shipping options and costs during checkout. Some items can’t be shipped internationally due to size or manufacturer restrictions. Duties, taxes, brokerage fees, and tariffs are not included and are the customer’s responsibility.
Original manufacturer description below.

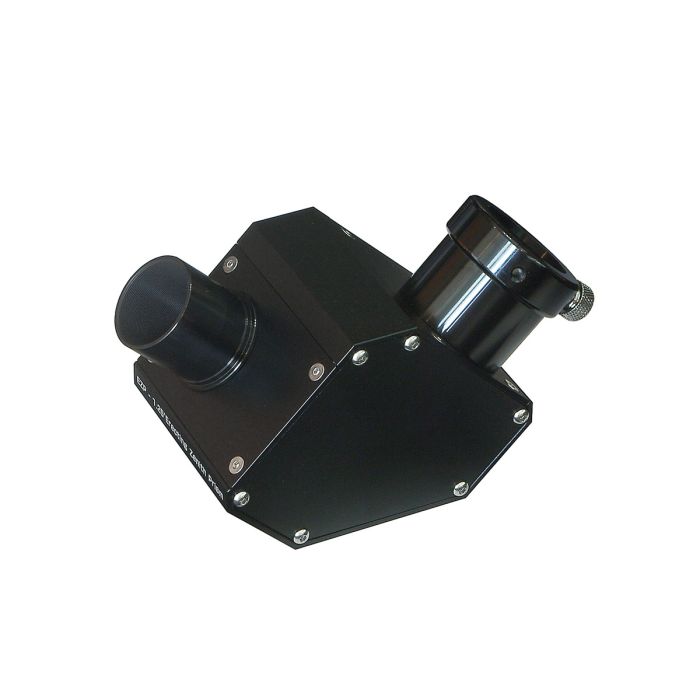

The Kasai 1.25" Erecting Zenith Prism Diagonal contains an oversized (55mm width) amici-prism, guiding the light path to be reflected twice on either flat roof surface. As a result, the light path comes at 90-degree direction, yielding right-side-up erecting images. And unlike a normal erecting prism, there are no ridgelines on the reflective surfaces, so it can keep good image quality with no deterioration. Therefore, it's very suitable for high magnification planetary observations.
The clear aperture diameter is 27.5mm, causing no vignetting even when using a long focus, wide field eyepiece. The total reflectivity is nearly 100%, so it's also suitable for deep-sky observations. Of course it's very nice for terrestrial viewings, too. The light path length is 109mm - shorter than many 2" diagonal mirrors, so it can reach the focus with vitually all refractors or cassegrains that can be reach focus with a 2" diagonal. All the housing parts are made of durable metal (aluminum alloy) and the prism surfaces are fully multi-coated.
The weight is 660g. (This item is jointly developed with BinoTechno, so "Kasai and BinoTechno" logo is engraved on the side.)
As an additional function, the positions of the nosepiece and the eyepiece adapter can be switched left to right / right to left easily, making a reversed version.
Please note that these are sold individually. But with the use of 2 EZP's (one is normal and the other is reversed) and 2 small refractors, you can complete a set of erect-image binocular telescopes instantly!
Other Information
- Country of Manufacture: Japan
Original manufacturer description below.
The Kasai 1.25" Erecting Zenith Prism Diagonal contains an oversized (55mm width) amici-prism, guiding the light path to be reflected twice on either flat roof surface. As a result, the light path comes at 90-degree direction, yielding right-side-up erecting images. And unlike a normal erecting prism, there are no ridgelines on the reflective surfaces, so it can keep good image quality with no deterioration. Therefore, it's very suitable for high magnification planetary observations.
The clear aperture diameter is 27.5mm, causing no vignetting even when using a long focus, wide field eyepiece. The total reflectivity is nearly 100%, so it's also suitable for deep-sky observations. Of course it's very nice for terrestrial viewings, too. The light path length is 109mm - shorter than many 2" diagonal mirrors, so it can reach the focus with vitually all refractors or cassegrains that can be reach focus with a 2" diagonal. All the housing parts are made of durable metal (aluminum alloy) and the prism surfaces are fully multi-coated.
The weight is 660g. (This item is jointly developed with BinoTechno, so "Kasai and BinoTechno" logo is engraved on the side.)
As an additional function, the positions of the nosepiece and the eyepiece adapter can be switched left to right / right to left easily, making a reversed version.
Please note that these are sold individually. But with the use of 2 EZP's (one is normal and the other is reversed) and 2 small refractors, you can complete a set of erect-image binocular telescopes instantly!
Original manufacturer description below.
The Kasai 1.25" Erecting Zenith Prism Diagonal contains an oversized (55mm width) amici-prism, guiding the light path to be reflected twice on either flat roof surface. As a result, the light path comes at 90-degree direction, yielding right-side-up erecting images. And unlike a normal erecting prism, there are no ridgelines on the reflective surfaces, so it can keep good image quality with no deterioration. Therefore, it's very suitable for high magnification planetary observations.
The clear aperture diameter is 27.5mm, causing no vignetting even when using a long focus, wide field eyepiece. The total reflectivity is nearly 100%, so it's also suitable for deep-sky observations. Of course it's very nice for terrestrial viewings, too. The light path length is 109mm - shorter than many 2" diagonal mirrors, so it can reach the focus with vitually all refractors or cassegrains that can be reach focus with a 2" diagonal. All the housing parts are made of durable metal (aluminum alloy) and the prism surfaces are fully multi-coated.
The weight is 660g. (This item is jointly developed with BinoTechno, so "Kasai and BinoTechno" logo is engraved on the side.)
As an additional function, the positions of the nosepiece and the eyepiece adapter can be switched left to right / right to left easily, making a reversed version.
Please note that these are sold individually. But with the use of 2 EZP's (one is normal and the other is reversed) and 2 small refractors, you can complete a set of erect-image binocular telescopes instantly!
Other Information
- Country of Manufacture: Japan
