iOptron Permanent Pier for GoTo Mounts
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available.
- This item is out of stock.
- We have no ETA from the manufacturer at this time.
- Sign up for back-in-stock alerts to be notified when this item becomes available.
Lower 48 States:
Orders over $50 ship free within the Lower 48 using a carrier and service we select based on your items and delivery location. Faster shipping options may be available at checkout.
U.S. Outside the Lower 48 (AK, HI, PR):
Free shipping on orders over $50 applies to many—but not all—items. Add items to your cart and enter your ZIP code to see available shipping options and any costs.
International Orders:
Free shipping does not apply to international orders. You’ll see available shipping options and costs during checkout. Some items can’t be shipped internationally due to size or manufacturer restrictions. Duties, taxes, brokerage fees, and tariffs are not included and are the customer’s responsibility.

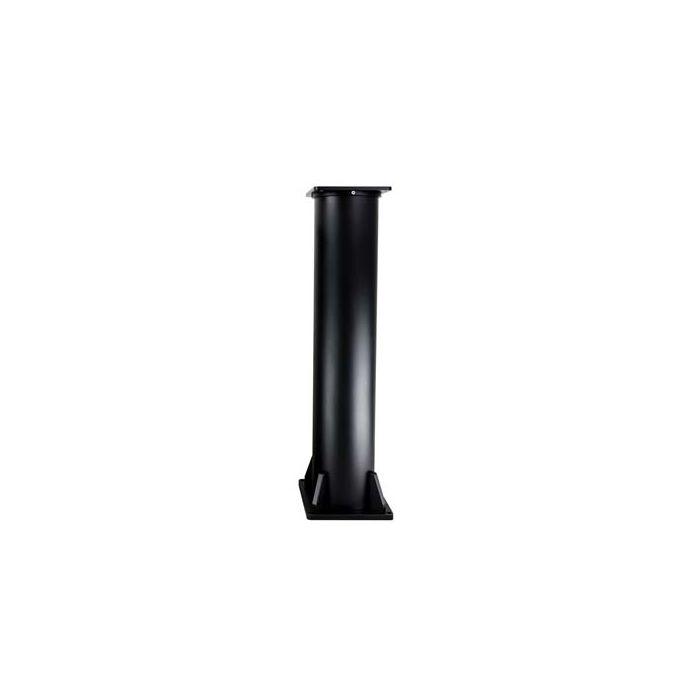

The iOptron Permanet Pier #8038 is constructed from aluminum alloy and 1/4" thick wall tubing. The thicker wall ensures reduced vibration and increased system stability. Four aluminum side struts are welded between the pier tube and the base plate to eliminate side flexure of the tube assembly under heavy or off-center loads.
The pier is 900mm in height, with a CEM120 mounting plate.
The pier can also be used for the following mounts, directly or with an adapter:
- CEM70
- CEM60
- iEQ45 Pro/iEQ45
- AZ Mount Pro/MiniTower/MiniTower Pro (need Star Knobs with Center Post 8340-PIER)
- Paramount MyT (no adapter needed)
- Astro-Physics 400/600E/Mach1GOTO (need Tri-Pier adapter 8036-AP)
Specifications:
- Max Payload: 360 lbs (165 kg)
- Material and Finish: Aluminum Alloy (CNC), anodized
- Pier Diameter: 6" (151 mm)
- Pier Wall Thickness: 1/4" (6.35 mm)
- Pier Top Plate: 8 1/4"X 8 1/4"(210mm X 210mm)
- Pier Height: 35" (900mm)
- Shipping weight: 24 lbs.
Other Information
- Country of Manufacture: China
The iOptron Permanet Pier #8038 is constructed from aluminum alloy and 1/4" thick wall tubing. The thicker wall ensures reduced vibration and increased system stability. Four aluminum side struts are welded between the pier tube and the base plate to eliminate side flexure of the tube assembly under heavy or off-center loads.
The pier is 900mm in height, with a CEM120 mounting plate.
The pier can also be used for the following mounts, directly or with an adapter:
- CEM70
- CEM60
- iEQ45 Pro/iEQ45
- AZ Mount Pro/MiniTower/MiniTower Pro (need Star Knobs with Center Post 8340-PIER)
- Paramount MyT (no adapter needed)
- Astro-Physics 400/600E/Mach1GOTO (need Tri-Pier adapter 8036-AP)
Specifications:
- Max Payload: 360 lbs (165 kg)
- Material and Finish: Aluminum Alloy (CNC), anodized
- Pier Diameter: 6" (151 mm)
- Pier Wall Thickness: 1/4" (6.35 mm)
- Pier Top Plate: 8 1/4"X 8 1/4"(210mm X 210mm)
- Pier Height: 35" (900mm)
- Shipping weight: 24 lbs.
The iOptron Permanet Pier #8038 is constructed from aluminum alloy and 1/4" thick wall tubing. The thicker wall ensures reduced vibration and increased system stability. Four aluminum side struts are welded between the pier tube and the base plate to eliminate side flexure of the tube assembly under heavy or off-center loads.
The pier is 900mm in height, with a CEM120 mounting plate.
The pier can also be used for the following mounts, directly or with an adapter:
- CEM70
- CEM60
- iEQ45 Pro/iEQ45
- AZ Mount Pro/MiniTower/MiniTower Pro (need Star Knobs with Center Post 8340-PIER)
- Paramount MyT (no adapter needed)
- Astro-Physics 400/600E/Mach1GOTO (need Tri-Pier adapter 8036-AP)
Specifications:
- Max Payload: 360 lbs (165 kg)
- Material and Finish: Aluminum Alloy (CNC), anodized
- Pier Diameter: 6" (151 mm)
- Pier Wall Thickness: 1/4" (6.35 mm)
- Pier Top Plate: 8 1/4"X 8 1/4"(210mm X 210mm)
- Pier Height: 35" (900mm)
- Shipping weight: 24 lbs.
Other Information
- Country of Manufacture: China
