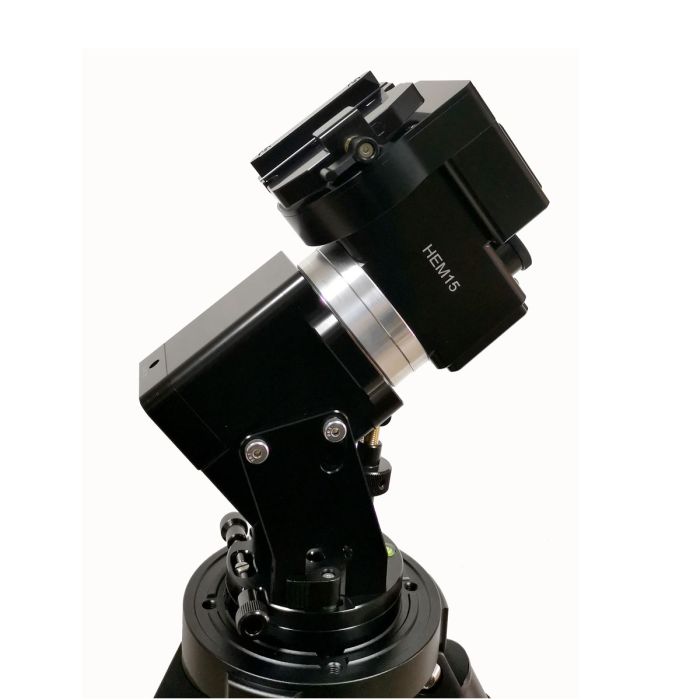

iOptron HEM15 Hybrid Strain Wave Gear Mount Head with iPolar
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available.
- This item is out of stock.
- We have no ETA from the manufacturer at this time.
- Sign up for back-in-stock alerts to be notified when this item becomes available.
Lower 48 States:
Orders over $50 ship free within the Lower 48 using a carrier and service we select based on your items and delivery location. Faster shipping options may be available at checkout.
U.S. Outside the Lower 48 (AK, HI, PR):
Free shipping on orders over $50 applies to many—but not all—items. Add items to your cart and enter your ZIP code to see available shipping options and any costs.
International Orders:
Free shipping does not apply to international orders. You’ll see available shipping options and costs during checkout. Some items can’t be shipped internationally due to size or manufacturer restrictions. Duties, taxes, brokerage fees, and tariffs are not included and are the customer’s responsibility.
Introductory Price! For a limited time, the new iOptron HEM15 w/iPolar is $400 off the regular price of $1,898.00.
- Advanced strain wave gear technology
- Payload capacity of 18 lbs (~8.2 kg) with the mount weight of 5.5 lbs (2.5 kg)
- CNC machined
- Unique friction brake to safely stop movement during a planned or unplanned power interruption
- 360 second gear period
- Go2Nova® hand controller with ~212,000 object database
- iPolar electronic polar scope for easy and accurate polar alignment
- No moving, no wrapping cable system
- Vixen dovetail saddle
- Built in zero position search and locator
- Power down position and location memory
- Integrated ST-4 autoguiding port
- Built-in Wi-Fi(via hand controller)
- USB port for firmware upgrade and computer control
- Soft carrying case
- Two year warranty
Please note: No tripod is included with this item. iOptron offers a carbon fiber tripod separately for this mount.
Introducing the HEM15, the latest addition to iOptron’s revolutionary hybrid strain wave drive mounts. This light weight tiny titans will deliver an astronomy experience like never before. With a mount head weighing 5.5lbs, it can carry an 18 lbs payload without needing a counterweight. Applying iOptron’s multi decade experience creating precision mounts, the HEM15 brings this vision to reality.
Utilizing state of the art strain wave drive technology for the RA movement in tandem with backlash-free DEC worm/belt drive design, the HEM15 delivers unparalleled weight to payload efficiency. Its black anodized all metal CNC machined body is not only appealing to the eye, it’s a rugged platform that will perform at the highest level for many years to come. Unique features such as an electronic friction break and power down memory allow the mount safely stop and resume a GoTo slew or continue tracking even after an abrupt power loss (No need to realign and start from the beginning).
A HEM15 mount can be controlled by a computer, either via ASCOM/Commander for a Windows PC or a third party INDI driver for a MacOS software; a SmartPhone/Tablet via iOptron Commander Lite or an App like SkySafari; or a Raspberry Pi device via INDI driver.
Specifications:
- Mount: Hybrid Equatorial Mount
- RA gear system: StrainWave 14
- DEC gear system: Backlash-free worm/belt system
- RA reduction ratio: 360
- Payload capacity of 18 lbs (~8.2 kg)
- Mount weight: 5.5 lbs (2.5kg) with dovetail saddle
- Period: 360 second
- Drive motor: Stepper motor
- Structure Material: All metal, CNC machined
- Exterior finish: Anodized black
- PEC: Yes, Permanent PEC
- Latitude adjustment range: 15º ~ 65º
Azimuth adjustment range: ± 5º - Polar Scope: iPolar electronic polar scope
- Level indicator: Level bubble
- Control system: GOTONOVA/Commander
- Hand Controller: Go2Nova® 8409 with ~212,000 objects database
- Tracking: Automatic
- Maximum slew speed: 6º/sec
- Power consumption: 0.5A(Tracking), 0.8A(GOTO)
- Power: DC12V-5A (5.5/2.5mm DC plug)
- AC adapter: 100V ~ 240V (included, indoor use only)
- Cable: No moving/wrapping
- Power off brake: Electronic friction brake
- Power-down memory: Yes
- Wi-Fi: Built-in
- Communication port: Yes (Wi-Fi and USB)
- Autoguide port: Yes (ST-4 compatible)
- Firmware upgrade: Yes
- Dovetail saddle: Vixen & Losmandy
- Tripod: Optional
- Operation temperature: -20ºC ~ 40ºC (hand controller -10ºC ~ 40ºC)
- Warranty: Two year limited
* 200mm, with payload center of gravity to the RA rotation axis. Or an OTA size of ~220mm.
Other Information
- Country of Manufacture: China
Please note: No tripod is included with this item. iOptron offers a carbon fiber tripod separately for this mount.
Introducing the HEM15, the latest addition to iOptron’s revolutionary hybrid strain wave drive mounts. This light weight tiny titans will deliver an astronomy experience like never before. With a mount head weighing 5.5lbs, it can carry an 18 lbs payload without needing a counterweight. Applying iOptron’s multi decade experience creating precision mounts, the HEM15 brings this vision to reality.
Utilizing state of the art strain wave drive technology for the RA movement in tandem with backlash-free DEC worm/belt drive design, the HEM15 delivers unparalleled weight to payload efficiency. Its black anodized all metal CNC machined body is not only appealing to the eye, it’s a rugged platform that will perform at the highest level for many years to come. Unique features such as an electronic friction break and power down memory allow the mount safely stop and resume a GoTo slew or continue tracking even after an abrupt power loss (No need to realign and start from the beginning).
A HEM15 mount can be controlled by a computer, either via ASCOM/Commander for a Windows PC or a third party INDI driver for a MacOS software; a SmartPhone/Tablet via iOptron Commander Lite or an App like SkySafari; or a Raspberry Pi device via INDI driver.
Specifications:
- Mount: Hybrid Equatorial Mount
- RA gear system: StrainWave 14
- DEC gear system: Backlash-free worm/belt system
- RA reduction ratio: 360
- Payload capacity of 18 lbs (~8.2 kg)
- Mount weight: 5.5 lbs (2.5kg) with dovetail saddle
- Period: 360 second
- Drive motor: Stepper motor
- Structure Material: All metal, CNC machined
- Exterior finish: Anodized black
- PEC: Yes, Permanent PEC
- Latitude adjustment range: 15º ~ 65º
Azimuth adjustment range: ± 5º - Polar Scope: iPolar electronic polar scope
- Level indicator: Level bubble
- Control system: GOTONOVA/Commander
- Hand Controller: Go2Nova® 8409 with ~212,000 objects database
- Tracking: Automatic
- Maximum slew speed: 6º/sec
- Power consumption: 0.5A(Tracking), 0.8A(GOTO)
- Power: DC12V-5A (5.5/2.5mm DC plug)
- AC adapter: 100V ~ 240V (included, indoor use only)
- Cable: No moving/wrapping
- Power off brake: Electronic friction brake
- Power-down memory: Yes
- Wi-Fi: Built-in
- Communication port: Yes (Wi-Fi and USB)
- Autoguide port: Yes (ST-4 compatible)
- Firmware upgrade: Yes
- Dovetail saddle: Vixen & Losmandy
- Tripod: Optional
- Operation temperature: -20ºC ~ 40ºC (hand controller -10ºC ~ 40ºC)
- Warranty: Two year limited
* 200mm, with payload center of gravity to the RA rotation axis. Or an OTA size of ~220mm.
- Telescope mount HEM15, with or without iPolarTM electronic polar scope
- Hand controller (HC) – Go2Nova®8409 with built-in WiFi
- 6P6C hand controller cable
- USB 2.0 cable
- AC adapter – 100-240V, 12V 5A DC output (for indoor use only)
- Carrying case
- MiniUSB cable for iPolar
- Optional carbon fiber tripod (#8061)
- Optional external iGuider for autoguiding (#3360-HEM)
- Optional counterweight shaft (#P-SGP-CWS) and counterweight (#3006-05)
Introductory Price! For a limited time, the new iOptron HEM15 w/iPolar is $400 off the regular price of $1,898.00.
- Advanced strain wave gear technology
- Payload capacity of 18 lbs (~8.2 kg) with the mount weight of 5.5 lbs (2.5 kg)
- CNC machined
- Unique friction brake to safely stop movement during a planned or unplanned power interruption
- 360 second gear period
- Go2Nova® hand controller with ~212,000 object database
- iPolar electronic polar scope for easy and accurate polar alignment
- No moving, no wrapping cable system
- Vixen dovetail saddle
- Built in zero position search and locator
- Power down position and location memory
- Integrated ST-4 autoguiding port
- Built-in Wi-Fi(via hand controller)
- USB port for firmware upgrade and computer control
- Soft carrying case
- Two year warranty
Please note: No tripod is included with this item. iOptron offers a carbon fiber tripod separately for this mount.
Introducing the HEM15, the latest addition to iOptron’s revolutionary hybrid strain wave drive mounts. This light weight tiny titans will deliver an astronomy experience like never before. With a mount head weighing 5.5lbs, it can carry an 18 lbs payload without needing a counterweight. Applying iOptron’s multi decade experience creating precision mounts, the HEM15 brings this vision to reality.
Utilizing state of the art strain wave drive technology for the RA movement in tandem with backlash-free DEC worm/belt drive design, the HEM15 delivers unparalleled weight to payload efficiency. Its black anodized all metal CNC machined body is not only appealing to the eye, it’s a rugged platform that will perform at the highest level for many years to come. Unique features such as an electronic friction break and power down memory allow the mount safely stop and resume a GoTo slew or continue tracking even after an abrupt power loss (No need to realign and start from the beginning).
A HEM15 mount can be controlled by a computer, either via ASCOM/Commander for a Windows PC or a third party INDI driver for a MacOS software; a SmartPhone/Tablet via iOptron Commander Lite or an App like SkySafari; or a Raspberry Pi device via INDI driver.
Specifications:
- Mount: Hybrid Equatorial Mount
- RA gear system: StrainWave 14
- DEC gear system: Backlash-free worm/belt system
- RA reduction ratio: 360
- Payload capacity of 18 lbs (~8.2 kg)
- Mount weight: 5.5 lbs (2.5kg) with dovetail saddle
- Period: 360 second
- Drive motor: Stepper motor
- Structure Material: All metal, CNC machined
- Exterior finish: Anodized black
- PEC: Yes, Permanent PEC
- Latitude adjustment range: 15º ~ 65º
Azimuth adjustment range: ± 5º - Polar Scope: iPolar electronic polar scope
- Level indicator: Level bubble
- Control system: GOTONOVA/Commander
- Hand Controller: Go2Nova® 8409 with ~212,000 objects database
- Tracking: Automatic
- Maximum slew speed: 6º/sec
- Power consumption: 0.5A(Tracking), 0.8A(GOTO)
- Power: DC12V-5A (5.5/2.5mm DC plug)
- AC adapter: 100V ~ 240V (included, indoor use only)
- Cable: No moving/wrapping
- Power off brake: Electronic friction brake
- Power-down memory: Yes
- Wi-Fi: Built-in
- Communication port: Yes (Wi-Fi and USB)
- Autoguide port: Yes (ST-4 compatible)
- Firmware upgrade: Yes
- Dovetail saddle: Vixen & Losmandy
- Tripod: Optional
- Operation temperature: -20ºC ~ 40ºC (hand controller -10ºC ~ 40ºC)
- Warranty: Two year limited
* 200mm, with payload center of gravity to the RA rotation axis. Or an OTA size of ~220mm.
Other Information
- Country of Manufacture: China
| Product Status | new |
|---|---|
| Free Shipping Graphic | Free Contiguous US Shipping |
| Hide Found a better Shipped Price on Frontend? | No |
- Telescope mount HEM15, with or without iPolarTM electronic polar scope
- Hand controller (HC) – Go2Nova®8409 with built-in WiFi
- 6P6C hand controller cable
- USB 2.0 cable
- AC adapter – 100-240V, 12V 5A DC output (for indoor use only)
- Carrying case
- MiniUSB cable for iPolar
- Optional carbon fiber tripod (#8061)
- Optional external iGuider for autoguiding (#3360-HEM)
- Optional counterweight shaft (#P-SGP-CWS) and counterweight (#3006-05)
iOptron HEM15 Hybrid Strain Wave Gear Mount Head with iPolar
