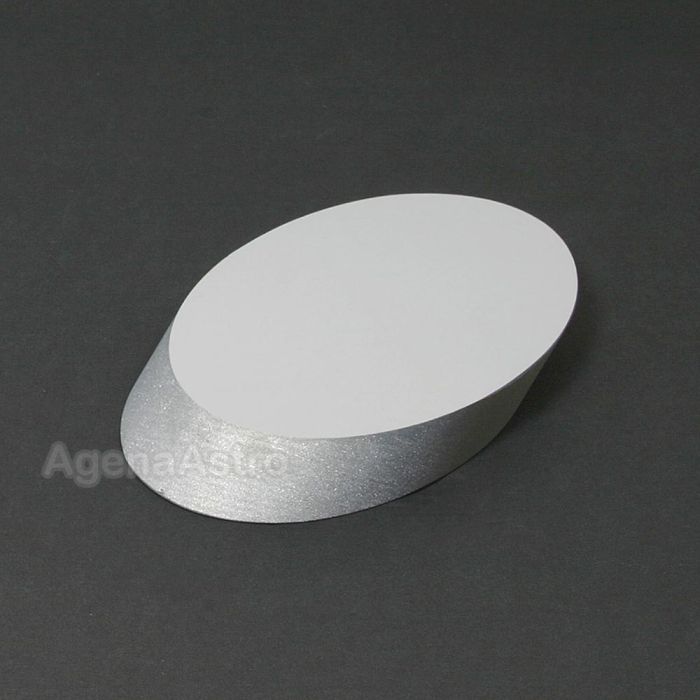

GSO Elliptical Secondary Mirror - 80mm
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available.
- This item is out of stock.
- We have no ETA from the manufacturer at this time.
- Sign up for back-in-stock alerts to be notified when this item becomes available.
Lower 48 States:
Orders over $50 ship free within the Lower 48 using a carrier and service we select based on your items and delivery location. Faster shipping options may be available at checkout.
U.S. Outside the Lower 48 (AK, HI, PR):
Free shipping on orders over $50 applies to many—but not all—items. Add items to your cart and enter your ZIP code to see available shipping options and any costs.
International Orders:
Free shipping does not apply to international orders. You’ll see available shipping options and costs during checkout. Some items can’t be shipped internationally due to size or manufacturer restrictions. Duties, taxes, brokerage fees, and tariffs are not included and are the customer’s responsibility.
For years, GSO has made dobsonian telescopes sold under various labels. Users of these scopes know the excellent quality of the optics included, and they have a well-deserved reputation for being the finest mirrors in their price range. We are now pleased to offer virtually the entire line of GSO's Newtonian optics in the US market.
GSO's elliptical flat mirrors have the same high quality as their parabolic primary mirrors. Made from optical grade BK-7 glass, all mirrors have a reflective aluminum coating with a reflectivity of approximately 92-93%. The aluminum coating is protected by a silicon oxide (SiO2) over-coating.
GSO uses high-volume, state-of-the-art, high quality manufacturing and test lines. GSO guarantees diffraction limited performance, but their secondary mirrors typically have a mirror surface quality of 1/12 wave RMS at least, and often better. This very smooth mirror surface results in excellent optical performance with practically no light scatter.
Specifications:
- Manufacturer part #: AD093
- Minor axis diameter: 80mm
- Approx. major axis diameter: 114mm
- Approx. thickness: 18mm
- Weight: 11.5oz (326g)
Useful Resources
| Specifications of GSO Secondary Mirrors | ||||
|---|---|---|---|---|
| Part Number | Minor Axis Diameter | Approx. Major Axis Diameter | Approx. Thickness | Mirror Weight |
| AD041 | 28mm | 38mm | 5mm | 0.3oz (9g) |
| AD012 | 31mm | 43mm | 8mm | 0.7oz (20g) |
| AD064 | 46.5mm | 65mm | 10mm | 2.1oz (60g) |
| AD007 | 50mm | 70mm | 10mm | 2.3oz (65g) |
| AD047 | 62.5mm | 88mm | 12mm | 4.5oz (128g) |
| AD091 | 68mm | 95mm | 15mm | 6.7oz (190g) |
| AD009 | 70mm | 97mm | 12mm | 5.5oz (156g) |
| AD092 | 74mm | 104mm | 16mm | 8.2oz (232g) |
| AD093 | 80mm | 114mm | 18mm | 11.5oz (326g) |
| AD037 | 88mm | 122mm | 20mm | 14.5oz (411g) |
| AD018 | 104mm | 145mm | 17mm | 18.2oz (515g) |
Other Information
- Country of Manufacture: Taiwan
For years, GSO has made dobsonian telescopes sold under various labels. Users of these scopes know the excellent quality of the optics included, and they have a well-deserved reputation for being the finest mirrors in their price range. We are now pleased to offer virtually the entire line of GSO's Newtonian optics in the US market.
GSO's elliptical flat mirrors have the same high quality as their parabolic primary mirrors. Made from optical grade BK-7 glass, all mirrors have a reflective aluminum coating with a reflectivity of approximately 92-93%. The aluminum coating is protected by a silicon oxide (SiO2) over-coating.
GSO uses high-volume, state-of-the-art, high quality manufacturing and test lines. GSO guarantees diffraction limited performance, but their secondary mirrors typically have a mirror surface quality of 1/12 wave RMS at least, and often better. This very smooth mirror surface results in excellent optical performance with practically no light scatter.
Specifications:
- Manufacturer part #: AD093
- Minor axis diameter: 80mm
- Approx. major axis diameter: 114mm
- Approx. thickness: 18mm
- Weight: 11.5oz (326g)
For years, GSO has made dobsonian telescopes sold under various labels. Users of these scopes know the excellent quality of the optics included, and they have a well-deserved reputation for being the finest mirrors in their price range. We are now pleased to offer virtually the entire line of GSO's Newtonian optics in the US market.
GSO's elliptical flat mirrors have the same high quality as their parabolic primary mirrors. Made from optical grade BK-7 glass, all mirrors have a reflective aluminum coating with a reflectivity of approximately 92-93%. The aluminum coating is protected by a silicon oxide (SiO2) over-coating.
GSO uses high-volume, state-of-the-art, high quality manufacturing and test lines. GSO guarantees diffraction limited performance, but their secondary mirrors typically have a mirror surface quality of 1/12 wave RMS at least, and often better. This very smooth mirror surface results in excellent optical performance with practically no light scatter.
Specifications:
- Manufacturer part #: AD093
- Minor axis diameter: 80mm
- Approx. major axis diameter: 114mm
- Approx. thickness: 18mm
- Weight: 11.5oz (326g)
Useful Resources
| Specifications of GSO Secondary Mirrors | ||||
|---|---|---|---|---|
| Part Number | Minor Axis Diameter | Approx. Major Axis Diameter | Approx. Thickness | Mirror Weight |
| AD041 | 28mm | 38mm | 5mm | 0.3oz (9g) |
| AD012 | 31mm | 43mm | 8mm | 0.7oz (20g) |
| AD064 | 46.5mm | 65mm | 10mm | 2.1oz (60g) |
| AD007 | 50mm | 70mm | 10mm | 2.3oz (65g) |
| AD047 | 62.5mm | 88mm | 12mm | 4.5oz (128g) |
| AD091 | 68mm | 95mm | 15mm | 6.7oz (190g) |
| AD009 | 70mm | 97mm | 12mm | 5.5oz (156g) |
| AD092 | 74mm | 104mm | 16mm | 8.2oz (232g) |
| AD093 | 80mm | 114mm | 18mm | 11.5oz (326g) |
| AD037 | 88mm | 122mm | 20mm | 14.5oz (411g) |
| AD018 | 104mm | 145mm | 17mm | 18.2oz (515g) |
Other Information
- Country of Manufacture: Taiwan
