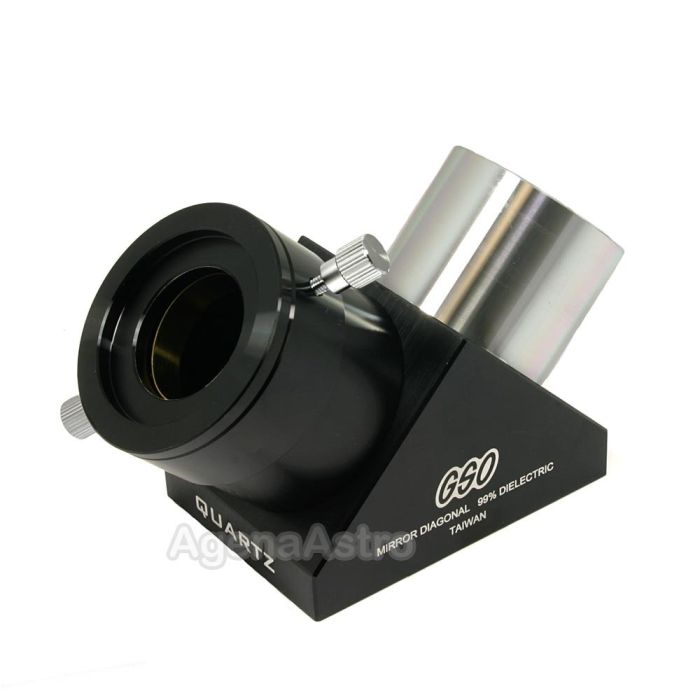

GSO 2" 90-deg 99% Quartz Dielectric Mirror Diagonal for Refractors
- This item is out of stock.
- We have no ETA from the manufacturer at this time.
- Sign up for back-in-stock alerts to be notified when this item becomes available.
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available.
- This item is out of stock.
- We have no ETA from the manufacturer at this time.
- Sign up for back-in-stock alerts to be notified when this item becomes available.
Lower 48 States:
Orders over $50 ship free within the Lower 48 using a carrier and service we select based on your items and delivery location. Faster shipping options may be available at checkout.
U.S. Outside the Lower 48 (AK, HI, PR):
Free shipping on orders over $50 applies to many—but not all—items. Add items to your cart and enter your ZIP code to see available shipping options and any costs.
International Orders:
Free shipping does not apply to international orders. You’ll see available shipping options and costs during checkout. Some items can’t be shipped internationally due to size or manufacturer restrictions. Duties, taxes, brokerage fees, and tariffs are not included and are the customer’s responsibility.
- Premium 2" diagonal with durable dielectric coatings for 99% reflectivity for bright images and long lifetime
- 1/12-wave quartz mirror offers good thermal stability and minimal focus shift during long observing or imaging sessions
- All-metal body with chrome barrel threaded for standard 2" filters
- Comes with 2"-1.25" eyepiece adapter for maximum flexibility
- Includes foam-fitted storage box and end caps
- Optical Path Length 97.5mm
If you want a high-end mirror diagonal for your refractor telescope, this GSO 2" Quartz Dielectric Diagonal Mirror is an excellent choice. GSO's 2" refractor diagonal features dielectric coatings with 99% reflectivity across the visible spectrum and a 1/12 wave quartz mirror. The all metal diagonal body is CNC machined. The combined result is a superb diagonal offering excellent mechanical and optical quality at a great price. Dielectric coatings are more durable than regular or enhanced aluminum coatings, so you will enjoy years of excellent performance from this product. Diagonals with comparable quality and specifications often sell for $200 or more in today's astronomy market.
High quality diagonal mirrors are usually made of BK7 glass. Quartz glass goes a notch higher - it offers greater thermal stability, resulting in minimal thermal expansion and contraction as compared to other glass types. The result is a minimal, if any, shift in focus due to temperature changes over long observation sessions, making this quartz diagonal ideal for photographic and imaging applications.
The 2" chrome barrel of this diagonal on the telescope end is threaded to accept standard 2" filters. A 1.25"-2" adapter is included so you can use this diagonal with 1.25" or 2" eyepieces. The 1.25" and 2" holders both feature a brass compression ring, so your eyepiece barrels will not be scratched by the set screw. The 1.25"-2" adapter is also threaded to accept 2" filters. The clear aperture is 46.6mm. The diagonal comes in a very nice foam-fitted storage box and includes 2 end caps. Weight = 1lb-3oz. (with 1.25" adapter); 1lb. (without 1.25" adapter). Made in Taiwan.
Please note: Even though the eyepiece holder and the 2" nosepiece of this diagonal have standard SCT (2"x24TPI) threads that will work with other SCT threaded items, the threads on the body of the diagonal are NOT standard SCT threads. The thread diameter on the diagonal body is 2" but the thread pitch is very slightly different (not 24TPI) and has not been specified. GSO ensures that these components that they machine fit together, but SCT-threaded adapters from other brands will not thread on properly or at all to GSO's 2" diagonal bodies in most cases due to this marginally different thread pitch.
Other Information
- Country of Manufacture: Taiwan
If you want a high-end mirror diagonal for your refractor telescope, this GSO 2" Quartz Dielectric Diagonal Mirror is an excellent choice. GSO's 2" refractor diagonal features dielectric coatings with 99% reflectivity across the visible spectrum and a 1/12 wave quartz mirror. The all metal diagonal body is CNC machined. The combined result is a superb diagonal offering excellent mechanical and optical quality at a great price. Dielectric coatings are more durable than regular or enhanced aluminum coatings, so you will enjoy years of excellent performance from this product. Diagonals with comparable quality and specifications often sell for $200 or more in today's astronomy market.
High quality diagonal mirrors are usually made of BK7 glass. Quartz glass goes a notch higher - it offers greater thermal stability, resulting in minimal thermal expansion and contraction as compared to other glass types. The result is a minimal, if any, shift in focus due to temperature changes over long observation sessions, making this quartz diagonal ideal for photographic and imaging applications.
The 2" chrome barrel of this diagonal on the telescope end is threaded to accept standard 2" filters. A 1.25"-2" adapter is included so you can use this diagonal with 1.25" or 2" eyepieces. The 1.25" and 2" holders both feature a brass compression ring, so your eyepiece barrels will not be scratched by the set screw. The 1.25"-2" adapter is also threaded to accept 2" filters. The clear aperture is 46.6mm. The diagonal comes in a very nice foam-fitted storage box and includes 2 end caps. Weight = 1lb-3oz. (with 1.25" adapter); 1lb. (without 1.25" adapter). Made in Taiwan.
Please note: Even though the eyepiece holder and the 2" nosepiece of this diagonal have standard SCT (2"x24TPI) threads that will work with other SCT threaded items, the threads on the body of the diagonal are NOT standard SCT threads. The thread diameter on the diagonal body is 2" but the thread pitch is very slightly different (not 24TPI) and has not been specified. GSO ensures that these components that they machine fit together, but SCT-threaded adapters from other brands will not thread on properly or at all to GSO's 2" diagonal bodies in most cases due to this marginally different thread pitch.
- Premium 2" diagonal with durable dielectric coatings for 99% reflectivity for bright images and long lifetime
- 1/12-wave quartz mirror offers good thermal stability and minimal focus shift during long observing or imaging sessions
- All-metal body with chrome barrel threaded for standard 2" filters
- Comes with 2"-1.25" eyepiece adapter for maximum flexibility
- Includes foam-fitted storage box and end caps
- Optical Path Length 97.5mm
If you want a high-end mirror diagonal for your refractor telescope, this GSO 2" Quartz Dielectric Diagonal Mirror is an excellent choice. GSO's 2" refractor diagonal features dielectric coatings with 99% reflectivity across the visible spectrum and a 1/12 wave quartz mirror. The all metal diagonal body is CNC machined. The combined result is a superb diagonal offering excellent mechanical and optical quality at a great price. Dielectric coatings are more durable than regular or enhanced aluminum coatings, so you will enjoy years of excellent performance from this product. Diagonals with comparable quality and specifications often sell for $200 or more in today's astronomy market.
High quality diagonal mirrors are usually made of BK7 glass. Quartz glass goes a notch higher - it offers greater thermal stability, resulting in minimal thermal expansion and contraction as compared to other glass types. The result is a minimal, if any, shift in focus due to temperature changes over long observation sessions, making this quartz diagonal ideal for photographic and imaging applications.
The 2" chrome barrel of this diagonal on the telescope end is threaded to accept standard 2" filters. A 1.25"-2" adapter is included so you can use this diagonal with 1.25" or 2" eyepieces. The 1.25" and 2" holders both feature a brass compression ring, so your eyepiece barrels will not be scratched by the set screw. The 1.25"-2" adapter is also threaded to accept 2" filters. The clear aperture is 46.6mm. The diagonal comes in a very nice foam-fitted storage box and includes 2 end caps. Weight = 1lb-3oz. (with 1.25" adapter); 1lb. (without 1.25" adapter). Made in Taiwan.
Please note: Even though the eyepiece holder and the 2" nosepiece of this diagonal have standard SCT (2"x24TPI) threads that will work with other SCT threaded items, the threads on the body of the diagonal are NOT standard SCT threads. The thread diameter on the diagonal body is 2" but the thread pitch is very slightly different (not 24TPI) and has not been specified. GSO ensures that these components that they machine fit together, but SCT-threaded adapters from other brands will not thread on properly or at all to GSO's 2" diagonal bodies in most cases due to this marginally different thread pitch.
Other Information
- Country of Manufacture: Taiwan
