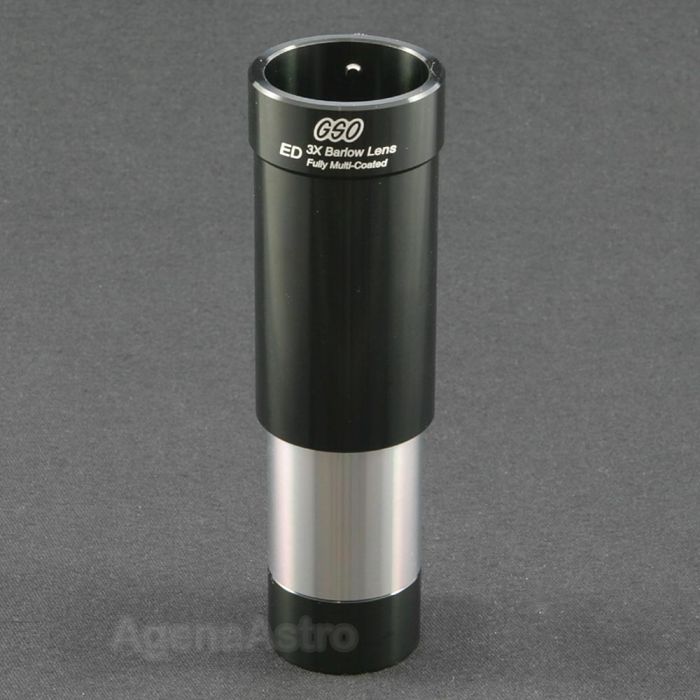

GSO 1.25" 3x ED Barlow Lens
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available.
- This item is out of stock.
- We have no ETA from the manufacturer at this time.
- Sign up for back-in-stock alerts to be notified when this item becomes available.
Lower 48 States:
Orders over $50 ship free within the Lower 48 using a carrier and service we select based on your items and delivery location. Faster shipping options may be available at checkout.
U.S. Outside the Lower 48 (AK, HI, PR):
Free shipping on orders over $50 applies to many—but not all—items. Add items to your cart and enter your ZIP code to see available shipping options and any costs.
International Orders:
Free shipping does not apply to international orders. You’ll see available shipping options and costs during checkout. Some items can’t be shipped internationally due to size or manufacturer restrictions. Duties, taxes, brokerage fees, and tariffs are not included and are the customer’s responsibility.
- GSO's 1.25" 3x achromatic Barlow triples the magnification of each eyepiece and effectively doubles the number of eyepieces at your disposal
- Full unit increases magnification of an eyepiece by 3x while maintaining a bright, high-contrast image
- Air-spaced, two-element, fully-multicoated ED lenses with excellent color correction, sharpness, and image brightness
- Precision-machined aluminum barrel with high-quality black-anodized finish
GSO's 1.25" 3x ED Barlow is the perfect choice when you need more magnification than the common 2x barlows will provide. This barlow uses two-element, fully-multicoated lenses made from special ED (Extra-Low Dispersion) glass for excellent color correction and sharpness. The clear aperture is 24mm and the lower end of the barlow cell is threaded to accept standard 1.25" filters. The body is precision CNC-machined from aluminum and sports a handsome finish that you would usually find on much higher priced items.
You can unscrew the barlow element and use the upper tube as a 1.25" extension tube to provide 79mm (3.11") of extension . However, because the upper end of the 3x barlow cell (that connects to the barlow tube) uses a non-standard thread, you cannot attach the barlow element directly to other eyepieces like you can do with the GSO 1.25" 2x barlow.
Note that the use of any optical element like barlows and focal reducers changes the focus point of your telescope, requiring additional in-focus or out-focus travel. The exact amount of focus travel required will depend on the optics and mechanics of your specific set-up (telescope, diagonal (if used), barlow, and eyepiece). Hence, be aware that you may not be able to reach focus with all eyepieces or in all configurations with a given barlow.
Specifications:
- Barrel Size: 1.25 inch (31.7mm)
- Magnification Factor: 3x
- Coatings: Fully multicoated
- Weight: 4.3oz
- Height (Total): 126mm
- End Caps: 2
- 1.25" filter threads on bottom of barlow: Yes
- Made in Taiwan
Other Information
- Country of Manufacture: Taiwan
GSO's 1.25" 3x ED Barlow is the perfect choice when you need more magnification than the common 2x barlows will provide. This barlow uses two-element, fully-multicoated lenses made from special ED (Extra-Low Dispersion) glass for excellent color correction and sharpness. The clear aperture is 24mm and the lower end of the barlow cell is threaded to accept standard 1.25" filters. The body is precision CNC-machined from aluminum and sports a handsome finish that you would usually find on much higher priced items.
You can unscrew the barlow element and use the upper tube as a 1.25" extension tube to provide 79mm (3.11") of extension . However, because the upper end of the 3x barlow cell (that connects to the barlow tube) uses a non-standard thread, you cannot attach the barlow element directly to other eyepieces like you can do with the GSO 1.25" 2x barlow.
Note that the use of any optical element like barlows and focal reducers changes the focus point of your telescope, requiring additional in-focus or out-focus travel. The exact amount of focus travel required will depend on the optics and mechanics of your specific set-up (telescope, diagonal (if used), barlow, and eyepiece). Hence, be aware that you may not be able to reach focus with all eyepieces or in all configurations with a given barlow.
Specifications:
- Barrel Size: 1.25 inch (31.7mm)
- Magnification Factor: 3x
- Coatings: Fully multicoated
- Weight: 4.3oz
- Height (Total): 126mm
- End Caps: 2
- 1.25" filter threads on bottom of barlow: Yes
- Made in Taiwan
| Free Shipping Graphic | Free US Shipping | ||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Special Text Below Specs |
|
||||||||||||||||||||||||||||||||||||||||||||
| Hide Found a better Shipped Price on Frontend? | No |
| Size Format | 1.25 inch |
|---|---|
| Magnification Factor | 3x |
| Number of Lens Elements | |
| Lens Coatings | Fully multicoated |
| Total Length | 4.96 inches / 126 mm |
| Length of Nosepiece | 2.09 inches / 53 mm |
| Outside Length of Upper Body | 2.92 inches / 74.1 mm |
| Insertion Depth | 1.61 inches / 41 mm |
| Max Diameter Excluding Thumbscrew | 2.19 inches / 55.7 mm |
| Clear Aperture | 0.94 inches / 24 mm |
| Weight | 4.3 oz / 122 g |
| Barlow Lens Cell Removable | Yes |
| Filter Threads at Bottom of Barlow Cell | Yes - 1.25" (M28.5x0.6) Filter Threads |
| Filter Threads Between Barlow Cell and Tube | Non-standard Threads |
| Barrel Type | Smooth-sided |
| Compatible Agena Bolt Case (with Screw Removed) | 52x120 |
| Compatible Bolt Case (with Screw Attached) | 52x120 |
| Number of Thumbscews | 1 |
| Thumbscrew Thread Specification | M4x0.7 |
| End Caps (Subject to change without notice) | 2 |
| Compression Band/Ring in Eyepiece Holder | No |
| Country of Manufacture | Taiwan |
- GSO's 1.25" 3x achromatic Barlow triples the magnification of each eyepiece and effectively doubles the number of eyepieces at your disposal
- Full unit increases magnification of an eyepiece by 3x while maintaining a bright, high-contrast image
- Air-spaced, two-element, fully-multicoated ED lenses with excellent color correction, sharpness, and image brightness
- Precision-machined aluminum barrel with high-quality black-anodized finish
GSO's 1.25" 3x ED Barlow is the perfect choice when you need more magnification than the common 2x barlows will provide. This barlow uses two-element, fully-multicoated lenses made from special ED (Extra-Low Dispersion) glass for excellent color correction and sharpness. The clear aperture is 24mm and the lower end of the barlow cell is threaded to accept standard 1.25" filters. The body is precision CNC-machined from aluminum and sports a handsome finish that you would usually find on much higher priced items.
You can unscrew the barlow element and use the upper tube as a 1.25" extension tube to provide 79mm (3.11") of extension . However, because the upper end of the 3x barlow cell (that connects to the barlow tube) uses a non-standard thread, you cannot attach the barlow element directly to other eyepieces like you can do with the GSO 1.25" 2x barlow.
Note that the use of any optical element like barlows and focal reducers changes the focus point of your telescope, requiring additional in-focus or out-focus travel. The exact amount of focus travel required will depend on the optics and mechanics of your specific set-up (telescope, diagonal (if used), barlow, and eyepiece). Hence, be aware that you may not be able to reach focus with all eyepieces or in all configurations with a given barlow.
Specifications:
- Barrel Size: 1.25 inch (31.7mm)
- Magnification Factor: 3x
- Coatings: Fully multicoated
- Weight: 4.3oz
- Height (Total): 126mm
- End Caps: 2
- 1.25" filter threads on bottom of barlow: Yes
- Made in Taiwan
Other Information
- Country of Manufacture: Taiwan
| Free Shipping Graphic | Free US Shipping | ||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Special Text Below Specs |
|
||||||||||||||||||||||||||||||||||||||||||||
| Hide Found a better Shipped Price on Frontend? | No |
| Size Format | 1.25 inch |
|---|---|
| Magnification Factor | 3x |
| Number of Lens Elements | |
| Lens Coatings | Fully multicoated |
| Total Length | 4.96 inches / 126 mm |
| Length of Nosepiece | 2.09 inches / 53 mm |
| Outside Length of Upper Body | 2.92 inches / 74.1 mm |
| Insertion Depth | 1.61 inches / 41 mm |
| Max Diameter Excluding Thumbscrew | 2.19 inches / 55.7 mm |
| Clear Aperture | 0.94 inches / 24 mm |
| Weight | 4.3 oz / 122 g |
| Barlow Lens Cell Removable | Yes |
| Filter Threads at Bottom of Barlow Cell | Yes - 1.25" (M28.5x0.6) Filter Threads |
| Filter Threads Between Barlow Cell and Tube | Non-standard Threads |
| Barrel Type | Smooth-sided |
| Compatible Agena Bolt Case (with Screw Removed) | 52x120 |
| Compatible Bolt Case (with Screw Attached) | 52x120 |
| Number of Thumbscews | 1 |
| Thumbscrew Thread Specification | M4x0.7 |
| End Caps (Subject to change without notice) | 2 |
| Compression Band/Ring in Eyepiece Holder | No |
| Country of Manufacture | Taiwan |
