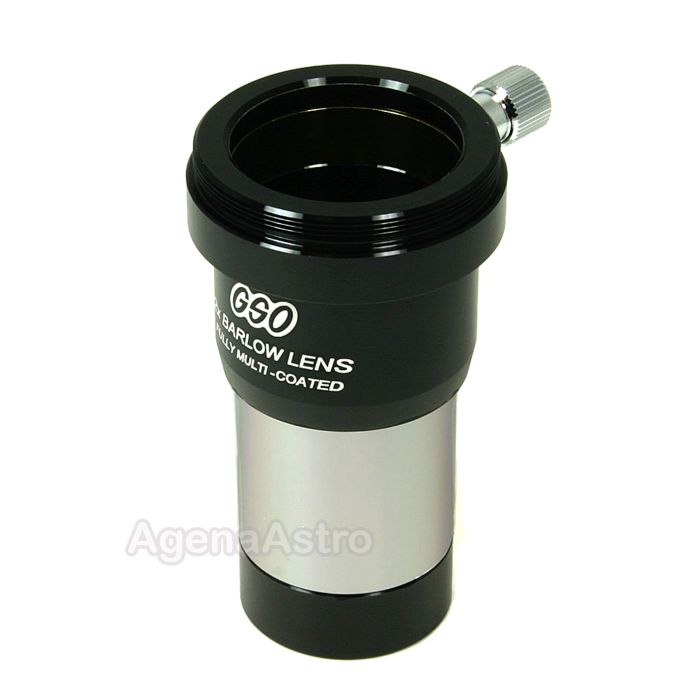

GSO 1.25" 2x "Shorty" Achromatic Barlow Lens with T/T2 Thread
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available.
- This item is out of stock.
- We have no ETA from the manufacturer at this time.
- Sign up for back-in-stock alerts to be notified when this item becomes available.
Lower 48 States:
Orders over $50 ship free within the Lower 48 using a carrier and service we select based on your items and delivery location. Faster shipping options may be available at checkout.
U.S. Outside the Lower 48 (AK, HI, PR):
Free shipping on orders over $50 applies to many—but not all—items. Add items to your cart and enter your ZIP code to see available shipping options and any costs.
International Orders:
Free shipping does not apply to international orders. You’ll see available shipping options and costs during checkout. Some items can’t be shipped internationally due to size or manufacturer restrictions. Duties, taxes, brokerage fees, and tariffs are not included and are the customer’s responsibility.
- GSO's 1.25" 2x achromatic Barlow increases the magnification of each eyepiece and effectively doubles or triples the number of eyepieces at your disposal
- Full unit increases magnification of eyepiece by 2x
- Features M42x0.75 T/T2 thread on top for direct attachment to 42mm camera T rings for imaging
- Barlow element can be separated from main tube and threaded directly into a 1.25" eyepiece for approximately 1.5x increase in magnification
- Low "shorty" profile maintains a comfortable viewing position
- Two-element, fully-multicoated lenses with excellent color correction, sharpness, and image brightness
GSO's 1.25" 2x "Shorty" achromatic Barlow is an excellent accessory that allows you to effectively double the number of eyepieces in your collection. This barlow uses two-element, fully-multicoated lenses with excellent color correction and sharpness. The lens edges are blackened to maximize image contrast. The body is precision CNC-machined from aluminum and sports a handsome finish.
A really nice feature of this GSO barlow is that the barlow element is housed in a separate metal cell at the bottom that can be unscrewed from the upper tube (see photos). You can then screw the barlow cell directly into 1.25" eyepieces with a standard 1.25" filter thread to increase the magnification of that particular eyepiece while still maintaining a low profile. When screwed into an eyepiece, the barlow will yield approximately 1.5x of magnification. So, for example, a 30mm eyepiece can be used with the barlow element screwed on as a 20mm eyepiece, or with the complete barlow as a 15mm eyepiece. That's like having three eyepieces in one! You can also use the tube by itself without the barlow element as an extension tube for 1.25" eyepieces and accessories.
This version of GSO's 1.25" 2x barlow features a male M42x0.75 T/T2 thread on the top. With this, you can attach this barlow to 42mm camera T rings for imaging applications. Note that this will not work with the wide 48mm T rings.
This versatile barlow can be used in a number of ways:
- Use entire unit with an eyepiece for 2x magnification
- Use entire unit with a T ring (not included) and your camera for magnified prime focus imaging. The exact magnification factor will vary depending on the backfocus requirements of your camera
- Use barlow lens cell only with an eyepiece for 1.5x magnification
- Use the barlow tube only as a 1.25" 36.8mm extension tube
- Use the barlow tube only as a 1.25" prime focus adapter (although you will need 36.8mm of back-focus in this mode)
Note that the use of any optical element like barlows and focal reducers changes the focus point of your telescope, requiring additional in-focus or out-focus travel. The exact amount of focus travel required will depend on the optics and mechanics of your specific set-up (telescope, diagonal (if used), barlow, and eyepiece). Hence, be aware that you may not be able to reach focus with all eyepieces or in all configurations with a given barlow.
Other Information
- Country of Manufacture: Taiwan
GSO's 1.25" 2x "Shorty" achromatic Barlow is an excellent accessory that allows you to effectively double the number of eyepieces in your collection. This barlow uses two-element, fully-multicoated lenses with excellent color correction and sharpness. The lens edges are blackened to maximize image contrast. The body is precision CNC-machined from aluminum and sports a handsome finish.
A really nice feature of this GSO barlow is that the barlow element is housed in a separate metal cell at the bottom that can be unscrewed from the upper tube (see photos). You can then screw the barlow cell directly into 1.25" eyepieces with a standard 1.25" filter thread to increase the magnification of that particular eyepiece while still maintaining a low profile. When screwed into an eyepiece, the barlow will yield approximately 1.5x of magnification. So, for example, a 30mm eyepiece can be used with the barlow element screwed on as a 20mm eyepiece, or with the complete barlow as a 15mm eyepiece. That's like having three eyepieces in one! You can also use the tube by itself without the barlow element as an extension tube for 1.25" eyepieces and accessories.
This version of GSO's 1.25" 2x barlow features a male M42x0.75 T/T2 thread on the top. With this, you can attach this barlow to 42mm camera T rings for imaging applications. Note that this will not work with the wide 48mm T rings.
This versatile barlow can be used in a number of ways:
- Use entire unit with an eyepiece for 2x magnification
- Use entire unit with a T ring (not included) and your camera for magnified prime focus imaging. The exact magnification factor will vary depending on the backfocus requirements of your camera
- Use barlow lens cell only with an eyepiece for 1.5x magnification
- Use the barlow tube only as a 1.25" 36.8mm extension tube
- Use the barlow tube only as a 1.25" prime focus adapter (although you will need 36.8mm of back-focus in this mode)
Note that the use of any optical element like barlows and focal reducers changes the focus point of your telescope, requiring additional in-focus or out-focus travel. The exact amount of focus travel required will depend on the optics and mechanics of your specific set-up (telescope, diagonal (if used), barlow, and eyepiece). Hence, be aware that you may not be able to reach focus with all eyepieces or in all configurations with a given barlow.
| Free Shipping Graphic | Free US Shipping | ||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Special Text Below Specs |
|
||||||||||||||||||||||||||||||||||||||||||||
| Hide Found a better Shipped Price on Frontend? | No |
| Size Format | 1.25 inch (31.7mm) |
|---|---|
| Nominal Magnification Factor | 2x |
| Number of Lens Elements | 2 |
| Lens Coatings | Fully multicoated |
| Total Length | 3.07 inches / 78 mm |
| Length of Nosepiece | 1.65 inches / 42 mm |
| Outside Length of Upper Body | 1.45 inches / 36.8 mm |
| Insertion Depth | 1.38 inches / 35 mm |
| Max Diameter Excluding Thumbscrew | 1.96 inches / 49.7 mm |
| Clear Aperture | 0.88 inches / 22.4 mm |
| Weight | 3.2 oz / 90 g |
| Barlow Lens Cell Removable | Yes |
| Filter Threads at Bottom of Barlow Cell | No |
| Filter Threads Between Barlow Cell and Tube | Yes - 1.25" (M28.5x0.6) Filter Threads |
| Barrel Type | Smooth-sided |
| Compatible Agena Bolt Case (with Screw Removed) | 42x80 |
| Compatible Bolt Case (with Screw Attached) | 52x80 |
| Number of Thumbscews | 1 |
| Thumbscrew Thread Specification | M4x0.7 |
| End Caps (Subject to change without notice) | 2 |
| Compression Band/Ring in Eyepiece Holder | Yes |
| Country of Manufacture | Taiwan |
- GSO's 1.25" 2x achromatic Barlow increases the magnification of each eyepiece and effectively doubles or triples the number of eyepieces at your disposal
- Full unit increases magnification of eyepiece by 2x
- Features M42x0.75 T/T2 thread on top for direct attachment to 42mm camera T rings for imaging
- Barlow element can be separated from main tube and threaded directly into a 1.25" eyepiece for approximately 1.5x increase in magnification
- Low "shorty" profile maintains a comfortable viewing position
- Two-element, fully-multicoated lenses with excellent color correction, sharpness, and image brightness
GSO's 1.25" 2x "Shorty" achromatic Barlow is an excellent accessory that allows you to effectively double the number of eyepieces in your collection. This barlow uses two-element, fully-multicoated lenses with excellent color correction and sharpness. The lens edges are blackened to maximize image contrast. The body is precision CNC-machined from aluminum and sports a handsome finish.
A really nice feature of this GSO barlow is that the barlow element is housed in a separate metal cell at the bottom that can be unscrewed from the upper tube (see photos). You can then screw the barlow cell directly into 1.25" eyepieces with a standard 1.25" filter thread to increase the magnification of that particular eyepiece while still maintaining a low profile. When screwed into an eyepiece, the barlow will yield approximately 1.5x of magnification. So, for example, a 30mm eyepiece can be used with the barlow element screwed on as a 20mm eyepiece, or with the complete barlow as a 15mm eyepiece. That's like having three eyepieces in one! You can also use the tube by itself without the barlow element as an extension tube for 1.25" eyepieces and accessories.
This version of GSO's 1.25" 2x barlow features a male M42x0.75 T/T2 thread on the top. With this, you can attach this barlow to 42mm camera T rings for imaging applications. Note that this will not work with the wide 48mm T rings.
This versatile barlow can be used in a number of ways:
- Use entire unit with an eyepiece for 2x magnification
- Use entire unit with a T ring (not included) and your camera for magnified prime focus imaging. The exact magnification factor will vary depending on the backfocus requirements of your camera
- Use barlow lens cell only with an eyepiece for 1.5x magnification
- Use the barlow tube only as a 1.25" 36.8mm extension tube
- Use the barlow tube only as a 1.25" prime focus adapter (although you will need 36.8mm of back-focus in this mode)
Note that the use of any optical element like barlows and focal reducers changes the focus point of your telescope, requiring additional in-focus or out-focus travel. The exact amount of focus travel required will depend on the optics and mechanics of your specific set-up (telescope, diagonal (if used), barlow, and eyepiece). Hence, be aware that you may not be able to reach focus with all eyepieces or in all configurations with a given barlow.
Other Information
- Country of Manufacture: Taiwan
| Free Shipping Graphic | Free US Shipping | ||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Special Text Below Specs |
|
||||||||||||||||||||||||||||||||||||||||||||
| Hide Found a better Shipped Price on Frontend? | No |
| Size Format | 1.25 inch (31.7mm) |
|---|---|
| Nominal Magnification Factor | 2x |
| Number of Lens Elements | 2 |
| Lens Coatings | Fully multicoated |
| Total Length | 3.07 inches / 78 mm |
| Length of Nosepiece | 1.65 inches / 42 mm |
| Outside Length of Upper Body | 1.45 inches / 36.8 mm |
| Insertion Depth | 1.38 inches / 35 mm |
| Max Diameter Excluding Thumbscrew | 1.96 inches / 49.7 mm |
| Clear Aperture | 0.88 inches / 22.4 mm |
| Weight | 3.2 oz / 90 g |
| Barlow Lens Cell Removable | Yes |
| Filter Threads at Bottom of Barlow Cell | No |
| Filter Threads Between Barlow Cell and Tube | Yes - 1.25" (M28.5x0.6) Filter Threads |
| Barrel Type | Smooth-sided |
| Compatible Agena Bolt Case (with Screw Removed) | 42x80 |
| Compatible Bolt Case (with Screw Attached) | 52x80 |
| Number of Thumbscews | 1 |
| Thumbscrew Thread Specification | M4x0.7 |
| End Caps (Subject to change without notice) | 2 |
| Compression Band/Ring in Eyepiece Holder | Yes |
| Country of Manufacture | Taiwan |
