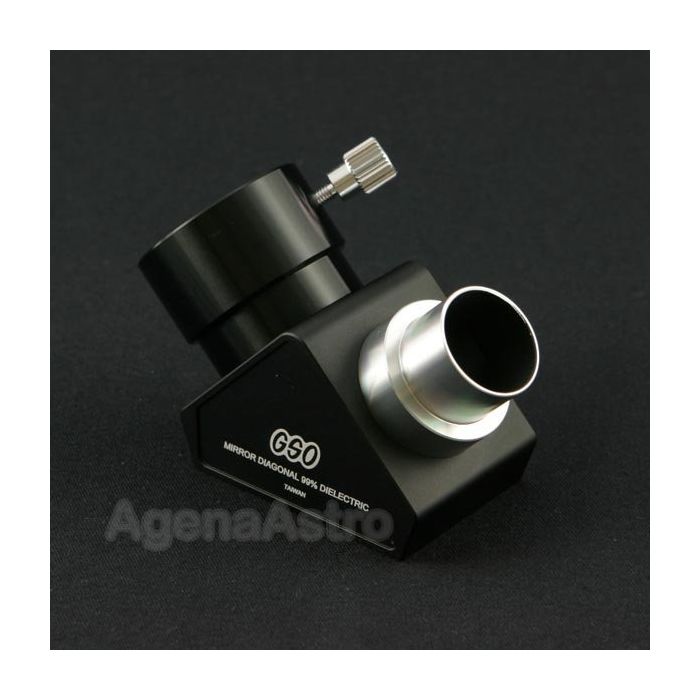

GSO 0.965"/1.25" 90-deg Hybrid 99% Dielectric Mirror Diagonal with Compression Ring
- This item is out of stock.
- We have no ETA from the manufacturer at this time.
- Sign up for back-in-stock alerts to be notified when this item becomes available.
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available.
- This item is out of stock.
- We have no ETA from the manufacturer at this time.
- Sign up for back-in-stock alerts to be notified when this item becomes available.
Lower 48 States:
Orders over $50 ship free within the Lower 48 using a carrier and service we select based on your items and delivery location. Faster shipping options may be available at checkout.
U.S. Outside the Lower 48 (AK, HI, PR):
Free shipping on orders over $50 applies to many—but not all—items. Add items to your cart and enter your ZIP code to see available shipping options and any costs.
International Orders:
Free shipping does not apply to international orders. You’ll see available shipping options and costs during checkout. Some items can’t be shipped internationally due to size or manufacturer restrictions. Duties, taxes, brokerage fees, and tariffs are not included and are the customer’s responsibility.
- Hybrid 0.965” - 1.25" 90-deg diagonal allows use of 1.25” eyepieces and accessories in telescopes with 0.965” focusers
- Dual-step chrome barrel also allows diagonal to fit directly into 1.25” focusers
- Coated BK7 glass mirror precision ground to 1/10th wave flatness with dielectric multi-layer coatings, >99% reflectivity, and long lifetime
- Anodized aluminum finish
- Precision-machined body includes compression ring and internal safety stop to prevent long barrels from hitting diagonal mirror
- Comes in a foam-fitted storage box with two end caps
Important Note: Please note that the length of the 0.965" nosepiece, as listed below, is 15mm (0.59"). Before purchase, please make sure that the thumbscrew on your telescope is within this distance from the rear end of your focuser drawtube. Otherwise, the thumbscrew will not be able to engage and lock the diagonal. This is a known issue with some vintage telescopes in which the locking thumbscrew on the telescope is recessed by more than 0.6", and this diagonal will not work for you.
Disappointed by the lack of quality 0.965" eyepieces for your vintage telescope? Missing a diagonal for that small telescope you picked up in a garage sale? Wish you could use wider angle 1.25" eyepieces with your small spotting scope? Here's the solution you need!
Many vintage telescopes sold up to the 1960s, cheap introductory telescopes sold today, and many spotting scopes use a smaller, older, almost obsolete 0.965" diameter format for diagonals and eyepieces. Having a 0.965" barrel severely limits the number of eyepieces and accessories you can buy and use in the after-market.
This popular hybrid diagonal from GSO allows 1.25" eyepieces, diagonals, and other accessories to be used in 0.965" focusers, and at once allows hundreds of more common 1.25" format astronomy items to be used with your telescope.
GSO's hybrid 0.965"-1.25" 90-degree dielectric mirror diagonal continues their tradition of offering superb products at excellent prices. This beautifuldiagonal features a BK7 mirror that is precision ground to a flatness of 1/10th wave (minimum) and features dielectric 6-layer enhanced silver coatings with an over-coat protective layer for a light efficiency of over 99% reflectivity across the entire visual spectrum.
The mechanics of this diagonal are also top-notch. The robust aluminum body and attachment barrels are precision CNC machined to strict tolerances from solid stock throughout. The 1.25" eyepiece holder features a brass compression ring to protect your eyepieces and accessories. It also includes an internal safety stop to prevent long barrels on some eyepieces and barlows from hitting the diagonal mirror. The diagonal sports a handsome anodized finish.
The combined result is a superb diagonal offering excellent mechanical and optical quality at a great price. Dielectric coatings are more durable than regular or enhanced aluminum coatings, so you will enjoy years of excellent performance from this product.
A unique feature of this hybrid diagonal is the use of a dual step 0.965"/1.25" chrome barrel on the telescope end. While designed primarily for use with 0.965" focusers, the step barrel also allows you to use this diagonal in 1.25" focusers (although your field of view might vignette in some situations if used in this manner). Total length of the nosepiece is 25mm (0.98"); length of 1.25" portion of nosepiece = 10mm (0.39"); length of 0.965" portion of nosepiece = 15mm (0.59").
The diagonal comes in a nice foam-fitted storage box. Weight: 6.1oz; 2 end caps included. Made in Taiwan.
Please Note: This diagonal can only be used with refractor telescopes and some catadioptric telescopes like Schmidt-Cassegrain, Maksutov-Cassegrain, etc. It not meant for use with Newtonian / Dobsonian reflector telescopes or other variants of Newtonian telescopes.
Other Information
- Country of Manufacture: Taiwan
Important Note: Please note that the length of the 0.965" nosepiece, as listed below, is 15mm (0.59"). Before purchase, please make sure that the thumbscrew on your telescope is within this distance from the rear end of your focuser drawtube. Otherwise, the thumbscrew will not be able to engage and lock the diagonal. This is a known issue with some vintage telescopes in which the locking thumbscrew on the telescope is recessed by more than 0.6", and this diagonal will not work for you.
Disappointed by the lack of quality 0.965" eyepieces for your vintage telescope? Missing a diagonal for that small telescope you picked up in a garage sale? Wish you could use wider angle 1.25" eyepieces with your small spotting scope? Here's the solution you need!
Many vintage telescopes sold up to the 1960s, cheap introductory telescopes sold today, and many spotting scopes use a smaller, older, almost obsolete 0.965" diameter format for diagonals and eyepieces. Having a 0.965" barrel severely limits the number of eyepieces and accessories you can buy and use in the after-market.
This popular hybrid diagonal from GSO allows 1.25" eyepieces, diagonals, and other accessories to be used in 0.965" focusers, and at once allows hundreds of more common 1.25" format astronomy items to be used with your telescope.
GSO's hybrid 0.965"-1.25" 90-degree dielectric mirror diagonal continues their tradition of offering superb products at excellent prices. This beautifuldiagonal features a BK7 mirror that is precision ground to a flatness of 1/10th wave (minimum) and features dielectric 6-layer enhanced silver coatings with an over-coat protective layer for a light efficiency of over 99% reflectivity across the entire visual spectrum.
The mechanics of this diagonal are also top-notch. The robust aluminum body and attachment barrels are precision CNC machined to strict tolerances from solid stock throughout. The 1.25" eyepiece holder features a brass compression ring to protect your eyepieces and accessories. It also includes an internal safety stop to prevent long barrels on some eyepieces and barlows from hitting the diagonal mirror. The diagonal sports a handsome anodized finish.
The combined result is a superb diagonal offering excellent mechanical and optical quality at a great price. Dielectric coatings are more durable than regular or enhanced aluminum coatings, so you will enjoy years of excellent performance from this product.
A unique feature of this hybrid diagonal is the use of a dual step 0.965"/1.25" chrome barrel on the telescope end. While designed primarily for use with 0.965" focusers, the step barrel also allows you to use this diagonal in 1.25" focusers (although your field of view might vignette in some situations if used in this manner). Total length of the nosepiece is 25mm (0.98"); length of 1.25" portion of nosepiece = 10mm (0.39"); length of 0.965" portion of nosepiece = 15mm (0.59").
The diagonal comes in a nice foam-fitted storage box. Weight: 6.1oz; 2 end caps included. Made in Taiwan.
Please Note: This diagonal can only be used with refractor telescopes and some catadioptric telescopes like Schmidt-Cassegrain, Maksutov-Cassegrain, etc. It not meant for use with Newtonian / Dobsonian reflector telescopes or other variants of Newtonian telescopes.
- Hybrid 0.965” - 1.25" 90-deg diagonal allows use of 1.25” eyepieces and accessories in telescopes with 0.965” focusers
- Dual-step chrome barrel also allows diagonal to fit directly into 1.25” focusers
- Coated BK7 glass mirror precision ground to 1/10th wave flatness with dielectric multi-layer coatings, >99% reflectivity, and long lifetime
- Anodized aluminum finish
- Precision-machined body includes compression ring and internal safety stop to prevent long barrels from hitting diagonal mirror
- Comes in a foam-fitted storage box with two end caps
Important Note: Please note that the length of the 0.965" nosepiece, as listed below, is 15mm (0.59"). Before purchase, please make sure that the thumbscrew on your telescope is within this distance from the rear end of your focuser drawtube. Otherwise, the thumbscrew will not be able to engage and lock the diagonal. This is a known issue with some vintage telescopes in which the locking thumbscrew on the telescope is recessed by more than 0.6", and this diagonal will not work for you.
Disappointed by the lack of quality 0.965" eyepieces for your vintage telescope? Missing a diagonal for that small telescope you picked up in a garage sale? Wish you could use wider angle 1.25" eyepieces with your small spotting scope? Here's the solution you need!
Many vintage telescopes sold up to the 1960s, cheap introductory telescopes sold today, and many spotting scopes use a smaller, older, almost obsolete 0.965" diameter format for diagonals and eyepieces. Having a 0.965" barrel severely limits the number of eyepieces and accessories you can buy and use in the after-market.
This popular hybrid diagonal from GSO allows 1.25" eyepieces, diagonals, and other accessories to be used in 0.965" focusers, and at once allows hundreds of more common 1.25" format astronomy items to be used with your telescope.
GSO's hybrid 0.965"-1.25" 90-degree dielectric mirror diagonal continues their tradition of offering superb products at excellent prices. This beautifuldiagonal features a BK7 mirror that is precision ground to a flatness of 1/10th wave (minimum) and features dielectric 6-layer enhanced silver coatings with an over-coat protective layer for a light efficiency of over 99% reflectivity across the entire visual spectrum.
The mechanics of this diagonal are also top-notch. The robust aluminum body and attachment barrels are precision CNC machined to strict tolerances from solid stock throughout. The 1.25" eyepiece holder features a brass compression ring to protect your eyepieces and accessories. It also includes an internal safety stop to prevent long barrels on some eyepieces and barlows from hitting the diagonal mirror. The diagonal sports a handsome anodized finish.
The combined result is a superb diagonal offering excellent mechanical and optical quality at a great price. Dielectric coatings are more durable than regular or enhanced aluminum coatings, so you will enjoy years of excellent performance from this product.
A unique feature of this hybrid diagonal is the use of a dual step 0.965"/1.25" chrome barrel on the telescope end. While designed primarily for use with 0.965" focusers, the step barrel also allows you to use this diagonal in 1.25" focusers (although your field of view might vignette in some situations if used in this manner). Total length of the nosepiece is 25mm (0.98"); length of 1.25" portion of nosepiece = 10mm (0.39"); length of 0.965" portion of nosepiece = 15mm (0.59").
The diagonal comes in a nice foam-fitted storage box. Weight: 6.1oz; 2 end caps included. Made in Taiwan.
Please Note: This diagonal can only be used with refractor telescopes and some catadioptric telescopes like Schmidt-Cassegrain, Maksutov-Cassegrain, etc. It not meant for use with Newtonian / Dobsonian reflector telescopes or other variants of Newtonian telescopes.
Other Information
- Country of Manufacture: Taiwan
