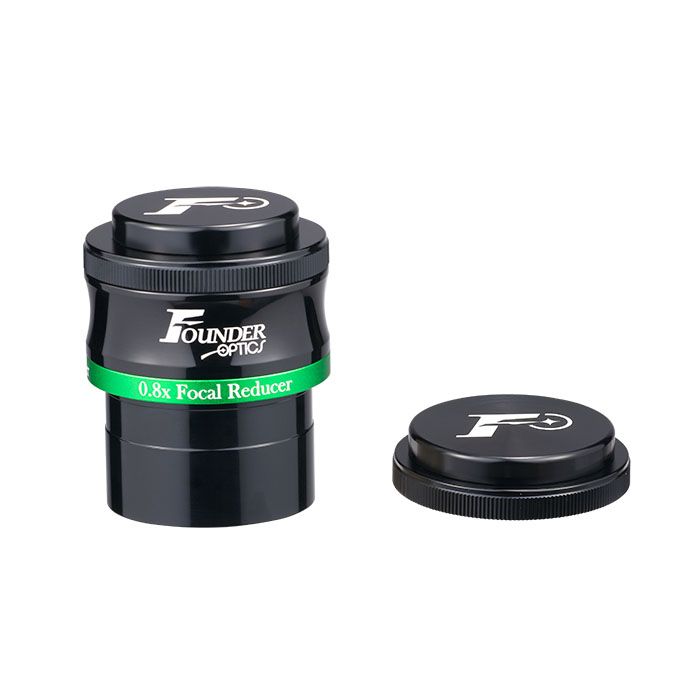

Founder Optics 2” 0.8x Reducer for FOT86, FOT106 & f/5-f/7 Telescopes (with M42 T/T2 & M48 Thread Adapters)

Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available.
- This item is out of stock.
- We have no ETA from the manufacturer at this time.
- Sign up for back-in-stock alerts to be notified when this item becomes available.
Lower 48 States:
Orders over $50 ship free within the Lower 48 using a carrier and service we select based on your items and delivery location. Faster shipping options may be available at checkout.
U.S. Outside the Lower 48 (AK, HI, PR):
Free shipping on orders over $50 applies to many—but not all—items. Add items to your cart and enter your ZIP code to see available shipping options and any costs.
International Orders:
Free shipping does not apply to international orders. You’ll see available shipping options and costs during checkout. Some items can’t be shipped internationally due to size or manufacturer restrictions. Duties, taxes, brokerage fees, and tariffs are not included and are the customer’s responsibility.
- Founder Optics 2” 0.8x focal reducer/field flattener for refractors of focal ratio f/5 to f/7
- Includes interchangeable M42 and M48 thread adapters for camera interface
- CNC machined body with hard, gloss, black anodized finish.
- Features 2" nosepiece with safety groove
- Requires 55mm back focus
Founder Optics 2” 0.8x Reducer (with M42 & M48 Thread Adapters) for FOT86, FOT106 & f/5-f/7 Telescopes # RED0.8x
The Founder Optics 0.8x focal reducer/field flattener # RED0.8x minimizes field curvature caused by the objective lenses of fast refractors and provides a sharper image across the camera sensor. It also reduces the effective focal length of a telescope by 0.8x to allow wider-field imaging and faster exposure times.
The optical design of this reducer/flattener makes it optimal for use with refractors with a focal ratio of approximately f/5 to f/7. With smaller sensor 1” and 4/3” cameras, it can work well with refractors slightly outside this range of focal ratio.
This 2” reducer/flattener delivers an image circle of 42mm, almost large enough for use with full-frame cameras. It includes interchangeable M42x0.75 male and M48x0.75 male thread adapters to interface with your camera T-ring (not included).
The flattener’s nosepiece slides into any standard 2” telescope focuser. Note: The nosepiece has a female M48x0.6 thread on the telescope side and will only accept Orion 2” filters - it will NOT accept most other 2” filters on the market which use the more common M48x0.75 threads.
The Founder Optics 2” 0.8x reducer/flattener requires a standard back focus of 55mm. This makes it ideal for DSLR cameras with a standard M42 or M48 T-ring (sold separately). It also works with most other astronomy cameras when matched with suitable extension rings (sold separately).
This reducer/flattener features fully multi-coated optics in an anodized CNC-machined aluminum body with a polished gloss black finish.
Other Information
- Country of Manufacture: Taiwan
Founder Optics 2” 0.8x Reducer (with M42 & M48 Thread Adapters) for FOT86, FOT106 & f/5-f/7 Telescopes # RED0.8x
The Founder Optics 0.8x focal reducer/field flattener # RED0.8x minimizes field curvature caused by the objective lenses of fast refractors and provides a sharper image across the camera sensor. It also reduces the effective focal length of a telescope by 0.8x to allow wider-field imaging and faster exposure times.
The optical design of this reducer/flattener makes it optimal for use with refractors with a focal ratio of approximately f/5 to f/7. With smaller sensor 1” and 4/3” cameras, it can work well with refractors slightly outside this range of focal ratio.
This 2” reducer/flattener delivers an image circle of 42mm, almost large enough for use with full-frame cameras. It includes interchangeable M42x0.75 male and M48x0.75 male thread adapters to interface with your camera T-ring (not included).
The flattener’s nosepiece slides into any standard 2” telescope focuser. Note: The nosepiece has a female M48x0.6 thread on the telescope side and will only accept Orion 2” filters - it will NOT accept most other 2” filters on the market which use the more common M48x0.75 threads.
The Founder Optics 2” 0.8x reducer/flattener requires a standard back focus of 55mm. This makes it ideal for DSLR cameras with a standard M42 or M48 T-ring (sold separately). It also works with most other astronomy cameras when matched with suitable extension rings (sold separately).
This reducer/flattener features fully multi-coated optics in an anodized CNC-machined aluminum body with a polished gloss black finish.
- Founder Optics 2” 0.8x focal reducer/field flattener for refractors of focal ratio f/5 to f/7
- Includes interchangeable M42 and M48 thread adapters for camera interface
- CNC machined body with hard, gloss, black anodized finish.
- Features 2" nosepiece with safety groove
- Requires 55mm back focus
Founder Optics 2” 0.8x Reducer (with M42 & M48 Thread Adapters) for FOT86, FOT106 & f/5-f/7 Telescopes # RED0.8x
The Founder Optics 0.8x focal reducer/field flattener # RED0.8x minimizes field curvature caused by the objective lenses of fast refractors and provides a sharper image across the camera sensor. It also reduces the effective focal length of a telescope by 0.8x to allow wider-field imaging and faster exposure times.
The optical design of this reducer/flattener makes it optimal for use with refractors with a focal ratio of approximately f/5 to f/7. With smaller sensor 1” and 4/3” cameras, it can work well with refractors slightly outside this range of focal ratio.
This 2” reducer/flattener delivers an image circle of 42mm, almost large enough for use with full-frame cameras. It includes interchangeable M42x0.75 male and M48x0.75 male thread adapters to interface with your camera T-ring (not included).
The flattener’s nosepiece slides into any standard 2” telescope focuser. Note: The nosepiece has a female M48x0.6 thread on the telescope side and will only accept Orion 2” filters - it will NOT accept most other 2” filters on the market which use the more common M48x0.75 threads.
The Founder Optics 2” 0.8x reducer/flattener requires a standard back focus of 55mm. This makes it ideal for DSLR cameras with a standard M42 or M48 T-ring (sold separately). It also works with most other astronomy cameras when matched with suitable extension rings (sold separately).
This reducer/flattener features fully multi-coated optics in an anodized CNC-machined aluminum body with a polished gloss black finish.
Other Information
- Country of Manufacture: Taiwan
