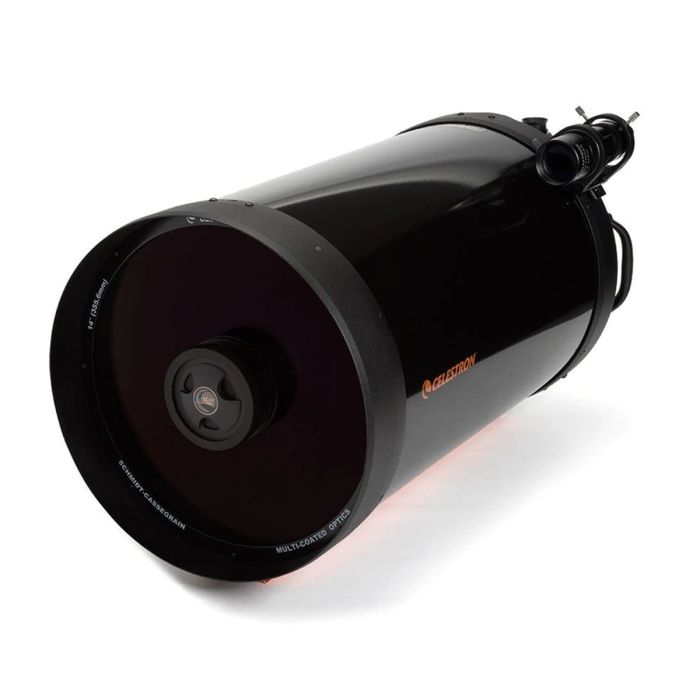

Celestron C14-A XLT 14" SCT Optical Tube with CGE Dovetail
- 1This item is available for pre-order.
- Pre-orders are fulfilled in batches after the product launches, in the order orders are received.
- Exact shipping timing depends on initial availability.
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available.
- This item is out of stock.
- We have no ETA from the manufacturer at this time.
- Sign up for back-in-stock alerts to be notified when this item becomes available.
Lower 48 States:
Orders over $50 ship free within the Lower 48 using a carrier and service we select based on your items and delivery location. Faster shipping options may be available at checkout.
U.S. Outside the Lower 48 (AK, HI, PR):
Free shipping on orders over $50 applies to many—but not all—items. Add items to your cart and enter your ZIP code to see available shipping options and any costs.
International Orders:
Free shipping does not apply to international orders. You’ll see available shipping options and costs during checkout. Some items can’t be shipped internationally due to size or manufacturer restrictions. Duties, taxes, brokerage fees, and tariffs are not included and are the customer’s responsibility.
- 14" Schmidt-Cassegrain Optical Tube Assembly (OTA)
- Features Celestron's premium patented StarBright XLT optical coatings
- 3910mm focal length (f/11)
- Fastar compatible
- Tube constructed of durable and lightweight aluminum
- Includes: 40mm eyepiece (98x), 9x50 optical finderscope, 2” star diagonal, 2” visual back, CGEM-style dovetail bar
The Celestron C14-AF XLT optical tube # 91038-XLT is a world-class instrument that delivers a level of detail to all your favorite deep sky objects. This observatory-ready instrument the largest in its class with over three times the light gathering power of an 8" telescope. With this OTA, you can see amazing detail on the surface of Jupiter, resolve details on the surface of Mars, see Cassini's Division in the rings of Saturn, and even the distant planets of Uranus and Neptune.
The C14 packs serious light gathering ability into its durable aluminum optical tube. It’s an ideal instrument for serious astrophotography, providing high-contrast views even at very high magnifications. It is equipped with Celestron’s patented StarBright® XLT optical coatings, which visibly increase contrast and light transmission for brighter deep space images and shorter exposure times.
The tube offers a focal ratio of f/11 with the added versatility of Fastar (see below). You can also pair it with the f/6.3 focal reducer for even more astroimaging options.
This flagship OTA can be mounted on a multitude of computerized telescope mounts thanks to its CGEM-style dovetail bar. It’s sure to take your visual observing and imaging to the next level.
Fastar Technology
In 1997, CCDs were making a name for themselves in the astrophotography world, quickly supplanting traditional film photography thanks to their speed and convenience. This was the year that Celestron joined forces with the Santa Barbara Instruments Group (SBIG) to produce Fastar, a revolutionary add-on to Celestron’s hugely popular Schmidt-Cassegrain (SCT) optical system.
With Fastar, the SCT’s secondary mirror can be removed and replaced with a field-flattening lens assembly (sold separately by third party manufacturers) so that a CCD camera can be used in the front of the telescope at the f/2 focus of the instrument’s primary mirror. The potential of the Fastar system is staggering: exposures are 25 times shorter than if the camera was placed at the instrument’s native f/11 focus. Imagers can capture galaxies and nebulae with exposures of just 30 seconds.
StarBright XLT coatings
StarBright XLT is Celestron’s revolutionary optical coating system. It consistently outperforms all other coatings in the commercial telescope market. There are three major components that make up our StarBright XLT high-transmission optical system design:
- Unique enhanced multi-layer mirror coatings made from precise layers of aluminum, SiO2 (quartz), TiO2 (titanium dioxide), and SiO2 (silicon dioxide). Reflectivity is fairly flat across the spectrum, optimizing it for both imaging and visual observing.
- Multi-layer anti-reflective coatings made from precise layers of MgF2 (magnesium fluoride) and HfO2 (hafnium dioxide). Hafnium—a rare element that costs nearly $2,000 per kilogram—gives us a wider band pass than the titanium used in competing coatings.
- High-transmission water white glass is used instead of soda lime glass for the corrector lens. Water white glass transmits about 90.5% of light without anti-reflective coatings; that’s 3.5% better than uncoated soda lime glass. When water white glass is used in conjunction with StarBright XLT’s anti-reflective coatings, the average transmission reaches an astonishing 97.4.
These three components make StarBright XLT one of the finest coatings available.
Specifications:
- Optical Design: Schmidt-Cassegrain
- Aperture: 355.5mm (14")
- Focal Length: 3910mm (154")
- Focal Ratio: f/11
- Focal Length of Eyepiece 1: 40mm (1.57")
- Magnification of Eyepiece 1: 98x
- Finderscope: 9x50
- Star Diagonal: 2" with 1.25" adapter
- Optical Tube: Aluminum
- Fastar Compatible: Yes
- Highest Useful Magnification: 840x
- Lowest Useful Magnification: 51x
- Limiting Stellar Magnitude: 15.3
- Resolution (Rayleigh): 0.39 arc seconds
- Resolution (Dawes): 0.33 arc seconds
- Light Gathering Power (Compared to human eye): 2581x
- Secondary Mirror Obstruction: 114mm (4.5")
- Secondary Mirror Obstruction by Diameter: 32%
- Secondary Mirror Obstruction by Area: 10%
- Optical Coatings: StarBright XLT
- Optical Tube Length: 787mm (31")
- Optical Tube Diameter: 400.5mm (15.77")
- Optical Tube Weight: 46 lbs (21 kg)
- Dovetail: CGE Dovetail Bar
Solar Warning
- Never look directly at the Sun with the naked eye or with an optic (unless you have the proper solar filter). Permanent and irreversible eye damage may result.
- Never use your optic to project an image of the Sun onto any surface. Internal heat build-up can damage the optic and any accessories attached to it.
- Never leave your optic unsupervised. Make sure an adult who is familiar with the correct operating procedures is with your optic at all times, especially when children are present.
Other Information
- Country of Manufacture: China
- Celestron Warranty: Two-year factory limited warranty (within US/Canada only).
