Celestron 11" Narrow CG-5/Vixen/Synta Style Dovetail Bar (17.5" Long for C11 Telescopes)
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available.
- This item is out of stock.
- We have no ETA from the manufacturer at this time.
- Sign up for back-in-stock alerts to be notified when this item becomes available.
Lower 48 States:
Orders over $50 ship free within the Lower 48 using a carrier and service we select based on your items and delivery location. Faster shipping options may be available at checkout.
U.S. Outside the Lower 48 (AK, HI, PR):
Free shipping on orders over $50 applies to many—but not all—items. Add items to your cart and enter your ZIP code to see available shipping options and any costs.
International Orders:
Free shipping does not apply to international orders. You’ll see available shipping options and costs during checkout. Some items can’t be shipped internationally due to size or manufacturer restrictions. Duties, taxes, brokerage fees, and tariffs are not included and are the customer’s responsibility.
- Fits pre-drilled holes in the front and rear cells of current 11” Schmidt-Cassegrain and11” EdgeHD Optical tubes (bottom only; not compatible with the top of the optical tube)

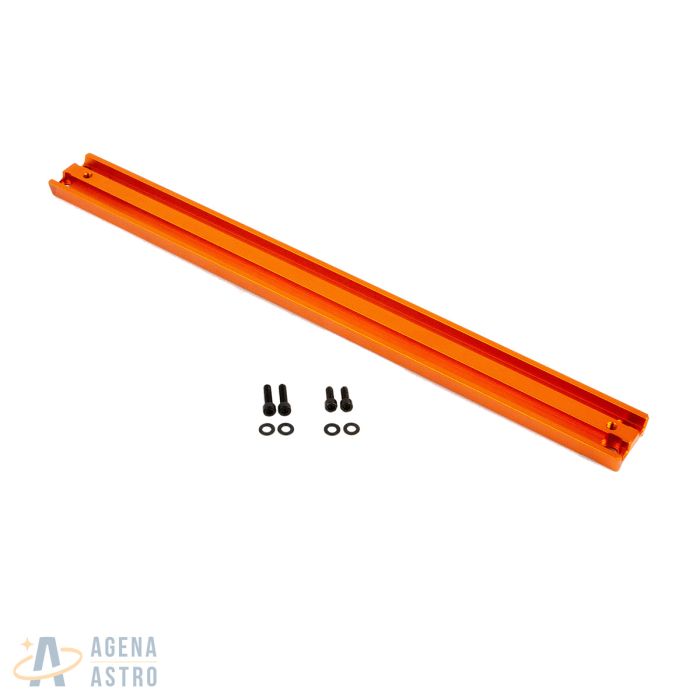

- Aluminum bar with orange anodizing provides a sturdy mounting platform.
- Easy to install and comes complete with all necessary hardware
This dovetail bar kit allows you to replace the wider CGE dovetail bar found on the bottom of most current Celestron 11” Schmidt-Cassegrain and 11” EdgeHD optical tubes with a narrow dovetail, allowing them to be used on mounts that require the narrower CG-5 dovetail bars, such as the Advanced VX mount.
Specifications:
- Length: 17.5" (444.5mm) x 1.7" (43.18mm)
- Weight: 15 oz (425.2 g)
- Optical Tube Compatibility: Current Celestron 11" Schmidt-Cassegrain and 11" EdgeHD optical tubes with the wide CGE bar. Not for use with older Celestron OTAs or other OTAs that do not already come with the wide CGE bar.
- Note that this bar will attach only to the bottom of compatible tubes. It is not meant for use on the top of the OTAs as the pre-drilled hole patterns will not match.
- Mount Compatibility: CG-5 style dovetail bars
- Included mounting hardware: 2x M5x0.75 and 2x #10-24 socket head cap screws, 4x washers
Product carries two year factory limited warranty (within US/Canada only).
Manufacturer part number: 94503
Other Information
- Country of Manufacture: China
This dovetail bar kit allows you to replace the wider CGE dovetail bar found on the bottom of most current Celestron 11” Schmidt-Cassegrain and 11” EdgeHD optical tubes with a narrow dovetail, allowing them to be used on mounts that require the narrower CG-5 dovetail bars, such as the Advanced VX mount.
Specifications:
- Length: 17.5" (444.5mm) x 1.7" (43.18mm)
- Weight: 15 oz (425.2 g)
- Optical Tube Compatibility: Current Celestron 11" Schmidt-Cassegrain and 11" EdgeHD optical tubes with the wide CGE bar. Not for use with older Celestron OTAs or other OTAs that do not already come with the wide CGE bar.
- Note that this bar will attach only to the bottom of compatible tubes. It is not meant for use on the top of the OTAs as the pre-drilled hole patterns will not match.
- Mount Compatibility: CG-5 style dovetail bars
- Included mounting hardware: 2x M5x0.75 and 2x #10-24 socket head cap screws, 4x washers
Product carries two year factory limited warranty (within US/Canada only).
Manufacturer part number: 94503
- Fits pre-drilled holes in the front and rear cells of current 11” Schmidt-Cassegrain and11” EdgeHD Optical tubes (bottom only; not compatible with the top of the optical tube)
- Aluminum bar with orange anodizing provides a sturdy mounting platform.
- Easy to install and comes complete with all necessary hardware
This dovetail bar kit allows you to replace the wider CGE dovetail bar found on the bottom of most current Celestron 11” Schmidt-Cassegrain and 11” EdgeHD optical tubes with a narrow dovetail, allowing them to be used on mounts that require the narrower CG-5 dovetail bars, such as the Advanced VX mount.
Specifications:
- Length: 17.5" (444.5mm) x 1.7" (43.18mm)
- Weight: 15 oz (425.2 g)
- Optical Tube Compatibility: Current Celestron 11" Schmidt-Cassegrain and 11" EdgeHD optical tubes with the wide CGE bar. Not for use with older Celestron OTAs or other OTAs that do not already come with the wide CGE bar.
- Note that this bar will attach only to the bottom of compatible tubes. It is not meant for use on the top of the OTAs as the pre-drilled hole patterns will not match.
- Mount Compatibility: CG-5 style dovetail bars
- Included mounting hardware: 2x M5x0.75 and 2x #10-24 socket head cap screws, 4x washers
Product carries two year factory limited warranty (within US/Canada only).
Manufacturer part number: 94503
Other Information
- Country of Manufacture: China
