BuckeyeStargazer EAF Mounting Bracket for GSO 2" Linear Bearing Focuser
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available.
- This item is out of stock.
- We have no ETA from the manufacturer at this time.
- Sign up for back-in-stock alerts to be notified when this item becomes available.
Lower 48 States:
Orders over $50 ship free within the Lower 48 using a carrier and service we select based on your items and delivery location. Faster shipping options may be available at checkout.
U.S. Outside the Lower 48 (AK, HI, PR):
Free shipping on orders over $50 applies to many—but not all—items. Add items to your cart and enter your ZIP code to see available shipping options and any costs.
International Orders:
Free shipping does not apply to international orders. You’ll see available shipping options and costs during checkout. Some items can’t be shipped internationally due to size or manufacturer restrictions. Duties, taxes, brokerage fees, and tariffs are not included and are the customer’s responsibility.
At this time, 3 versions are available as follows:
- Sold separately: EAF-GSO-2CRF-M: ZWO EAF bracket for the standard GSO 2" Crayford dual speed focuser

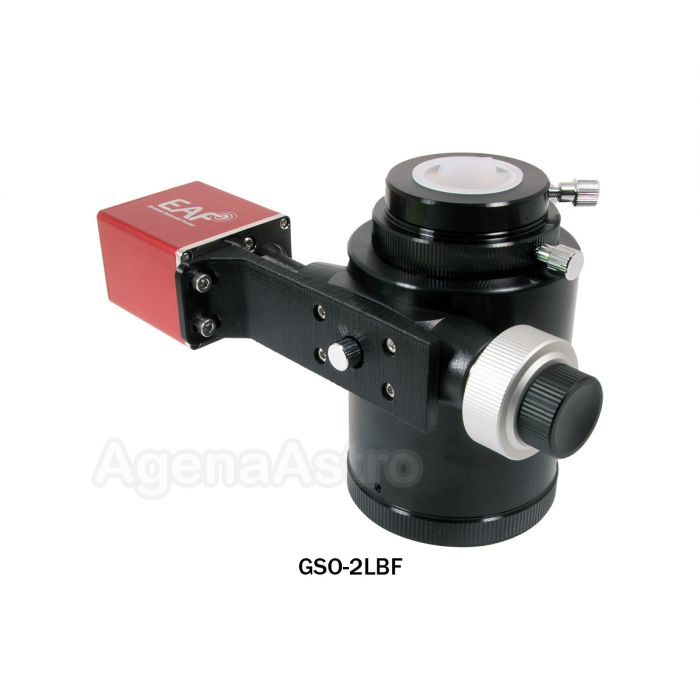

- This item: EAF-GSO-2LBF ZWO EAF bracket for the GSO 2" Linear Bearing Focuser/TS Monorail

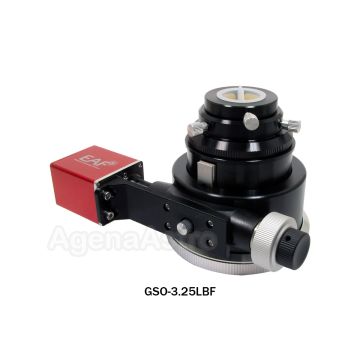

- Sold separately: EAF-GSO-3.25LBF ZWO EAF bracket for the GSO 3.25" Linear Bearing Focuser
Please make sure that you purchase the correct adapter for your GSO focuser. Not for use with any non-GSO made focuser.
Important Note: The installation of this part requires you to replace 4 screws on the focuser housing that control the tension and smoothness of the focuser mechanism. If not replaced and adjusted correctly, the manual operation of this focuser - if you revert to this after installing the EAF - may be compromised and not be as smooth as before. However, EAF operation is not as sensitive to this reassembly and should not be impacted due to this.
We have had several customers do this installation fairly easily without problems, but please understand that the installation of this adapter will void your focuser warranty.
Please note that this is a 3d printed plastic part.
This bracket #EAF-GSO-2LBF allows you to mount a ZWO Electronic Automatic Focuser (EAF) onto your 2" GSO Linear Bearing Focuser. Besides being sold separately, these very popular focusers can be found on many GSO telescopes and GSO-made scopes sold under the Orion, TPO, Astro-Tech, Apertura, iOptron and other brand names.
Note that this adapter is NOT meant for use with GSO's single or dual speed Crayford focusers. This item also cannot be used with GSO's larger 3.25" linear bearing focuser. Please ensure that you purchase this for GSO's 2" linear bearing focuser only.
The system consists of two parts: a bracket for your telescope and a coupler that attaches the EAF onto the focuser pinion. Connections are held securely with stainless steel M3 set screws. Where necessary, bracket mounting screws are provided. The ZWO supplied M4 screws are used to attach the EAF to the bracket. Note that the user will need to have a hex key/Allen key for the M3 set screws (not provided).
GSO Linear Bearing Focuser EAF Bracket Mounting Instructions:
Please follow carefully!
- With the bottom of the focuser pointing up to avoid falling, remove the 4 screws.
- Place the EAF bracket on the focuser and using the screws provided evenly tighten all screws until they are snug. Tighten 1/4 turn more, being careful to tighten all 4 screws evenly.
- Slide the coupler onto the focuser pinion shaft.
- Attach the EAF to the bracket.
- Tighten the set screws on the coupler. Do not over tighten.
Other Information
- Country of Manufacture: United States
Please note that this is a 3d printed plastic part.
This bracket #EAF-GSO-2LBF allows you to mount a ZWO Electronic Automatic Focuser (EAF) onto your 2" GSO Linear Bearing Focuser. Besides being sold separately, these very popular focusers can be found on many GSO telescopes and GSO-made scopes sold under the Orion, TPO, Astro-Tech, Apertura, iOptron and other brand names.
Note that this adapter is NOT meant for use with GSO's single or dual speed Crayford focusers. This item also cannot be used with GSO's larger 3.25" linear bearing focuser. Please ensure that you purchase this for GSO's 2" linear bearing focuser only.
The system consists of two parts: a bracket for your telescope and a coupler that attaches the EAF onto the focuser pinion. Connections are held securely with stainless steel M3 set screws. Where necessary, bracket mounting screws are provided. The ZWO supplied M4 screws are used to attach the EAF to the bracket. Note that the user will need to have a hex key/Allen key for the M3 set screws (not provided).
GSO Linear Bearing Focuser EAF Bracket Mounting Instructions:
Please follow carefully!
- With the bottom of the focuser pointing up to avoid falling, remove the 4 screws.
- Place the EAF bracket on the focuser and using the screws provided evenly tighten all screws until they are snug. Tighten 1/4 turn more, being careful to tighten all 4 screws evenly.
- Slide the coupler onto the focuser pinion shaft.
- Attach the EAF to the bracket.
- Tighten the set screws on the coupler. Do not over tighten.
At this time, 3 versions are available as follows:
- Sold separately: EAF-GSO-2CRF-M: ZWO EAF bracket for the standard GSO 2" Crayford dual speed focuser
- This item: EAF-GSO-2LBF ZWO EAF bracket for the GSO 2" Linear Bearing Focuser/TS Monorail
- Sold separately: EAF-GSO-3.25LBF ZWO EAF bracket for the GSO 3.25" Linear Bearing Focuser
Please make sure that you purchase the correct adapter for your GSO focuser. Not for use with any non-GSO made focuser.
Important Note: The installation of this part requires you to replace 4 screws on the focuser housing that control the tension and smoothness of the focuser mechanism. If not replaced and adjusted correctly, the manual operation of this focuser - if you revert to this after installing the EAF - may be compromised and not be as smooth as before. However, EAF operation is not as sensitive to this reassembly and should not be impacted due to this.
We have had several customers do this installation fairly easily without problems, but please understand that the installation of this adapter will void your focuser warranty.
Please note that this is a 3d printed plastic part.
This bracket #EAF-GSO-2LBF allows you to mount a ZWO Electronic Automatic Focuser (EAF) onto your 2" GSO Linear Bearing Focuser. Besides being sold separately, these very popular focusers can be found on many GSO telescopes and GSO-made scopes sold under the Orion, TPO, Astro-Tech, Apertura, iOptron and other brand names.
Note that this adapter is NOT meant for use with GSO's single or dual speed Crayford focusers. This item also cannot be used with GSO's larger 3.25" linear bearing focuser. Please ensure that you purchase this for GSO's 2" linear bearing focuser only.
The system consists of two parts: a bracket for your telescope and a coupler that attaches the EAF onto the focuser pinion. Connections are held securely with stainless steel M3 set screws. Where necessary, bracket mounting screws are provided. The ZWO supplied M4 screws are used to attach the EAF to the bracket. Note that the user will need to have a hex key/Allen key for the M3 set screws (not provided).
GSO Linear Bearing Focuser EAF Bracket Mounting Instructions:
Please follow carefully!
- With the bottom of the focuser pointing up to avoid falling, remove the 4 screws.
- Place the EAF bracket on the focuser and using the screws provided evenly tighten all screws until they are snug. Tighten 1/4 turn more, being careful to tighten all 4 screws evenly.
- Slide the coupler onto the focuser pinion shaft.
- Attach the EAF to the bracket.
- Tighten the set screws on the coupler. Do not over tighten.
Other Information
- Country of Manufacture: United States
