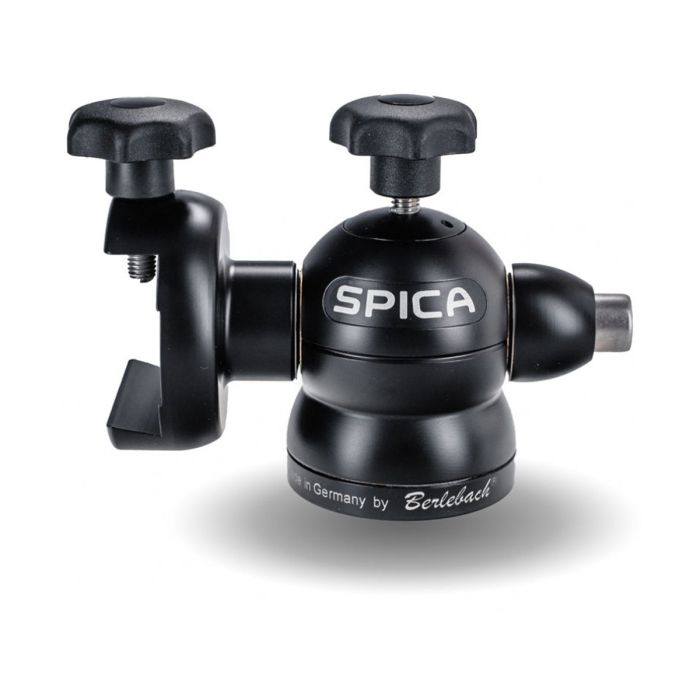

Berlebach Spica Alt-Azimuth Mount Head with Single Vixen-Style Prism Clamp
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available.
- This item is out of stock.
- We have no ETA from the manufacturer at this time.
- Sign up for back-in-stock alerts to be notified when this item becomes available.
Lower 48 States:
Orders over $50 ship free within the Lower 48 using a carrier and service we select based on your items and delivery location. Faster shipping options may be available at checkout.
U.S. Outside the Lower 48 (AK, HI, PR):
Free shipping on orders over $50 applies to many—but not all—items. Add items to your cart and enter your ZIP code to see available shipping options and any costs.
International Orders:
Free shipping does not apply to international orders. You’ll see available shipping options and costs during checkout. Some items can’t be shipped internationally due to size or manufacturer restrictions. Duties, taxes, brokerage fees, and tariffs are not included and are the customer’s responsibility.
- Berlebach Spica alt-azimuth mount head # 500718
- Small and light alt-az mount for binoculars, scopes telescopes and cameras
- The friction control can be tuned with easy-to-grasp knobs for both axes
- Includes one Vixen-style dovetail clamp for mounting Vixen-style telescope dovetail plates and rails. Not for use with smaller Vixen-style finder bases.
- The other side can be connected to a second dovetail clamp (item no. 500609), counterbalance bar (item no. 500608), or quick release coupling (item no. 320262) for a camera/spotting scope (each sold separately)
- Thread size: 3/8"
- Height: 4.7 in (120 mm)
- Width: 6.9 in (175 mm)
- Diameter on the tripod side: 2.3 in (60 mm)
- Load capacity: 11 lbs (5 kg) (max. 7 Nm) with load on one side and 44 lbs (20 kg) with load on both sides
- Weight: 0.99 kg (2.18 lbs)
Other Information
- Country of Manufacture: Germany
- Berlebach Spica alt-azimuth mount head # 500718
- Small and light alt-az mount for binoculars, scopes telescopes and cameras
- The friction control can be tuned with easy-to-grasp knobs for both axes
- Includes one Vixen-style dovetail clamp for mounting Vixen-style telescope dovetail plates and rails. Not for use with smaller Vixen-style finder bases.
- The other side can be connected to a second dovetail clamp (item no. 500609), counterbalance bar (item no. 500608), or quick release coupling (item no. 320262) for a camera/spotting scope (each sold separately)
- Thread size: 3/8"
- Height: 4.7 in (120 mm)
- Width: 6.9 in (175 mm)
- Diameter on the tripod side: 2.3 in (60 mm)
- Load capacity: 11 lbs (5 kg) (max. 7 Nm) with load on one side and 44 lbs (20 kg) with load on both sides
- Weight: 0.99 kg (2.18 lbs)
- Berlebach Spica alt-azimuth mount head # 500718
- Small and light alt-az mount for binoculars, scopes telescopes and cameras
- The friction control can be tuned with easy-to-grasp knobs for both axes
- Includes one Vixen-style dovetail clamp for mounting Vixen-style telescope dovetail plates and rails. Not for use with smaller Vixen-style finder bases.
- The other side can be connected to a second dovetail clamp (item no. 500609), counterbalance bar (item no. 500608), or quick release coupling (item no. 320262) for a camera/spotting scope (each sold separately)
- Thread size: 3/8"
- Height: 4.7 in (120 mm)
- Width: 6.9 in (175 mm)
- Diameter on the tripod side: 2.3 in (60 mm)
- Load capacity: 11 lbs (5 kg) (max. 7 Nm) with load on one side and 44 lbs (20 kg) with load on both sides
- Weight: 0.99 kg (2.18 lbs)
Other Information
- Country of Manufacture: Germany
