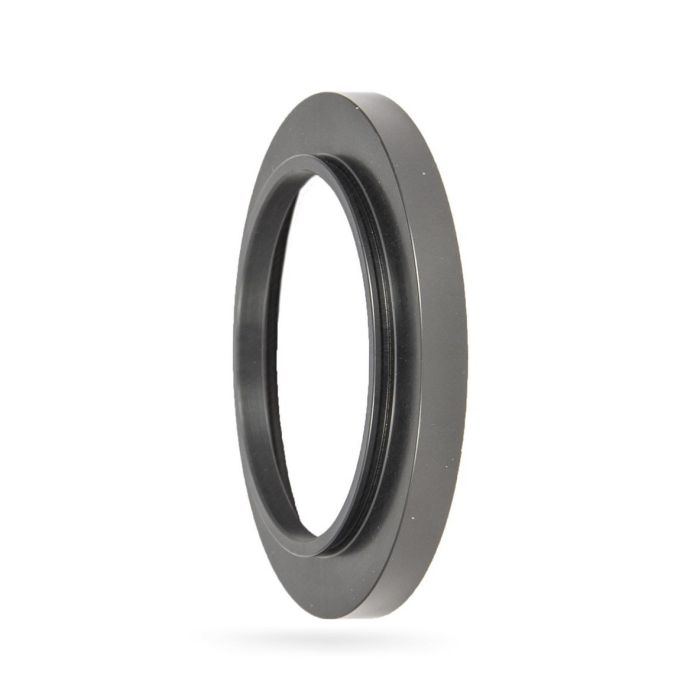

Baader UFC S70 Dovetail to 8" RASA Telescope Adapter
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available.
- This item is out of stock.
- We have no ETA from the manufacturer at this time.
- Sign up for back-in-stock alerts to be notified when this item becomes available.
Lower 48 States:
Orders over $50 ship free within the Lower 48 using a carrier and service we select based on your items and delivery location. Faster shipping options may be available at checkout.
U.S. Outside the Lower 48 (AK, HI, PR):
Free shipping on orders over $50 applies to many—but not all—items. Add items to your cart and enter your ZIP code to see available shipping options and any costs.
International Orders:
Free shipping does not apply to international orders. You’ll see available shipping options and costs during checkout. Some items can’t be shipped internationally due to size or manufacturer restrictions. Duties, taxes, brokerage fees, and tariffs are not included and are the customer’s responsibility.
- Baader UFC S70 RASA 8" telescope adapter to use cameras with 13mm back focus and T-2/M-48 or M54 female thread like the ATIK Horizon on the RASA 8".
- Telescope-sided with RASA 8" thread (M87)
- Camera-sided with S70 dovetail
- Can be adapted via the S70 dovetail to the Baader UFC Base (Filter Chamber) telescope-sided S70 dovetail receptor (optical height: 13 mm) (#2459110) as well as to UFC extensions. The UFC adapter is screwed directly onto the RASA 8 thread.
The latest addition of the UFC-family - the new RASA 8 / S70 UFC-Adapter (#2459136) - is compatible with 13 mm back-focus cameras such as ATIK Horizon. The UFC allows to change any kind of filter from 1 1/4" up to 50x50 mm square in front of the RASA 8.
The only function, that still might be left to desire is an easier way to reach the front adjustment hex-screws of the RASA 8. Due to the very short backfocus available, it is somewhat difficult to reach these screws and to "tweak" the star sizes in each corner of the image to absolute perfectness.
So - in order to even reach this goal (exchange filters AND effortlessly adjust the camera tilt), in February, Baader will launch a separate product - only produced for the RASA 8: the FCCT (Filter Changer & Camera Tilter). This unit will feature 3D-printed filter sliders and be only able to accept filters in diameters of 31 mm / 36 mm / and 2"(47.4 mm) w/o cell mount. This is a revolution for the RASA 8 since it makes perfect adjustment of all stars in the field a joy.
Specifications:
- Manufacturer: Baader Planetarium
- Sku (#): 2459136
- Ean Code: 4047825044211
- Optical Length (mm): 1,4
- Inner Diameter / Clear Aperture (mm): 64 Mm
- Outer Connection (eyepiece/-camera-sided): dovetail Ring, S70
- Type Of Adapter: reducing Piece
Manufacturer part number: 2459136 or UFC-RASA8
Other Information
- Country of Manufacture: Germany
The latest addition of the UFC-family - the new RASA 8 / S70 UFC-Adapter (#2459136) - is compatible with 13 mm back-focus cameras such as ATIK Horizon. The UFC allows to change any kind of filter from 1 1/4" up to 50x50 mm square in front of the RASA 8.
The only function, that still might be left to desire is an easier way to reach the front adjustment hex-screws of the RASA 8. Due to the very short backfocus available, it is somewhat difficult to reach these screws and to "tweak" the star sizes in each corner of the image to absolute perfectness.
So - in order to even reach this goal (exchange filters AND effortlessly adjust the camera tilt), in February, Baader will launch a separate product - only produced for the RASA 8: the FCCT (Filter Changer & Camera Tilter). This unit will feature 3D-printed filter sliders and be only able to accept filters in diameters of 31 mm / 36 mm / and 2"(47.4 mm) w/o cell mount. This is a revolution for the RASA 8 since it makes perfect adjustment of all stars in the field a joy.
Specifications:
- Manufacturer: Baader Planetarium
- Sku (#): 2459136
- Ean Code: 4047825044211
- Optical Length (mm): 1,4
- Inner Diameter / Clear Aperture (mm): 64 Mm
- Outer Connection (eyepiece/-camera-sided): dovetail Ring, S70
- Type Of Adapter: reducing Piece
Manufacturer part number: 2459136 or UFC-RASA8
- Baader UFC S70 RASA 8" telescope adapter to use cameras with 13mm back focus and T-2/M-48 or M54 female thread like the ATIK Horizon on the RASA 8".
- Telescope-sided with RASA 8" thread (M87)
- Camera-sided with S70 dovetail
- Can be adapted via the S70 dovetail to the Baader UFC Base (Filter Chamber) telescope-sided S70 dovetail receptor (optical height: 13 mm) (#2459110) as well as to UFC extensions. The UFC adapter is screwed directly onto the RASA 8 thread.
The latest addition of the UFC-family - the new RASA 8 / S70 UFC-Adapter (#2459136) - is compatible with 13 mm back-focus cameras such as ATIK Horizon. The UFC allows to change any kind of filter from 1 1/4" up to 50x50 mm square in front of the RASA 8.
The only function, that still might be left to desire is an easier way to reach the front adjustment hex-screws of the RASA 8. Due to the very short backfocus available, it is somewhat difficult to reach these screws and to "tweak" the star sizes in each corner of the image to absolute perfectness.
So - in order to even reach this goal (exchange filters AND effortlessly adjust the camera tilt), in February, Baader will launch a separate product - only produced for the RASA 8: the FCCT (Filter Changer & Camera Tilter). This unit will feature 3D-printed filter sliders and be only able to accept filters in diameters of 31 mm / 36 mm / and 2"(47.4 mm) w/o cell mount. This is a revolution for the RASA 8 since it makes perfect adjustment of all stars in the field a joy.
Specifications:
- Manufacturer: Baader Planetarium
- Sku (#): 2459136
- Ean Code: 4047825044211
- Optical Length (mm): 1,4
- Inner Diameter / Clear Aperture (mm): 64 Mm
- Outer Connection (eyepiece/-camera-sided): dovetail Ring, S70
- Type Of Adapter: reducing Piece
Manufacturer part number: 2459136 or UFC-RASA8
Other Information
- Country of Manufacture: Germany
