Baader Flip Mirror II Star Diagonal
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available.
- This item is out of stock.
- We have no ETA from the manufacturer at this time.
- Sign up for back-in-stock alerts to be notified when this item becomes available.
Lower 48 States:
Orders over $50 ship free within the Lower 48 using a carrier and service we select based on your items and delivery location. Faster shipping options may be available at checkout.
U.S. Outside the Lower 48 (AK, HI, PR):
Free shipping on orders over $50 applies to many—but not all—items. Add items to your cart and enter your ZIP code to see available shipping options and any costs.
International Orders:
Free shipping does not apply to international orders. You’ll see available shipping options and costs during checkout. Some items can’t be shipped internationally due to size or manufacturer restrictions. Duties, taxes, brokerage fees, and tariffs are not included and are the customer’s responsibility.
Please note: Page 1 of Baader's manual for this item states the following: "Please note: There is a protective film on the mirror. We recommend to remove it only after all accessories have been installed at the adjustable T-2 top ring."
However, note that his is no longer correct. There is no such protective film on the mirror in most batches that we receive from Baader.
Various ports – variable work
Telescope auxillary instruments cover a wide range of interests, from a sole eyepiece, via camera use, to high end spectroscopy. Unfortunately every telescope just features one exit port. This causes relentless manual exchange of parts in the dark, causing huge time loss, wear on the parts - and "nerves". And whenever you start controlling your telescope remotely - the single port becomes a painful reality.
Improving workflow, especially during astrophotography is the goal set out for the BFM II. This is not just a simple flip mirror but much more, as there are three ports to be put into action.

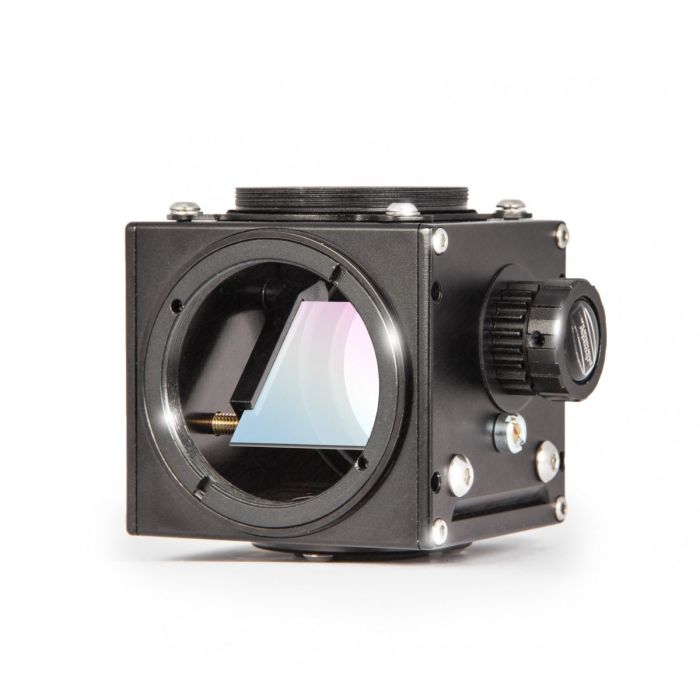

General Function of the FlipMirror II Star Diagonal
The BFM II lets you switch between a straight light path for a camera or other measuring instruments and an angled light path, e.g.
for an eyepiece. In addition, a calibration lamp for spectrographs or an Off-Axis-Guider pickoff-prism (that is not affected by the mirror position) can be connected at the AUX-port on the bottom
Specifications:
- Sku (#) 2458055
- Optical Length (mm) 55 Mm With S52, 59 Mm With M48/t-2
- Dimensions 63 X 77 X 69 Mm
- Inner Connection (lens Sided) thread, Dovetail Ring Clamp, S52, T-2 (m42 X 0,75), M48
- Weight (kg) 195 G
- Inner Connection (eyepiece/-camera-sided) thread, Dovetail Ring Clamp, M48, S52
- Outer Connection (eyepiece/-camera-sided) thread, M48
- Type Of Adapter variable
What's in the box:
- Baader FlipMirror II Star Diagonal – with fine-optically polished, movable mirror
- Laterally adjustable T-2a top ring
- 2x M48i / S52 Dovetail ring made of hardened stainless steel # 2958552
- Reducing ring M48a / T-2i # 2958553
- Reducing ring M48a / T-2a # 2958554
- Inverter ring M48a / M48a # 2958555
- Pin type face wrench for M48 / T-2 and M4 counter nuts
- 3 mm screwdriver for M 4 brass adjustment screws
- 4x hex keys (2.5 / 2.0 / 1.5 / 1.3 mm). The 2.0 mm wrench has a ball head to reach screws even when accessories are mounted by holding the wrench at an angle.
- Bottom flange (laterally adjustable 1mm) for off-axis guide or calibration lamp for spectroscopy
- Dust cap for bottom flange
- 2 x M48 dust caps
- T-2 dust cap
Manufacturer part number: BFM-II or 2458055
Other Information
- Country of Manufacture: China
