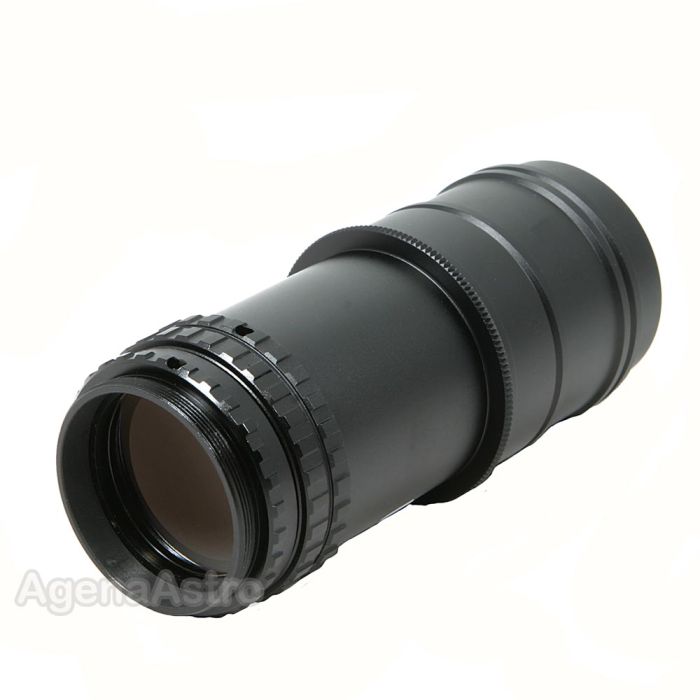

Baader 2x Telecentric Lens System
- This item is out of stock.
- We have no ETA from the manufacturer at this time.
- Sign up for back-in-stock alerts to be notified when this item becomes available.
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available.
- This item is out of stock.
- We have no ETA from the manufacturer at this time.
- Sign up for back-in-stock alerts to be notified when this item becomes available.
Lower 48 States:
Orders over $50 ship free within the Lower 48 using a carrier and service we select based on your items and delivery location. Faster shipping options may be available at checkout.
U.S. Outside the Lower 48 (AK, HI, PR):
Free shipping on orders over $50 applies to many—but not all—items. Add items to your cart and enter your ZIP code to see available shipping options and any costs.
International Orders:
Free shipping does not apply to international orders. You’ll see available shipping options and costs during checkout. Some items can’t be shipped internationally due to size or manufacturer restrictions. Duties, taxes, brokerage fees, and tariffs are not included and are the customer’s responsibility.
Baader Planetarium has designed a new optimized telecentric system for use with Solar Spectrum H-Alpha systems. A telecentric system is used to convert shorter focal ratio telescopes to the desired f/25 or greater beam needed by the rear mounted Solar Spectrum filter. More than a barlow lens or barlow lens based system, the Baader telecentric ensures that the output beam maintains a consistent normal incident angle across the full filter width. The result is a consistent bandwidth and high image contrast across the field of view.
This lens system has been optimized to maintain an exceedingly high optical quality for dedicated solar use (>99% strehl at 656.3nm). Simpler barlow or barlow-based systems are not able to produce this level of accuracy or telecentricity. Hard Dielectric IR coatings further help to reject IR energy and protect the rear etalon from excessive heat energy.
This version effectively extends the focal length by a factor of 2x (4x version also available separately). Baader part # TZ-2 or 2459255. Item weight = 10.5oz.
Other Information
- Country of Manufacture: Germany
Baader Planetarium has designed a new optimized telecentric system for use with Solar Spectrum H-Alpha systems. A telecentric system is used to convert shorter focal ratio telescopes to the desired f/25 or greater beam needed by the rear mounted Solar Spectrum filter. More than a barlow lens or barlow lens based system, the Baader telecentric ensures that the output beam maintains a consistent normal incident angle across the full filter width. The result is a consistent bandwidth and high image contrast across the field of view.
This lens system has been optimized to maintain an exceedingly high optical quality for dedicated solar use (>99% strehl at 656.3nm). Simpler barlow or barlow-based systems are not able to produce this level of accuracy or telecentricity. Hard Dielectric IR coatings further help to reject IR energy and protect the rear etalon from excessive heat energy.
This version effectively extends the focal length by a factor of 2x (4x version also available separately). Baader part # TZ-2 or 2459255. Item weight = 10.5oz.
Baader Planetarium has designed a new optimized telecentric system for use with Solar Spectrum H-Alpha systems. A telecentric system is used to convert shorter focal ratio telescopes to the desired f/25 or greater beam needed by the rear mounted Solar Spectrum filter. More than a barlow lens or barlow lens based system, the Baader telecentric ensures that the output beam maintains a consistent normal incident angle across the full filter width. The result is a consistent bandwidth and high image contrast across the field of view.
This lens system has been optimized to maintain an exceedingly high optical quality for dedicated solar use (>99% strehl at 656.3nm). Simpler barlow or barlow-based systems are not able to produce this level of accuracy or telecentricity. Hard Dielectric IR coatings further help to reject IR energy and protect the rear etalon from excessive heat energy.
This version effectively extends the focal length by a factor of 2x (4x version also available separately). Baader part # TZ-2 or 2459255. Item weight = 10.5oz.
Other Information
- Country of Manufacture: Germany
