Baader 2" MPCC V-1 Mark III Multi Purpose Coma Corrector - Visual and Photographic Set
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available.
- This item is out of stock.
- We have no ETA from the manufacturer at this time.
- Sign up for back-in-stock alerts to be notified when this item becomes available.
Lower 48 States:
Orders over $50 ship free within the Lower 48 using a carrier and service we select based on your items and delivery location. Faster shipping options may be available at checkout.
U.S. Outside the Lower 48 (AK, HI, PR):
Free shipping on orders over $50 applies to many—but not all—items. Add items to your cart and enter your ZIP code to see available shipping options and any costs.
International Orders:
Free shipping does not apply to international orders. You’ll see available shipping options and costs during checkout. Some items can’t be shipped internationally due to size or manufacturer restrictions. Duties, taxes, brokerage fees, and tariffs are not included and are the customer’s responsibility.
New product set from Baader. Same product as their MPCC Mark III version, but with several additional adapters added to this package for visual applications. See photo 2 above for all included items. # MPCC V1 SET or 2458403
This set includes:
- Baader 2" Mark III MPCC Multi Purpose Coma Corrector - Photographic Version # MPCC 2458400
- Baader Hyperion 2" Finetuning Stopring with Brass Clamping # HYP-STOP 2958027
- Baader VariLock 29: Variable Length T-2 Extension Tube 20-29mm # T2-25Y 2956929
- Baader 1.25"/T-2 Eyepiece Holder with Helical Microfocuser # EYEHOLD-2 2458125
Large parabolic mirrors are perfectly apt for Deep Sky imaging since they deliver a very large field and enable very short exposure times. However this comes at the price of off axis coma and some residual astigmatism. Coma will distort off axis stars into "comets" which effectively reduces the usable field considerably. Many companys offer various lens systems as solution to counteract coma, most at the downside of increasing the original focal length and reducing the field of view. An f4 optics may become an f4.5
The Multi Purpose Coma Corrector Mark III eliminates coma across the full photographic field without manipulating the focal length. The proprietory lens design has our Phantom Group™ wideband multicoating on all air to glass lens surfaces. This treatment delivers highest transmission combined with lowest amount of scatter and reflections across a very wide spectral range from UV to NIR. The original MPCC had been designed for an f/ratio of f4.5 to f6. The new Mark III however works exceptionally well even down to f3.5. Stars remain pinpoints across the field and the visual use likewise is made much easier - with the help of the 2" (M48) male filter thread at the eyepiece facing side.
The MPCC III is designed to be the most variable coma corrector in the market today. It mounts into every 2" focuser and fits CCD-filter wheels and off axis guiders of various manufacturers.

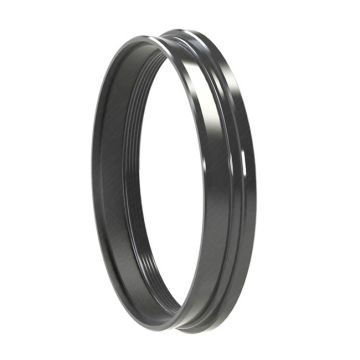

With the optional T-Spacer (# 245 8405) you will be able to couple the Mark III directly to the Baader Protective Canon DSLR adapter - with or without mounted various filter.
The MPCC MIII Version for either visuell or photographic use contains of the following parts, otherwise see the common description for the MPCC above.
Technical data of MPCC Mark III
- no change in focal length or field size, an f4 Newtonian remains f4.
- newly calculated lens system - designed for an unvignetted field down to f3.5
- maximum sharpness across the field - without center soft spot (as reported of other)
- accepts T-2(M42x0.75) and/or 2"(M48x0.75) threaded photographic- or visual-adapters
- 2" stopping collar removable for increase in backfocus
- For photographic and visual use
- easy to use
- exceptional price/performance ratio
- Phantom Group™ multicoated for maximum transmission and freedom from reflections from UV to NIR
- Optional adapter for direct coupling of the MPCC III directly onto the Baader CANON EOS protective T-ring
- 44mm clear aperture when using the M48(2") filter-tread or the Protective T-ring with optional adapter
Other Information
- Country of Manufacture: China
New product set from Baader. Same product as their MPCC Mark III version, but with several additional adapters added to this package for visual applications. See photo 2 above for all included items. # MPCC V1 SET or 2458403
This set includes:
- Baader 2" Mark III MPCC Multi Purpose Coma Corrector - Photographic Version # MPCC 2458400
- Baader Hyperion 2" Finetuning Stopring with Brass Clamping # HYP-STOP 2958027
- Baader VariLock 29: Variable Length T-2 Extension Tube 20-29mm # T2-25Y 2956929
- Baader 1.25"/T-2 Eyepiece Holder with Helical Microfocuser # EYEHOLD-2 2458125
Large parabolic mirrors are perfectly apt for Deep Sky imaging since they deliver a very large field and enable very short exposure times. However this comes at the price of off axis coma and some residual astigmatism. Coma will distort off axis stars into "comets" which effectively reduces the usable field considerably. Many companys offer various lens systems as solution to counteract coma, most at the downside of increasing the original focal length and reducing the field of view. An f4 optics may become an f4.5
The Multi Purpose Coma Corrector Mark III eliminates coma across the full photographic field without manipulating the focal length. The proprietory lens design has our Phantom Group™ wideband multicoating on all air to glass lens surfaces. This treatment delivers highest transmission combined with lowest amount of scatter and reflections across a very wide spectral range from UV to NIR. The original MPCC had been designed for an f/ratio of f4.5 to f6. The new Mark III however works exceptionally well even down to f3.5. Stars remain pinpoints across the field and the visual use likewise is made much easier - with the help of the 2" (M48) male filter thread at the eyepiece facing side.
The MPCC III is designed to be the most variable coma corrector in the market today. It mounts into every 2" focuser and fits CCD-filter wheels and off axis guiders of various manufacturers.
With the optional T-Spacer (# 245 8405) you will be able to couple the Mark III directly to the Baader Protective Canon DSLR adapter - with or without mounted various filter.
The MPCC MIII Version for either visuell or photographic use contains of the following parts, otherwise see the common description for the MPCC above.
Technical data of MPCC Mark III
- no change in focal length or field size, an f4 Newtonian remains f4.
- newly calculated lens system - designed for an unvignetted field down to f3.5
- maximum sharpness across the field - without center soft spot (as reported of other)
- accepts T-2(M42x0.75) and/or 2"(M48x0.75) threaded photographic- or visual-adapters
- 2" stopping collar removable for increase in backfocus
- For photographic and visual use
- easy to use
- exceptional price/performance ratio
- Phantom Group™ multicoated for maximum transmission and freedom from reflections from UV to NIR
- Optional adapter for direct coupling of the MPCC III directly onto the Baader CANON EOS protective T-ring
- 44mm clear aperture when using the M48(2") filter-tread or the Protective T-ring with optional adapter
New product set from Baader. Same product as their MPCC Mark III version, but with several additional adapters added to this package for visual applications. See photo 2 above for all included items. # MPCC V1 SET or 2458403
This set includes:
- Baader 2" Mark III MPCC Multi Purpose Coma Corrector - Photographic Version # MPCC 2458400
- Baader Hyperion 2" Finetuning Stopring with Brass Clamping # HYP-STOP 2958027
- Baader VariLock 29: Variable Length T-2 Extension Tube 20-29mm # T2-25Y 2956929
- Baader 1.25"/T-2 Eyepiece Holder with Helical Microfocuser # EYEHOLD-2 2458125
Large parabolic mirrors are perfectly apt for Deep Sky imaging since they deliver a very large field and enable very short exposure times. However this comes at the price of off axis coma and some residual astigmatism. Coma will distort off axis stars into "comets" which effectively reduces the usable field considerably. Many companys offer various lens systems as solution to counteract coma, most at the downside of increasing the original focal length and reducing the field of view. An f4 optics may become an f4.5
The Multi Purpose Coma Corrector Mark III eliminates coma across the full photographic field without manipulating the focal length. The proprietory lens design has our Phantom Group™ wideband multicoating on all air to glass lens surfaces. This treatment delivers highest transmission combined with lowest amount of scatter and reflections across a very wide spectral range from UV to NIR. The original MPCC had been designed for an f/ratio of f4.5 to f6. The new Mark III however works exceptionally well even down to f3.5. Stars remain pinpoints across the field and the visual use likewise is made much easier - with the help of the 2" (M48) male filter thread at the eyepiece facing side.
The MPCC III is designed to be the most variable coma corrector in the market today. It mounts into every 2" focuser and fits CCD-filter wheels and off axis guiders of various manufacturers.
With the optional T-Spacer (# 245 8405) you will be able to couple the Mark III directly to the Baader Protective Canon DSLR adapter - with or without mounted various filter.
The MPCC MIII Version for either visuell or photographic use contains of the following parts, otherwise see the common description for the MPCC above.
Technical data of MPCC Mark III
- no change in focal length or field size, an f4 Newtonian remains f4.
- newly calculated lens system - designed for an unvignetted field down to f3.5
- maximum sharpness across the field - without center soft spot (as reported of other)
- accepts T-2(M42x0.75) and/or 2"(M48x0.75) threaded photographic- or visual-adapters
- 2" stopping collar removable for increase in backfocus
- For photographic and visual use
- easy to use
- exceptional price/performance ratio
- Phantom Group™ multicoated for maximum transmission and freedom from reflections from UV to NIR
- Optional adapter for direct coupling of the MPCC III directly onto the Baader CANON EOS protective T-ring
- 44mm clear aperture when using the M48(2") filter-tread or the Protective T-ring with optional adapter
Other Information
- Country of Manufacture: China
