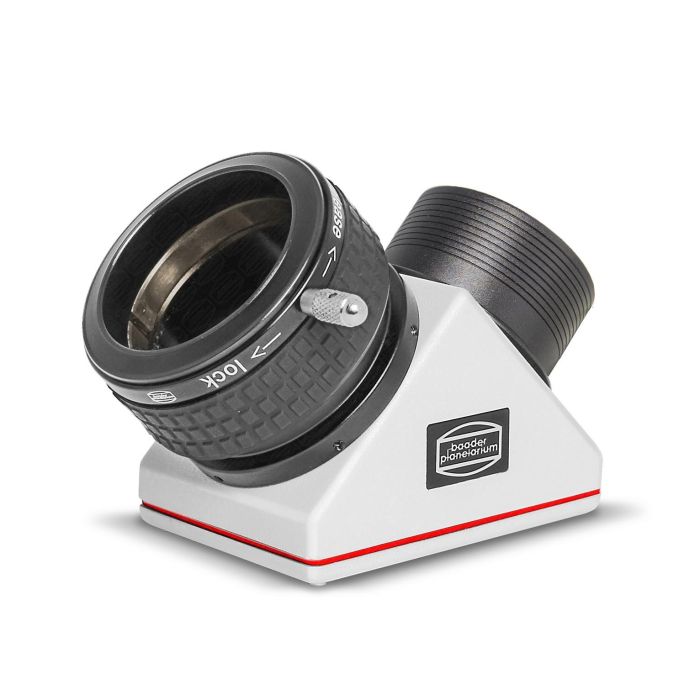

Baader 2" Clicklock Mirror Star Diagonal
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available.
- This item is out of stock.
- We have no ETA from the manufacturer at this time.
- Sign up for back-in-stock alerts to be notified when this item becomes available.
Lower 48 States:
Orders over $50 ship free within the Lower 48 using a carrier and service we select based on your items and delivery location. Faster shipping options may be available at checkout.
U.S. Outside the Lower 48 (AK, HI, PR):
Free shipping on orders over $50 applies to many—but not all—items. Add items to your cart and enter your ZIP code to see available shipping options and any costs.
International Orders:
Free shipping does not apply to international orders. You’ll see available shipping options and costs during checkout. Some items can’t be shipped internationally due to size or manufacturer restrictions. Duties, taxes, brokerage fees, and tariffs are not included and are the customer’s responsibility.
- Proprietary coating process maintains the 1/10 wave mirror surface accuracy
- Easy to maintain hard and durable coating with 99% reflectivity
- Baader ClickLock clamp securely and precisely holds 2" eyepieces
- Can be threaded directly to Schmidt-Cassegrain scopes with optional Baader lock ring
- Full 46.6mm clear aperture
- Superb mechanical fit and finish
Proprietary Coating Process Maintains Surface Accuracy
With their ground-breaking introduction several years ago of the all-dielectric 2" Maxbright star diagonal, Baader Planetarium brought mirror star diagonals into the 21st century. The new 2" ClickLock Star Diagonal takes this innovation another step further. Like its predecessor, the 2" ClickLock Star Diagonal uses proprietary Baader all-dielectric mirror coatings. The Baader coating process eliminates the Achilles Heel that has plagued other all-dielectric mirror coatings - normally the multi-layer coating results in high surface stresses that cause a star diagonal's mirror to warp as much as 1/2 wave, ruining the figure and distorting the optical wavefront. Baader's proprietary coating process maintains the 1/10 wave mirror surface accuracy - after coating!
Baader's dielectric coatings deliver an amazingly high 99% photo-visual reflectivity along with an extremely hard durable surface. The ultra-hard mirror coatings will a last lifetime without losing reflectivity and may be cleaned with normal care, without fear of scratches. The precision mirror is also oversized, and combines with the large ID nosepiece to pass the largest image cone possible in a 2" format.
ClickLock 2" Eyepiece Holder
The 2" ClickLock non-marring eyepiece holder delivers the same acclaimed simplicity and security as its smaller 1.25" ClickLock cousin. With a quick 20 degree twist of the rubber knurled ring using a convenient fingertip lever, the ClickLock holder clamps 2" eyepieces so securely that you can lift your scope with them. The unique action utilizes 3-point clamping which positively and accurately locks 2" eyepieces without any of the wobbling and misalignment that can occur with single point clamps. With a clear aperture of 46.6mm, this mirror diagonal can handle all 2” eyepieces without vignetting.
The Baader 2" ClickLock Star Diagonal incorporates another unique feature. The 2" ClickLock Holder and 2" nosepiece can both be removed to expose 2"x24tpi SCT threads, permitting integration of the diagonal into additional configurations through the use of the Baader Astro T-2 System components.
NOTE: This diagonal gives images that are upright but left-right reversed.
The diagonal body weighs 20.6oz (584g) and the effective optical length is 112mm.
New manufacturer part number: CLDIAG-2 or 2956100 (Old part number MAX-2C).
Manufacturer part number: CLDIAG-2 or 2956100.
Additional Info
SCT Users: The diagonal body's input 2" threading is compatible with the standard Celestron/Meade 2" SCT rear cell threads, enabling you to directly thread it onto your SCT. NexStar 8 or 8i users will find that this diagonal couples close enough to swing through zenith without hitting the RA base! Please note, an additional Baader SCT LockRing is required for direct attachment of this diagonal to most SCTs.
Agena Note: Although the above SCT info is technically correct, note that it is not necessarily a convenient option. To attach the diagonal directly to an SCT, you would first have to remove the eyepiece barrel from the diagonal body (or else it would get in the way, hit the SCT focus knob, and prevent you from screwing on the diagonal). The same would be necessary to take the diagonal off. So attaching this diagonal directly to the male SCT thread on your scope is a semi-permanent affair. Step-by-step instructions to attach the Baader 2" Clicklock Diagonal to an SCT scope using Baader's SCT Lockring can be found here.
Useful Resources
- User Manual: Baader 2" Clicklock Diagonal Manual (PDF format, 374KB)
- For a detailed review of the new 2" Clicklock Diagonal, including many nice pics and direct SCT mounting, please see Mike Swanson's NexStar Resource Site.
| - Example Images (click thumbnail for larger image) | |||
 |
 |
 |
 |
Other Information
- Country of Manufacture: Germany
Proprietary Coating Process Maintains Surface Accuracy
With their ground-breaking introduction several years ago of the all-dielectric 2" Maxbright star diagonal, Baader Planetarium brought mirror star diagonals into the 21st century. The new 2" ClickLock Star Diagonal takes this innovation another step further. Like its predecessor, the 2" ClickLock Star Diagonal uses proprietary Baader all-dielectric mirror coatings. The Baader coating process eliminates the Achilles Heel that has plagued other all-dielectric mirror coatings - normally the multi-layer coating results in high surface stresses that cause a star diagonal's mirror to warp as much as 1/2 wave, ruining the figure and distorting the optical wavefront. Baader's proprietary coating process maintains the 1/10 wave mirror surface accuracy - after coating!
Baader's dielectric coatings deliver an amazingly high 99% photo-visual reflectivity along with an extremely hard durable surface. The ultra-hard mirror coatings will a last lifetime without losing reflectivity and may be cleaned with normal care, without fear of scratches. The precision mirror is also oversized, and combines with the large ID nosepiece to pass the largest image cone possible in a 2" format.
ClickLock 2" Eyepiece Holder
The 2" ClickLock non-marring eyepiece holder delivers the same acclaimed simplicity and security as its smaller 1.25" ClickLock cousin. With a quick 20 degree twist of the rubber knurled ring using a convenient fingertip lever, the ClickLock holder clamps 2" eyepieces so securely that you can lift your scope with them. The unique action utilizes 3-point clamping which positively and accurately locks 2" eyepieces without any of the wobbling and misalignment that can occur with single point clamps. With a clear aperture of 46.6mm, this mirror diagonal can handle all 2” eyepieces without vignetting.
The Baader 2" ClickLock Star Diagonal incorporates another unique feature. The 2" ClickLock Holder and 2" nosepiece can both be removed to expose 2"x24tpi SCT threads, permitting integration of the diagonal into additional configurations through the use of the Baader Astro T-2 System components.
NOTE: This diagonal gives images that are upright but left-right reversed.
The diagonal body weighs 20.6oz (584g) and the effective optical length is 112mm.
New manufacturer part number: CLDIAG-2 or 2956100 (Old part number MAX-2C).
Manufacturer part number: CLDIAG-2 or 2956100.
- Proprietary coating process maintains the 1/10 wave mirror surface accuracy
- Easy to maintain hard and durable coating with 99% reflectivity
- Baader ClickLock clamp securely and precisely holds 2" eyepieces
- Can be threaded directly to Schmidt-Cassegrain scopes with optional Baader lock ring
- Full 46.6mm clear aperture
- Superb mechanical fit and finish
Proprietary Coating Process Maintains Surface Accuracy
With their ground-breaking introduction several years ago of the all-dielectric 2" Maxbright star diagonal, Baader Planetarium brought mirror star diagonals into the 21st century. The new 2" ClickLock Star Diagonal takes this innovation another step further. Like its predecessor, the 2" ClickLock Star Diagonal uses proprietary Baader all-dielectric mirror coatings. The Baader coating process eliminates the Achilles Heel that has plagued other all-dielectric mirror coatings - normally the multi-layer coating results in high surface stresses that cause a star diagonal's mirror to warp as much as 1/2 wave, ruining the figure and distorting the optical wavefront. Baader's proprietary coating process maintains the 1/10 wave mirror surface accuracy - after coating!
Baader's dielectric coatings deliver an amazingly high 99% photo-visual reflectivity along with an extremely hard durable surface. The ultra-hard mirror coatings will a last lifetime without losing reflectivity and may be cleaned with normal care, without fear of scratches. The precision mirror is also oversized, and combines with the large ID nosepiece to pass the largest image cone possible in a 2" format.
ClickLock 2" Eyepiece Holder
The 2" ClickLock non-marring eyepiece holder delivers the same acclaimed simplicity and security as its smaller 1.25" ClickLock cousin. With a quick 20 degree twist of the rubber knurled ring using a convenient fingertip lever, the ClickLock holder clamps 2" eyepieces so securely that you can lift your scope with them. The unique action utilizes 3-point clamping which positively and accurately locks 2" eyepieces without any of the wobbling and misalignment that can occur with single point clamps. With a clear aperture of 46.6mm, this mirror diagonal can handle all 2” eyepieces without vignetting.
The Baader 2" ClickLock Star Diagonal incorporates another unique feature. The 2" ClickLock Holder and 2" nosepiece can both be removed to expose 2"x24tpi SCT threads, permitting integration of the diagonal into additional configurations through the use of the Baader Astro T-2 System components.
NOTE: This diagonal gives images that are upright but left-right reversed.
The diagonal body weighs 20.6oz (584g) and the effective optical length is 112mm.
New manufacturer part number: CLDIAG-2 or 2956100 (Old part number MAX-2C).
Manufacturer part number: CLDIAG-2 or 2956100.
Additional Info
SCT Users: The diagonal body's input 2" threading is compatible with the standard Celestron/Meade 2" SCT rear cell threads, enabling you to directly thread it onto your SCT. NexStar 8 or 8i users will find that this diagonal couples close enough to swing through zenith without hitting the RA base! Please note, an additional Baader SCT LockRing is required for direct attachment of this diagonal to most SCTs.
Agena Note: Although the above SCT info is technically correct, note that it is not necessarily a convenient option. To attach the diagonal directly to an SCT, you would first have to remove the eyepiece barrel from the diagonal body (or else it would get in the way, hit the SCT focus knob, and prevent you from screwing on the diagonal). The same would be necessary to take the diagonal off. So attaching this diagonal directly to the male SCT thread on your scope is a semi-permanent affair. Step-by-step instructions to attach the Baader 2" Clicklock Diagonal to an SCT scope using Baader's SCT Lockring can be found here.
Useful Resources
- User Manual: Baader 2" Clicklock Diagonal Manual (PDF format, 374KB)
- For a detailed review of the new 2" Clicklock Diagonal, including many nice pics and direct SCT mounting, please see Mike Swanson's NexStar Resource Site.
| - Example Images (click thumbnail for larger image) | |||
|
|
|
|
Other Information
- Country of Manufacture: Germany
