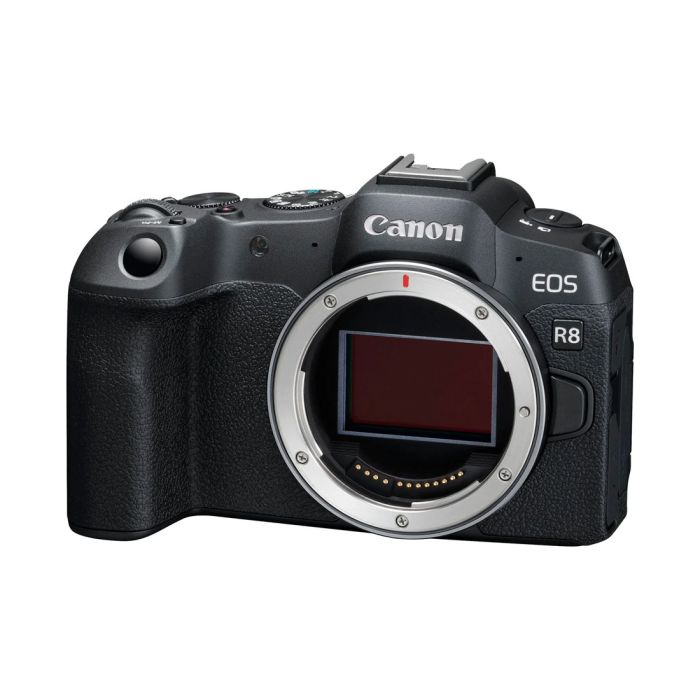

AstroGear Modified Canon EOS R8 Mirrorless Digital Camera Body
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available.
- This item is out of stock.
- We have no ETA from the manufacturer at this time.
- Sign up for back-in-stock alerts to be notified when this item becomes available.
Lower 48 States:
Orders over $50 ship free within the Lower 48 using a carrier and service we select based on your items and delivery location. Faster shipping options may be available at checkout.
U.S. Outside the Lower 48 (AK, HI, PR):
Free shipping on orders over $50 applies to many—but not all—items. Add items to your cart and enter your ZIP code to see available shipping options and any costs.
International Orders:
Free shipping does not apply to international orders. You’ll see available shipping options and costs during checkout. Some items can’t be shipped internationally due to size or manufacturer restrictions. Duties, taxes, brokerage fees, and tariffs are not included and are the customer’s responsibility.
Overview
Compact, Mid-level lightweight Mirrorless digital camera professionally Astro-Converted for increased 4X H-alpha sensitivity and 6X Sulfur II sensitivity with a Big Full Frame sensor for about half the price of a Color Cooled Camera with the same sensor size. The stock UV/IR blocking sensor filter is removed and the Low Pass Anti-Aliasing filter is preserved with Enhanced Spectrum bandpass (Visible + H-alpha + Sulfur II). User and budget friendly for aspiring astrophotographers expecting an easy way to capture images of deep reddish nebulae structures. The EOS R8 along with the EOS RP are the lightest and most compact full-frame EOS cameras to date.
Features
- 24.2MP Full Frame CMOS Sensor with 6.00 µm Square pixel size
- Up to 4X Hydrogen Alpha transmission increase at 656nm wavelength
- Up to 6X Sulfur II transmission increase at 671.7nm and 673nm wavelengths
- Stock UV/IR blocking filter removed and Low Pass Filter preserved with 425-675nm transmission range and self-cleaning function**
- ISO Range: 100 to 51200 (Extended ISO: 102400)
- Built-in 2.36m-Dot OLED Electronic Viewfinder (Cool Eyepiece Virtualization!!!)
- 3.0" 1.62m-Dot Vari-Angle Touchscreen LCD
- Built-in WIFI (Great for Electronically-Assisted Astronomy with Phones and Tablets)
- DIGIC X Image Processor
- UHD 4K 60fps/HD 1080p 180fps Video Recording
- Improved Dual Pixel CMOS AF II
- Movie Digital IS
- Compatible with N.I.N.A., BackyardEOS and Astrophotography Tool
- 1 Year Warranty*
Straightforward Camera Control and Focus process
The exposures timing remote control is simply doable with a remote shutter release device or with Canon EOS Utility Free Software or Astrophotography data capture software like N.I.N.A., Backyard EOS or Astrophotography tool. Subject framing and perfect focus procedure can also be done easily with or without focus masks over Live View digital zoom using the camera’s Vari-angle LCD touchscreen, and also with Canon EOS Utility Free Software or with the mentioned 3rd party software when the camera is connected to a computer.
Shorter body flange back focus
The RF Lens Mount features a large 54mm diameter and a short 20mm flange back focus distance to the sensor surface. Compared to a DSLR, the shorter flange back focus distance to sensor allows to fit accessories like filter sliders, Off-Axis Guiders or Camera Angle Adjusters within the typical 55mm imaging correctors’ back focus.
Great for imaging with Hyperstar/Celestron RASA Astrographs
Being a mirrorless camera, its smaller body cause significantly less light obstruction in Hyperstar/RASA configurations compared to a Full Frame DSLR, making it a better choice for Hyperstar C9.25/C11/C14 SCT and RASA 11/36 imaging setups. Additionally, when imaging at f/3 or faster focal ratios, the focal point and sensor even illumination is critical, and compared to a DSLR there is no mirror chamber and no shadow projected from the mirror on the sensor surface. With such Ultra-Fast optics, exposures of 30 to 60 seconds single frames are enough and thermal noise is not an issue.
Celestron RASA 8 Owners: Due to the protruding hand grip on the camera body, the Canon EOS R8 is not compatible with Celestron RASA 8 Astrograph.
Best EAA Experience
Wifi-Capable feature will facilitate EAA (Electronically-Assisted Astronomy or Video-Astronomy) sessions with smartphones or tablets through the Free Canon Camera Connect App taking single frames shots. Broadcast to the entire 3rd Planet with your smartphone or tablet screen recordings/sharing through Zoom Cloud Meetings App or posting in social media platforms. With desktop or laptop computers, total intervalometer control is possible with the Wifi connection and Canon EOS Utility Free Software in Bulb mode for a completely wireless setup experience (No power/data cables).
Suitable for casual photography
This Astro-Converted camera can still be used for casual daylight photography setting the custom white balance with an 18% gray card shot or with Adobe Camera Raw white balance presets and an original white balance filter is not mandatory. For accurate color balance on portrait pictures or product pictures, the stock version or a OWB filter must be used.
**Out of focus NIR: With the Enhanced Spectrum modified camera, depending on the lens, telescope or optical corrector used, some imagers might experience a little bit bloated stars due to the near infrared light slightly out of focus when a refractive optical system does not have at least one ED (Extra-Low Dispersion glass) element. This chromatic aberration could be mitigated with post processing correction using computer software.
* Warranty coverage includes manufacturing and conversion defects. Any kind of physical damage, water damage, abuse or misuse of the Astro-converted camera will void the warranty. Since the camera has been disassembled for the modification, this warranty coverage is provided by the Seller (AstroGear), and NOT by Canon U.S.A.
Specifications
- Lens Mount: Canon RF
- Sensor Resolution:
- Actual: 25.6 Megapixel
- Effective: 24.2 Megapixel
- Image Sensor: 35.9 x 23.9 mm (Full-Frame) CMOS
- Image Stabilization: Digital, 5-Axis (Video Only)
- ISO Sensitivity Range: Photo/Video: 100 to 102,400 (Extended: 50 to 204,800)
- Continuous Shooting: Electronic Shutter: Up to 40 fps for up to 120 Frames (JPEG) / 56 Frames (Raw)
- Internal Recording Modes: H.264/H.265/MPEG-4
- UHD 4K (3840 x 2160) at 23.98/25/29.97/50/59.94 fps [340 Mb/s]
- 1920 x 1080 at 23.98/25/29.97/50/59.94/100/120/150/180 fps [270 Mb/s]
- External Recording Modes: HDMI 1920 x 1080p at 50/59.94 fps
- Media/Memory Card Slot: Single Slot: Single Slot: SD/SDHC/SDXC (UHS-II)
- Video I/O: 1x Micro-HDMI (Unspecified Signal) Output
- Audio I/O:
- 1x 1/8" / 3.5 mm TRS Stereo Microphone Input on Camera Body
- 1x 1/8" / 3.5 mm TRS Stereo Headphone Output on Camera Body
- Power I/O: 1x USB-C Input
- Other I/O: 1x USB-C (USB 3.2 / 3.1 Gen 2) (Shared with Power Input)
- Wireless: 2.4 / 5 GHz Wi-Fi 4 (802.11n), Bluetooth 4.2 Control
- Display Type: Articulating Touchscreen LCD
- Battery Type: 1x LP-E17 Rechargeable Lithium Polymer (Approx. 150 Shots)
Imaging
- Lens Mount: Canon RF
- Sensor Resolution:
- Actual: 25.6 Megapixel
- Effective: 24.2 Megapixel
- Image Sensor: 35.9 x 23.9 mm (Full-Frame) CMOS
- Sensor Crop (35mm Equivalent):
- Crop Factor: 1.6x
- Additional Modes: 1.6x *Additional Crop Occurs in Select Video Modes
- Image Stabilization: Digital, 5-Axis (Video Only)
- Built-In ND Filter: No
- Capture Type: Stills & Video
Exposure Control
- Shutter Type: Mechanical Focal Plane Shutter and Electronic Rolling Shutter
- Shutter Speed:
- Electronic Shutter:
- 1/8000 Up to 30 Second
- 1/16000 Up to 30 Seconds in Manual Mode
- 1/16000 Up to 30 Seconds in Shutter Priority Mode
- Electronic Front Curtain Shutter:
- 1/4000 Up to 30 Seconds
- Electronic Shutter:
- Bulb/Time Mode: Bulb Mode
- ISO Sensitivity Range: Photo/Video: 100 to 102,400 (Extended: 50 to 204,800)
- Metering Method: Center-Weighted Average, Evaluative, Partial, Spot
- Precise Scan Rate Control: Yes
- Exposure Modes: Aperture Priority, Auto, Manual, Program, Shutter Priority
- Exposure Compensation: -3 to +3 EV (1/3, 1/2 EV Steps)
- Metering Range: -3 to 20 EV
- White Balance: 2500 to 10,000K
- Presets: Auto, Cloudy, Color Temperature, Custom, Daylight, Flash, Fluorescent (White), Kelvin, Shade, Tungsten
- Continuous Shooting:
- Electronic Shutter: Up to 40 fps for up to 120 Frames (JPEG) / 56 Frames (Raw)
- Interval Recording: Yes
- Self-Timer: 2/10-Second Delay
Still Image Capture
- Image Sizes:
- 3:2 Raw:
- 24 MP (6000 x 4000)
- 3:2 JPEG
- 24 MP (6000 x 4000)
- 10.6 MP (3984 x 2656)
- 5.9 MP (2976 x 1984)
- 3.8 MP (2400 x 1600)
- 1:1 JPEG
- 16 MP (4000 x 4000)
- 7.1 MP (2656 x 2656)
- 3.9 MP (1984 x 1984)
- 2.6 MP (1600 x 1600)
- 4:3 JPEG
- 21.3 MP (5328 x 4000)
- 9.5 MP (3552 x 2664)
- 5.3 MP (2656 x 1992)
- 3.4 MP (2112 x 1600)
- 16:9 JPEG
- 20.2 MP (6000 x 3368)
- 8.9 MP (3984 x 2240)
- 5 MP (2976 x 1680)
- 3.2 MP (2400 x 1344)
- 3:2 Raw:
- Aspect Ratio: 1:1, 3:2, 4:3, 16:9
- Image File Format: C-RAW, HEIF, JPEG, Raw
Video Capture
- Internal Recording Modes: H.264/H.265/MP4 4:2:2 10-Bit
- UHD 4K (3840 x 2160) at 23.98/25/29.97/50/59.94 fps [340 Mb/s]
- 1920 x 1080 at 23.98/25/29.97/50/59.94/100/120/150/180 fps [270 Mb/s]
- External Recording Modes: HDMI: 1920 x 1080p at 50/59.94 fps
- Fast-/Slow-Motion Support: Yes
- Gamma Curve: Canon Log 3, HDR-PQ
- Recording Limit:
- Up to 120 Minutes in 4K
- Up to 120 Minutes in 1080p HFR
- Broadcast Output: NTSC/PAL
- IP Streaming: No
- Built-In Microphone Type: Stereo
- Audio Recording:
- AAC Audio
- LPCM Audio
Interface
- Media/Memory Card Slot: Single Slot: SD/SDHC/SDXC (UHS-II)
- Video I/O: 1x Micro-HDMI (Unspecified Signal) Output
- Audio I/O:
- 1x 1/8" / 3.5 mm TRS Stereo Microphone Input on Camera Body
- 1x 1/8" / 3.5 mm TRS Stereo Headphone Output on Camera Body
- Power I/O: 1x USB-C Input
- Other I/O: 1x USB-C (USB 3.2 / 3.1 Gen 2) (Shared with Power Input)
- Wireless: 2.4 / 5 GHz Wi-Fi 4 (802.11n), Bluetooth 4.2 Control
- Mobile App Compatible: Yes: Android & iOS
- App Name: Canon Camera Connect
- Functionality: Access Stored Files, Adjust Settings, Firmware Update, Remote Control, View Live Feed
- Global Positioning (GPS, GLONASS, etc.): GPS *Via Connected Smartphone
Monitor
- Display Size: 3"
- Resolution: 1,620,000 Dot
- Display Type: Articulating Touchscreen LCD
Viewfinder
- Type: Built-In Electronic (OLED)
- Size: 0.39"
- Resolution: 2,360,000 Dot
- Eye Point: 22 mm
- Coverage: 100%
- Magnification: Approx. 70x
- Diopter Adjustment: -4 to +1
Focus
- Focus Type: Auto and Manual Focus
- Focus Mode: Continuous-Servo AF, Manual Focus, Single-Servo AF
- Autofocus Points:
- Photo: Phase Detection: 4897
- Video: Phase Detection: 4897
- Autofocus Sensitivity: -6.5 to +21 EV
Flash
- Built-In Flash/Light: No
- Flash Modes: Auto
- Maximum Sync Speed: 1/200 Second
- Flash Compensation: -3 to +3 EV (1/3, 1/2 EV Steps)
- Dedicated Flash System: eTTL
- External Flash Connection: Shoe Mount
Environmental
- Operating Temperature: 32 to 104°F / 0 to 40°C
- Operating Humidity: 0 to 85%
General
- Battery Type: 1x LP-E17 Rechargeable Lithium Polymer (Approx. 150 Shots)
- Shoe Mount: 1x Hot Shoe
- Tripod Mounting Thread: 1x 1/4"-20 Female (Bottom)
- Dimensions (W x H x D): 5.22 x 3.39 x 2.76" / 132.59 x 86.11 x 70.1 mm
- Weight:
- 1.0 lb / 461 g (With Battery, Recording Media)
- 0.9 lb / 414 g (Body Only)
