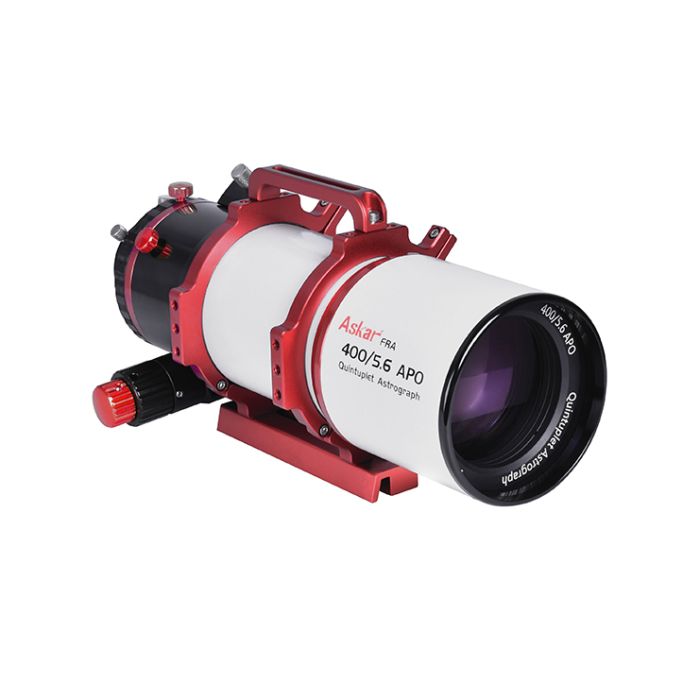

Askar FRA400 72mm f/5.6 Quintuplet Petzval Flat-Field Astrograph
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available.
- This item is out of stock.
- We have no ETA from the manufacturer at this time.
- Sign up for back-in-stock alerts to be notified when this item becomes available.
Lower 48 States:
Orders over $50 ship free within the Lower 48 using a carrier and service we select based on your items and delivery location. Faster shipping options may be available at checkout.
U.S. Outside the Lower 48 (AK, HI, PR):
Free shipping on orders over $50 applies to many—but not all—items. Add items to your cart and enter your ZIP code to see available shipping options and any costs.
International Orders:
Free shipping does not apply to international orders. You’ll see available shipping options and costs during checkout. Some items can’t be shipped internationally due to size or manufacturer restrictions. Duties, taxes, brokerage fees, and tariffs are not included and are the customer’s responsibility.
Please Note:
- All Sharpstar/Askar refractors undergo physical, mechanical and optical QC inspections at the factory, and an inspection checklist is included with each telescope.
- We may partially open the scope boxes to ensure that the scope has been inspected/certified by the manufacturer but we do not open the scope and inspect it again.
- However, if you would like us to perform a mechanical and cosmetic inspection of your telescope again before we ship it, just request this in the comments field when you place your order. We will be happy to do this at no extra cost for this scope, but this will delay your shipment by 1-2 business days. Note that we are unable to perform optical tests/inspections.
- ASKAR FRA400 Quintuplet refractor with 72mm aperture and f/5.6 focal ratio, ideal for wide-field imaging of the deep sky
- Petzval design ensures flat field across 44mm image circle, while two ED elements virtually eliminate chromatic aberration
- Rotatable 3” rack-and-pinion focuser, M68-M48 adapter, 2” adapter ring, and 1.25”-2” adapter
- Includes mounting rings, Vixen-style dovetail, and carrying handle
The ASKAR FRA400 “Flatfield Refractive Astrograph” incorporates a five-element design to deliver flat fields and sharp, color-free images from edge-to-edge. With a 72mm objective, two ED elements, and Petzval optical layout, this f/5.6 scope has a focal length of 400mm and it’s ideal for capturing stunning wide-field images of the deep sky over a 44mm full-frame image circle. It works great for visual observing also (star diagonal not included).
This premium astrograph includes a large 3” rack-and-pinion dual-speed focuser that’s fully rotatable through 360 degrees. The focuser tube terminates with an M68x1 thread for direct camera attachment, and it comes with an M68-M48 adapter for smaller camera. It also includes a 2” adapter ring and 1.25”-2” adapter for use with diagonals, eyepieces, or smaller cameras.
The attractive optical tube of the FRA400 is complemented with a highly functional set of aluminum rings, Vixen-style dovetail, and a carrying handle. The rings include separate mounting holes for additional accessories. The entire tube is just 317mm long and weighs 2.6kg.
While the fast f/5.6 focal ratio is ideal for deep-sky imaging, ASKAR also makes an optional FRA72RD focal reducer (not included) for the FRA400 scope to bring the focal ratio to f/3.9 while still supporting full-frame imaging.
For the price, this fast apochromatic telescope offers excellent value and can approach the performance of telescopes that cost three or four times as much. This is especially true when matched with astronomy cameras with smaller 1" and 4/3" sensors. Cameras with larger APS-C and full-frame sensors may reveal slight aberrations at the edge of the field, especially when using the focal reducer.
Specifications:
- Aperture: 72mm / 2.83in
- Focal Length: 400mm
- Focus Ratio: f/5.6
- Objective Type: Quintuplet Dual ED Air-Spaced APO
- Overall length: 317mm
- Dew shield OD: 101mm / 3.97"
- OTA Weight (without rings/dovetail/handle): 2.65kg (5lb-14oz)
- OTA Weight (with rings/dovetail/handle): 3.25kg (7lb-2oz)
- Back-end Adapter: M68x1 Male Thread, 2" Adapter/1.25" Adapter
- Back focus: 140mm
- Accessories:
- Pair of Tube Rings
- Handle
- Dovetail Plate (length 150mm)
- M68-M48 adapter, 2” adapter, 1.25”-2” adapter
- Inspection List
- Manual
Other Information
- Country of Manufacture: China
The ASKAR FRA400 “Flatfield Refractive Astrograph” incorporates a five-element design to deliver flat fields and sharp, color-free images from edge-to-edge. With a 72mm objective, two ED elements, and Petzval optical layout, this f/5.6 scope has a focal length of 400mm and it’s ideal for capturing stunning wide-field images of the deep sky over a 44mm full-frame image circle. It works great for visual observing also (star diagonal not included).
This premium astrograph includes a large 3” rack-and-pinion dual-speed focuser that’s fully rotatable through 360 degrees. The focuser tube terminates with an M68x1 thread for direct camera attachment, and it comes with an M68-M48 adapter for smaller camera. It also includes a 2” adapter ring and 1.25”-2” adapter for use with diagonals, eyepieces, or smaller cameras.
The attractive optical tube of the FRA400 is complemented with a highly functional set of aluminum rings, Vixen-style dovetail, and a carrying handle. The rings include separate mounting holes for additional accessories. The entire tube is just 317mm long and weighs 2.6kg.
While the fast f/5.6 focal ratio is ideal for deep-sky imaging, ASKAR also makes an optional FRA72RD focal reducer (not included) for the FRA400 scope to bring the focal ratio to f/3.9 while still supporting full-frame imaging.
For the price, this fast apochromatic telescope offers excellent value and can approach the performance of telescopes that cost three or four times as much. This is especially true when matched with astronomy cameras with smaller 1" and 4/3" sensors. Cameras with larger APS-C and full-frame sensors may reveal slight aberrations at the edge of the field, especially when using the focal reducer.
Specifications:
- Aperture: 72mm / 2.83in
- Focal Length: 400mm
- Focus Ratio: f/5.6
- Objective Type: Quintuplet Dual ED Air-Spaced APO
- Overall length: 317mm
- Dew shield OD: 101mm / 3.97"
- OTA Weight (without rings/dovetail/handle): 2.65kg (5lb-14oz)
- OTA Weight (with rings/dovetail/handle): 3.25kg (7lb-2oz)
- Back-end Adapter: M68x1 Male Thread, 2" Adapter/1.25" Adapter
- Back focus: 140mm
- Accessories:
- Pair of Tube Rings
- Handle
- Dovetail Plate (length 150mm)
- M68-M48 adapter, 2” adapter, 1.25”-2” adapter
- Inspection List
- Manual
Please Note:
- All Sharpstar/Askar refractors undergo physical, mechanical and optical QC inspections at the factory, and an inspection checklist is included with each telescope.
- We may partially open the scope boxes to ensure that the scope has been inspected/certified by the manufacturer but we do not open the scope and inspect it again.
- However, if you would like us to perform a mechanical and cosmetic inspection of your telescope again before we ship it, just request this in the comments field when you place your order. We will be happy to do this at no extra cost for this scope, but this will delay your shipment by 1-2 business days. Note that we are unable to perform optical tests/inspections.
- ASKAR FRA400 Quintuplet refractor with 72mm aperture and f/5.6 focal ratio, ideal for wide-field imaging of the deep sky
- Petzval design ensures flat field across 44mm image circle, while two ED elements virtually eliminate chromatic aberration
- Rotatable 3” rack-and-pinion focuser, M68-M48 adapter, 2” adapter ring, and 1.25”-2” adapter
- Includes mounting rings, Vixen-style dovetail, and carrying handle
The ASKAR FRA400 “Flatfield Refractive Astrograph” incorporates a five-element design to deliver flat fields and sharp, color-free images from edge-to-edge. With a 72mm objective, two ED elements, and Petzval optical layout, this f/5.6 scope has a focal length of 400mm and it’s ideal for capturing stunning wide-field images of the deep sky over a 44mm full-frame image circle. It works great for visual observing also (star diagonal not included).
This premium astrograph includes a large 3” rack-and-pinion dual-speed focuser that’s fully rotatable through 360 degrees. The focuser tube terminates with an M68x1 thread for direct camera attachment, and it comes with an M68-M48 adapter for smaller camera. It also includes a 2” adapter ring and 1.25”-2” adapter for use with diagonals, eyepieces, or smaller cameras.
The attractive optical tube of the FRA400 is complemented with a highly functional set of aluminum rings, Vixen-style dovetail, and a carrying handle. The rings include separate mounting holes for additional accessories. The entire tube is just 317mm long and weighs 2.6kg.
While the fast f/5.6 focal ratio is ideal for deep-sky imaging, ASKAR also makes an optional FRA72RD focal reducer (not included) for the FRA400 scope to bring the focal ratio to f/3.9 while still supporting full-frame imaging.
For the price, this fast apochromatic telescope offers excellent value and can approach the performance of telescopes that cost three or four times as much. This is especially true when matched with astronomy cameras with smaller 1" and 4/3" sensors. Cameras with larger APS-C and full-frame sensors may reveal slight aberrations at the edge of the field, especially when using the focal reducer.
Specifications:
- Aperture: 72mm / 2.83in
- Focal Length: 400mm
- Focus Ratio: f/5.6
- Objective Type: Quintuplet Dual ED Air-Spaced APO
- Overall length: 317mm
- Dew shield OD: 101mm / 3.97"
- OTA Weight (without rings/dovetail/handle): 2.65kg (5lb-14oz)
- OTA Weight (with rings/dovetail/handle): 3.25kg (7lb-2oz)
- Back-end Adapter: M68x1 Male Thread, 2" Adapter/1.25" Adapter
- Back focus: 140mm
- Accessories:
- Pair of Tube Rings
- Handle
- Dovetail Plate (length 150mm)
- M68-M48 adapter, 2” adapter, 1.25”-2” adapter
- Inspection List
- Manual
Other Information
- Country of Manufacture: China
