Askar FMA135 30mm f/4.5 Triplet Apo Lens / Guidescope
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available.
- This item is out of stock.
- We have no ETA from the manufacturer at this time.
- Sign up for back-in-stock alerts to be notified when this item becomes available.
Lower 48 States:
Orders over $50 ship free within the Lower 48 using a carrier and service we select based on your items and delivery location. Faster shipping options may be available at checkout.
U.S. Outside the Lower 48 (AK, HI, PR):
Free shipping on orders over $50 applies to many—but not all—items. Add items to your cart and enter your ZIP code to see available shipping options and any costs.
International Orders:
Free shipping does not apply to international orders. You’ll see available shipping options and costs during checkout. Some items can’t be shipped internationally due to size or manufacturer restrictions. Duties, taxes, brokerage fees, and tariffs are not included and are the customer’s responsibility.
Please Note:
- All Sharpstar/Askar refractors undergo physical, mechanical and optical QC inspections at the factory, and an inspection checklist is included with each telescope.
- We may partially open the scope boxes to ensure that the scope has been inspected/certified by the manufacturer but we do not open the scope and inspect it again.
- However, if you would like us to perform a mechanical and cosmetic inspection of your telescope again before we ship it, just request this in the comments field when you place your order. We will be happy to do this at no extra cost for this scope, but this will delay your shipment by 1-2 business days. Note that we are unable to perform optical tests/inspections.
- ASKAR FMA135 30mm aperture apochromatic telescope/camera lens features three-element objective lens with ED element for superb color correction and image quality
- Include three-element field flattener to deliver pinpoint stars across APS-C or smaller sensors
- Operates as a manual-focus f/4.5 apochromatic camera lens for astrophotography or as a guide/finder scope
- Includes adapter for visual observation with a 1.25” eyepiece, tube mounting ring, and Vixen-style dovetail

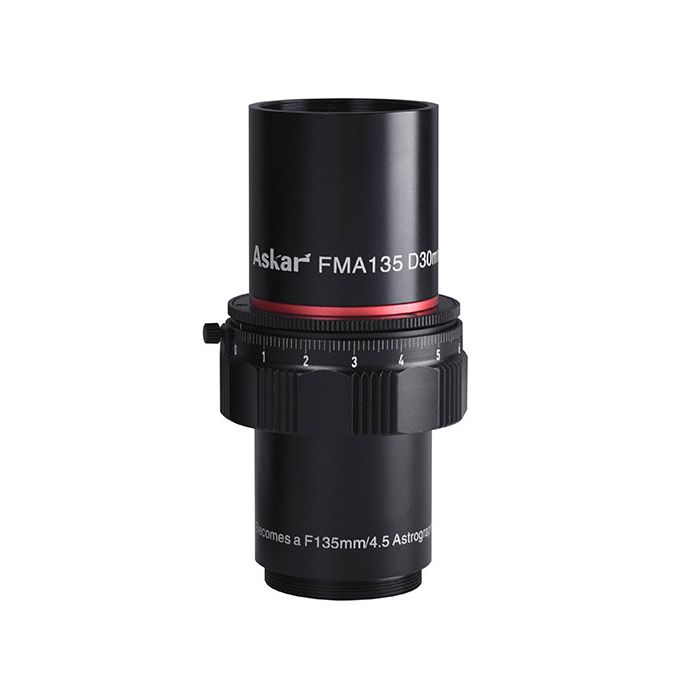

The ASKAR FMA135 is a premium optical instrument that features a 30mm ED fully multicoated triplet objective to deliver superb image quality for astronomical and terrestrial imaging. It also works as a finder/small telescope/guide scope.
The heart of the FMA135 is an air-spaced 30mm apochromatic f/4.5 triplet with an ED element to minimize chromatic aberration. With a focal length of 135mm, the objective lens is optimized and tested for demanding astronomical applications, and it is carefully matched to an integrated three-element field flattener that yields flat fields and sharp images.
For the price, this fast apochromatic lens offers excellent value and can approach the performance of telescopes that cost three or four times as much. This is especially true when matched with astronomy cameras with smaller 1" and 4/3" sensors. Cameras with larger APS-C sensors may reveal slight aberrations at the edge of the field, especially when using the focal reducer. This lens is not recommended for use with full-frame cameras.
The camera side of the FMA135 includes a standard M42x0.75 male thread for attachment to most astronomy cameras or T-rings. The instrument has a 55mm back focus. The top tube ring, which acts as a light/dew shield, includes standard M28.5x0.6 female threads that accept 1.25” astronomical filters. The body of the FMA135 includes a rotatable focuser to ensure precise and repeatable focus.
For straight-through observing with an eyepiece, there’s a standard 1.25” adapter that threads onto FMA optical tube. The FMA135 also includes a mounting ring with standard Vixen-style dovetail.
The overall tube length is 113mm. The FMA135 weighs just 280g (0.62 lbs).
Specifications:
- Aperture: 30mm
- Focal Length: 135mm
- Focal Ratio: f/4.5
- Objective Type: Air-spaced APO Triplet (including an ED Glass). Sextuplet Refractor for APS Imaging
- Overall Length: 113mm (photographic mode with flattener)
- Weight: 280g
- Dewshield front thread: M36x0.75 female
- Rear-end Adapter Type:
- M42 x 0.75 Thread (for imaging)
- 1.25" Visual Adapter (for visual use)
Other Information
- Country of Manufacture: China
The ASKAR FMA135 is a premium optical instrument that features a 30mm ED fully multicoated triplet objective to deliver superb image quality for astronomical and terrestrial imaging. It also works as a finder/small telescope/guide scope.
The heart of the FMA135 is an air-spaced 30mm apochromatic f/4.5 triplet with an ED element to minimize chromatic aberration. With a focal length of 135mm, the objective lens is optimized and tested for demanding astronomical applications, and it is carefully matched to an integrated three-element field flattener that yields flat fields and sharp images.
For the price, this fast apochromatic lens offers excellent value and can approach the performance of telescopes that cost three or four times as much. This is especially true when matched with astronomy cameras with smaller 1" and 4/3" sensors. Cameras with larger APS-C sensors may reveal slight aberrations at the edge of the field, especially when using the focal reducer. This lens is not recommended for use with full-frame cameras.
The camera side of the FMA135 includes a standard M42x0.75 male thread for attachment to most astronomy cameras or T-rings. The instrument has a 55mm back focus. The top tube ring, which acts as a light/dew shield, includes standard M28.5x0.6 female threads that accept 1.25” astronomical filters. The body of the FMA135 includes a rotatable focuser to ensure precise and repeatable focus.
For straight-through observing with an eyepiece, there’s a standard 1.25” adapter that threads onto FMA optical tube. The FMA135 also includes a mounting ring with standard Vixen-style dovetail.
The overall tube length is 113mm. The FMA135 weighs just 280g (0.62 lbs).
Specifications:
- Aperture: 30mm
- Focal Length: 135mm
- Focal Ratio: f/4.5
- Objective Type: Air-spaced APO Triplet (including an ED Glass). Sextuplet Refractor for APS Imaging
- Overall Length: 113mm (photographic mode with flattener)
- Weight: 280g
- Dewshield front thread: M36x0.75 female
- Rear-end Adapter Type:
- M42 x 0.75 Thread (for imaging)
- 1.25" Visual Adapter (for visual use)
- FMA135
- Tube Ring (One Piece)
- 1.25" Visual Adapter
- Screw (Five Pieces)
- Manual
Please Note:
- All Sharpstar/Askar refractors undergo physical, mechanical and optical QC inspections at the factory, and an inspection checklist is included with each telescope.
- We may partially open the scope boxes to ensure that the scope has been inspected/certified by the manufacturer but we do not open the scope and inspect it again.
- However, if you would like us to perform a mechanical and cosmetic inspection of your telescope again before we ship it, just request this in the comments field when you place your order. We will be happy to do this at no extra cost for this scope, but this will delay your shipment by 1-2 business days. Note that we are unable to perform optical tests/inspections.
- ASKAR FMA135 30mm aperture apochromatic telescope/camera lens features three-element objective lens with ED element for superb color correction and image quality
- Include three-element field flattener to deliver pinpoint stars across APS-C or smaller sensors
- Operates as a manual-focus f/4.5 apochromatic camera lens for astrophotography or as a guide/finder scope
- Includes adapter for visual observation with a 1.25” eyepiece, tube mounting ring, and Vixen-style dovetail
The ASKAR FMA135 is a premium optical instrument that features a 30mm ED fully multicoated triplet objective to deliver superb image quality for astronomical and terrestrial imaging. It also works as a finder/small telescope/guide scope.
The heart of the FMA135 is an air-spaced 30mm apochromatic f/4.5 triplet with an ED element to minimize chromatic aberration. With a focal length of 135mm, the objective lens is optimized and tested for demanding astronomical applications, and it is carefully matched to an integrated three-element field flattener that yields flat fields and sharp images.
For the price, this fast apochromatic lens offers excellent value and can approach the performance of telescopes that cost three or four times as much. This is especially true when matched with astronomy cameras with smaller 1" and 4/3" sensors. Cameras with larger APS-C sensors may reveal slight aberrations at the edge of the field, especially when using the focal reducer. This lens is not recommended for use with full-frame cameras.
The camera side of the FMA135 includes a standard M42x0.75 male thread for attachment to most astronomy cameras or T-rings. The instrument has a 55mm back focus. The top tube ring, which acts as a light/dew shield, includes standard M28.5x0.6 female threads that accept 1.25” astronomical filters. The body of the FMA135 includes a rotatable focuser to ensure precise and repeatable focus.
For straight-through observing with an eyepiece, there’s a standard 1.25” adapter that threads onto FMA optical tube. The FMA135 also includes a mounting ring with standard Vixen-style dovetail.
The overall tube length is 113mm. The FMA135 weighs just 280g (0.62 lbs).
Specifications:
- Aperture: 30mm
- Focal Length: 135mm
- Focal Ratio: f/4.5
- Objective Type: Air-spaced APO Triplet (including an ED Glass). Sextuplet Refractor for APS Imaging
- Overall Length: 113mm (photographic mode with flattener)
- Weight: 280g
- Dewshield front thread: M36x0.75 female
- Rear-end Adapter Type:
- M42 x 0.75 Thread (for imaging)
- 1.25" Visual Adapter (for visual use)
Other Information
- Country of Manufacture: China
| Product Status | new |
|---|---|
| Free Shipping Graphic | Free US Shipping |
| Telescope Focal Length | Up to 300mm |
| Hide Found a better Shipped Price on Frontend? | No |
- FMA135
- Tube Ring (One Piece)
- 1.25" Visual Adapter
- Screw (Five Pieces)
- Manual
