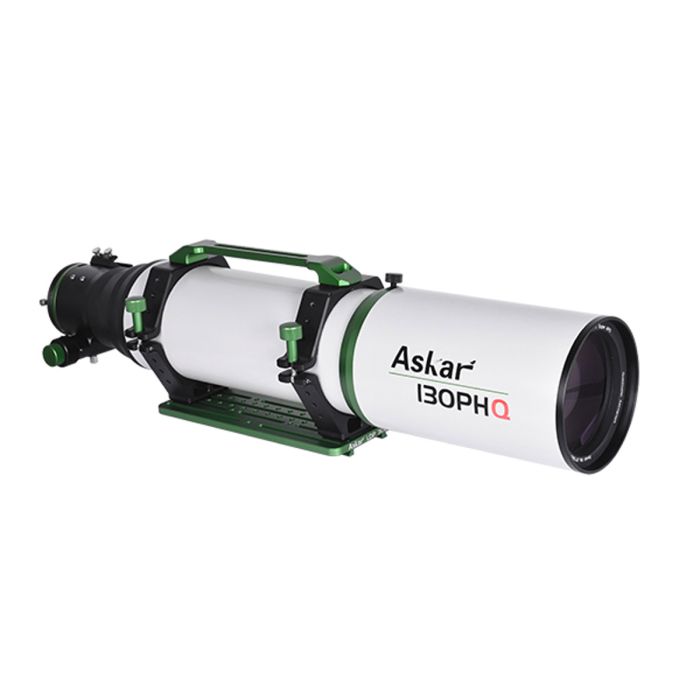

Askar 130PHQ 130mm f/7.7 Quadruplet Flat-Field Astrograph
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available.
- This item is out of stock.
- We have no ETA from the manufacturer at this time.
- Sign up for back-in-stock alerts to be notified when this item becomes available.
Lower 48 States:
Orders over $50 ship free within the Lower 48 using a carrier and service we select based on your items and delivery location. Faster shipping options may be available at checkout.
U.S. Outside the Lower 48 (AK, HI, PR):
Free shipping on orders over $50 applies to many—but not all—items. Add items to your cart and enter your ZIP code to see available shipping options and any costs.
International Orders:
Free shipping does not apply to international orders. You’ll see available shipping options and costs during checkout. Some items can’t be shipped internationally due to size or manufacturer restrictions. Duties, taxes, brokerage fees, and tariffs are not included and are the customer’s responsibility.
Please Note:
- All Sharpstar/Askar refractors undergo physical, mechanical and optical QC inspections at the factory, and an inspection checklist is included with each telescope.
- We may partially open the scope boxes to ensure that the scope has been inspected/certified by the manufacturer but we do not open the scope and inspect it again.
- However, if you would like us to perform a mechanical and cosmetic inspection of your telescope again before we ship it, just request this in the comments field when you place your order. We will be happy to do this at no extra cost for this scope, but this will delay your shipment by 1-2 business days. Note that we are unable to perform optical tests/inspections.
- Askar 130PHQ four-element refractor with 130mm aperture and f/7.7 focal ratio, ideal for lunar, planetary, and deep sky imaging and visual observing
- Built-in field flattener ensures excellent optical performance across big 60mm image circle
- Air-spaced triplet objective with two ED elements virtually eliminate chromatic aberration
- Rotatable 3.4” rack-and-pinion focuser, threaded adapters, 2” adapter ring
- Includes mounting rings, Losmandy-style dovetail, carrying handle, and hard case
The Askar 130mm 130PHQ astrograph incorporates a four-element optical design to deliver sharp, color-free images for astrophotographers and visual observers. This f/7.7 astrograph features an ED triplet objective and one field-flattening corrective element further back in the optical path to correct for field curvature over a large 60mm image circle. There’s no need for a separate field flattener – this makes it easy to use this telescope with a wide range of cameras and accessories without being tied to the short back focus of many external corrective elements.
This premium astrograph includes a large 3.4” rack-and-pinion dual-speed (1:10) focuser that’s fully rotatable through 360 degrees and carries an 8kg load capacity. The focuser includes a standard shoe for mounting a finder or small guide scope (both sold separately). With the visual adapter removed, the focuser tube terminates with an M86x1 thread. The scope also includes four stackable adapters for direct attachment of a wide variety of cameras with standard metric threads.
The attractive green-trimmed optical tube of the 130PHQ is complemented with a highly functional set of aluminum rings, a Losmandy-style dovetail, and a carrying handle. The handle includes separate mounting holes for additional accessories. The entire tube has a length of 842.5mm with the dew shield retracted and 1.25” eyepiece holder installed It weighs 10.2kg.
With a focal length of 1000mm and apochromatic optics, the 130PHQ also works well as a serious visual instrument. A 35mm 2” eyepiece with a 68-degree apparent field of view delivers a wide 2.4-degree field of view at 29x, ideal for sweeping the Milky Way for star clusters and nebulae. Or power up with a short-focal length eyepiece and get sharp, high-magnification views of the moon and planets with virtually no false color. The limiting visual magnitude is 12.1.
The Askar 130PHQ offers excellent value in a premium larger-aperture astrograph for serious astronomical imaging and visual observing. For the price, this fast apochromatic telescope offers excellent value and can approach the performance of telescopes that cost three or four times as much. Full-frame sensors may reveal slight aberrations at the edge of the field, especially when using the focal reducer.
The telescope is shipped in a foam-fitted aluminum case.
Note: To offer even more versatility to the 130PHQ, Askar offers a 0.7x focal reducer for imaging applications (sold separately) This reducer takes the focal ratio down to a fast f/5.4 while preserving image sharpness and field flatness.
Specifications:
- Aperture size: 130mm
- Focal length: 1000mm
- Focal ratio: f/7.7
- Optical configuration：Triplet air-spaced APO (including two ED glass) with a singlet rear field corrector lens
- Image circle: 60mm
- Dew shield OD: 169mm / 6.65"
- Maximum accessory connection (with the focuser fully retreated):
- 1. Imaging mode
- 116mm（from the base of M48×0.75 male thread）
- 136mm（from the base of M54×0.75 male thread）
- 156mm（from the base of M68×1male thread）
- 186mm（from the base of M76×1 male thread）
- 2. Observing mode:
- 148.5mm（from the end of 2" eyepiece holder）
- 1. Imaging mode
- Total length:
- 842.5mm（including 1.25" eyepiece holder as dew shield contracted）
- 889.5mm（including 1.25" eyepiece holder as dew shield fully stretched）
- 1011.5mm（including the 4-piece adapter as dew shield contracted）
- 1061.5mm（including the 4-piece adapter as dew shield fully stretched）
- Net weight: 10.2kg
- Gross weight: 12.5kg
- Rear-end thread type:
- M86×1-M68×1
- M68×1-M54×0.75
- M54×0.75-M54×0.75
- M54×0.75-M48×0.75（M48×0.75 filter thread inside）
Other Information
- Country of Manufacture: China
The Askar 130mm 130PHQ astrograph incorporates a four-element optical design to deliver sharp, color-free images for astrophotographers and visual observers. This f/7.7 astrograph features an ED triplet objective and one field-flattening corrective element further back in the optical path to correct for field curvature over a large 60mm image circle. There’s no need for a separate field flattener – this makes it easy to use this telescope with a wide range of cameras and accessories without being tied to the short back focus of many external corrective elements.
This premium astrograph includes a large 3.4” rack-and-pinion dual-speed (1:10) focuser that’s fully rotatable through 360 degrees and carries an 8kg load capacity. The focuser includes a standard shoe for mounting a finder or small guide scope (both sold separately). With the visual adapter removed, the focuser tube terminates with an M86x1 thread. The scope also includes four stackable adapters for direct attachment of a wide variety of cameras with standard metric threads.
The attractive green-trimmed optical tube of the 130PHQ is complemented with a highly functional set of aluminum rings, a Losmandy-style dovetail, and a carrying handle. The handle includes separate mounting holes for additional accessories. The entire tube has a length of 842.5mm with the dew shield retracted and 1.25” eyepiece holder installed It weighs 10.2kg.
With a focal length of 1000mm and apochromatic optics, the 130PHQ also works well as a serious visual instrument. A 35mm 2” eyepiece with a 68-degree apparent field of view delivers a wide 2.4-degree field of view at 29x, ideal for sweeping the Milky Way for star clusters and nebulae. Or power up with a short-focal length eyepiece and get sharp, high-magnification views of the moon and planets with virtually no false color. The limiting visual magnitude is 12.1.
The Askar 130PHQ offers excellent value in a premium larger-aperture astrograph for serious astronomical imaging and visual observing. For the price, this fast apochromatic telescope offers excellent value and can approach the performance of telescopes that cost three or four times as much. Full-frame sensors may reveal slight aberrations at the edge of the field, especially when using the focal reducer.
The telescope is shipped in a foam-fitted aluminum case.
Note: To offer even more versatility to the 130PHQ, Askar offers a 0.7x focal reducer for imaging applications (sold separately) This reducer takes the focal ratio down to a fast f/5.4 while preserving image sharpness and field flatness.
Specifications:
- Aperture size: 130mm
- Focal length: 1000mm
- Focal ratio: f/7.7
- Optical configuration：Triplet air-spaced APO (including two ED glass) with a singlet rear field corrector lens
- Image circle: 60mm
- Dew shield OD: 169mm / 6.65"
- Maximum accessory connection (with the focuser fully retreated):
- 1. Imaging mode
- 116mm（from the base of M48×0.75 male thread）
- 136mm（from the base of M54×0.75 male thread）
- 156mm（from the base of M68×1male thread）
- 186mm（from the base of M76×1 male thread）
- 2. Observing mode:
- 148.5mm（from the end of 2" eyepiece holder）
- 1. Imaging mode
- Total length:
- 842.5mm（including 1.25" eyepiece holder as dew shield contracted）
- 889.5mm（including 1.25" eyepiece holder as dew shield fully stretched）
- 1011.5mm（including the 4-piece adapter as dew shield contracted）
- 1061.5mm（including the 4-piece adapter as dew shield fully stretched）
- Net weight: 10.2kg
- Gross weight: 12.5kg
- Rear-end thread type:
- M86×1-M68×1
- M68×1-M54×0.75
- M54×0.75-M54×0.75
- M54×0.75-M48×0.75（M48×0.75 filter thread inside）
Standard package items include:
- 130PHQ OT
- Pair of tube rings
- Handle
- Askar losmandy 300mm dovetail plate
- Set of 4-piece photographic adapters
- Manual
Please Note:
- All Sharpstar/Askar refractors undergo physical, mechanical and optical QC inspections at the factory, and an inspection checklist is included with each telescope.
- We may partially open the scope boxes to ensure that the scope has been inspected/certified by the manufacturer but we do not open the scope and inspect it again.
- However, if you would like us to perform a mechanical and cosmetic inspection of your telescope again before we ship it, just request this in the comments field when you place your order. We will be happy to do this at no extra cost for this scope, but this will delay your shipment by 1-2 business days. Note that we are unable to perform optical tests/inspections.
- Askar 130PHQ four-element refractor with 130mm aperture and f/7.7 focal ratio, ideal for lunar, planetary, and deep sky imaging and visual observing
- Built-in field flattener ensures excellent optical performance across big 60mm image circle
- Air-spaced triplet objective with two ED elements virtually eliminate chromatic aberration
- Rotatable 3.4” rack-and-pinion focuser, threaded adapters, 2” adapter ring
- Includes mounting rings, Losmandy-style dovetail, carrying handle, and hard case
The Askar 130mm 130PHQ astrograph incorporates a four-element optical design to deliver sharp, color-free images for astrophotographers and visual observers. This f/7.7 astrograph features an ED triplet objective and one field-flattening corrective element further back in the optical path to correct for field curvature over a large 60mm image circle. There’s no need for a separate field flattener – this makes it easy to use this telescope with a wide range of cameras and accessories without being tied to the short back focus of many external corrective elements.
This premium astrograph includes a large 3.4” rack-and-pinion dual-speed (1:10) focuser that’s fully rotatable through 360 degrees and carries an 8kg load capacity. The focuser includes a standard shoe for mounting a finder or small guide scope (both sold separately). With the visual adapter removed, the focuser tube terminates with an M86x1 thread. The scope also includes four stackable adapters for direct attachment of a wide variety of cameras with standard metric threads.
The attractive green-trimmed optical tube of the 130PHQ is complemented with a highly functional set of aluminum rings, a Losmandy-style dovetail, and a carrying handle. The handle includes separate mounting holes for additional accessories. The entire tube has a length of 842.5mm with the dew shield retracted and 1.25” eyepiece holder installed It weighs 10.2kg.
With a focal length of 1000mm and apochromatic optics, the 130PHQ also works well as a serious visual instrument. A 35mm 2” eyepiece with a 68-degree apparent field of view delivers a wide 2.4-degree field of view at 29x, ideal for sweeping the Milky Way for star clusters and nebulae. Or power up with a short-focal length eyepiece and get sharp, high-magnification views of the moon and planets with virtually no false color. The limiting visual magnitude is 12.1.
The Askar 130PHQ offers excellent value in a premium larger-aperture astrograph for serious astronomical imaging and visual observing. For the price, this fast apochromatic telescope offers excellent value and can approach the performance of telescopes that cost three or four times as much. Full-frame sensors may reveal slight aberrations at the edge of the field, especially when using the focal reducer.
The telescope is shipped in a foam-fitted aluminum case.
Note: To offer even more versatility to the 130PHQ, Askar offers a 0.7x focal reducer for imaging applications (sold separately) This reducer takes the focal ratio down to a fast f/5.4 while preserving image sharpness and field flatness.
Specifications:
- Aperture size: 130mm
- Focal length: 1000mm
- Focal ratio: f/7.7
- Optical configuration：Triplet air-spaced APO (including two ED glass) with a singlet rear field corrector lens
- Image circle: 60mm
- Dew shield OD: 169mm / 6.65"
- Maximum accessory connection (with the focuser fully retreated):
- 1. Imaging mode
- 116mm（from the base of M48×0.75 male thread）
- 136mm（from the base of M54×0.75 male thread）
- 156mm（from the base of M68×1male thread）
- 186mm（from the base of M76×1 male thread）
- 2. Observing mode:
- 148.5mm（from the end of 2" eyepiece holder）
- 1. Imaging mode
- Total length:
- 842.5mm（including 1.25" eyepiece holder as dew shield contracted）
- 889.5mm（including 1.25" eyepiece holder as dew shield fully stretched）
- 1011.5mm（including the 4-piece adapter as dew shield contracted）
- 1061.5mm（including the 4-piece adapter as dew shield fully stretched）
- Net weight: 10.2kg
- Gross weight: 12.5kg
- Rear-end thread type:
- M86×1-M68×1
- M68×1-M54×0.75
- M54×0.75-M54×0.75
- M54×0.75-M48×0.75（M48×0.75 filter thread inside）
Other Information
- Country of Manufacture: China
| Product Status | special |
|---|---|
| Free Shipping Graphic | Free Contiguous US Shipping |
| Telescope Focal Length | 901 - 1000mm |
| Hide Found a better Shipped Price on Frontend? | No |
Standard package items include:
- 130PHQ OT
- Pair of tube rings
- Handle
- Askar losmandy 300mm dovetail plate
- Set of 4-piece photographic adapters
- Manual
