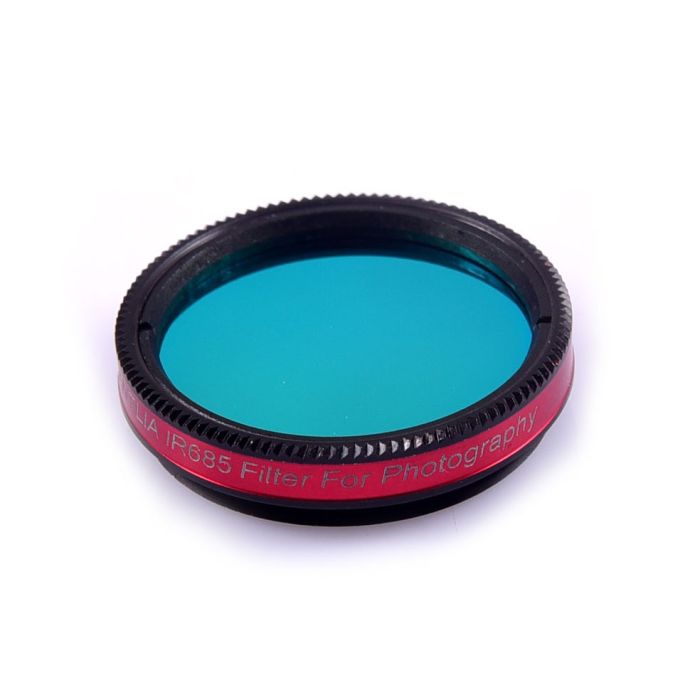

Antlia IR Pass Filter (685nm) - 1.25"
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available.
- This item is out of stock.
- We have no ETA from the manufacturer at this time.
- Sign up for back-in-stock alerts to be notified when this item becomes available.
Lower 48 States:
Orders over $50 ship free within the Lower 48 using a carrier and service we select based on your items and delivery location. Faster shipping options may be available at checkout.
U.S. Outside the Lower 48 (AK, HI, PR):
Free shipping on orders over $50 applies to many—but not all—items. Add items to your cart and enter your ZIP code to see available shipping options and any costs.
International Orders:
Free shipping does not apply to international orders. You’ll see available shipping options and costs during checkout. Some items can’t be shipped internationally due to size or manufacturer restrictions. Duties, taxes, brokerage fees, and tariffs are not included and are the customer’s responsibility.
The Antlia IR Pass 685nm filter is an absorptive filter that allows infrared light with wavelengths of more than 685nm to pass through. At these longer wavelengths, the sensitivity of the unaided eye is reduced, so it is not suitable for visual observations. The filter is highly recommended for any planetary photography. At long-wavelength spectral range the atmospheric air turbulence (seeing) has much lower impact on the sharpness. The closer to the infrared band, planetary images are less disturbed by wavefront distortions in the atmosphere (seeing), result in the sharpest and highest contrast image possible.
By combining a luminance image taken with the IR-Pass filter, along with RGB and U-Venus filters, overall image sharpness is significantly enhanced and details of planets in different bands are taken. The filter is also possible to image the other planets during daylight due to the dark background sky created by the 685nm IR Pass Filter.
Technical Data:
- Schott Optical Substrate
- 1.25" Mounted (2mm +/- 0.05mm)
- Surface Quality: 60/40 (MIL-O-13830)
- 2 Sides Fine-optically polished to ensure accurate 1/4 wavefront
- 30 arcsec parallelism
Filter Ring:
- 1.25” (28.5x0.6)
- Ultra-thin filter cell to minimize vignetting by maximize possible clear aperture
- Black Anodized Finish
- Laser Engraving No Fading
Not Recommended:
- Solar Observing and imaging
- Visual observation
- DO NOT LOOK AT THE SUN WITH ANTLIA FILTERS.
- Serious eye damage will result if you fail to observe the warning
Useful Resources
Filter Cell Specifications
D = Filter Cell Diameter = 31.5 mm / 1.24 in
T = Total Filter Height = 7.3 mm / 0.28 in
C = Filter Cell Height (Excluding Male Thread) = 4.7mm / 0.18 in
M = Male Thread Length = 2.5 mm / 0.09 in
F = USABLE Female Filter Thread Length = Not threaded, so you cannot stack additional filters
S = Glass Substrate Thickness = 2 mm / 0.07 in
CA = Clear Aperture = 25.5 mm / 1.00 in
Other Information
- Country of Manufacture: China
The Antlia IR Pass 685nm filter is an absorptive filter that allows infrared light with wavelengths of more than 685nm to pass through. At these longer wavelengths, the sensitivity of the unaided eye is reduced, so it is not suitable for visual observations. The filter is highly recommended for any planetary photography. At long-wavelength spectral range the atmospheric air turbulence (seeing) has much lower impact on the sharpness. The closer to the infrared band, planetary images are less disturbed by wavefront distortions in the atmosphere (seeing), result in the sharpest and highest contrast image possible.
By combining a luminance image taken with the IR-Pass filter, along with RGB and U-Venus filters, overall image sharpness is significantly enhanced and details of planets in different bands are taken. The filter is also possible to image the other planets during daylight due to the dark background sky created by the 685nm IR Pass Filter.
Technical Data:
- Schott Optical Substrate
- 1.25" Mounted (2mm +/- 0.05mm)
- Surface Quality: 60/40 (MIL-O-13830)
- 2 Sides Fine-optically polished to ensure accurate 1/4 wavefront
- 30 arcsec parallelism
Filter Ring:
- 1.25” (28.5x0.6)
- Ultra-thin filter cell to minimize vignetting by maximize possible clear aperture
- Black Anodized Finish
- Laser Engraving No Fading
Not Recommended:
- Solar Observing and imaging
- Visual observation
- DO NOT LOOK AT THE SUN WITH ANTLIA FILTERS.
- Serious eye damage will result if you fail to observe the warning
The Antlia IR Pass 685nm filter is an absorptive filter that allows infrared light with wavelengths of more than 685nm to pass through. At these longer wavelengths, the sensitivity of the unaided eye is reduced, so it is not suitable for visual observations. The filter is highly recommended for any planetary photography. At long-wavelength spectral range the atmospheric air turbulence (seeing) has much lower impact on the sharpness. The closer to the infrared band, planetary images are less disturbed by wavefront distortions in the atmosphere (seeing), result in the sharpest and highest contrast image possible.
By combining a luminance image taken with the IR-Pass filter, along with RGB and U-Venus filters, overall image sharpness is significantly enhanced and details of planets in different bands are taken. The filter is also possible to image the other planets during daylight due to the dark background sky created by the 685nm IR Pass Filter.
Technical Data:
- Schott Optical Substrate
- 1.25" Mounted (2mm +/- 0.05mm)
- Surface Quality: 60/40 (MIL-O-13830)
- 2 Sides Fine-optically polished to ensure accurate 1/4 wavefront
- 30 arcsec parallelism
Filter Ring:
- 1.25” (28.5x0.6)
- Ultra-thin filter cell to minimize vignetting by maximize possible clear aperture
- Black Anodized Finish
- Laser Engraving No Fading
Not Recommended:
- Solar Observing and imaging
- Visual observation
- DO NOT LOOK AT THE SUN WITH ANTLIA FILTERS.
- Serious eye damage will result if you fail to observe the warning
Useful Resources
Filter Cell Specifications
D = Filter Cell Diameter = 31.5 mm / 1.24 in
T = Total Filter Height = 7.3 mm / 0.28 in
C = Filter Cell Height (Excluding Male Thread) = 4.7mm / 0.18 in
M = Male Thread Length = 2.5 mm / 0.09 in
F = USABLE Female Filter Thread Length = Not threaded, so you cannot stack additional filters
S = Glass Substrate Thickness = 2 mm / 0.07 in
CA = Clear Aperture = 25.5 mm / 1.00 in
Other Information
- Country of Manufacture: China
