Antares 50mm 2-Ring Vixen/Synta-Style Finder Bracket
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available.
- This item is out of stock.
- We have no ETA from the manufacturer at this time.
- Sign up for back-in-stock alerts to be notified when this item becomes available.
Lower 48 States:
Orders over $50 ship free within the Lower 48 using a carrier and service we select based on your items and delivery location. Faster shipping options may be available at checkout.
U.S. Outside the Lower 48 (AK, HI, PR):
Free shipping on orders over $50 applies to many—but not all—items. Add items to your cart and enter your ZIP code to see available shipping options and any costs.
International Orders:
Free shipping does not apply to international orders. You’ll see available shipping options and costs during checkout. Some items can’t be shipped internationally due to size or manufacturer restrictions. Duties, taxes, brokerage fees, and tariffs are not included and are the customer’s responsibility.
Please Note: This is a brand new item from Antares. Unfortunately, the machining and finish on all of these new brackets is not perfect. There can be some rough/sharp edges, scuff/nick marks, and/or unanodized spots on these finder brackets. For examples, please see photos 3 and 4 above. That's just how this item is.
Please Note: The latest shipment of this product from Antares has screws that are much shorter than before. Please do not purchase this item without reviewing the item specifications below to ensure that this will work for you. If you want to replace these 6 screws with longer ones, you need #8-32 screws (see our item # IHS-AH-TS02-1)
This is a new Antares quick-release finder bracket with two rings for 50mm finders. While the rings are the same as Antares' popular F50DTB rings, this new item can use the more commonly used Synta/Vixen style dovetail base for attachment to your telescope as compared to the Antares-proprietary style on the F50DTB rings..
Each ring includes three-point screw adjustment for precisely aligning your finder. This bracket can be used with finder tubes 1.2" - 2.2" in diameter. All metal with black matte finish and nylon screws.

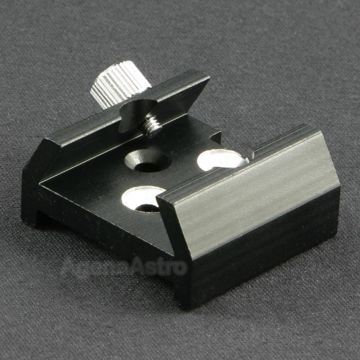

Please note that while the foot at the bottom of the bracket is made to accept Vixen/Synta-style finder bases, no base is included with this finder bracket. However, all the Vixen-style bases we sell separately (for example, #s FURB, CFURB, SCTFURB, XFURB) will work with this.
Specifications:
- Inside diameter of rings: 61.8mm
- Suitable for finder tubes between: 48mm to 56mm in diameter (not 31mm to 56mm as before, unless you replace screws)
- Width of rings: 13mm
- Inside distance between rings: 54mm
- Outside distance between rings: 80mm
- Weight (rings only): 4.8oz
- Weight (dovetail base): 1.5oz
- Made in Canada.
Other Information
- Country of Manufacture: Canada
This is a new Antares quick-release finder bracket with two rings for 50mm finders. While the rings are the same as Antares' popular F50DTB rings, this new item can use the more commonly used Synta/Vixen style dovetail base for attachment to your telescope as compared to the Antares-proprietary style on the F50DTB rings..
Each ring includes three-point screw adjustment for precisely aligning your finder. This bracket can be used with finder tubes 1.2" - 2.2" in diameter. All metal with black matte finish and nylon screws.
Please note that while the foot at the bottom of the bracket is made to accept Vixen/Synta-style finder bases, no base is included with this finder bracket. However, all the Vixen-style bases we sell separately (for example, #s FURB, CFURB, SCTFURB, XFURB) will work with this.
Specifications:
- Inside diameter of rings: 61.8mm
- Suitable for finder tubes between: 48mm to 56mm in diameter (not 31mm to 56mm as before, unless you replace screws)
- Width of rings: 13mm
- Inside distance between rings: 54mm
- Outside distance between rings: 80mm
- Weight (rings only): 4.8oz
- Weight (dovetail base): 1.5oz
- Made in Canada.
Please Note: This is a brand new item from Antares. Unfortunately, the machining and finish on all of these new brackets is not perfect. There can be some rough/sharp edges, scuff/nick marks, and/or unanodized spots on these finder brackets. For examples, please see photos 3 and 4 above. That's just how this item is.
Please Note: The latest shipment of this product from Antares has screws that are much shorter than before. Please do not purchase this item without reviewing the item specifications below to ensure that this will work for you. If you want to replace these 6 screws with longer ones, you need #8-32 screws (see our item # IHS-AH-TS02-1)
This is a new Antares quick-release finder bracket with two rings for 50mm finders. While the rings are the same as Antares' popular F50DTB rings, this new item can use the more commonly used Synta/Vixen style dovetail base for attachment to your telescope as compared to the Antares-proprietary style on the F50DTB rings..
Each ring includes three-point screw adjustment for precisely aligning your finder. This bracket can be used with finder tubes 1.2" - 2.2" in diameter. All metal with black matte finish and nylon screws.
Please note that while the foot at the bottom of the bracket is made to accept Vixen/Synta-style finder bases, no base is included with this finder bracket. However, all the Vixen-style bases we sell separately (for example, #s FURB, CFURB, SCTFURB, XFURB) will work with this.
Specifications:
- Inside diameter of rings: 61.8mm
- Suitable for finder tubes between: 48mm to 56mm in diameter (not 31mm to 56mm as before, unless you replace screws)
- Width of rings: 13mm
- Inside distance between rings: 54mm
- Outside distance between rings: 80mm
- Weight (rings only): 4.8oz
- Weight (dovetail base): 1.5oz
- Made in Canada.
Other Information
- Country of Manufacture: Canada
