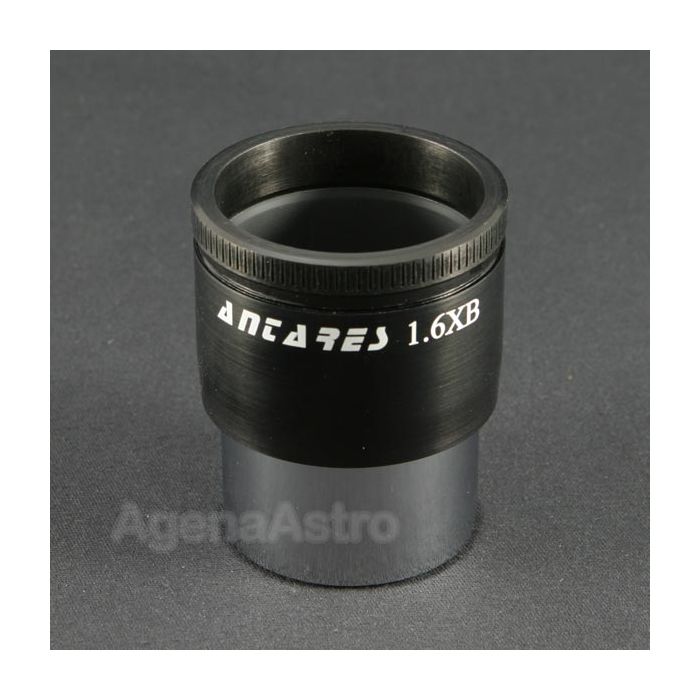

Antares 2" 1.6x Barlow Lens with Twist-Lock Adapter
This item has been discontinued by Agena and we no longer offer this.
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available.
- This item is out of stock.
- We have no ETA from the manufacturer at this time.
- Sign up for back-in-stock alerts to be notified when this item becomes available.
New model with twist lock adapter instead of set-screws.
For observers who want to power-up their 2" eyepieces, the Antares model 2UBSTL barlow lens with twist lock offers a 1.6x increase in magnification and reduced spherical aberration with all oculars. With a clear aperture of 1.64" (41.8mm) and a short length tube, this fully multicoated achromatic design will work with telescopes with the 2" format, including those using a 2" diagonal.
This new version of Antares' popular 2UBS barlow features an integrated twist-lock adapter / clamping mechanism to securely center and hold your eyepiece. The inner compression ring is made of polypropylene and will not mar your eyepieces.
Features edge-blackened elements, and internal baffling. When used with a diagonal, this barlow will provide approximately 2.4x if placed before the diagonal or 1.6x if inserted into the diagonal.
Specifications:
- Barrel size: 2" / 50.8mm
- Magnification factor: 1.6x
- Type: Achromatic
- Coatings: Fully multicoated, Blackened lens edges
- Clear aperture = 1.64" / 41.8mm
- Weight: 9.2oz / 261g
- Total length: 2.87" / 73mm (+/- 2mm depending on exact position of clamping stop)
- Length of lower chrome barrel: 1.16" / 29.6mm
- Length of upper black barrel: 1.71" / 43.4mm
- Maximum width = 2.35" / 59.8mm
- Filter threads: Yes (Standard 2" filter threads, M48x0.75)
- End caps: Yes (1 - lower only) but subject to change without notice
- Country: Assembled in Canada using Japanese optics
Note that the use of any optical element like barlows and focal reducers changes the focus point of your telescope, requiring additional in-focus or out-focus travel. The exact amount of focus travel required will depend on the optics and mechanics of your specific set-up (telescope, diagonal (if used), barlow, and eyepiece). Hence, be aware that you may not be able to reach focus with all eyepieces or in all configurations with a given barlow.
Please note: A couple of tiny dust particles between lens elements, uneven lens edge blackening, very minor coating blemishes, or even a very small fine lens scratch or two are very common in this Antares product and must be accepted as normal. However, these will not impact optical performance.
New model with twist lock adapter instead of set-screws.
For observers who want to power-up their 2" eyepieces, the Antares model 2UBSTL barlow lens with twist lock offers a 1.6x increase in magnification and reduced spherical aberration with all oculars. With a clear aperture of 1.64" (41.8mm) and a short length tube, this fully multicoated achromatic design will work with telescopes with the 2" format, including those using a 2" diagonal.
This new version of Antares' popular 2UBS barlow features an integrated twist-lock adapter / clamping mechanism to securely center and hold your eyepiece. The inner compression ring is made of polypropylene and will not mar your eyepieces.
Features edge-blackened elements, and internal baffling. When used with a diagonal, this barlow will provide approximately 2.4x if placed before the diagonal or 1.6x if inserted into the diagonal.
Specifications:
- Barrel size: 2" / 50.8mm
- Magnification factor: 1.6x
- Type: Achromatic
- Coatings: Fully multicoated, Blackened lens edges
- Clear aperture = 1.64" / 41.8mm
- Weight: 9.2oz / 261g
- Total length: 2.87" / 73mm (+/- 2mm depending on exact position of clamping stop)
- Length of lower chrome barrel: 1.16" / 29.6mm
- Length of upper black barrel: 1.71" / 43.4mm
- Maximum width = 2.35" / 59.8mm
- Filter threads: Yes (Standard 2" filter threads, M48x0.75)
- End caps: Yes (1 - lower only) but subject to change without notice
- Country: Assembled in Canada using Japanese optics
Note that the use of any optical element like barlows and focal reducers changes the focus point of your telescope, requiring additional in-focus or out-focus travel. The exact amount of focus travel required will depend on the optics and mechanics of your specific set-up (telescope, diagonal (if used), barlow, and eyepiece). Hence, be aware that you may not be able to reach focus with all eyepieces or in all configurations with a given barlow.
Please note: A couple of tiny dust particles between lens elements, uneven lens edge blackening, very minor coating blemishes, or even a very small fine lens scratch or two are very common in this Antares product and must be accepted as normal. However, these will not impact optical performance.
| Product Status | discontinued - agena | ||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Free Shipping Graphic | Free US Shipping | ||||||||||||||||||||||||||||||||||||||||||||
| Special Text Below Specs |
|
||||||||||||||||||||||||||||||||||||||||||||
| Hide Found a better Shipped Price on Frontend? | No |
| Size Format | 2 inch |
|---|---|
| Magnification Factor | 1.6x |
| Number of Lens Elements | 2 |
| Lens Coatings | Fully multicoated |
| Total Length | 2.87 inches / 73 mm |
| Length of Nosepiece | 1.17 inches / 29.6 mm |
| Outside Length of Upper Body | 1.71 inches/43.4 mm |
| Insertion Depth | |
| Max Diameter Excluding Thumbscrew | 2.35 inches/ 59.8 mm |
| Clear Aperture | 1.65 inches / 41.8 mm |
| Weight | 9.2 oz / 261 g |
| Barlow Lens Cell Removable | No |
| Filter Threads at Bottom of Barlow Cell | Yes - 2" (M48x0.75) Filter Threads |
| Filter Threads Between Barlow Cell and Tube | N/A |
| Barrel Type | Smooth-sided |
| Compatible Agena Bolt Case (with Screw Removed) | |
| Compatible Bolt Case (with Screw Attached) | N/A |
| Number of Thumbscews | 0 |
| Thumbscrew Thread Specification | N/A |
| End Caps (Subject to change without notice) | |
| Compression Band/Ring in Eyepiece Holder | Yes |
| Country of Manufacture | Canada |
