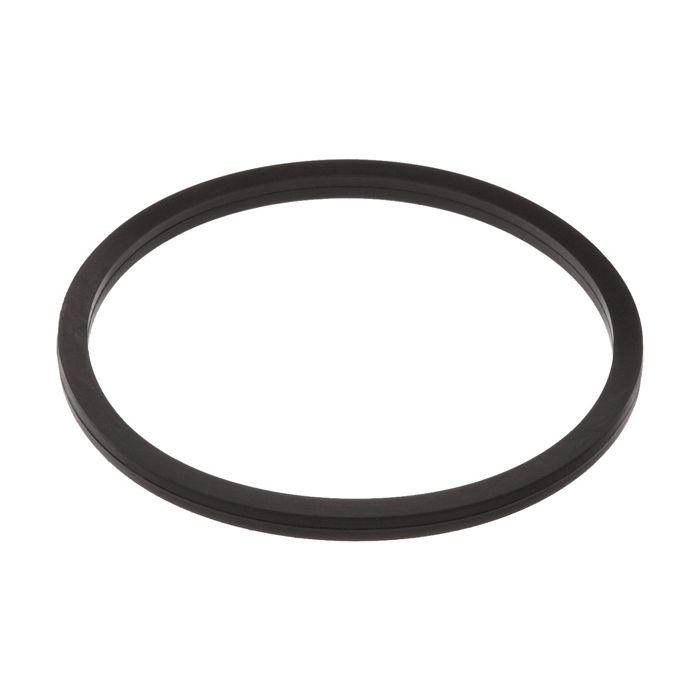

O-Ring, Rubber, Square, OD=1-7/8" (48mm), ID=1-11/16" (43mm)
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available.
- This item is out of stock.
- We have no ETA from the manufacturer at this time.
- Sign up for back-in-stock alerts to be notified when this item becomes available.
Lower 48 States:
Orders over $50 ship free within the Lower 48 using a carrier and service we select based on your items and delivery location. Faster shipping options may be available at checkout.
U.S. Outside the Lower 48 (AK, HI, PR):
Free shipping on orders over $50 applies to many—but not all—items. Add items to your cart and enter your ZIP code to see available shipping options and any costs.
International Orders:
Free shipping does not apply to international orders. You’ll see available shipping options and costs during checkout. Some items can’t be shipped internationally due to size or manufacturer restrictions. Duties, taxes, brokerage fees, and tariffs are not included and are the customer’s responsibility.
- Buy 2 for $1.75 each and save 13%
Rubber O-ring with square cross section profile. Sold individually.
If the male SCT thread on your telescope is shorter than the female SCT threads on an SCT diagonal, then the diagonal will not lock and will continue to rotate freely. Inserting this rubber O ring into the SCT adapter on the diagonal and then screwing it on to the telescope will overcome this issue. Depending on the difference in lengths of the SCT threads on either side (the telescope and the diagonal), you may need to stack more than one O-ring.
Useful Resources
Specifications:
- Nominal Inside Diameter: 1-11/16 in (1.68 in, 42.86 mm)
- Nominal Outside Diameter: 1-7/8 in (1.88 in, 47.62 mm)
- Nominal Width: 3/32 in (0.09 in, 2.38 mm)
- Cross Section Shape: Square
- Material: Buna-N (Nitrile Rubber)
- Temperature Range: -30 to 250° F
- Hardness: 70A Shore Durometer
- Color: Black
Other Information
- Country of Manufacture: United States
Rubber O-ring with square cross section profile. Sold individually.
If the male SCT thread on your telescope is shorter than the female SCT threads on an SCT diagonal, then the diagonal will not lock and will continue to rotate freely. Inserting this rubber O ring into the SCT adapter on the diagonal and then screwing it on to the telescope will overcome this issue. Depending on the difference in lengths of the SCT threads on either side (the telescope and the diagonal), you may need to stack more than one O-ring.
Rubber O-ring with square cross section profile. Sold individually.
If the male SCT thread on your telescope is shorter than the female SCT threads on an SCT diagonal, then the diagonal will not lock and will continue to rotate freely. Inserting this rubber O ring into the SCT adapter on the diagonal and then screwing it on to the telescope will overcome this issue. Depending on the difference in lengths of the SCT threads on either side (the telescope and the diagonal), you may need to stack more than one O-ring.
Useful Resources
Specifications:
- Nominal Inside Diameter: 1-11/16 in (1.68 in, 42.86 mm)
- Nominal Outside Diameter: 1-7/8 in (1.88 in, 47.62 mm)
- Nominal Width: 3/32 in (0.09 in, 2.38 mm)
- Cross Section Shape: Square
- Material: Buna-N (Nitrile Rubber)
- Temperature Range: -30 to 250° F
- Hardness: 70A Shore Durometer
- Color: Black
Other Information
- Country of Manufacture: United States
