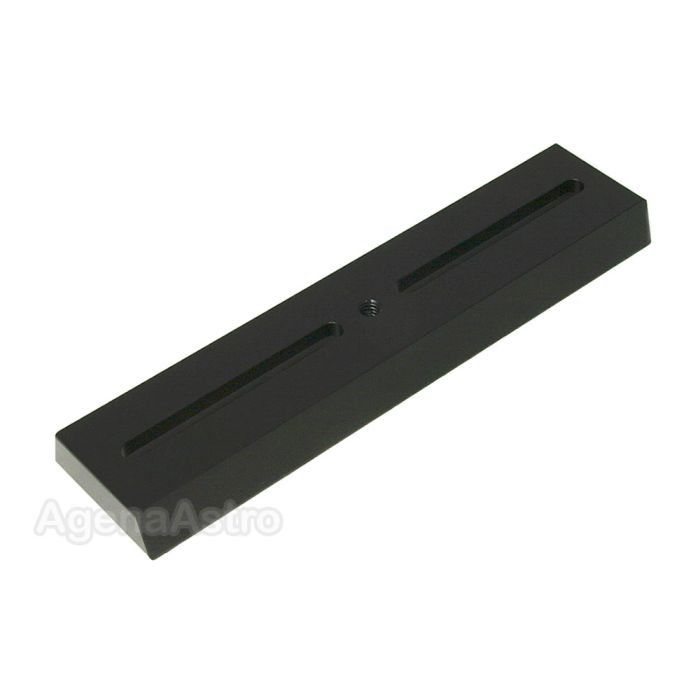

Solid "V" Series or Vixen-Style Dovetail Bar. Fits many popular telescope mounts from Celestron, Meade, Orion, Sky-Watcher, Vixen and others.
Features a single 1/4"-20 threaded hole in the middle, and two long slots on either side of this hole. These slots make it easy to use this dovetail rail with a variety of hole spacing on telescope tubes or rings, making this one of our most versatile dovetail rails. Will accommodate screws/tube rings spaced between 28mm (1.10") and 155mm (6.10").
The slots can accommodate 6mm or 1/4" screws and is countersunk on the bottom for screw heads up to 14.8mm in diameter. Each slot is almost 71mm (2.79") long.
Total dovetail plate length is 180mm (approx. 7.1") long and weighs 7.6 oz. 42.4mm (1.67") wide at the bottom and 35.8mm (1.41") wide at the top. Total thickness is 15mm (0.59").
Old part #: DR03, New part #: VR-180A
Other Information
- Country of Manufacture: China
Solid "V" Series or Vixen-Style Dovetail Bar. Fits many popular telescope mounts from Celestron, Meade, Orion, Sky-Watcher, Vixen and others.
Features a single 1/4"-20 threaded hole in the middle, and two long slots on either side of this hole. These slots make it easy to use this dovetail rail with a variety of hole spacing on telescope tubes or rings, making this one of our most versatile dovetail rails. Will accommodate screws/tube rings spaced between 28mm (1.10") and 155mm (6.10").
The slots can accommodate 6mm or 1/4" screws and is countersunk on the bottom for screw heads up to 14.8mm in diameter. Each slot is almost 71mm (2.79") long.
Total dovetail plate length is 180mm (approx. 7.1") long and weighs 7.6 oz. 42.4mm (1.67") wide at the bottom and 35.8mm (1.41") wide at the top. Total thickness is 15mm (0.59").
Old part #: DR03, New part #: VR-180A
Solid "V" Series or Vixen-Style Dovetail Bar. Fits many popular telescope mounts from Celestron, Meade, Orion, Sky-Watcher, Vixen and others.
Features a single 1/4"-20 threaded hole in the middle, and two long slots on either side of this hole. These slots make it easy to use this dovetail rail with a variety of hole spacing on telescope tubes or rings, making this one of our most versatile dovetail rails. Will accommodate screws/tube rings spaced between 28mm (1.10") and 155mm (6.10").
The slots can accommodate 6mm or 1/4" screws and is countersunk on the bottom for screw heads up to 14.8mm in diameter. Each slot is almost 71mm (2.79") long.
Total dovetail plate length is 180mm (approx. 7.1") long and weighs 7.6 oz. 42.4mm (1.67") wide at the bottom and 35.8mm (1.41") wide at the top. Total thickness is 15mm (0.59").
Old part #: DR03, New part #: VR-180A
Other Information
- Country of Manufacture: China
