Agena Synta/Vixen Style Dovetail Mounting Base/Shoe for Finders - Flat Base for Takahashi Scopes (Black)
This item has been discontinued by Agena and we no longer offer this.
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available.
- This item is out of stock.
- We have no ETA from the manufacturer at this time.
- Sign up for back-in-stock alerts to be notified when this item becomes available.

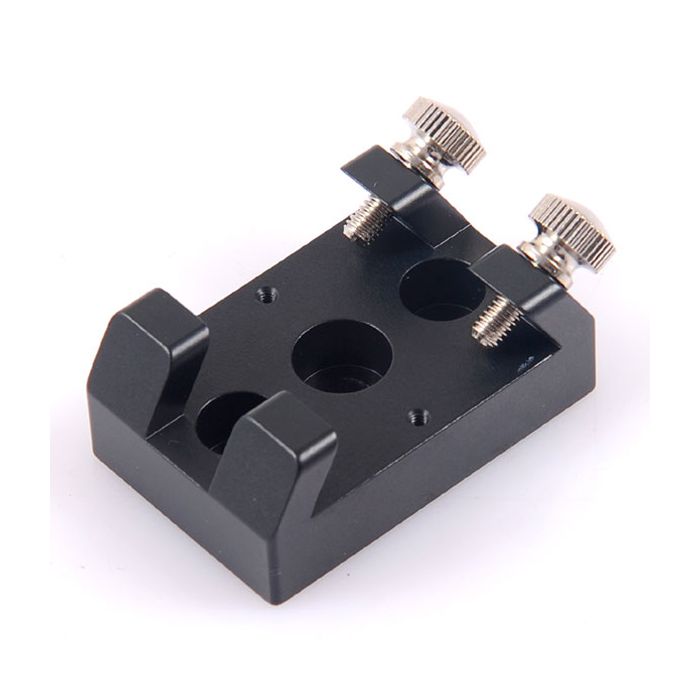

Black Synta/Vixen-style dovetail base for finders and finder brackets with flat base for Takahashi telescopes # TFURB-B.
This base is 45mm wide (perpendicular to the optical axis) and 30mm long (along the optical axis. It has 3 mounting holes, all of which are unthreaded:
- The center hole has an inside diameter of 6.3mm so it will accept 6mm or 1/4" screws. Your bolt/screw head diameter should not exceed 10.3mm.
- There are two more holes on either side of the center one. The inside diameter is 5mm and your bolt/screw head diameter should not exceed 8.9mm. The center-to-center spacing between these two holes is 28mm (1.1").
This finder base will work with most compatible bracket designs from Celestron, Orion, Synta, Vixen, etc. that are no wider than 34mm at the bottom. Please see the photos for detailed dimensions and to determine compatibility with your telescope or finder/finder bracket - we are unable to make specific recommendations about compatibility.
The base is made of die-cast aluminum and features two locking thumbscrews. Style of locking thumbscrews may vary from what is shown in the photos above. No mounting screws are included.
This base has a smooth black finish. A different version with a silver finish is available separately (see item # TFURB-S). The base wighs 1.5oz.
Other Information
- Country of Manufacture: China
Black Synta/Vixen-style dovetail base for finders and finder brackets with flat base for Takahashi telescopes # TFURB-B.
This base is 45mm wide (perpendicular to the optical axis) and 30mm long (along the optical axis. It has 3 mounting holes, all of which are unthreaded:
- The center hole has an inside diameter of 6.3mm so it will accept 6mm or 1/4" screws. Your bolt/screw head diameter should not exceed 10.3mm.
- There are two more holes on either side of the center one. The inside diameter is 5mm and your bolt/screw head diameter should not exceed 8.9mm. The center-to-center spacing between these two holes is 28mm (1.1").
This finder base will work with most compatible bracket designs from Celestron, Orion, Synta, Vixen, etc. that are no wider than 34mm at the bottom. Please see the photos for detailed dimensions and to determine compatibility with your telescope or finder/finder bracket - we are unable to make specific recommendations about compatibility.
The base is made of die-cast aluminum and features two locking thumbscrews. Style of locking thumbscrews may vary from what is shown in the photos above. No mounting screws are included.
This base has a smooth black finish. A different version with a silver finish is available separately (see item # TFURB-S). The base wighs 1.5oz.
Black Synta/Vixen-style dovetail base for finders and finder brackets with flat base for Takahashi telescopes # TFURB-B.
This base is 45mm wide (perpendicular to the optical axis) and 30mm long (along the optical axis. It has 3 mounting holes, all of which are unthreaded:
- The center hole has an inside diameter of 6.3mm so it will accept 6mm or 1/4" screws. Your bolt/screw head diameter should not exceed 10.3mm.
- There are two more holes on either side of the center one. The inside diameter is 5mm and your bolt/screw head diameter should not exceed 8.9mm. The center-to-center spacing between these two holes is 28mm (1.1").
This finder base will work with most compatible bracket designs from Celestron, Orion, Synta, Vixen, etc. that are no wider than 34mm at the bottom. Please see the photos for detailed dimensions and to determine compatibility with your telescope or finder/finder bracket - we are unable to make specific recommendations about compatibility.
The base is made of die-cast aluminum and features two locking thumbscrews. Style of locking thumbscrews may vary from what is shown in the photos above. No mounting screws are included.
This base has a smooth black finish. A different version with a silver finish is available separately (see item # TFURB-S). The base wighs 1.5oz.
Other Information
- Country of Manufacture: China
